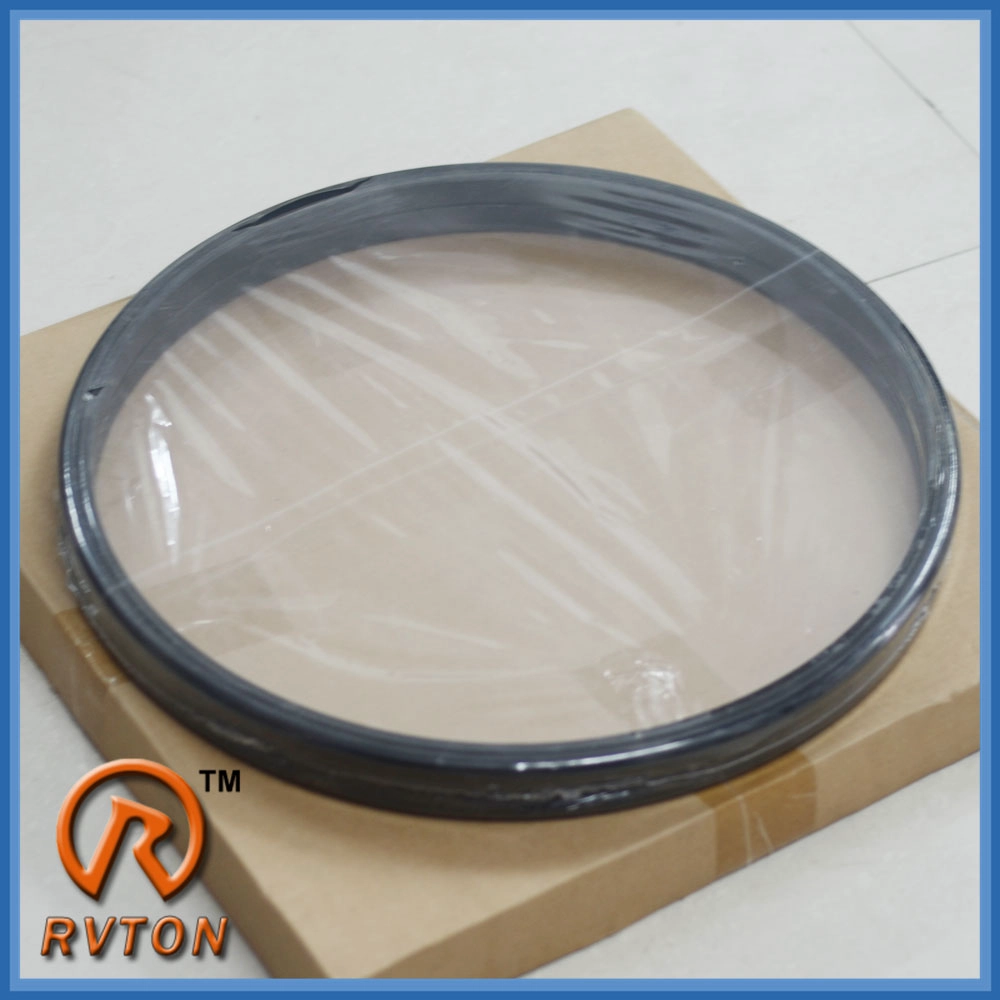

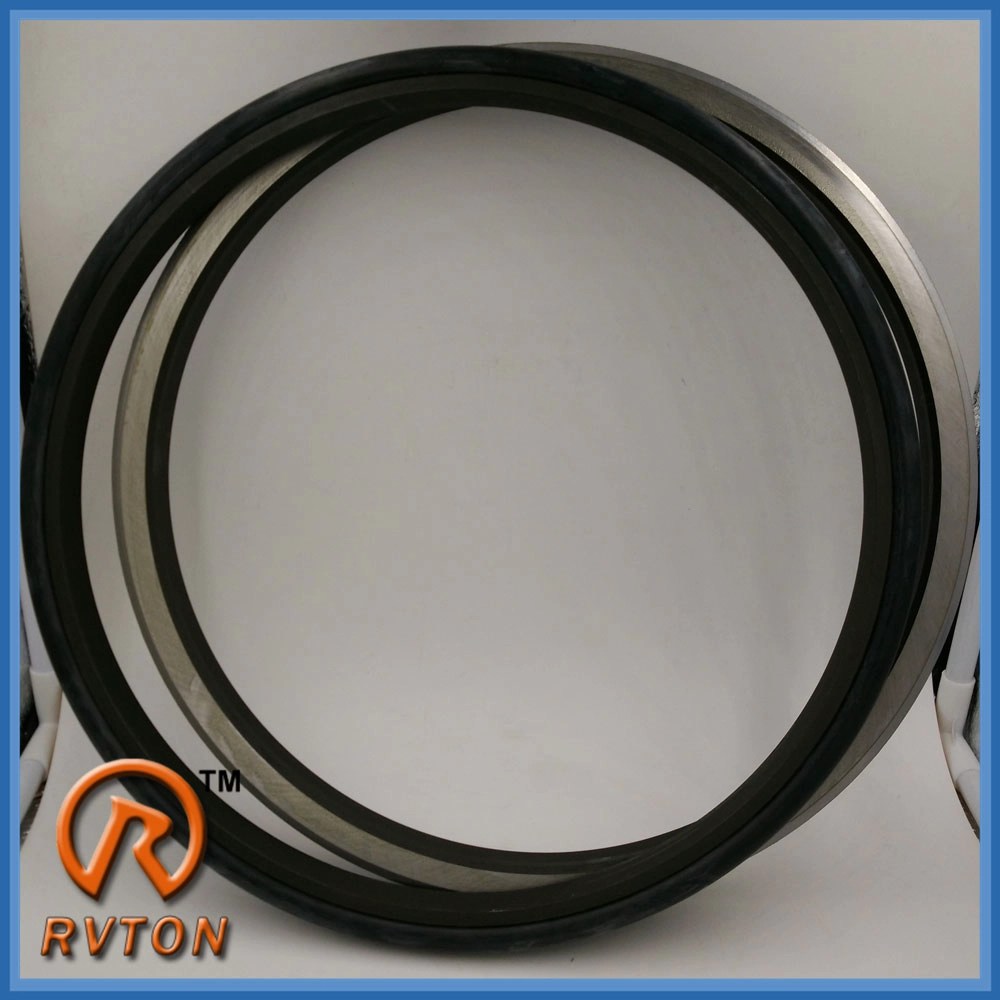

179-6863 / CR4050 Caterpillar Heavy Duty Duo Cone Seal Factory

  • 179-6863 / CR4050 Caterpillar Heavy Duty Duo Cone Seal Factory
  • Type: Standard
  • Dimensions: 505 mm
  • MOQ: 1 set
  • Process: Forged
  • Hardness: HRC58-62
  • Life: 5000 hours
  • Warranty: 18 months
  • Colour: Black
  • Metal: Steel GCr15
  • Rubber: Nitrile / silicone / Viton
  •
  • Product Details

179-6863 / CR4050 Caterpillar Heavy Duty Duo Cone Seal Factory


  • 179-6863 / CR4050 Caterpillar Heavy Duty Duo Cone Seal Factory
  • 505 mm
  • 6.2 kg
  • Material: steel Gcr15 / Cast iron + NBR60 / Silicone / Viton o rings
  • MOQ 1 pcs
  • Packing: Shrink films + neutral box + standard export carton + fixing band + wood pallets / wood box
  • Delivery days: 10 sets above take 30 days.
  • Payment: T/T, western union

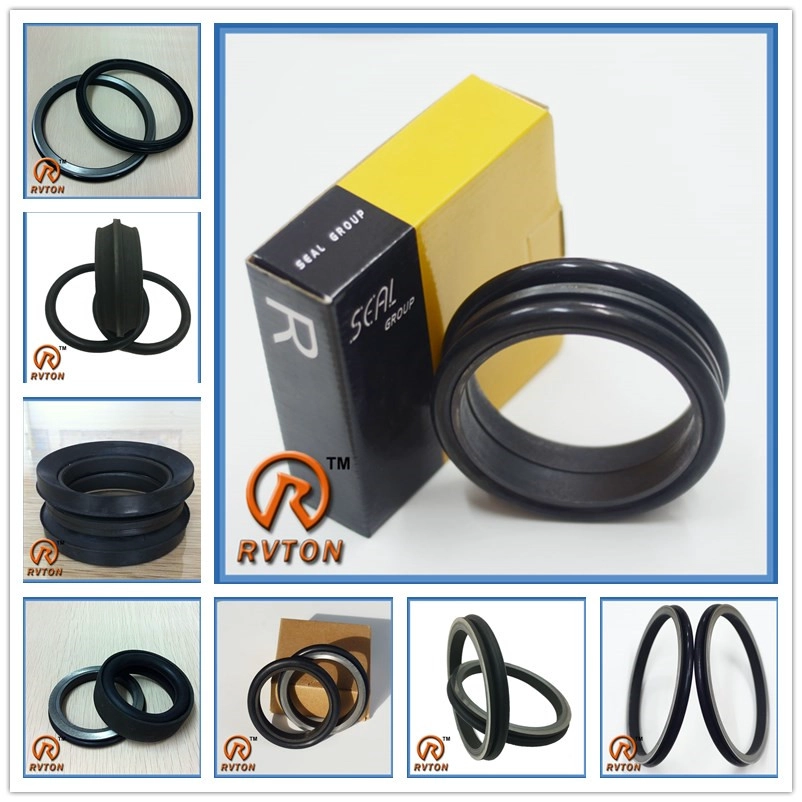

We offer a wide range of OEM part numbers floating seal. ID38MM size from to 700 mm.

Komatsu, Caterpillar, Hitachi, Kubota, Kobelco, Danapac, Goetz, Trelleborg...

model# Carrier roller Bottom Roller Front idler Final drive
PC60 110-30-00085 140-30-00040 141-30-00610
PC200 20Y-30-00040 20Y-30-00090 10Y-30-00100 150-27-00026
E200B 1M8746 8E5609 5P0204
E320 9W7220 8E5609 9W7225
D60 141-30-00616 141-30-00616 141-30-00610 141-27-00015
D85ESS-1 154-30-00832 154-30-00832 154-30-00832 192-27-00022
D3 9E6690 9E7216 9E6691

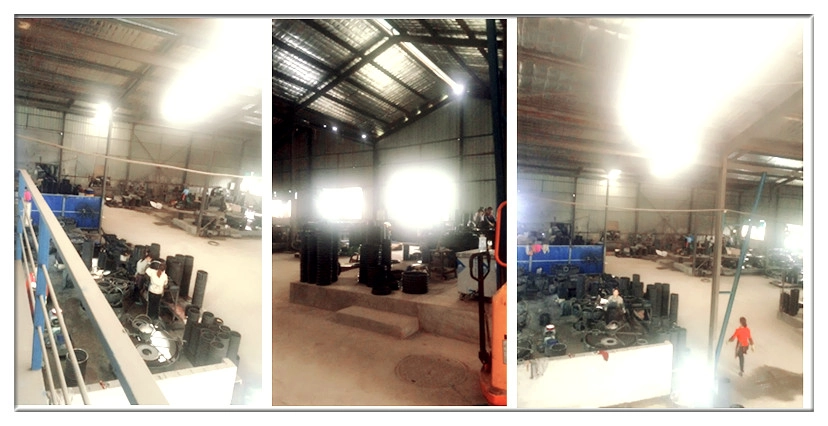

About Rvton plant



We have three Floating Seal Production lines, monthly production reached more than 50,000 sets.

There are two kinds of material:
Steel GCr15 / 100cr6 and cast iron 15Cr3Mo
metal Steel GCr15 / 100Cr6 Casting 15Cr3Mo
Surface smoothness / roughness: ≤Ra0.2μm 6.3-12.5μm
Smooth Face ≤Ra0.15μm ≤Ra0.1μm
Pressure load ≤0.15MPa ≤0.3 MPa
Forging production line speed 2 m / s 3 m / s
temperature range -100~200 ℃ -40~160 ℃
Hardness (HRC) 58-62 60-68
Life (h) 3000 5000

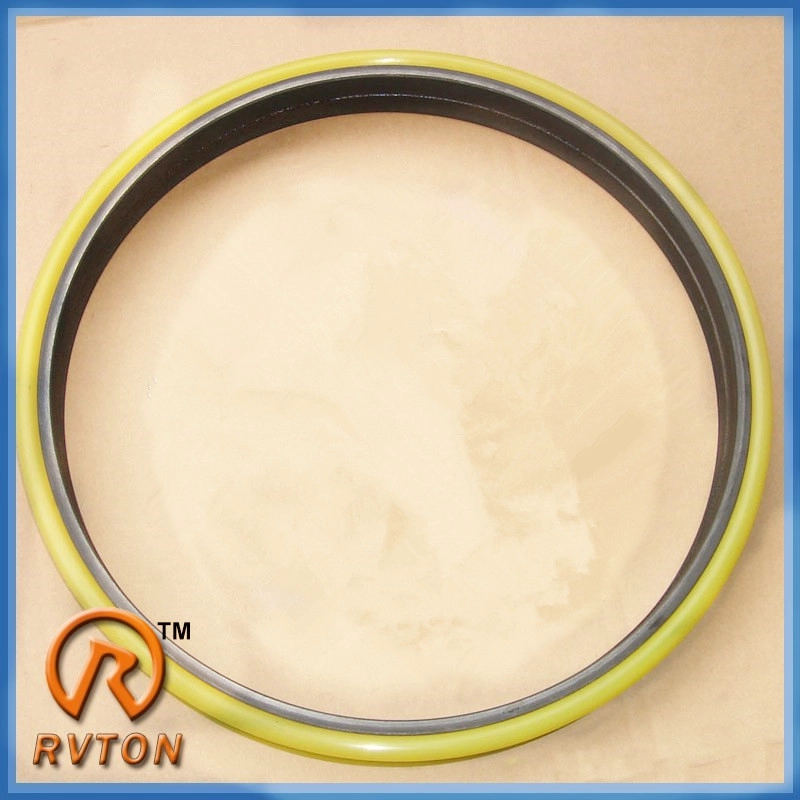

NBR60, silicone rubber and fluorine rubber ring provided
 Material  NBR60  Silica gel  FKM
 Hardness  60 ° ~65 °  60 ° ~65 °  72 ° ~78 °
 Minimum tensile strength  11MPa  10.6Mpa  11MPa
 Minimum elongation at break  300%  400%  260%
 Permanent deformation  12%  8%  25%
 Temperature range  -40 ℃ - + 120 ℃  -49 ℃ - + 230 ℃  -30 ℃ - + 250 ℃
 Specific gravity (g / cm3) is  1.25  1.2  1.8

- Why Rvton provide so fast?

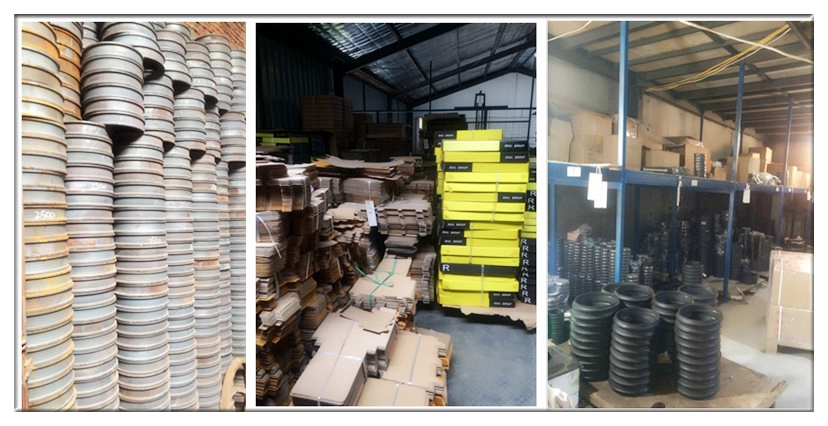

-as we have a large inventory of raw materials, packaging and finished products.

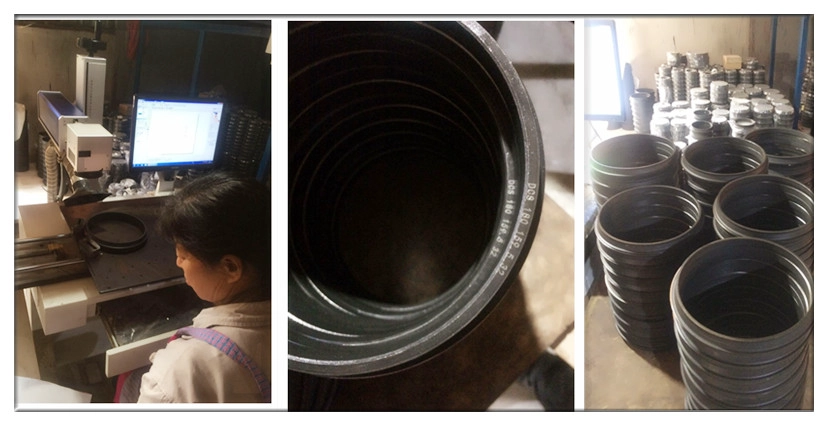

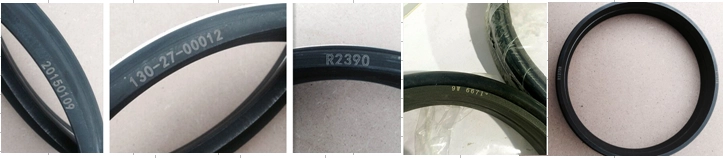

- How to make print on metal rings?
- We use laser printer to print the part#, the size and the log upon your request

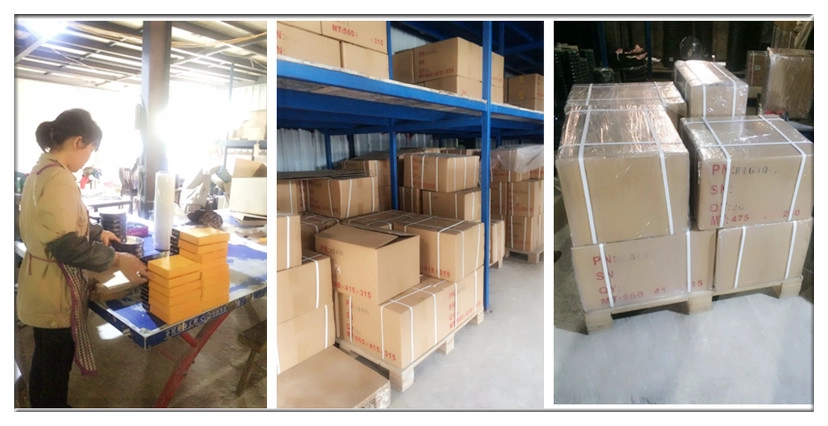

-Rvton Packing
 Brown/ Yellow inner box+Trasparent pp bag+Standard export carton
 Free wood pallet and wood carton will be offered upon your request

- Conveniant and economic transportation.


We in the middle of China with more conveniant shipping methords to Shanghai, Guangzhou, Qingdao, Shenzhen, Ningbo, Wuhan ...

With over 10 years exporting experience, better and economic shipping forwarders will be offered to you.



FAQ

 -You're Factory?

   Yes, our factory is located in Huangshi City, Hubei province, and established in 2004.



- How do you control the quality?

  Each seal is inspected 100% in each producing process.



- How long to make delivery?

  In three days with stock, if no stock, 15-30 days upon the order quantities.



- Can i buy one to test?

  Sure, sample order and tril order are offered for evaluation.


Warmly welcome to contact us and visit us! :)

www.sealgroupsupplier.com

 For more information, please contact me! Good offer will be sent to you.:)



Fay Xu

Sales Representative


E: floatingseal04@rvton.com

T / Whatsapp: 86 15327878823

Skype's: fay.xu3

Wechat: Rvtonseal04
