1456034 Mechanical Face Seal Supplier

  • 1.Lifetime: 5000hours / 8000hours
  • 2.Hardness: 58-62HRC / 62-68HRC
  • 3.Brong Ring Hardness: 60-65 °
  • 4.Material of seal: 100cr6 / Gcr15 / E52100 / 534A99 / SUJ2
  • 5.Inner diameter: 38mm-1000mm
  • 6.Material of O-ring: NBR / Viton / Silicon / HNBR
  • 7.Excess of Seal: Forging and Casting
  • 8.O-Ring Color: Black / Blue / Red / Custom
  • 9.Warranty: 18 months after shipment
  • 10.Accept OEM: Accept OEM
  • Product Details
Product Description

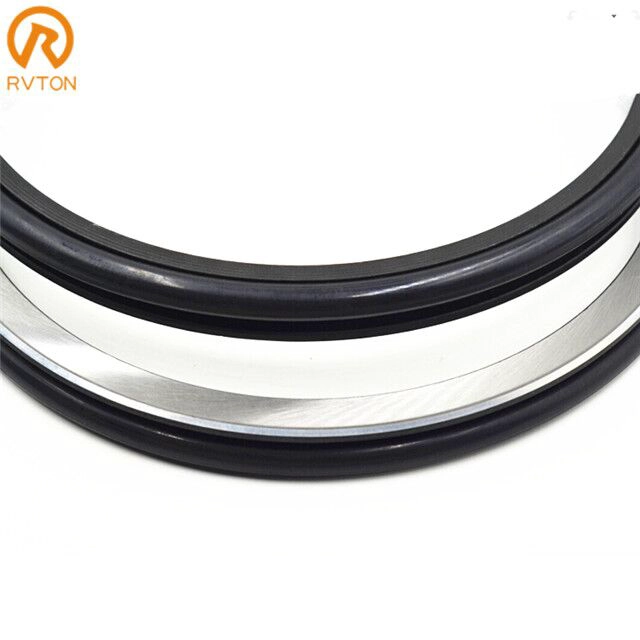

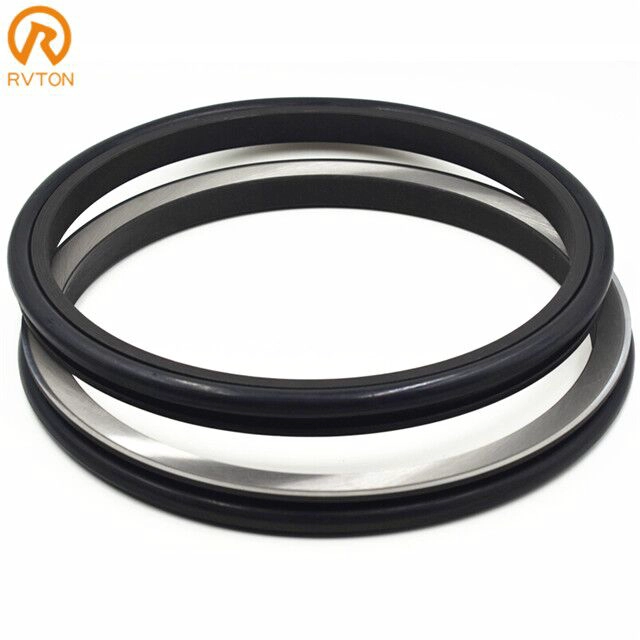

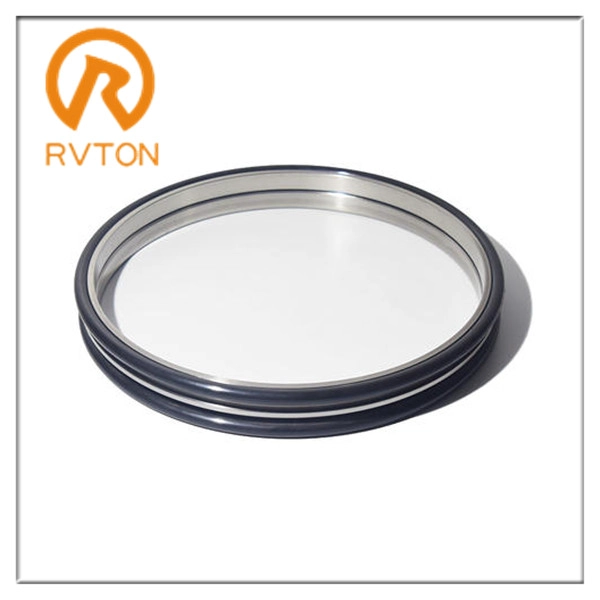

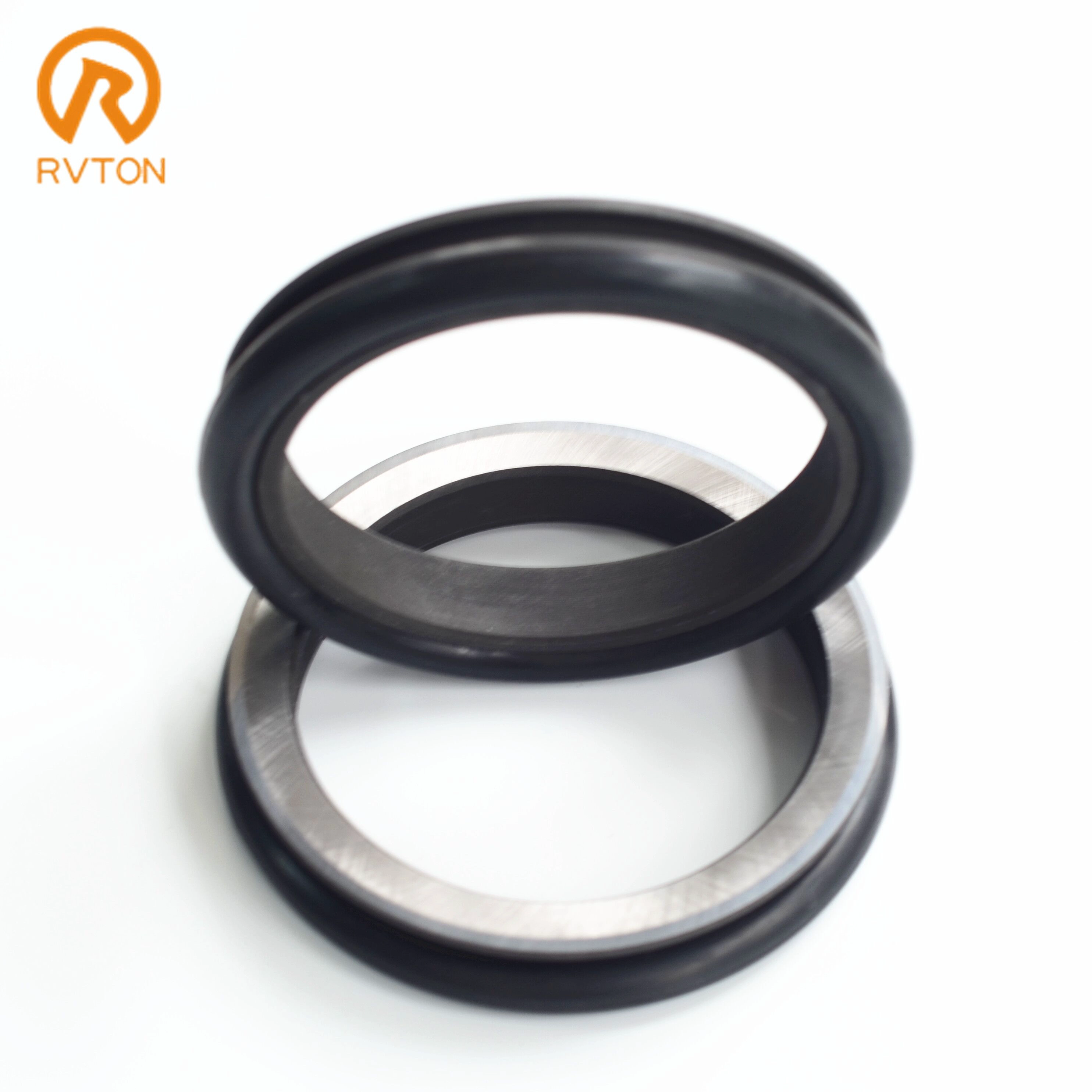

Product name: 1456034 floating seal
Material:GCr15+NBR60
OEM Number: 1456034
Working hardness:HRC58-62/62-68HRC
Used:Construction machinery,agricultural machinery,coal mining machinery
Product Show

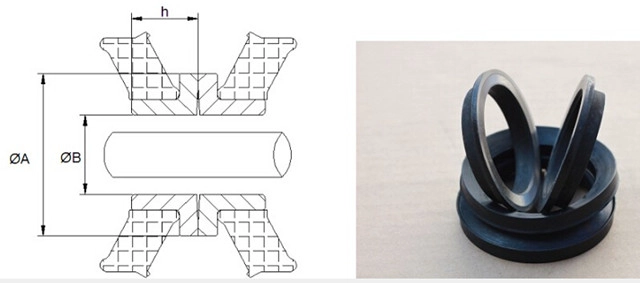

The seal group consists of metal rings and rubber rings.

Metal rings:

Surface finish / Coarseness Μ Ra 0.2 μm
Face End ≤ Ra 0.015 μm
Pressure A 0.3MPa
Forged line speed 2 m / From
Casting line speed 3 m / From
Temperature
 -100 ~ 200 ° C

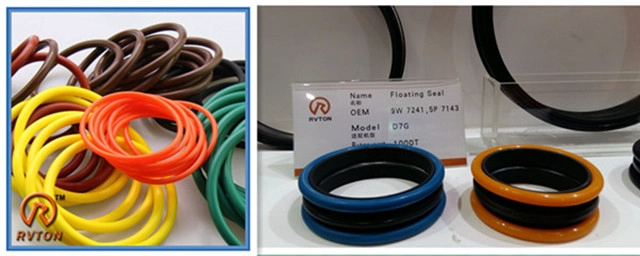

Rubber rings:

Set aside the difficulty 60 ° ~ 65 °
The minimum Tensile strength  11MPa
The minimum elongation at break  300%
Flexible Change  ± 5 °
Permanent deformation ≤ 12%


Advantages of our product:

1. Survival of high quality and competitive prices

2. Have long service life

3. Easy to install

4. High yield

5. Good performance

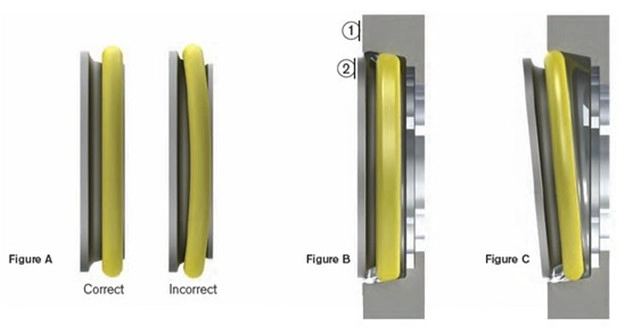

Method of installation:

1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.


2. Other methods: An auxiliary O-ring is fixed between the sealing surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied equally by pressure and auxiliary O-ring braces. Sealing the O-ring to ensure other mounting positions.

Also there are a lot of specifications which I list just a small part. Enjoy me for asking if you haven't found what you want. Thanks!

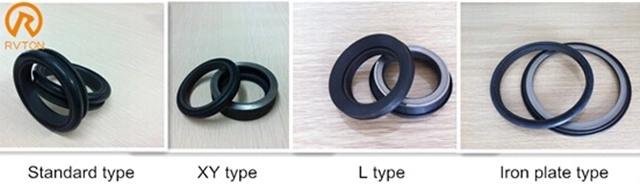

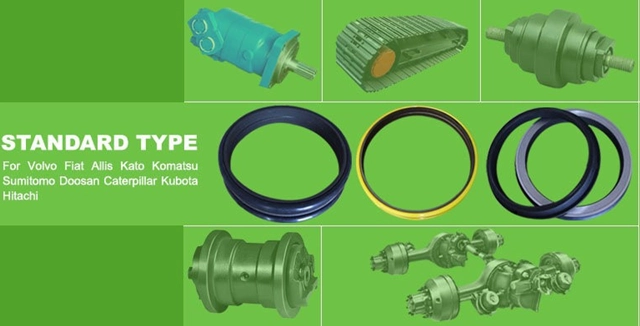

Standard type

4176379

38mm

51 mm

20.4mm

1791292

63.5mm

82.5mm

31.8mm

170-27-00010

130mm

151mm

32mm

9W 6668

163.3mm

191.2mm

38mm

9W 6672

182.3mm

210.3mm

38mm

9 W 3732

264.9mm

292.8mm

38mm

4066695

298mm

328mm

42 mm


L type

Product number

OD

Diameter

The height

U17386

62.1

47.1

10

U16187

72

54

10

U16186

87

66.9

11.6

655973C91

93

73.5

10

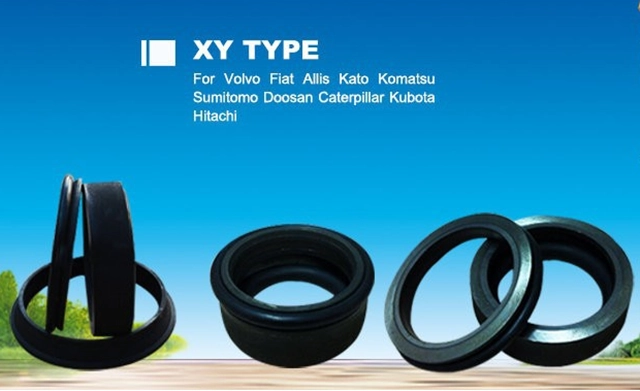

XY Type

Product number

OD

Diameter

The height

7T4080

70.5

53.7

31.5

7T0158

82.2

66.5

31

7T0159

93

76

32.5

7T0157

99

82

32.5

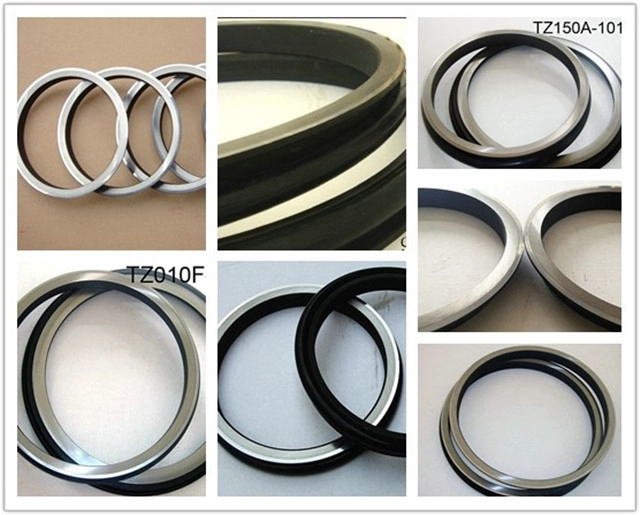

Iron plate type

Product number

OD

Diameter

The height

TZ300A-1010

180

164

9.7

TZ310B-1027

185

158.7

12.3

TZ550A-1010

210

186

11.4

TZ850A-1010

230

201

13.3

TZ150A-1010

260

216

13.3

TZ150F-1027

284

247

13.3

TZ200B-1010

290

248

13.3



About Packing:

There are three styles of our box. And we also have coaches and trays. We put the putative group in the box, then put several boxes in the boxes.


About Shipping:
Via Air forwarder / C forwarder / DHL / UPS / FEDEX / TNT ... We have many shipping forwarders made of copper for many years, reliable service and better shipping cost will be offered.



About our factory:

Our company's products are widely used on crawler dozen, excavators, heavy vehicles and machinery. All over the country and Southeast Asia, Europe and America, and customers always feel satisfied. Using the RVTON floating seal ringvale makes you even more powerful and successful.



We participated in all edition of Boma Shanghai China, we look forward to meeting in Boma Shanghai 2018, Bouma Germany 2019
