- Our Products: floating seals (duo cone seals, seal group, lifetime seals, heavy duty seals).
Material: 1) Steel Gcr15 / 100Cr6; Hardness: 58-62HRC
2) cast iron 15Cr3mo; Hardness: 60-68HRC

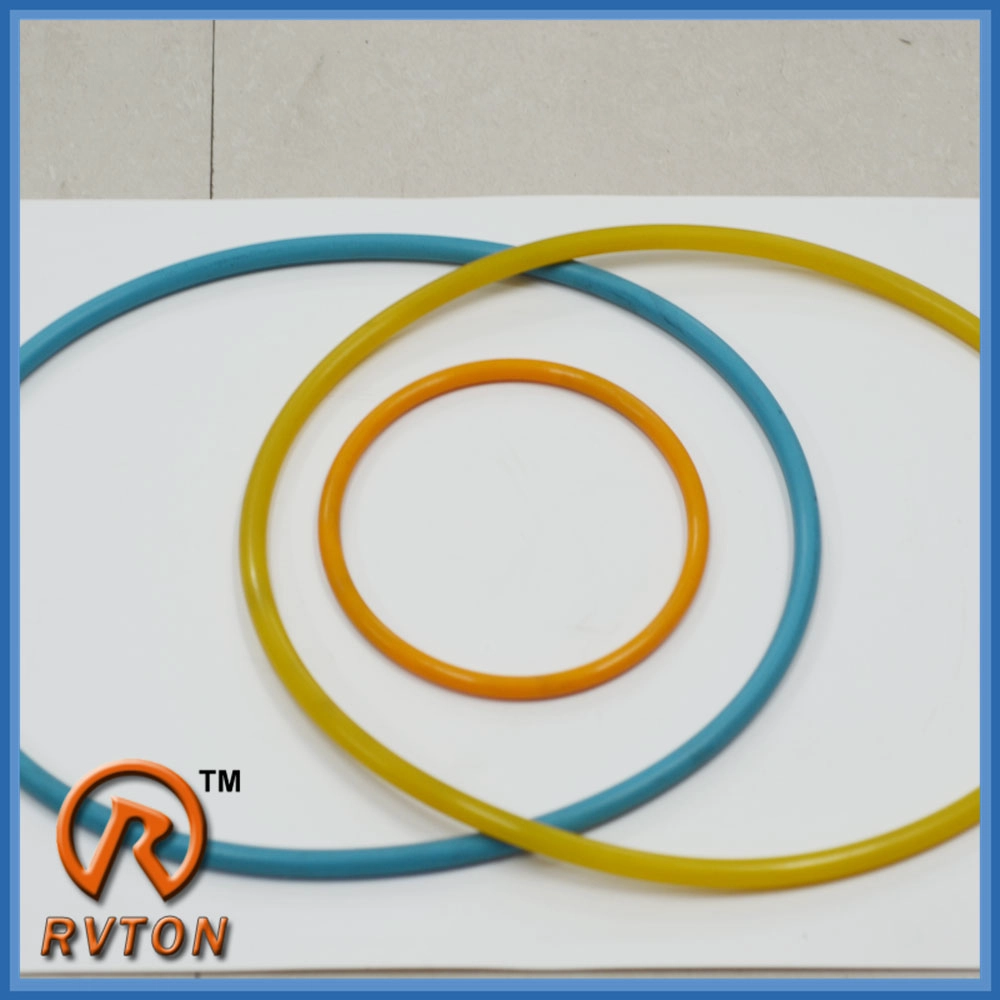

- Rubber Rings: NBR60, silicone, Viton, HNBR.
- Hardness: 58-62HRC / 60-68HRC
-It Is four types floating seals: Standard Type / XY-type / L type / iron plate type
XY-type L type iron plate Type Standard Type

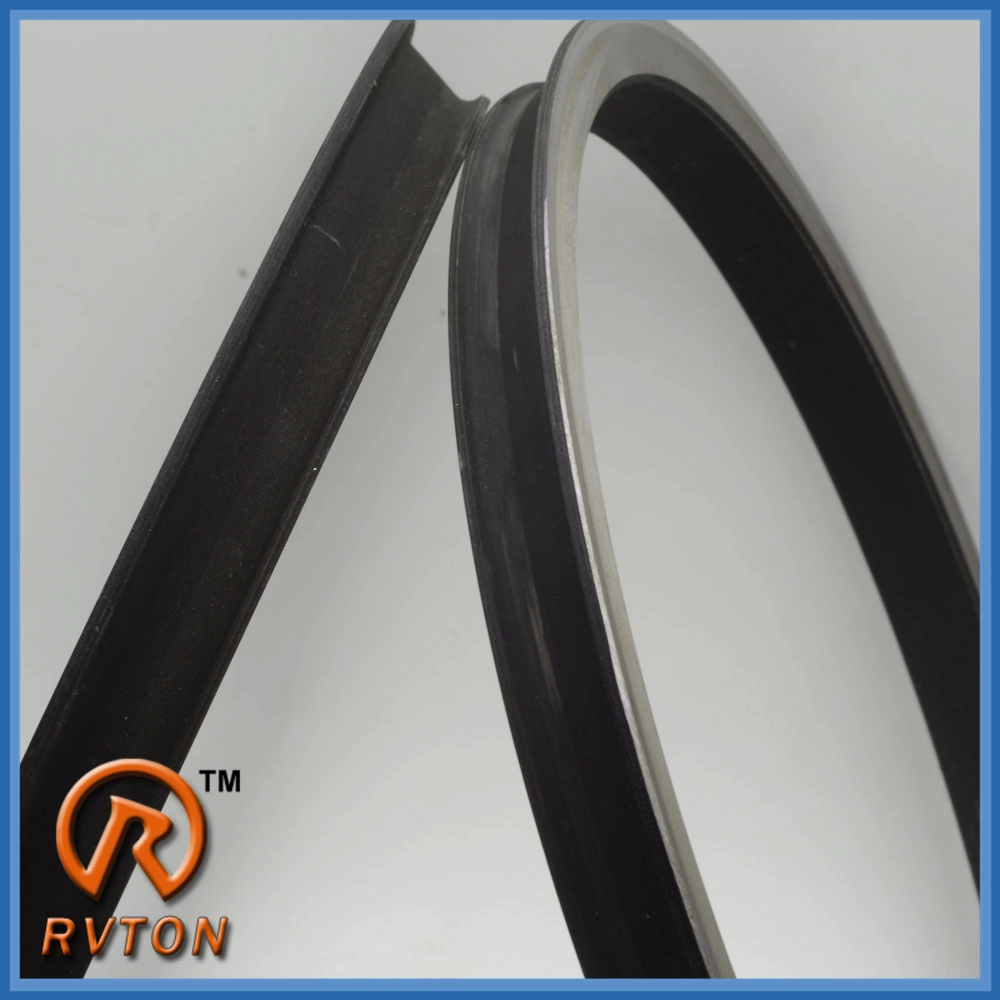

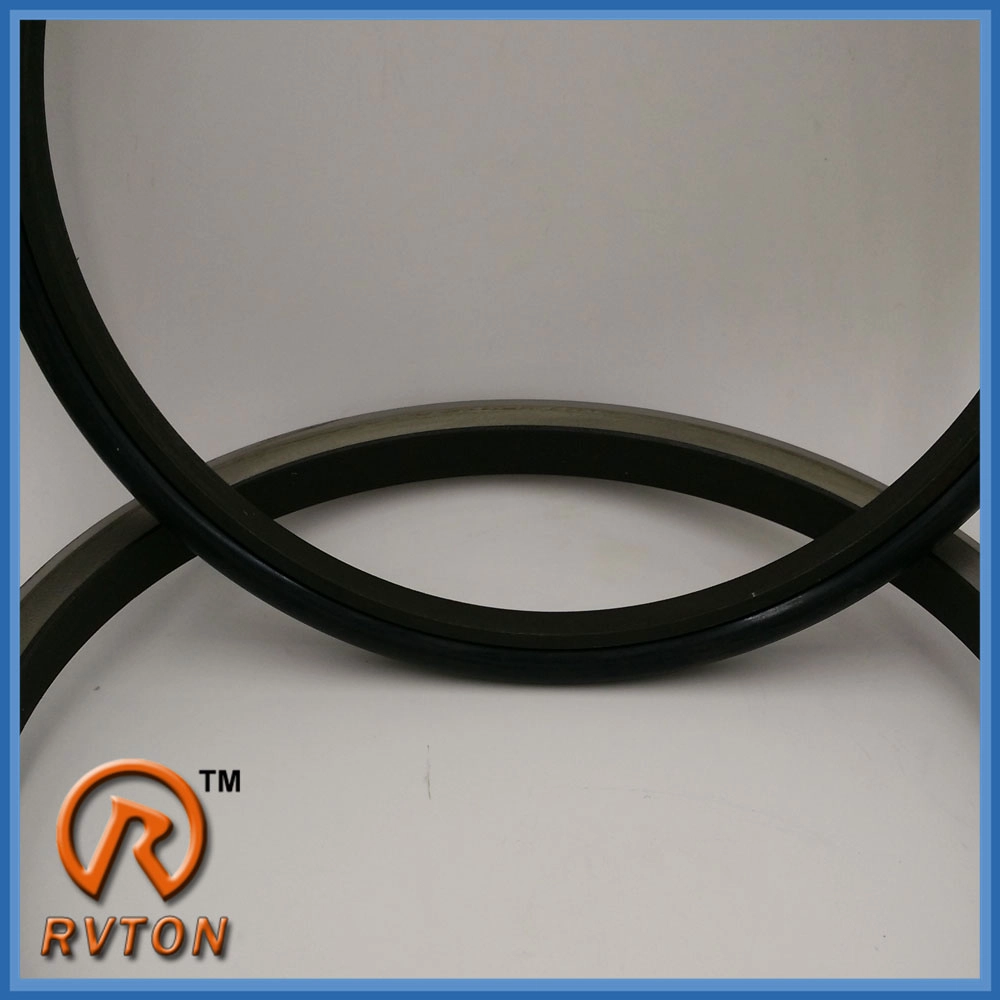

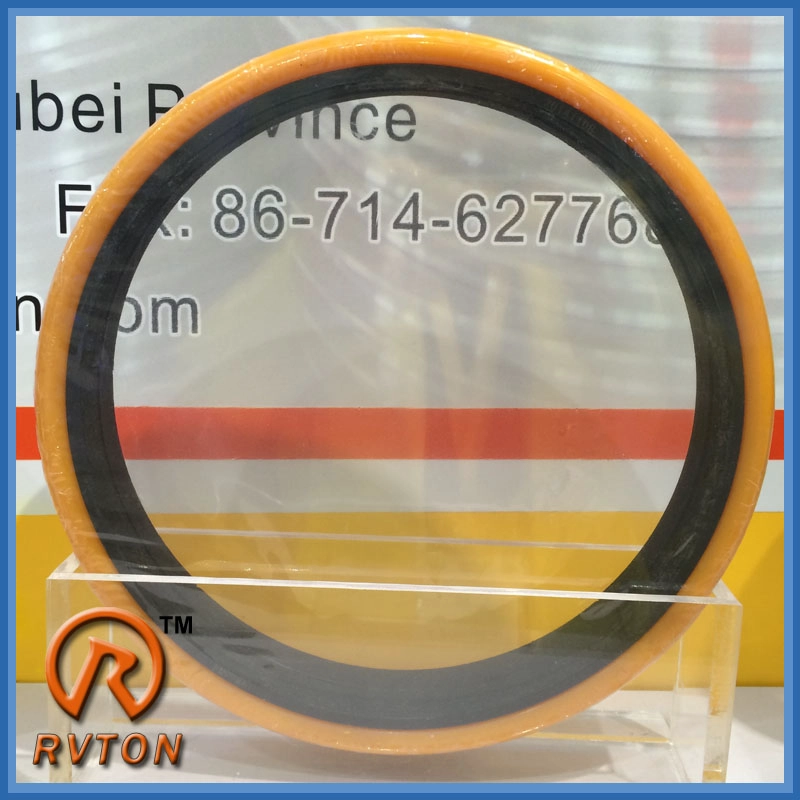

Specifically engineered for heavy duty, rotating applications, floating seals are designed to withstand extreme wear and tear. They consist of two identical metal seal rings mounted face-to-face in separate housings, and each metal ring is centered within its housing with an elastomeric element. This allows one half of the mechanical face seal to remain static in the housing, while the other half rotates and seals on the lapped surfaces.
-Heavy Industry: Mining, Construction, Agriculture -Tracked Vehicles: excavators, bulldozers, tractors, trucks ... -Axles -conveyor system -Tunnelbohrmaschine -Travel Engines, final drives, track rollers, idlers ..
-Heavy Industry: Mining, Construction, Agriculture
-Tracked Vehicles: excavators, bulldozers, tractors, trucks ...
-Travel Engines, final drives, track rollers, idlers ..
Floating Seals OEM for Komastu, Hitachi, Caterpillar, Trelleborg, Goetze, Kobelco, Kubota ...
TD0352 / 04
TD00611 / 02
58.845 to 20.500
Still other sizes and part numbers of the seal group please contact me!
1. With special tools Installation: The pressure is directly to the O-ring. As shown, the special tool between the metal floating ring and the rubber ring is mounted in the direction of the seat hole, the rubber ring is pressed evenly into the hole.
. 2 Other Methods of Installation: An auxiliary O-ring between the conical annular surface of the floating oil seal and sealing O-ring is attached (see figure). The ring of the floating oil seal evenly by the pressure and the auxiliary O-ring clamp the O-ring is applied to ensure the other correct installation position.
- As a manufacturer, we have been focused on the producing and researching floating seals for 13 years.
- Rvton is the Italy Top undercarriage parts company's regular supplier.
- Rvton floating seals are exported to Asia, Africa, Europe, the Middle East. North America, South America, Oceania.. ISO and TÜV certified.
- Support the new designs, the floating seals is made according to your drawings and samples.
- We keep regular goods in stock for fast delivery.
- Free printing service on the metal seal rings. Log, size, part # are offered upon your request.
For more information please contact me! The catalog and price list will be sent to you upon request :)

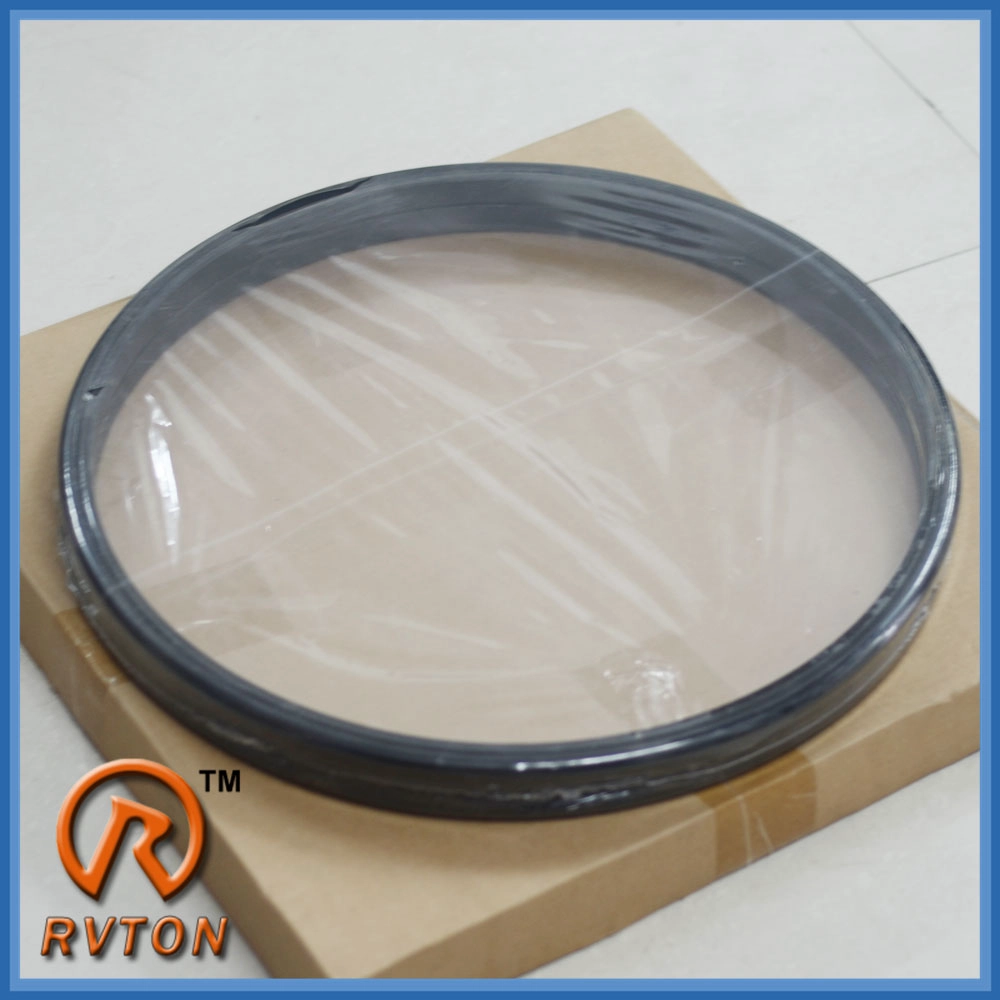

Brown / yellow box + inside shrink films + standard export carton.
Free wood pallets and wood case are available on request.
Contact me freely now for price and more details :)
Phone # / WeChat: 008615327878823
WhatsApp is: 008615327878823
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
1.Lifetime: 5000hours / 8000hours
2.Hardness: 58-62HRC / 62-68HRC
3. Stolen Material: 100cr6 / Gcr15 / E52100 / 534A99 / SUJ2
4. Rubber material: Nitrile / Silicon / Viton
5. Processor: Forging & Casting
6. Warranty: 18 months
7. Accept OEM: Accept OEM
