Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...

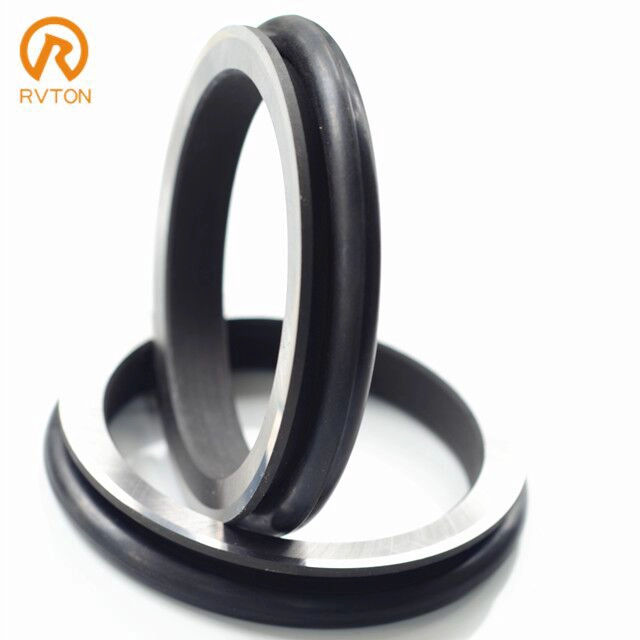

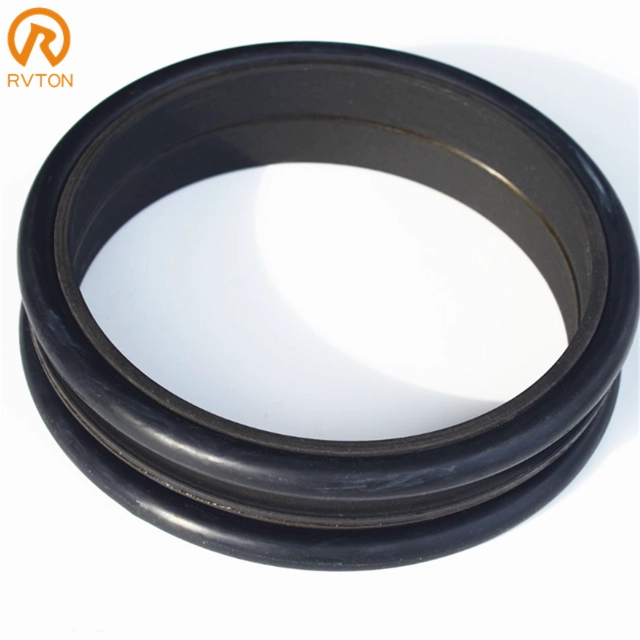

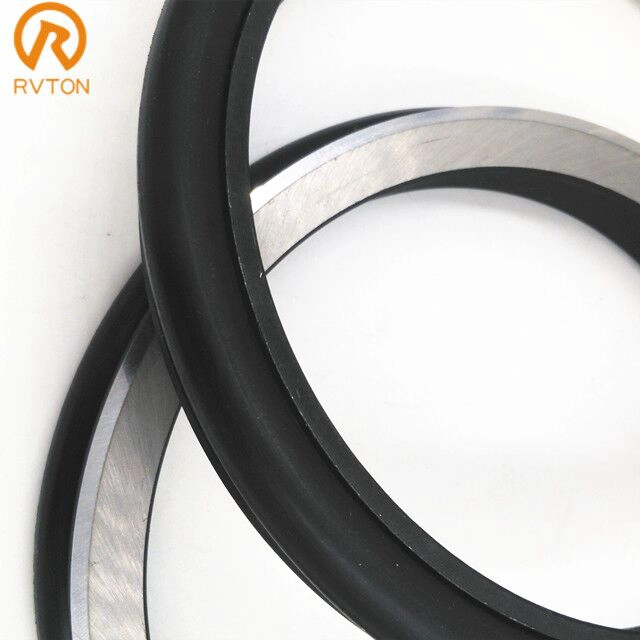

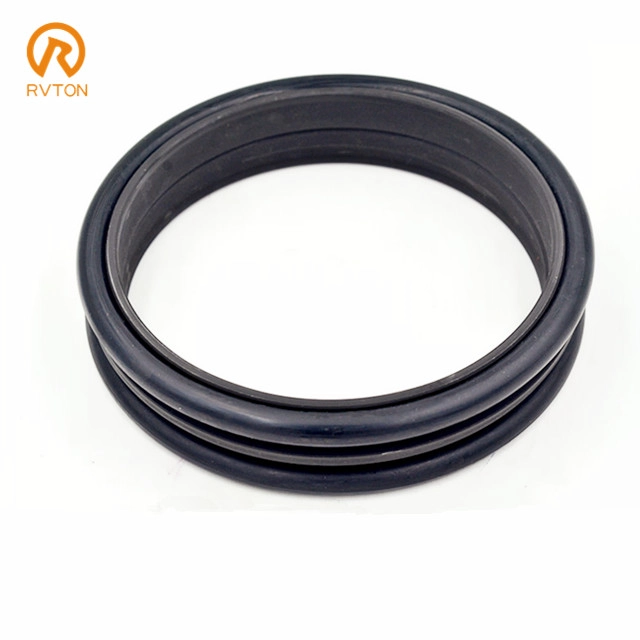

| One SET= 2 metal rings +2 rubber rings | |||
 + = |
|||
| Specifications of Metal ring | |||
| Material |
Gcr15/ 100Cr6 | Cast 15Cr3Mo | |
| Surface smoothness/Roughness | ≤Ra0.2μm | 6.3-12.5μm | |
| Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm | |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa | |
| Forging line speed | 2m/s | 3m/s | |
| Temperature range | —100~200℃ | -40~160°C | |
| Hardness(HRC) | 58-62 | 60-68 | |
| Lifetime(Hours) | 3000 | 5000 | |
| Specifications of rubber ring | |||
| Material | NBR | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
packing & Shipping
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Common questions
Q: Are you the manufacturer?
A: Yes, we are
Q: Are you providing OEM service?
A: Yes, and MOQ is 1pcs
Q: How do you control the quality?
A: 100% inspect the size in each procedure before a seal is exported.
Q: How long is the delivery time?
A: For cart size is only 1 day, for non-standard usually 1 month
Q: Gurantee using life time?
A: 5000 hours
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
1.Lifetime: 5000hours / 8000hours
2.Hardness: 58-62HRC / 62-68HRC
3.Brong Ring Hardness: 60-65 °
4.Material of seal: 100cr6 / Gcr15 / E52100 / 534A99 / SUJ2
5.Inner diameter: 38mm-1000mm
6.Material of O-ring: NBR / Viton / Silicon / HNBR
7.Excess of Seal: Forging and Casting
8.O-Ring Color: Black / Blue / Red / Custom
9.Warranty: 18 months after shipment
10.Accept OEM: Accept OEM
1.One set Consist of two metal seal rings and two rubber seals
2.Material:Steel Gcr15/15cr3Mo + NBR60
3.OEM/Aftermarket: aftermarket
4.Material Forged Bearing Steel& Nitrile rubber
5.Packing Outside: Standard export carton.
Inside: Nuetral box.Free wooden pallets, wooden case
6.Warranty 18 months
7.Certification:ISO9001:2000
8.Stock offered
1.Lifetime: 5000hours / 8000hours
2.Hardness: 58-62HRC / 62-68HRC
3.Brong Ring Hardness: 60-65 °
4.Material of seal: 100cr6 / Gcr15 / E52100 / 534A99 / SUJ2
5.Inner diameter: 38mm-1000mm
6.Material of O-ring: NBR / Viton / Silicon / HNBR
7.Excess of Seal: Forging and Casting
8.O-Ring Color: Black / Blue / Red / Custom
9.Warranty: 18 months after shipment
10.Accept OEM: Accept OEM
1.Material:Steel Gcr15 + NBR60
2.Lifetime:3000-5000 Hours
2.Metal Hardness: 58-62 HRC
3.Rubber Hardness: 60-65°
4.Inner diameter:38mm-1000mm
5.O-Ring color:Black/Blue/Red/Yellow
7.Warranty:18 months
8.OEM accept:accept OEM
9.Packing: Shrink films + Inner box + standard export carton + wood pallet + wood box
1.Part#:20Y-27-00110
2.New Aftermarket parts
3.Material:Steel 100CR6 + NBR60
4.Metal Hardness:58-62 HRC
5.Rubber Hardness:60-65°
6.Lifetime:3000-5000 hours
7.Warranty:18 months
8.Stock offered
9.Packing:Shrink films + Inner box + standard export carton + wood pallet + wood box
1.Part#:205-30-00230
2.New Aftermarket parts
3.Material:Steel 100CR6 + NBR60
4.Metal Hardness:58-62 HRC
5.Rubber Hardness:60-65°
6.Lifetime:3000-5000 hours
7.Warranty:18 months
8.Stock offered
9.Packing:Shrink films + Inner box + standard export carton + wood pallet + wood box
