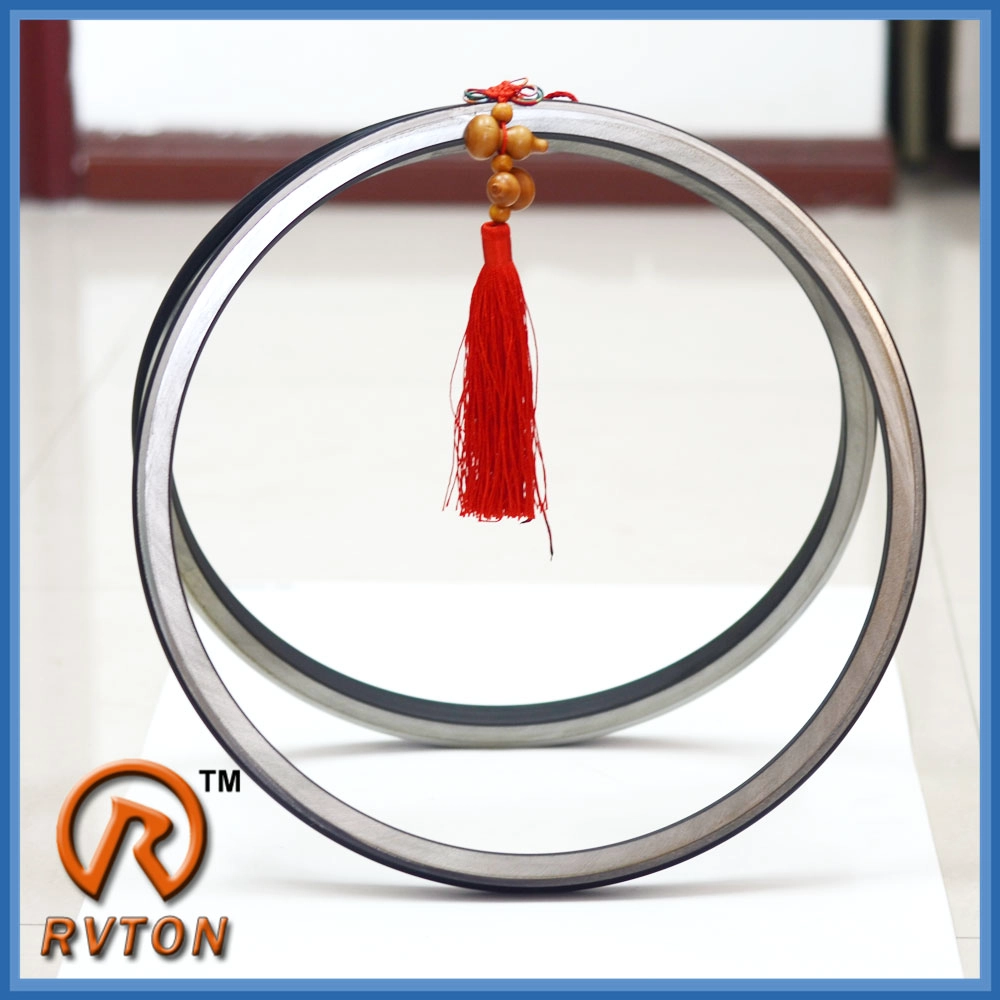

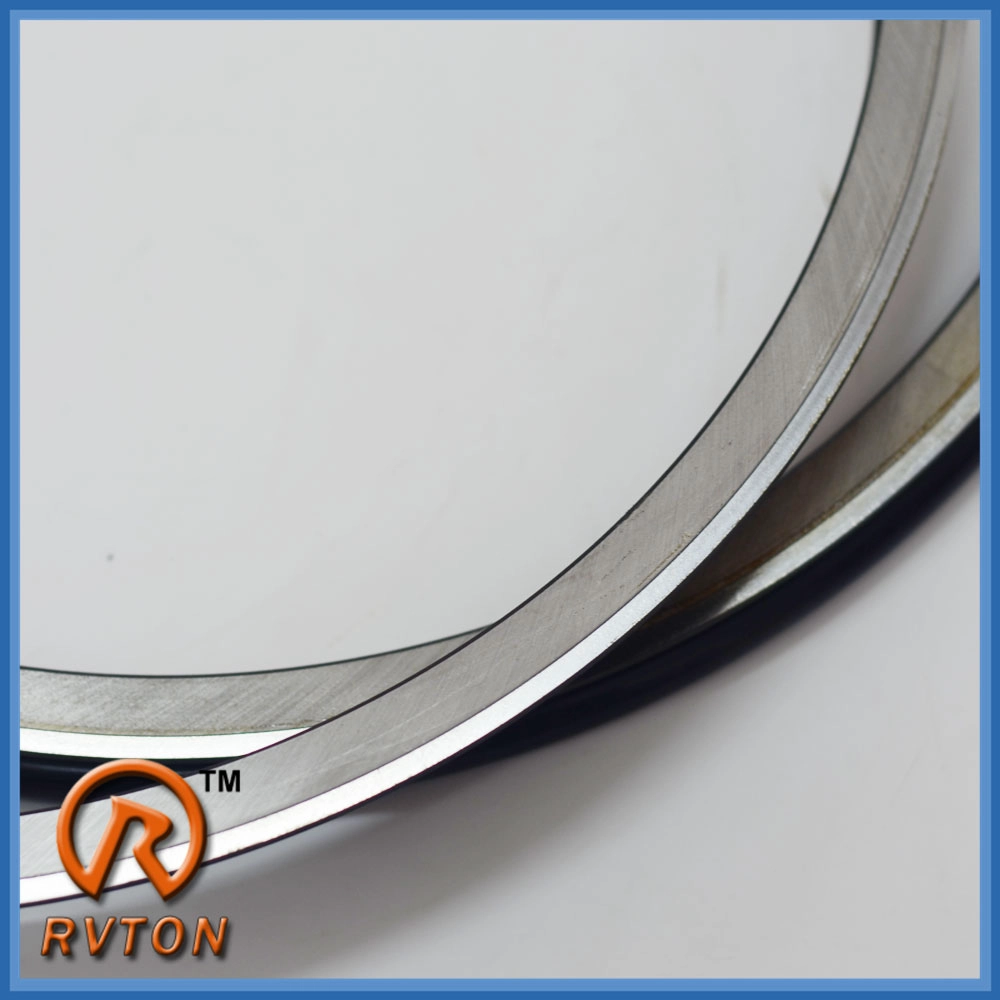

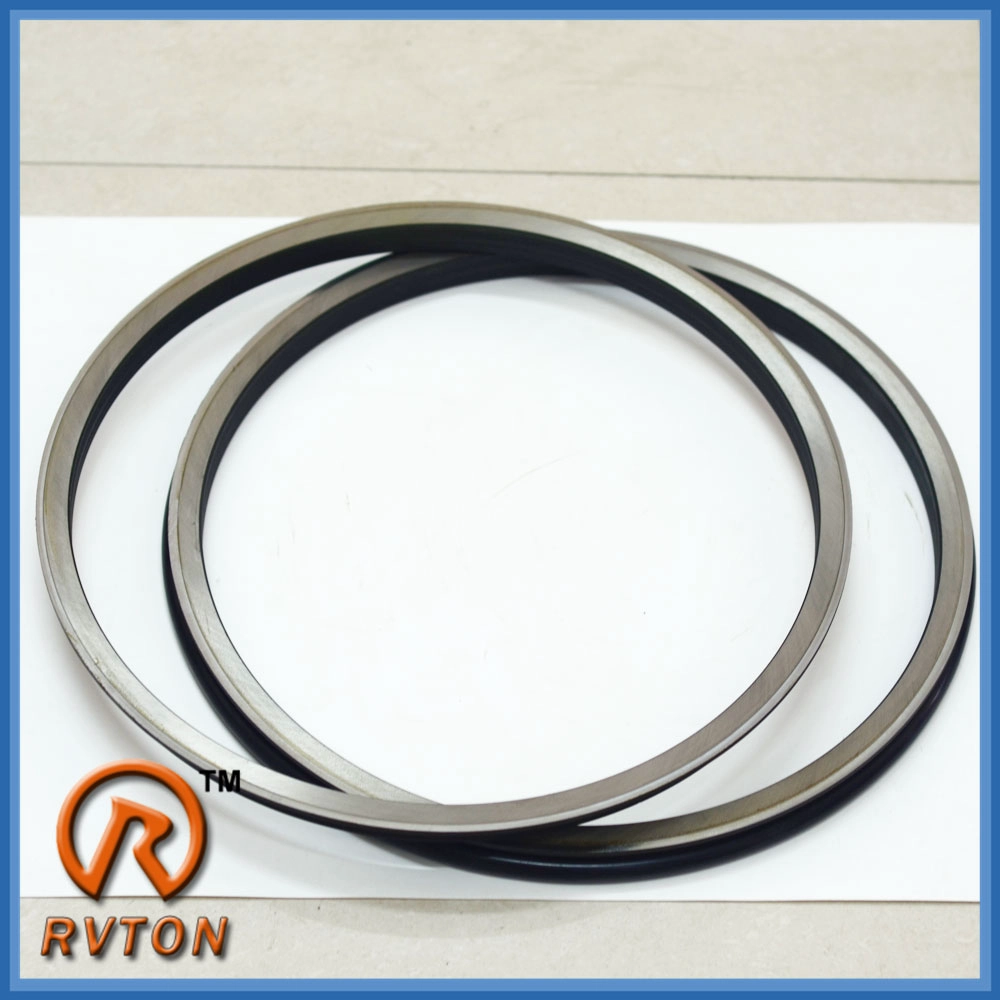

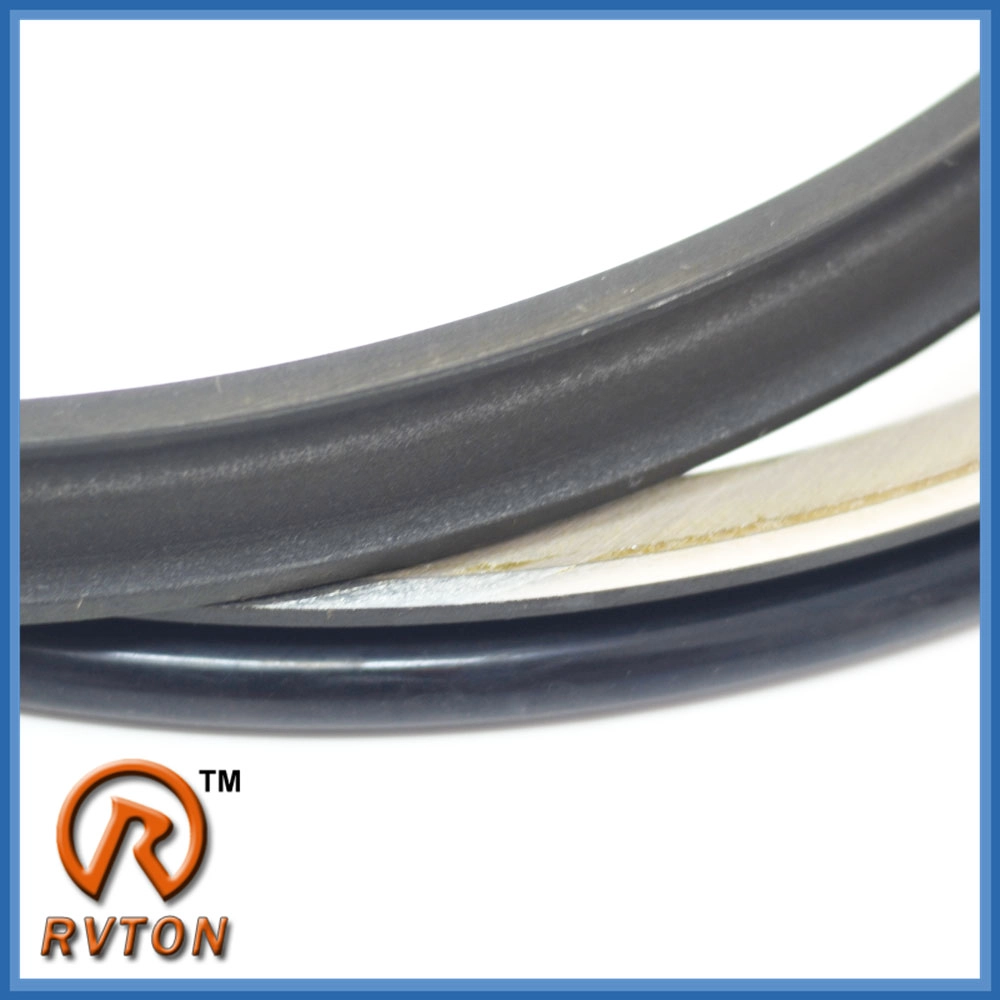

Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
1 set | It consists of two metal sealing rings and two rubber seals |
Part# | 170-27-00023 |
MOQ | 1 set |
OEM for |
Komatsu |
material | GCr15 steel + NBR60 rubber |
lifetime | 5000 hours |
FOB | Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen |
package |
Shrink films + Inner box + standard export carton + wood pallet + wood box |
Guarantee | 18 months |
Komatsu, Caterpillar, Hitachi, Kubota, Kobelco, Danapac, Goetze, Trelleborg...
model# | Bottom roller | Carrier Roller | Front idler | Final Drive |
PC60 | 110-30-00085 | 140-30-00040 | 141-30-00610 | |
PC200 | 20Y-30-00040 | 20Y-30-00090 | 10Y-30-00100 | 150-27-00026 |
E200B | 1M8746 | 8E5609 | 5P0204 | |
E320 | 9W7220 | 8E5609 | 9W7225 | |
D60 | 141-30-00616 | 141-30-00616 | 141-30-00610 | 141-27-00015 |
D85ESS-1 | 154-30-00832 | 154-30-00832 | 154-30-00832 | 192-27-00022 |
D3 | 9E6690 | 9E7216 | 9E6691 |
METAL | Steel Gcr15/ 100Cr6 | Cast 15Cr3Mo |
Surface smoothness/roughness: | ≤Ra0.2μm | 6.3-12.5μm |
Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm |
Pressure loading | ≤0.15MPa | ≤0.3 MPa |
Forging line speed | 2m/s | 3m/s |
Temperature range | —100~200°C | -40~160°C |
Hardness (HRC) | 58-62 | 60-68 |
Lifetime (Hours) | 3000 | 5000 |
Material | NBR60 | SILICONE | FKM |
Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
Minimum elongation at break | 300% | 400% | 260% |
Permanent deformation | 12% | 8% | 25% |
Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
Specific Gravity(g/cm3) | 1.25 | 1.2 | 1.8 |
-Why Rvton deliver so fast?
-As we stock lots of raw materials,packing boxes and completed products.
-You're the factory?
Yes, we are a 13 years factory in Hubei Province, China
- How do you control the quality?
Each seal is 100% inspected in every process before exported
- How long to make the shipment?
In three days with stocks, 15-30 days according to the order qty.
- Can i buy one to test?
Yes, we offer a trial order and sample order for your Quality Evaluation.
Welcome to contact us and visit us!
For more information, please contact me! Good offer will be sent to you.
