1715883 NBR60 Duo Cone Seal For Aftermarket1715883 NBR60 Duo Cone Seal For Aftermarket1715883 NBR60 Duo Cone Seal For Aftermarket1715883 NBR60 Duo Cone Seal For Aftermarket

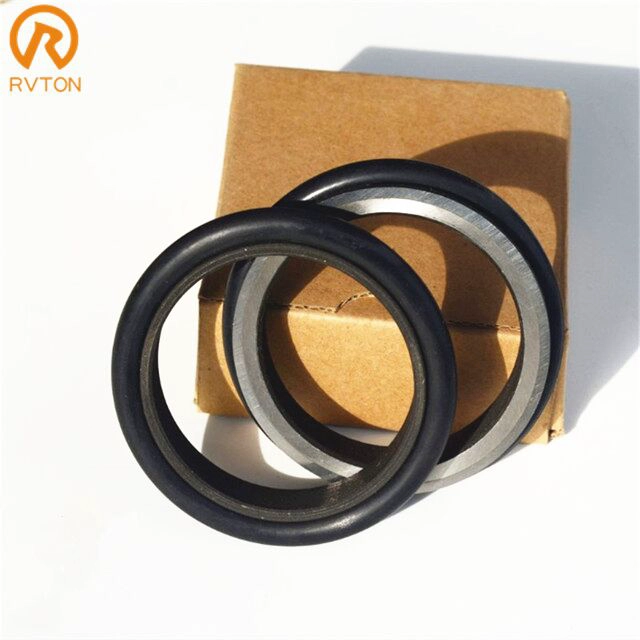

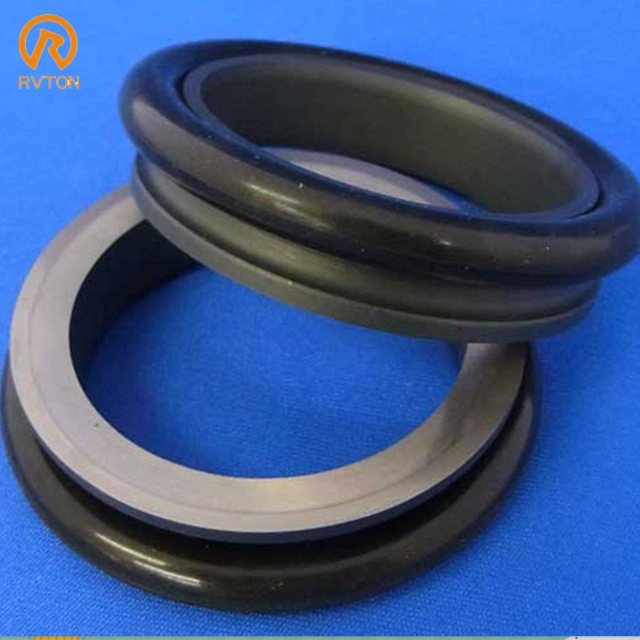

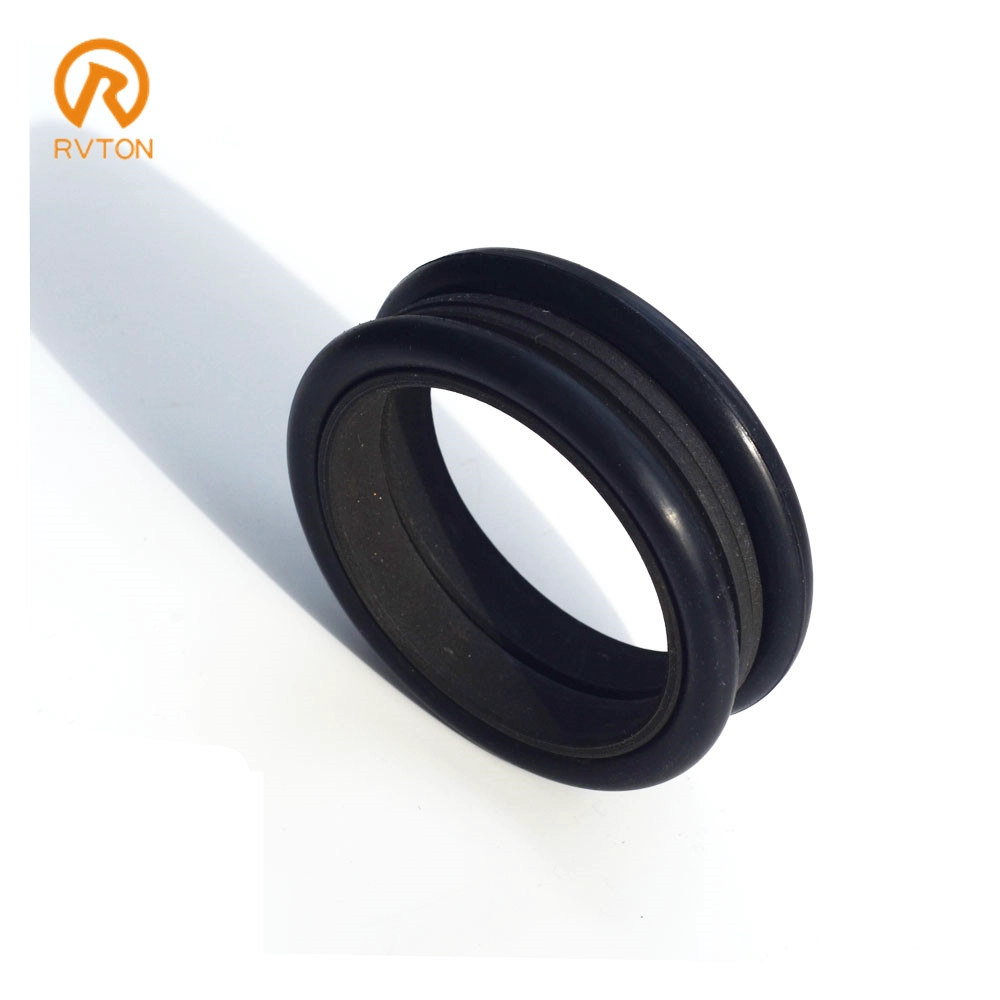

1715883 NBR60 Duo Cone Seal For Aftermarket

  • Part# 1715883
  • New aftermarket
  • Material: Steel 100CR6 + NBR60
  • One set = 2 metal rings + 2 rubber rings
  • Hardness: 58-62HRC
  • Lifetime: 3000-5000 hours
  • Warranty: 18 months
  • Certification: ISO 9001:2000
  • Stock offered
  • Packing: Shrink films + inner box + Standard export carton
  • Free wooden pallets and wooden boxes offered.

1715883 NBR60 Duo Cone Seal For Aftermarket

1715883
1715883

Part# 1715883

aftermarket floating seals

Metal: STEEL GCR15 + NBR60

One set = 2 metal rings + 2 rubber rings

Offer New design development

Warranty: 18 months


Rvton Advantage 

1, Competitive Pricing, 30% - 50% lower than the original parts
2, ISO certified Products
3, Experienced team with years of knowledge

For more information, please contact Fay: floatingseal04@rvton.com.


Floating Seal Description

- Our Products: floating seals (duo cone seals, seal group, lifetime seals, heavy duty seals).


Material: 1) Steel Gcr15 / 100Cr6; Hardness: 58-62HRC

                 2) cast iron 15Cr3mo; Hardness: 60-68HRC


- Rubber Rings: NBR60, silicone, Viton, HNBR.

- Hardness: 58-62HRC / 60-68HRC

-Size: 38-1000mm

-There are four types floating seals: Standard Type / XY-type / L type / iron plate type

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal GroupCaterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group

Iron Plate Type-Rvton Floating Seals

Floating Seals are specifically engineered for heavy duty, rotating applications to withstand extreme wear and tear.



Applications of Floating Seals

Designed for use in transmissions, pumps, axles, wet braking systems, axles, rollers, and final drives.

Mechanical Face seals have proven beneficial in gearboxes, mixers, stirrers, wind-driven power stations as well as other applications requiring maintenance-free lifetime sealing.

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group



 Final drivers of Off highway mining trucks


 Wheel ends of Excavators


 Wet & Dry brakes


 Idlers of Continuous miners


 Rollers of Longwall Shearers


 Gearboxes of Conveyors


 Cutting heads of Agricultural machinery



OEM Service


Floating Seals crossovers of Komastu, Hitachi, Trelleborg, Goetze, Kobelco, Kubota ...

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group


2445Z1109
CR3069
MT4021-1881
R45P0018D25
TD0352 / 04
5691020340
5691020530
TD00611 / 02
UK5500
204-50805000
TZES 100-154B
TZ300A-1010
TZ310B-1027
TZ550A-1010
TA860A-1010
TZ150A-1010
ES-64
58.845 to 20.500
7T0158
45P0018D18
655973C91
988 430
R45P0018D9
R45P0018D27
R45P0018D13
R45P0018D14
R45P0018D16
R45P0018D18
R45P0018D29
R45P0018D20
CR1857
TZ010F-1027

U17386
CR 4359
ES-56
5691020160
MT4000-7918
R45P0018D6
JB5680
R45P0018D12
ES-102
R45P0018D15
TLDOA1460
619-95032001
ES-209
TZES100-250-A
GZ5810
TLDOA5300-2CP00
YN53D00008S023
TZ150F-1027
TZ200B-1010
110-30-00085
110-30-00045
123-0638
1C9748
LQ15V00020S067
760S297FS
YN15V00037S029
4176379
4110358
JB5830
R45P0018D28
VOE14522998
140-30-00040
140-30-00141
141-30-00610
317-6441
9W7206
1796863
4128201
4508192
4060222
170-30-00110
170-30-00210
175-30-00070
3176441 3144130
9W6644 3144120
1456034 145-6035
4110359
4512571
4060225
20Y-30-00040
130-27-00020
150-27-00025
9W6822
3T6602
6D1190
4317586
4047279
4104605
150-30-00035
154-30-00035
154-30-00833
154-30-00830
154-30-00832
154-30-00831
CR3820
CR4050
9W2629
205-9025
9W9230
9W6622
4110360
4153468
4163731
4068433
4153731
4163731
141-27-00015
150-27-00015
150-27-00016
204-30-00041
170-27-00020
9W7205 1489595
4D8960  2979546
9W6623 3654920
6Y0855 1882103
3144128 2627224
4110362
4153732
4508193
4056360
4111361
170-27-00025
195-27-00022
423-33-00020
423-33-00021
6Y0856
9G5349
1326141
4D4471
4110363
4507221
4642180
4110364
100-27-00030 208-27-00140
175-27-00120 195-27-00102
175-27-00121 195-27-00170
21T-30-00110 195-27-00100
9G5323
4D4510
9W7202
9W7201
4110366
4110367
4513173
4092483



Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group



Installation

Installation Methods:

1. With special tools Installation: The pressure is directly to the O-ring. As shown, the special tool between the metal floating ring and the rubber ring is mounted in the direction of the seat hole, the rubber ring is pressed evenly into the hole.

2. Other Methods of Installation: An auxiliary O-ring between the conical annular surface of the floating oil seal and sealing O-ring is attached (see figure). The ring of the floating oil seal evenly by the pressure and the auxiliary O-ring clamp the O-ring is applied to ensure the other correct installation position.

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group



About Us

- As a manufacturer, we have focused on the producing and researching floating seals since 2004


- Rvton is the Italy Top undercarriage parts company's regular supplier.


- Rvton floating seals are exported to Asia, Africa, Europe, the Middle East. North America, South America, Oceania.. ISO and TÜV certified.

- Support the new designs, producing upon your drawings and samples.

- We keep regular goods in stock for fast delivery.

- Free printing service on the metal seal rings. Log, size, part # are offered upon your request.

Caterpillar 5M1176, 5K5288, 5K1078, 5M1177 Floating Seal Group

  For more information please contact me! The catalog and price list will be sent to you upon request :)

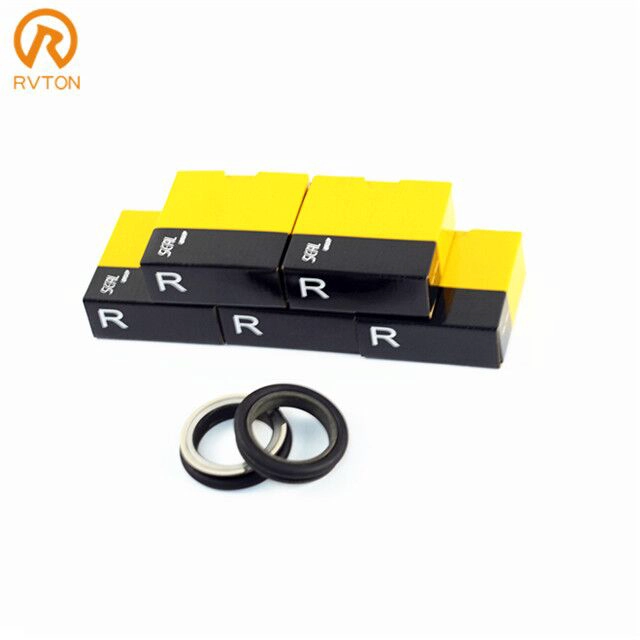

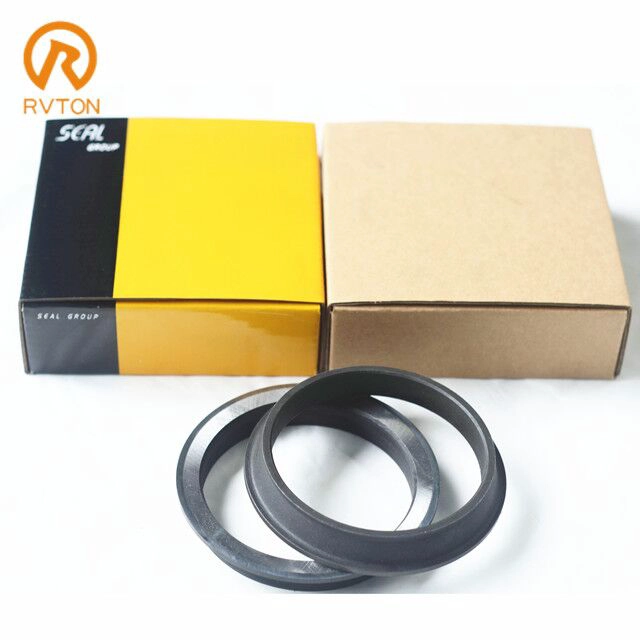

Packaging of Floating Seal Group

Brown / yellow box + inside shrink films + standard export carton.

Free wood pallets and wood case are available on request.
