1C 9748 Heavy duty Seal For Excavator

  • 1.One set Consist of two metal seal rings and two rubber seals
  • 2.Material:Steel Gcr15/15cr3Mo + NBR60
  • 3.OEM/Aftermarket: aftermarket
  • 4.Material Forged Bearing Steel& Nitrile rubber
  • 5.Packing Outside: Standard export carton.Inside: Nuetral box.Free wooden pallets, wooden case
  • 6.Warranty 18 months
  • 7.Certification:ISO9001:2000
  • 8.Stock offered
  • Product Details

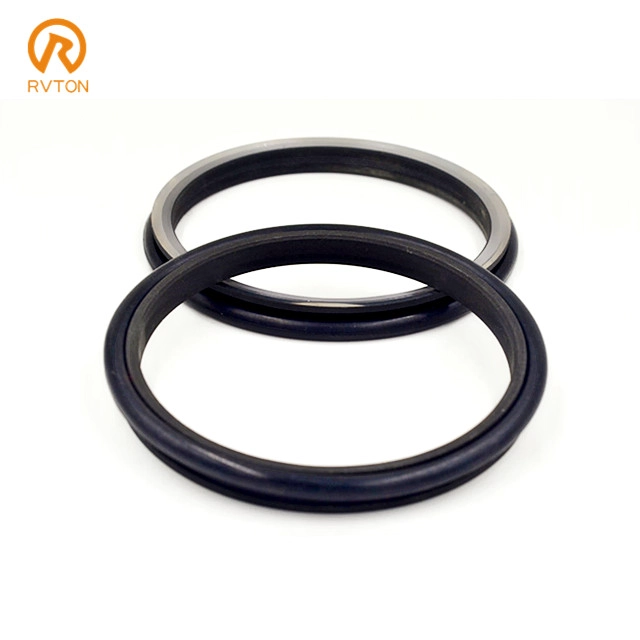

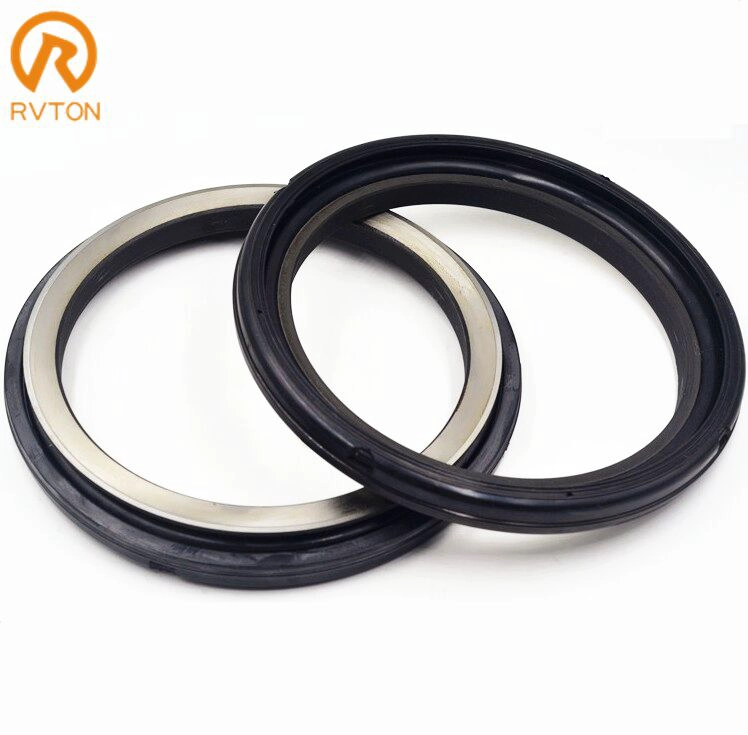

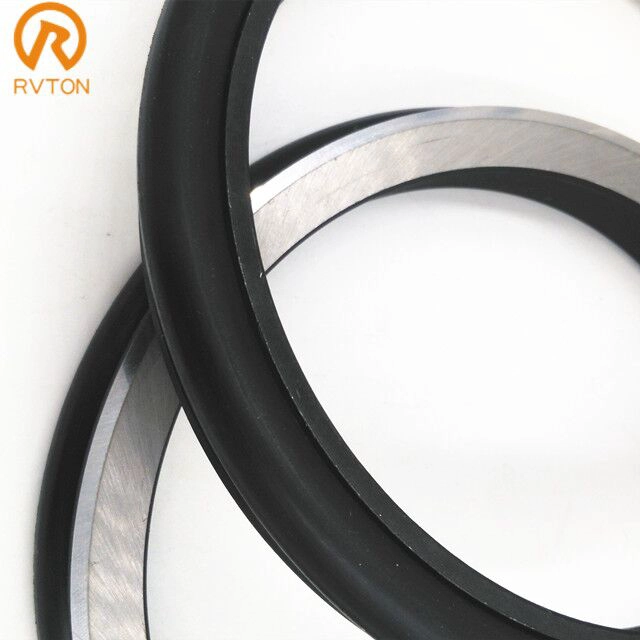

1 set =2 metal seal rings and 2 rubber seals .

Specifications of metal seals
Material  Forge Gcr15  Cast 15Cr3Mo
Surface smoothness  ≤0.2um   6.3-12.5um
Workface smoothness  ≤0.15um  ≤0.1um
Pressure loading  ≤0.15MPa  ≤0.3MPa
Forging line speed  2m/s    3m/s
Temperature range -100℃-200℃  -40℃-160℃
Haedness(HRC) 58-62   62-68
Lifetime(H) 3000-5000   5000-8000
Specifications of rubber ring
Material  NBR  SILICONE  FKM
Hardness  60°-65°  60°-65°   72°-78°
Minimum tensile strength  11MPa   10.6MPa   11MPa
Minimum elongation at break  300%  400%  260%
Temperature range  -40℃-120℃  -49℃-230℃  -30℃-250℃
Permanent deformation  ≤12%  ≤8%  ≤25%





At present,we have standard type,L type,XY type,Steel sheet type 4 types of floating seals and rubber rings of different materials and colorsof course,you are welcome to customize.

Type of floating seal

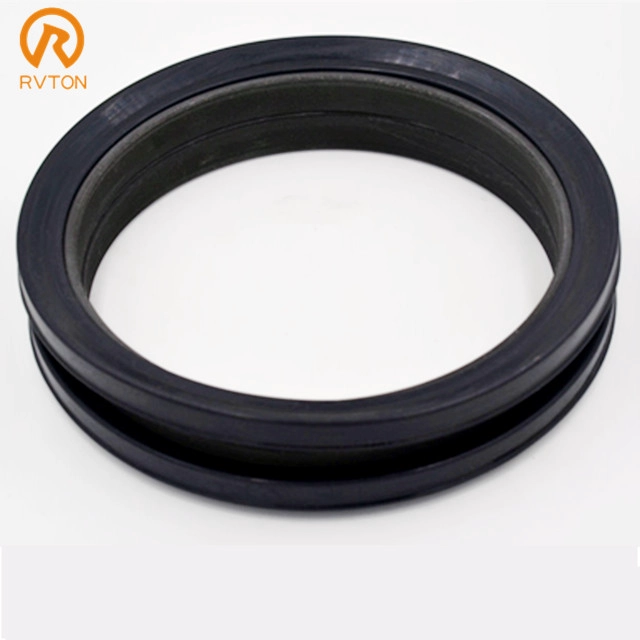

Rubber rings


In order to meet the needs of our customers, we have prepared stocks of common parts.

Part#  

110-30-00085 110-30-00045 141-30-00610 140-30-00040 140-30-00141
170-30-00110 170-30-00210 175-30-00070 175-30-00700 130-27-00020
9G5311 9W6666 1M8747 9W6647 5M1176
6T8433 9G5315 9W6671 9W6680 8E5609
2627244 3176441  1796864 1456035 3144130
20Y-30-00100 20Y-30-00040  22U-30-00060 21N-30-00040 14X-27-00100

Application

--Farm, construction, earthmoving, coal mining machineryFarm, construction, earthmoving, coal mining machinery

--Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe

--Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling



Packaging

--Outside:Standerd export carton.

--Inside:Inner box.Each set will be placed in the pp bag tidily

--Wood pallet free of charge

--Cusmized packing with your logo is welcome.


Shipping

Via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...We have many shipping forwarders that have copperated for many years, reliable service and better shipping cost will be offered.


Exhibition

Factory


FAQ

Q:Are you manufacturer?
A:Yes,we are

Q:Are you supply OEM service?
A:Yes,and MOQ is 1pcs

Q:How do you control the quality?
A:100% inspect the size in the each procedure before a seal is exported.

Q:How long is the delivery time?
A:For stand size is just 1 day,for non-standard one normally 1 month

Q:Gurantee using life time?
A:5000 hours
