Rvton Product Description(Totally 2 parts ):

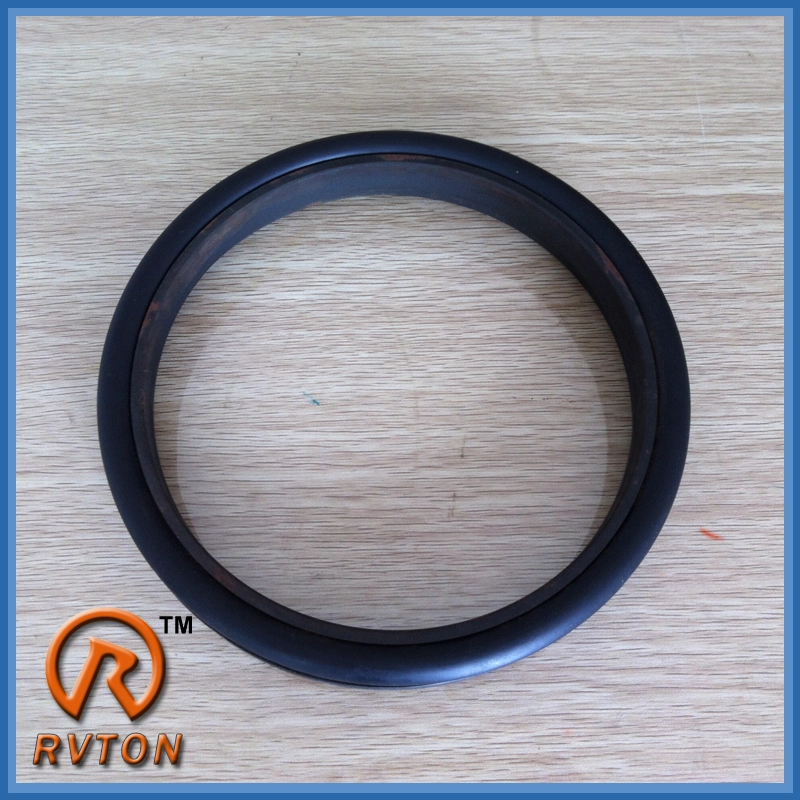

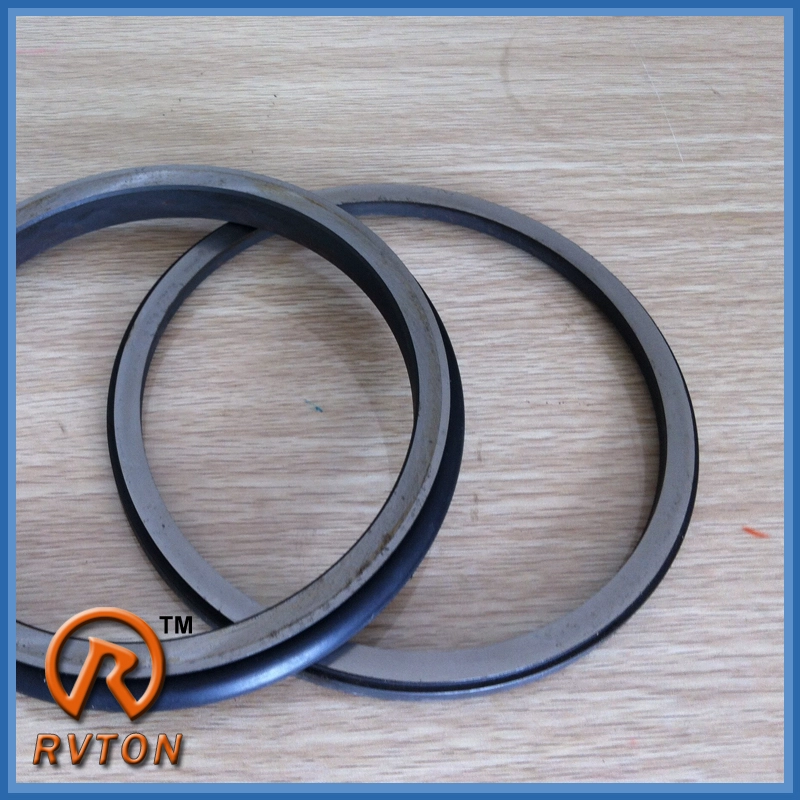

2016 Hot sales Komatsu/CAT floating seal
Floating seal also called seal group ,face seal,mechanical face seal or duo cone seal .
It is including two separated metal seal rings and two O-rings which with suitable packing for domestic and foreign market.
|
metal |
Steel GCr15 / 100Cr6 |
Casting 15Cr3Mo |
|
Surface smoothness / roughness: |
≤Ra0.2μm |
6.3-12.5μm |
|
Smooth Face |
≤Ra0.15μm |
≤Ra0.1μm |
|
Pressure load |
≤0.15MPa |
≤0.3 MPa |
|
Forging production line speed |
2 m / s |
3 m / s |
|
temperature range |
-100~200 ℃ |
-40~160 ℃ |
|
Hardness (HRC) |
58-62 |
60-68 |
|
Life (h) |
3000 |
5000 |
NBR60, silicone rubber and fluorine rubber ring provided
|
Material |
NBR60 |
Silicone |
FKM |
|
Hardness |
60 ° ~65 ° |
60 ° ~65 ° |
72 ° ~78 ° |
|
Minimum tensile strength |
11MPa |
10.6Mpa |
11MPa |
|
Minimum elongation at break |
300% |
400% |
260% |
|
Permanent deformation |
12% |
8% |
25% |
|
Temperature range |
-40 ℃ - + 120 ℃ |
-49 ℃ - + 230 ℃ |
-30 ℃ - + 250 ℃ |
|
Specific gravity (g / cm3) is |
1.25 |
1.2 |
1.8 |
OEM order are welcome,free customer part No. printing available.
About our Rvton company (floating seal) :
Our business based on our good team ,we have a expericed factory which strictly control the product costs and quality ,excellent sales team supply the good service for customers.
We are here, Choose Rvton (floating seal ) to save your time !
Packing and delivery:
1.Packing : Neutral packing or special packing to meet your requirement
2.By express for sample or trial order,bulk order by sea or customer confirmed.
You may wonder:
1.Are you real factory?
Yes.we are,we have our own factory at pingxiang xingtai hebei province china.
2.Is your product very expensive?
Not exactly,that's depend on the different material and types,in general,the viton type will be expensive than NBR for it's high-performance .
3.Any seal from you need open new mould?
Good question.the answer is no,because we have had some mould,
so if you need the product that we have,then no need to open new one. samples made time: 3 workdays.
4.Can i get free samples from you?
Yes,the value under 1 USD,we don't charge it,but you should pay the freight to your city.
5.How can I pay you?
Meet your reuqest.Normally our customer choose T/T ,Western Union.Convenient and cheaper.
6.how to deliver the goods to us?
Few quantity,we can send to you city door to door,we have our own cooperation international express.(5-10days) if you have container in the near future,we also can send to your container by sea.(one month) if you have agent at guangzhou,shanghai etc,we can send to your agent also. (3-6days)
7.the importent thing,,how's your good's quality?
I think the only thing make factory more and more better will be customers,so we won't make bad goods to loose our customers,our seal have been export to Europe,USA,Japan,middle east etc. except Force majeure factors like heavy rain,earthquake,no customer give feedback on quality problem.
Anything feel free contact with Ms Ivy Chan ,we will try our best :
