3634454 NEW AFTERMARKET CAT SEAL DUO-CONE FOR SALE

1.Lifetime:5000Hours/8000hours

2.Hardness:58-62HRC/62-68HRC

3.Material of Seal:100cr6/Gcr15/E52100/534A99/SUJ2

4.Inner diameter:38mm-1000mm

5.Material of O-Ring:NBR/Viton/Silicone/HNBR

6.Process of Seal:Forging & Casting

7.O-Ring color:Black/Blue/Red/Custom

8.Warranty:18 months after shipment

9.OEM accept:accept OEM

10.Rubber Ring Hardness:60-65°

Display Parameters Contact Now

Product Details

Product Description

1. Floating seal also called toric seals, seal group, Duo cone seal, mechanical face seal, lifetime seal

2. Diemension of metal seal: 375/355/19

3. Working lifetime: 5000 hours / 8000hours

4. Warranty: 18 months each shipment, take care of afterservices

Product Name	3634454 NEW AFTERMARKET CAT SEAL DUO-CONE FOR SALE
Material	Steel Forge / Cast iron + Rubber ring NBR/Sic/FKM
OEM part numbers	3634454
Machine model	Caterpillar
Application	Final drive sprocket
Working hardness	HRC58-62 //62-68HRC
OEM service	OEM design, OEM packing according to customer drawing, sample , special request
Used	construction machinery, farm machinery, coal mining machinery.

Products Show

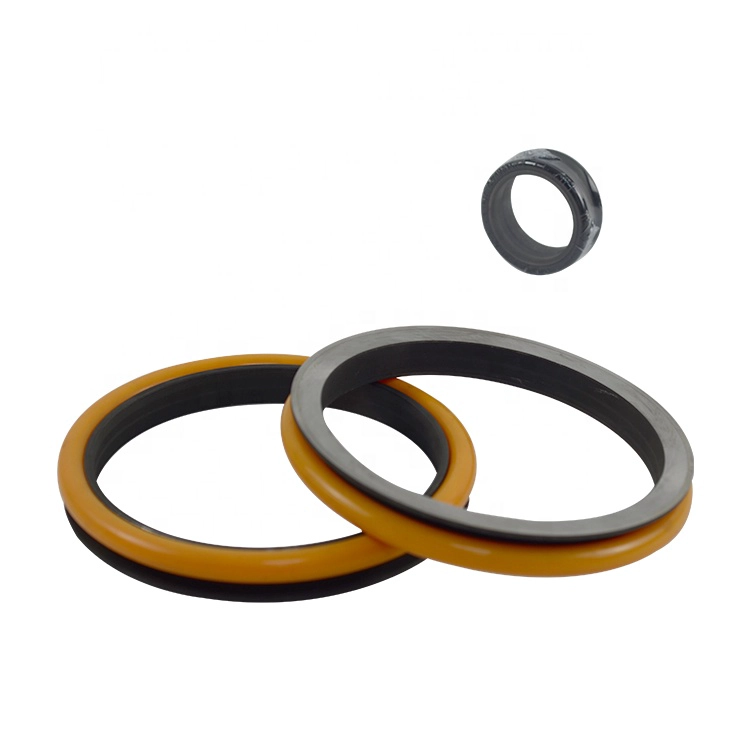

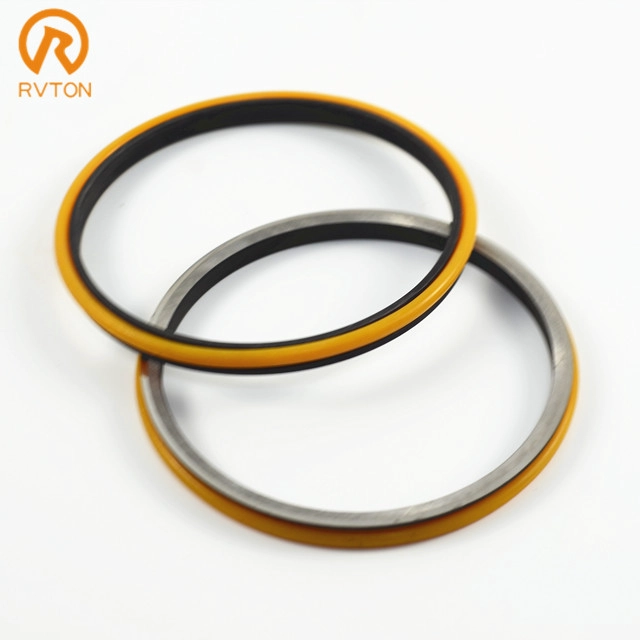

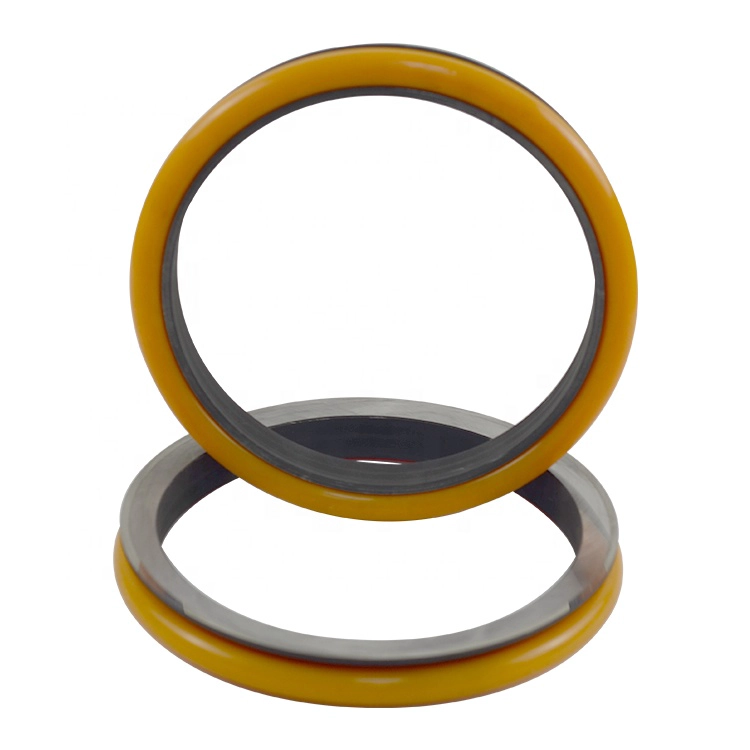

The seal group are consist of metal rings and rubber washers.

The metal rings:

Surface finish / Roughness	≤ Ra0.2μm
Face finish	≤ Ra0.015μm
Pressure	≤ 0.3MPa
Forged line speed	2m / s
Casting line speed	3m / s
Temperature	-100 ~ 200 °C

The rubber washers:

Shore hardness	60 ° ~ 65 °
Minimum tensile strength	11MPa
Minimum elongation at break	300%
Flexible change	± 5 °
permanent deformation	≤ 12%

The advantages of our product:

1.Coexistence of high quality and competitive prices

2.Long service life

3.Easy to install

4.High yield

5.Good performance

Method of installation:

1.Usingspecialized tools installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is mounted between the metalfloating ring and the rubber ring, toward the seat hole, the rubber ringis evenly pressed into the hole.

2.Otherinstallation methods: One auxiliary O-ring is fixed between the conicalring surface of the floating oil seal and sealing O-ring (as shown).The ring of the floating oil seal is applied uniformly by pressure andthe auxiliary O-ring braces the sealing O-ring to ensure the othercorrect mounting positions.

Thereare too many specifications that I just list a small part. Pleasecontact me to ask if you havn't found what you want. Thank you!

Standard Type

4176379	38mm	51mm	20.4mm
1791292	63.5mm	82.5mm	31.8mm
170-27-00010	130mm	151mm	32mm
9W 6668	163.3mm	191.2mm	38mm
9W 6672	182.3mm	210.3mm	38mm
9W 3732	264.9mm	292.8mm	38mm
4066695	298mm	328mm	42mm

L Type

Product number	OD	Diameter	Height
U17386	62.1	47.1	10
U16187	72	54	10
U16186	87	66.9	11.6
655973C91	93	73.5	10

XY Type

Product Number	OD	Diameter	Height
7T4080	70.5	53.7	31.5
7T0158	82.2	66.5	31
7T0159	93	76	32.5
7T0157	99	82	32.5

Iron Plate Type

Product Number	OD	Diameter	Height
TZ300A-1010	180	164	9.7
TZ310B-1027	185	158.7	12.3
TZ550A-1010	210	186	11.4
TZ850A-1010	230	201	13.3
TZ150A-1010	260	216	13.3
TZ150F-1027	284	247	13.3
TZ200B-1010	290	248	13.3

About packing:

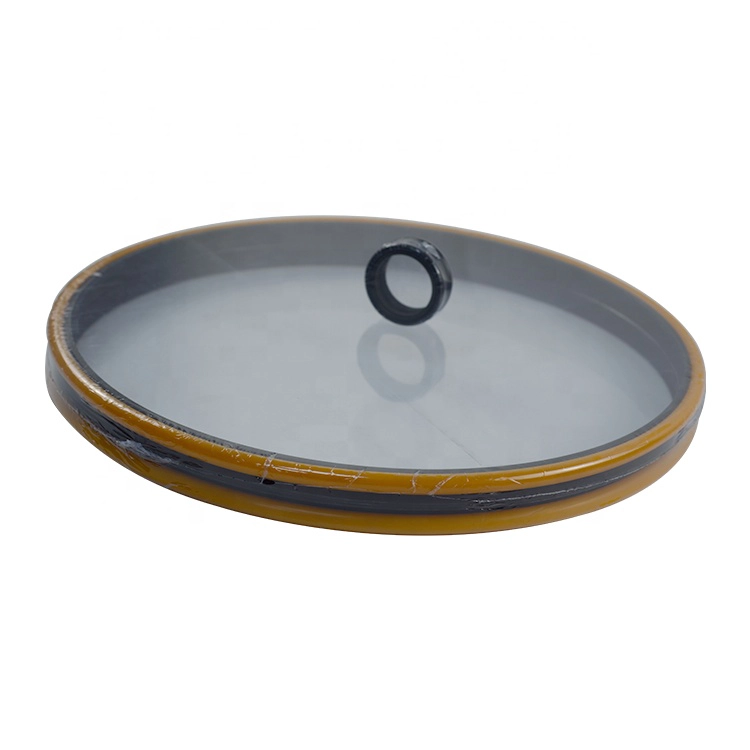

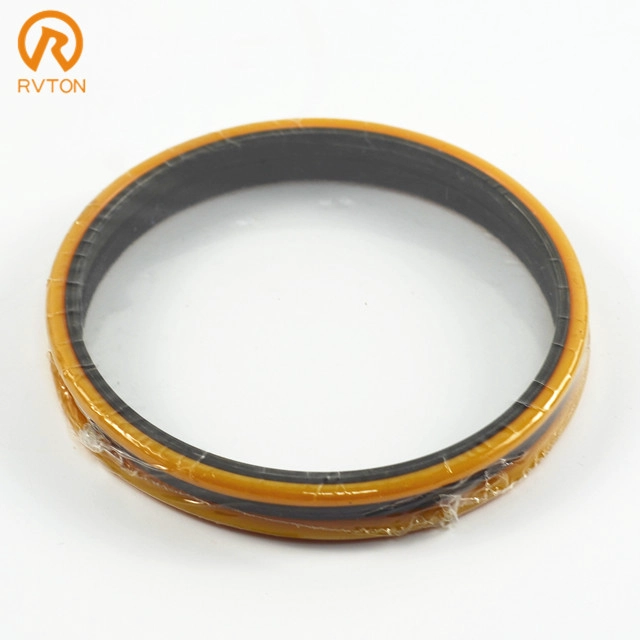

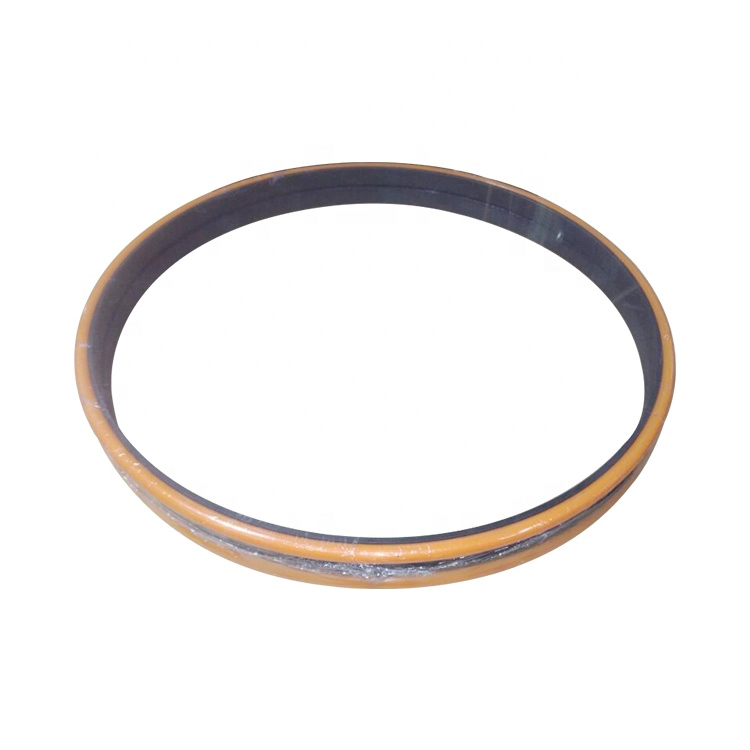

Thereare three styles of our box. And we also have cartons and trays. We putseal group in box, then put several boxs in cartons.

About our factory:

Our company's products are widely used on crawler dozers, excavators, heavy vehicles and machinery. Theysold throughout the country and Southeast Asia, Europe and America, andthe customers always feel satisfied. Using RVTONG floating seal ringwill make you even more powerful and successful.

We attended all the edition of Bauma Shanghai China, we look forward to meeting at Bauma Shanghai 2018, Bauma Germany 2019
