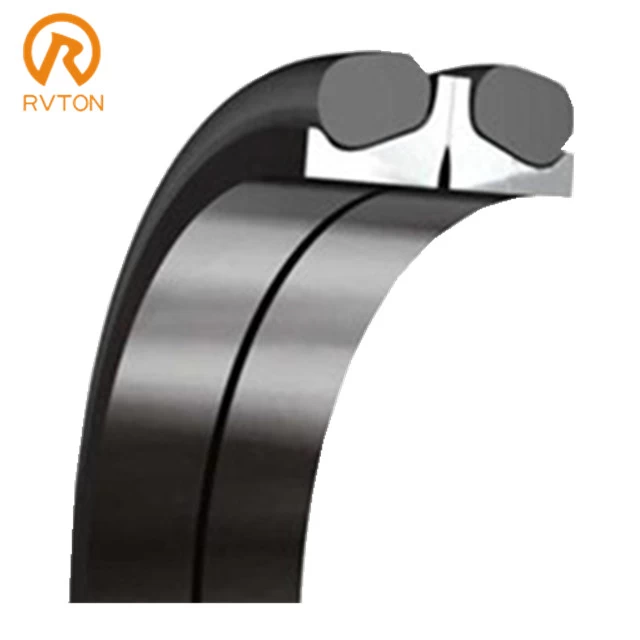

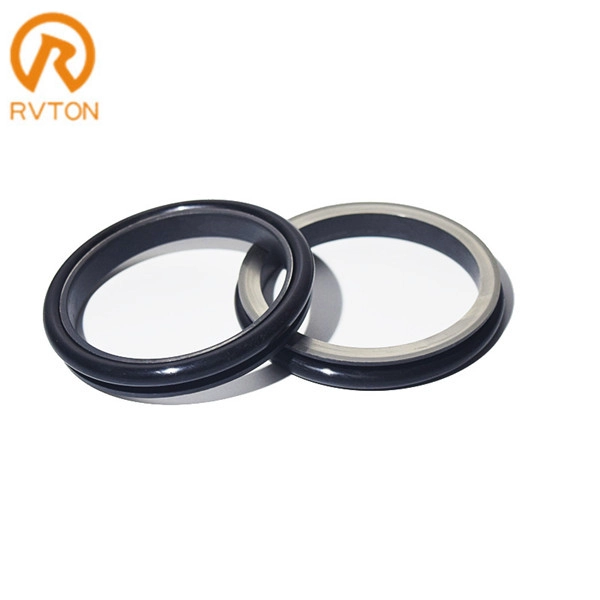

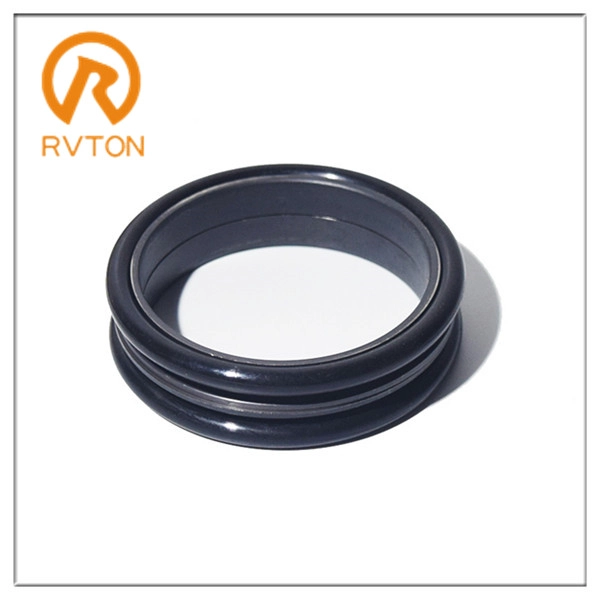

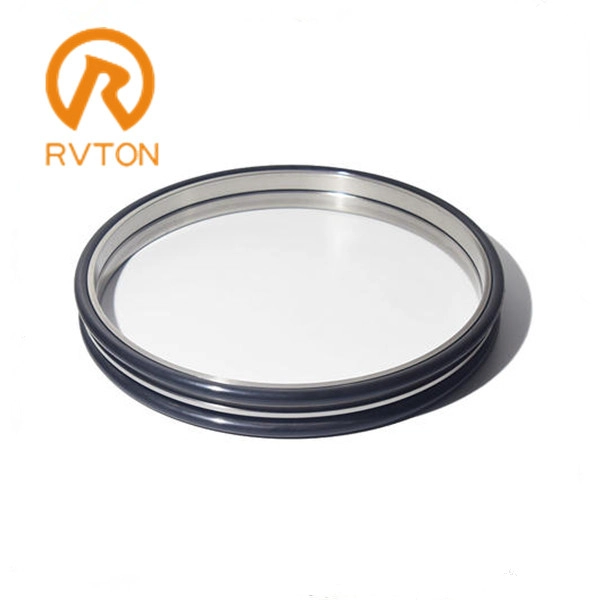

562-33-00200 Komatsu Floating Seal Assy
- 1.Lifetime: 5000hours / 8000hours
- 2.Hardness: 58-62HRC / 62-68HRC
- 3.Stolen Material: 100cr6 / Gcr15 / 15cr3Mo
- 4.Rubber material: Nitrile / Silicon / Viton
- 5.Processor: Forging & Casting
- 6.Warranty: 18 months
- 7.Tension (inside diameter): 38mm-000mm
- 8.Package: Neutral Packing or Rvton Packing
- 9.OEM for all types of brands
- 10.Stocks: Yes
| One Set = 2 Metal Rings +2 Rubber Rings | |||
 + = |
|||
| Specifications of metal ring | |||
| material |
Gcr15 / 100Cr6 | give 15Cr3Mo | |
| Surface Smoothness / Roughness | ≤Ra0.2μm | 6.3-12.5μm | |
| work Face Smoothness | ≤Ra0.15μm | ≤Ra0.1μm | |
| Pressure It is loading | ≤0.15MPa | ≤0.3 MPA | |
| Blacksmith Queue Speed | 2m / s | 3 m / s | |
| Temperature Range | -100 ~ 200 ℃ | -40 ~ 160 ° C | |
| Hardness (HRC) | 58-62 | 60-68 | |
| Life span(Hours) | 3000 | 5000 | |
| Specifications of rubber ring | |||
| material | NBR | Silicon | FKM |
| Hardness | 60 degrees ~ 65 degrees | 60 degrees ~ 65 degrees | 72 degrees ~ 78 ° |
| the minimum Flexible Power | 11MPa | 10.6Mpa | 11MPa |
| the minimum Elongation On break | 300% | 400% | 260% |
| permanent Deformation | 12% | 8% | 25% |
| Temperature Range | -40 ℃ - + 120 ℃ | -49 ℃ - + 230 ℃ | -30 ℃ - + 250 ℃ |
application
- Farm, construction, earthmoving, coal mining machinery
- Excavators, bulldozers, tractors, cranes, forklifts, heavy trucks, backhoes
- Undercarriage, hydraulic motor, travel motor, gearbox axle, wheel hub, tunneling
Packing and shipping
Packing: Neutral packing, yellow box, and your logo in packing are welcome
Shipping: FOB Shanghai, Ningbo, Shenzhen, Xiamen as per request.
general question
Q: Are you the manufacturer?
A: Yes, we are
Q: Are you providing OEM service?
A: Yes, and the MOQ is 1 pcs
Q: How do you control the quality?
A: 100% inspect the size in each process before a seal is exported.
Q: How long is the delivery time?
A: For cart size is only 1 day, for non-standard it is usually 1 month
Q: Guru using life time?
A: 5000 hours
