568-33-00015 / KO4975 Komatsu Floating Seal Assy

Type: Standard

Dimensions: 507*548.5*62 mm

MOQ: 1 set

Availability:

Process: Forged

Hardness: HRC58-62

Life: 5000 hours

Warranty: 18 months

Colour: Black

Metal: Steel GCr15

Rubber: Nitrile / silicone / Viton

Display Parameters Contact Now

Product Details

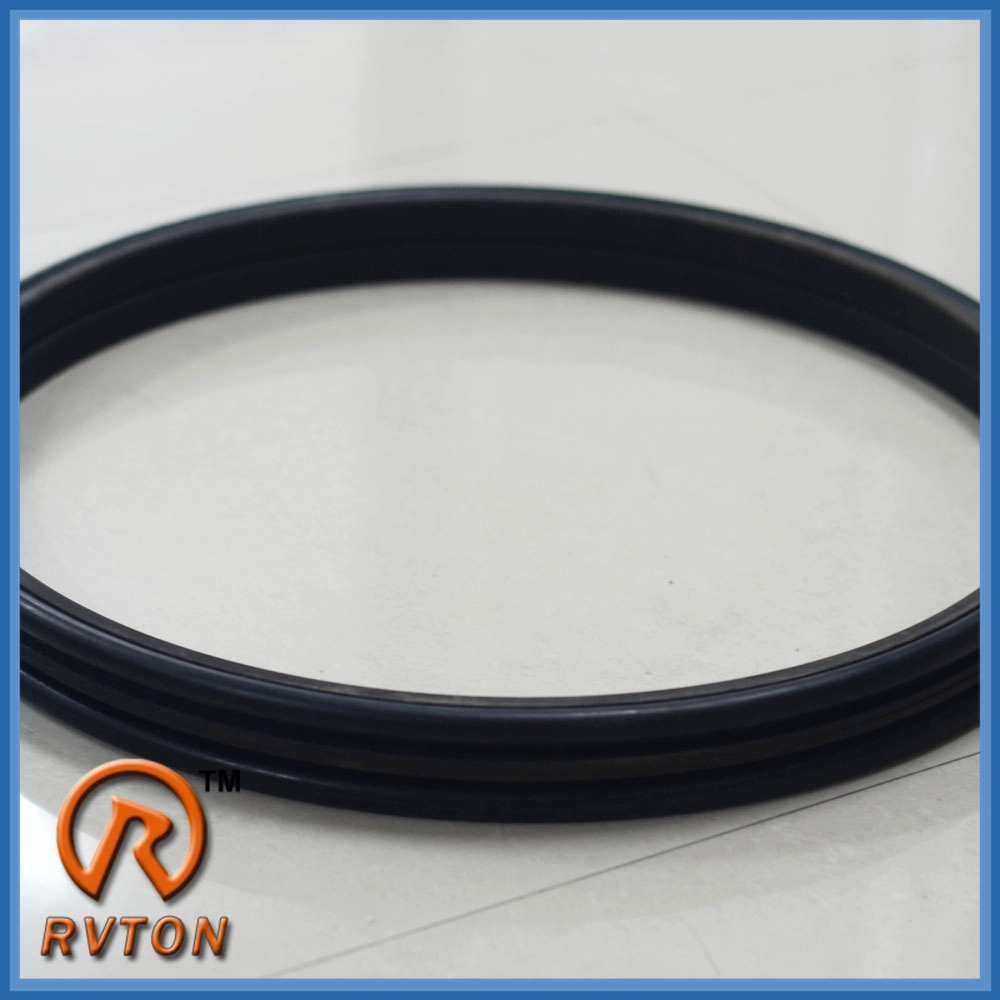

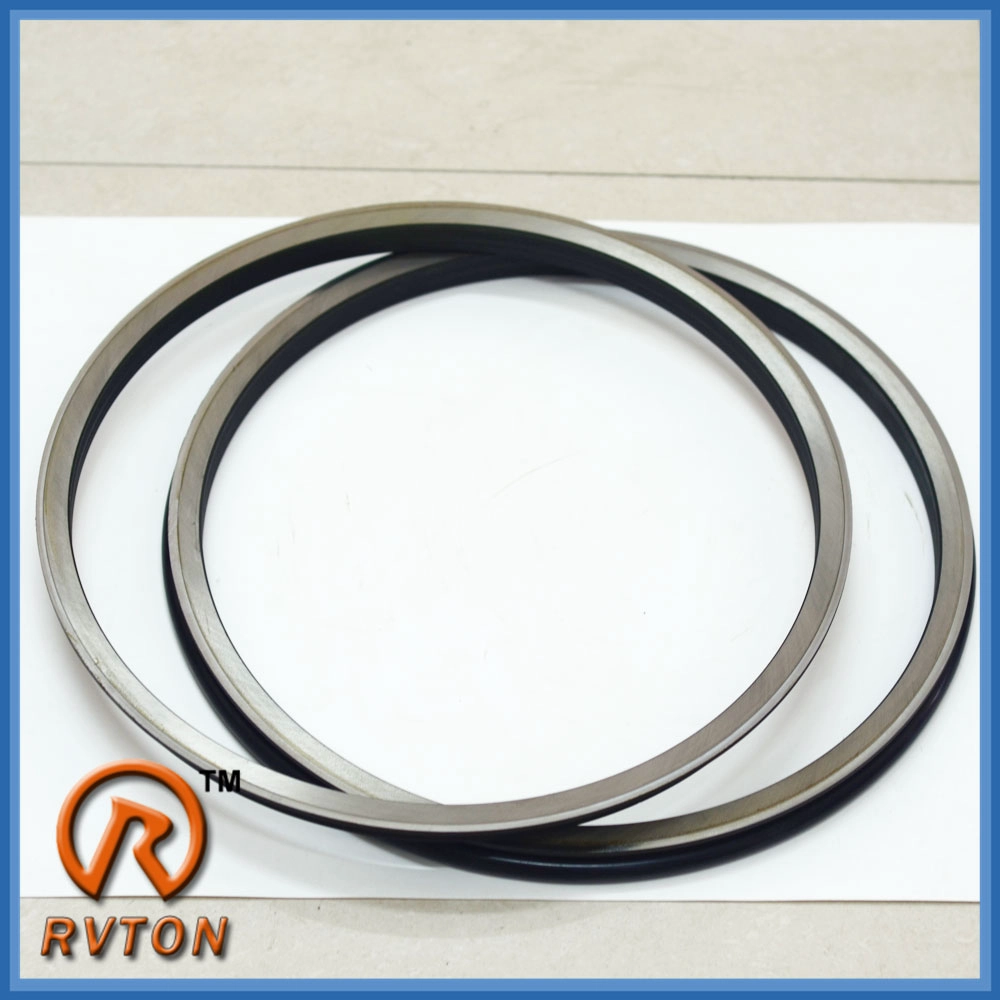

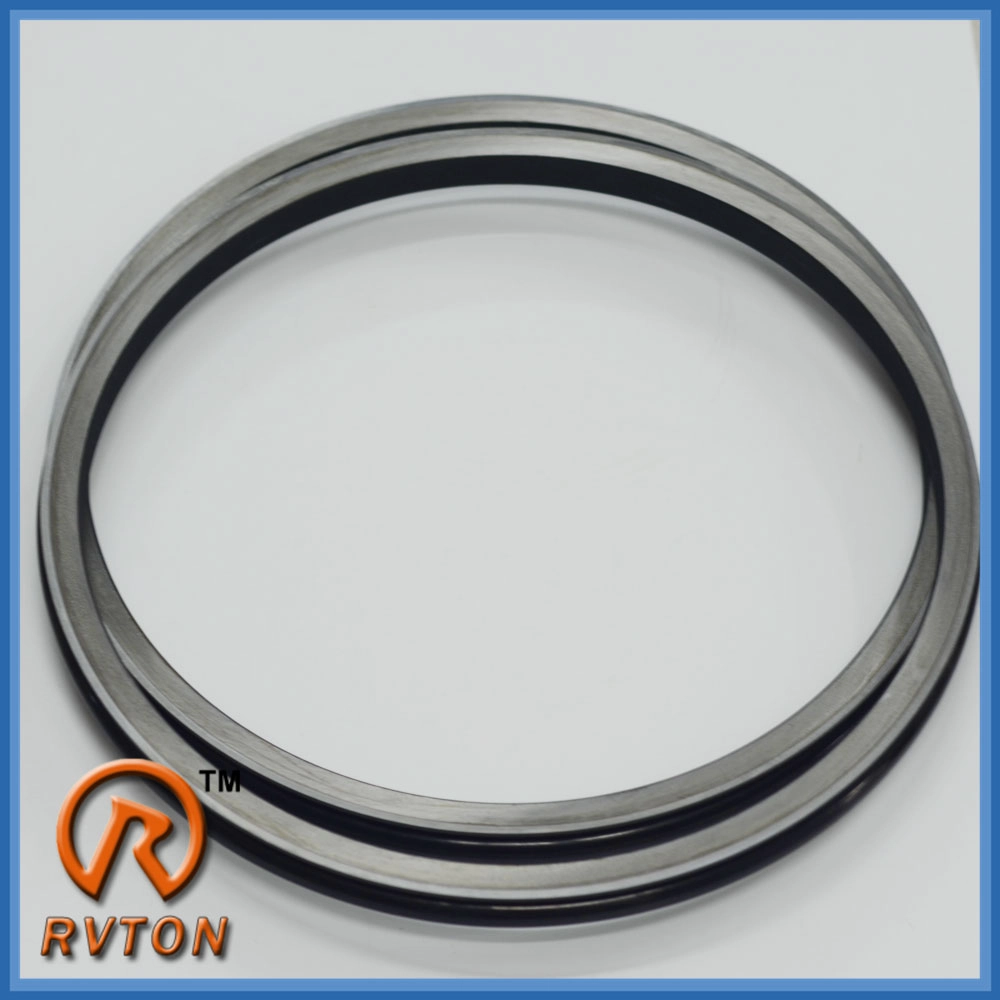

568-33-00015 / KO4975 Komatsu Floating Seal Assy

We offer a wide range of OEM part numbers floating seal. ID38MM size from to 700 mm.

Komatsu, Caterpillar, Hitachi, Kubota, Kobelco, Danapac, Goetz, Trelleborg...

model#	Rolla	Roller	Front idler	Final drive
PC60	110-30-00085	140-30-00040	141-30-00610
PC200	20Y-30-00040	20Y-30-00090	10Y-30-00100	150-27-00026
E200B	1M8746	8E5609	5P0204
E320	9W7220	8E5609	9W7225
D60	141-30-00616	141-30-00616	141-30-00610	141-27-00015
D85ESS-1	154-30-00832	154-30-00832	154-30-00832	192-27-00022
D3	9E6690	9E7216	9E6691

About Rvton plant

We have three Floating Seal Production lines, monthly production reached more than 50,000 sets.

There are two kinds of material:

Steel GCr15 / 100cr6 and cast iron 15Cr3Mo

metal	Steel GCr15 / 100Cr6	Casting 15Cr3Mo
Surface smoothness / roughness:	≤Ra0.2μm	6.3-12.5μm
Smooth Face	≤Ra0.15μm	≤Ra0.1μm
Pressure load	≤0.15MPa	≤0.3 MPa
Forging production line speed	2 m / s	3 m / s
temperature range	-100~200 ℃	-40~160 ℃
Hardness (HRC)	58-62	60-68
Life (h)	3000	5000

NBR60, silicone rubber and fluorine rubber ring provided

Material	NBR60	Silica gel	FKM
Hardness	60 ° ~65 °	60 ° ~65 °	72 ° ~78 °
Minimum tensile strength	11MPa	10.6Mpa	11MPa
Minimum elongation at break	300%	400%	260%
Permanent deformation	12%	8%	25%
Temperature range	-40 ℃ - + 120 ℃	-49 ℃ - + 230 ℃	-30 ℃ - + 250 ℃
Specific gravity (g / cm3) is	1.25	1.2	1.8

- Why Rvton provide so fast?

-as we have a large inventory of raw materials, packaging and finished products.

- How to make print on metal rings?

- We use laser printer to print the part#, the size and the log upon your request

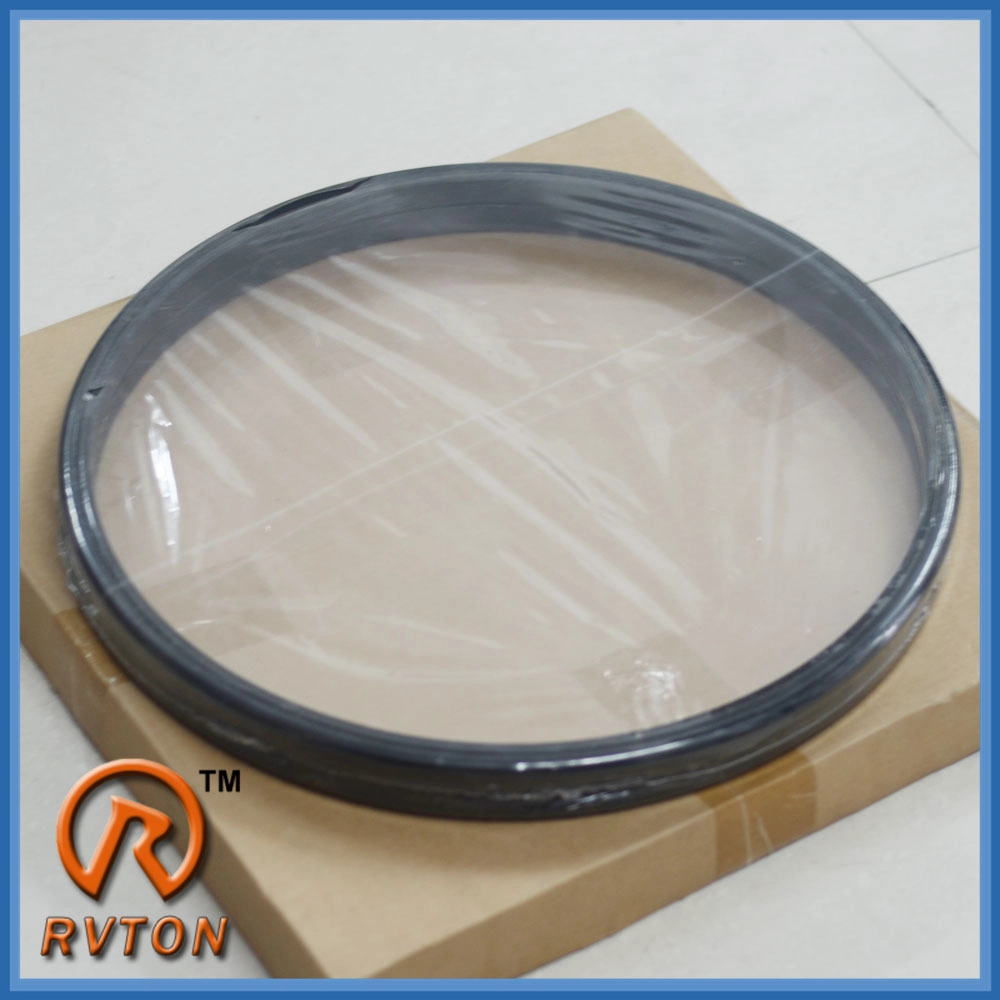

-Rvton Packing

Brown/ Yellow inner box+Trasparent pp bag+Standard export carton

Free wood pallet and wood carton will be offered upon your request

- Conveniant and economic transportation.

We in the middle of China with more conveniant shipping methords to Shanghai, Guangzhou, Qingdao, Shenzhen, Ningbo, Wuhan ...

With over 10 years exporting experience, better and economic shipping forwarders will be offered to you.

FAQ

-You're Factory?

Yes, our factory is located in Huangshi City, Hubei province, and established in 2004.

- How do you control the quality?

Each seal is inspected 100% in each producing process.

- How long to make delivery?

In three days with stock, if no stock, 15-30 days upon the order quantities.

- Can i buy one to test?

Sure, sample order and tril order are offered for evaluation.

Warmly welcome to contact us and visit us! :)

For more information, please contact me! Good offer will be sent to you.:)

Fay Xu

Sales Representative

E: floatingseal04@rvton.com

T: 8615717237241

Skype's: fay.xu3

Micro letter: fayxu323

WhatsApp is: 8618772280161
