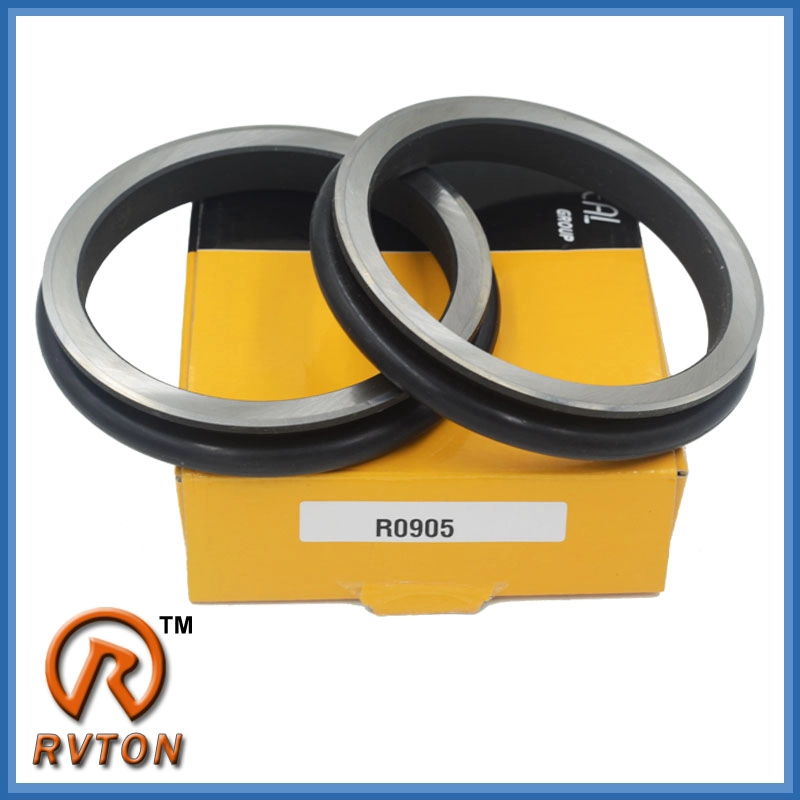

5m1176 floating seal , 5m1177 floating seal

  • Product Name: 5m1176 floating seal , 5m1177 floating seal
  • Material: Metal+rubber
  • Metal Ring Color: Black
  • Metal Ring Hardness: 58-62HRC/65-72HRC
  • Rubber Ring Material: Viton & nbr &silicon Rubber
  • Rubber Ring Hardness: 60°-65°
  • Rubber Ring Color: Black+ red/yellow/blue +various colors
  • Rubber Ring Pulling Intensity: ≤12% ±5°
  • Working Time: 5000 Hours
  • Warranty: 18 Months
  • Working Time: 5000 Hours
  • Product Details

5m1176 floating seal , 5m1177 floating seal


 1.One set=2 metal rings+2 rubber orings



2 metal rings 2 rubber rings
size: 50-1000MM(id) material: NBR/Viton/Silicone/HNBR
material: fogerd steel or cast iron (Gcr15 &100Cr6)  hardess 58-62HRC/65-72HRC color: Black/Blue/Red/yellow/Custom
temperature:-30C+100C
hardness: 60°-65°
Speed:2m/s








2,  4 Types for your reference












Apply for all kinds of brand heavy machine: EXCAVATOR ,BULLDOZER ,TRACTOR ,TRAVEL MOTOR ,FINAL DRIVE ,SWING MOTOR caterpillars' articulations of construction vehicles, heavy construction vehicles and agricultural equipment , tunnel boring and underground mining machinery
track rollers of construction machines and mining machinery. the undercarriage of bulldozers and excavators
Various loaders and land levelers, cranes, mixers, mining machines,
 Off Highway Mining Trucks,Shovels,Continuous Miners,Longwall Shearers,Wheel Ends,Wet & Dry Brakes,axles,heavy trucks ,tracked vehicles,Idlers,Rollers,Gearboxes,Cutting Heads. for aftermarket



Our floating seals can be replaced for well known construction and mining machinery such as KOMATSU, CAT, Hitachi,Mitsubishi ,Daewoo, Kobelco, Sumitomo and Hyundai. Some models are listed below.



models part no
PC200-3, PC200, PC200-5,6, PC300-7, PC400-5

205-30-00052



20Y-30-00040





170-27-00020

207-30-00101



  215B, 215C,215D, E200B,EL200B

2M2858/5K6191/9W7216/ 9W7223,1M8746/9W7220

  EX200-1, EX200 , EX300, UH 07-5(UH081)   4110358,4060222/4110359/4512571


















 packing



part no on the seals and box.

Inner packing with plastic bags and box, outer packing with carton,wood pallet,wood carton.


About us


Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004.



Our factory absorb the Italian GNL advanced technology of production as many years and



research and experience, we have a special system to reach different customers



requirement.




The inner diameter of floating seal is from 50-1400mm. Now my factory have two production



line: one is for forgeable piece, hardness is HRC58-62, worktime is 4000HRS; the other is



for cast, hardness is HRC65-72, worktime is 6000HRS. There are four different types:



stander type, XY type, L type and iron plate type.

Customers Design and Small Quantity Trial Orders are welcomed. We are doing my best to



reach your requirement in good service, reputation and faith for long and strong



relationship.

We sincerely welcome you to join us.







Japan ,France ,Italy customer visit  our factory




20141125-20141128  Shanghai Bauma Exhibition




for the first business ,one small free sample avaliable for your checking.
