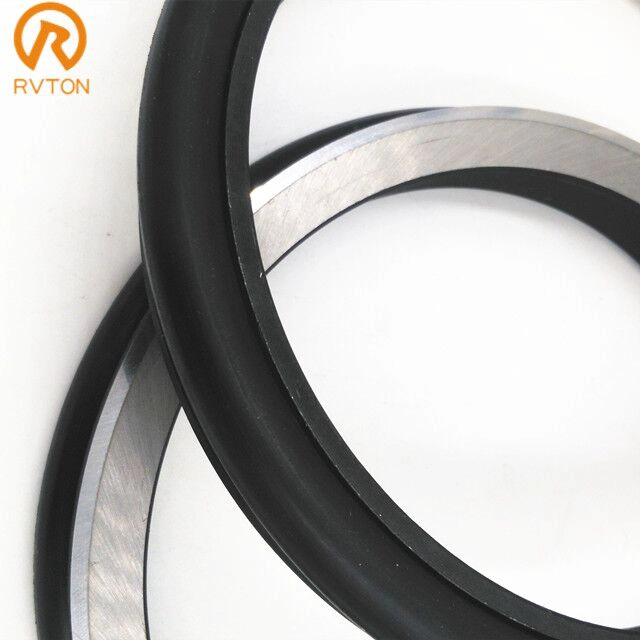

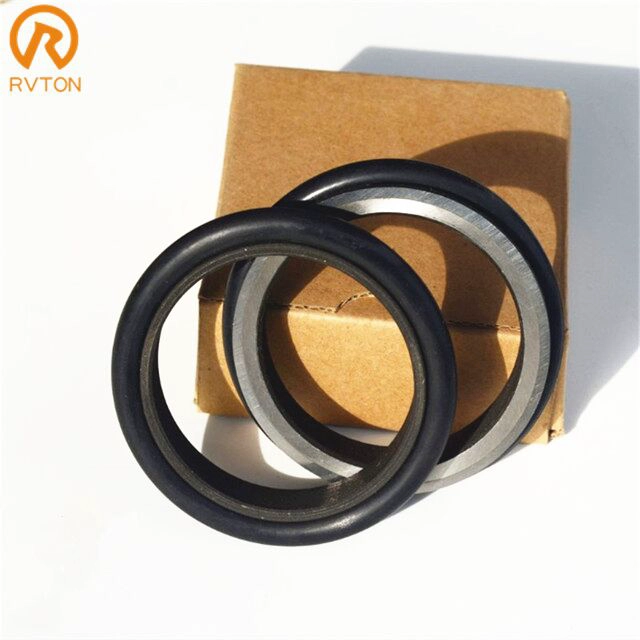

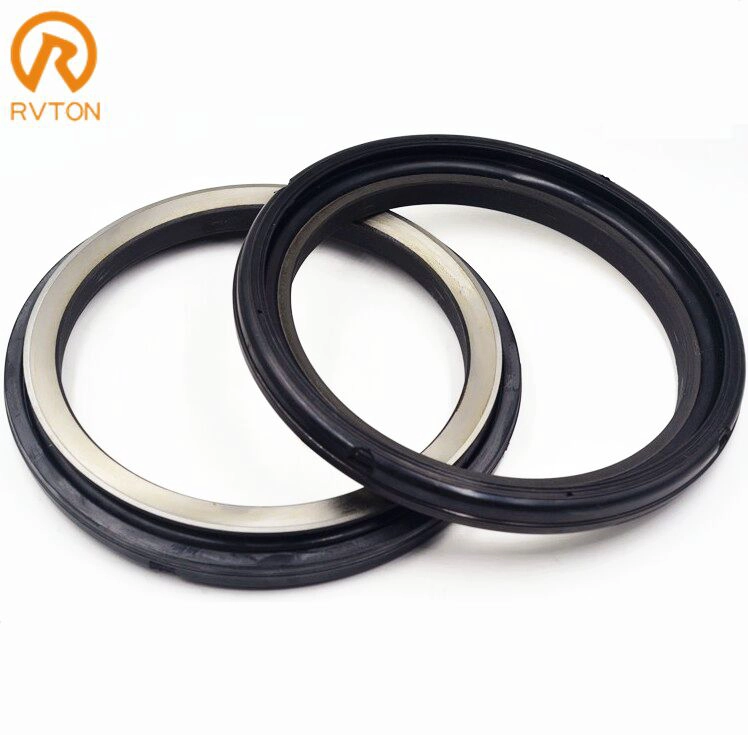

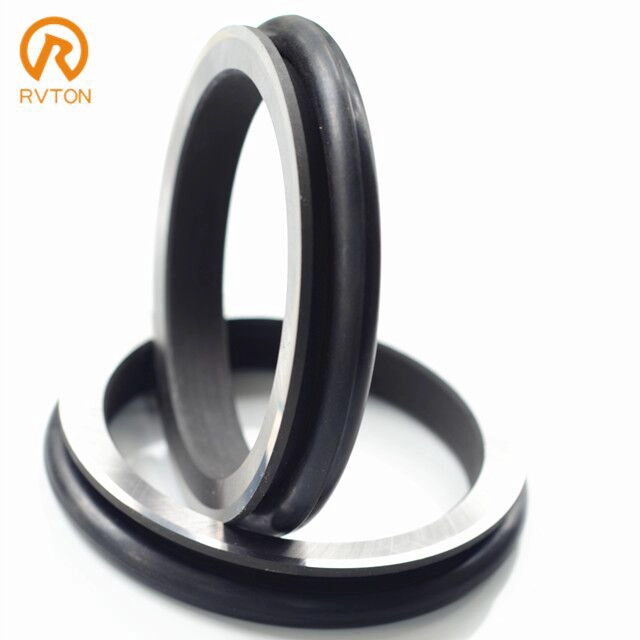

6V2459 duo cone face seals

Home > Category > Duo cone seal for Caterpillar aftermarket  > 6V2459 duo cone face seals

6V2459 duo cone face seals

  • 1.Lifetime: 5000hours / 8000hours
  • 2.Hardness: 58-62HRC / 62-68HRC
  • 3.Stolen Material: 100cr6 / Gcr15 / 15cr3Mo
  • 4.Rubber material: Nitrile / Silicon / Viton
  • 5.Processor: Forging & Casting
  • 6.Warranty: 18 months
  • 7.Tension (inside diameter): 38mm-000mm
  • 8.Package: Neutral Packing or Rvton Packing
  • 9.OEM for all types of brands.
  • 10.Stocks: Yes
  • Product Details
One Set = 2 Metal Rings +2 Rubber Rings
+=
Specifications of metal ring
material
Gcr15 / 100Cr6 give 15Cr3Mo
Surface Smoothness / Roughness ≤Ra0.2μm 6.3-12.5μm
work Face Smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure It is loading ≤0.15MPa ≤0.3 MPA
Blacksmith Queue Speed 2m / s 3 m / s
Temperature Range -100 ~ 200 ℃ -40 ~ 160 ° C
Hardness (HRC) 58-62 60-68
Life span(Hours) 3000 5000
Specifications of rubber ring
material  NBR  Silicon  FKM
 Hardness  60 degrees ~ 65 degrees  60 degrees ~ 65 degrees  72 degrees ~ 78 °
 the minimum Flexible Power  11MPa  10.6Mpa  11MPa
 the minimum Elongation On break  300%  400%  260%
 permanent Deformation  12%  8%  25%
 Temperature Range  -40 ℃ - + 120 ℃  -49 ℃ - + 230 ℃  -30 ℃ - + 250 ℃












application

- Farm, construction, earthmoving, coal mining machinery

- Excavators, bulldozers, tractors, cranes, forklifts, heavy trucks, backhoes

- Undercarriage, hydraulic motor, travel motor, gearbox axle, wheel hub, tunneling







Packing and shipping




Packing: Neutral packing, yellow box, and your logo in packing are welcome

Shipping: FOB Shanghai, Ningbo, Shenzhen, Xiamen as per request.




general question


Q: Are you the manufacturer?
A: Yes, we are

Q: Are you providing OEM service?
A: Yes, and the MOQ is 1 pcs

Q: How do you control the quality?
A: 100% inspect the size in each process before a seal is exported.

Q: How long is the delivery time?
A: For cart size is only 1 day, for non-standard it is usually 1 month

Q: Guru using life time?
A: 5000 hours
