Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...

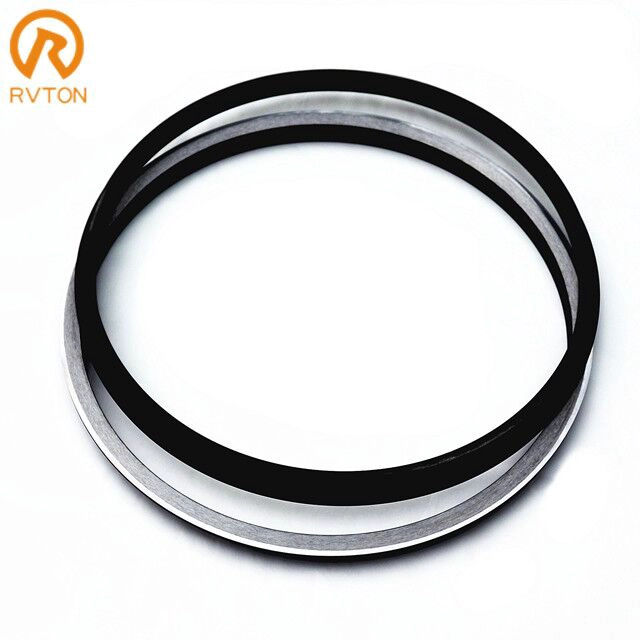

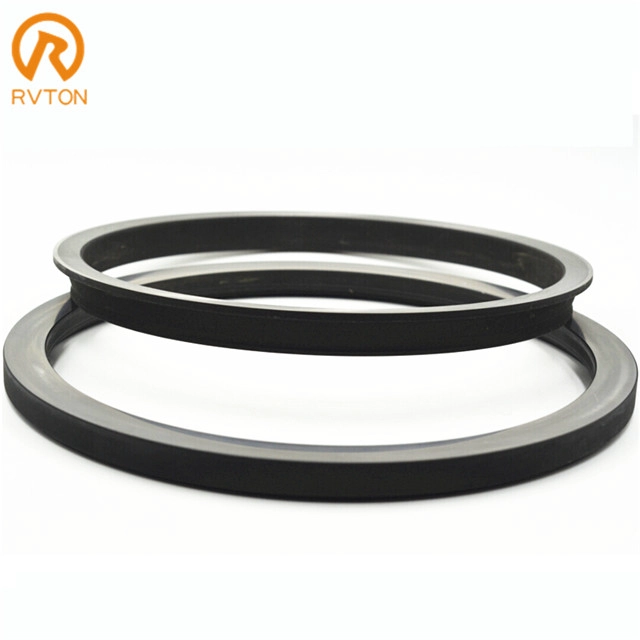

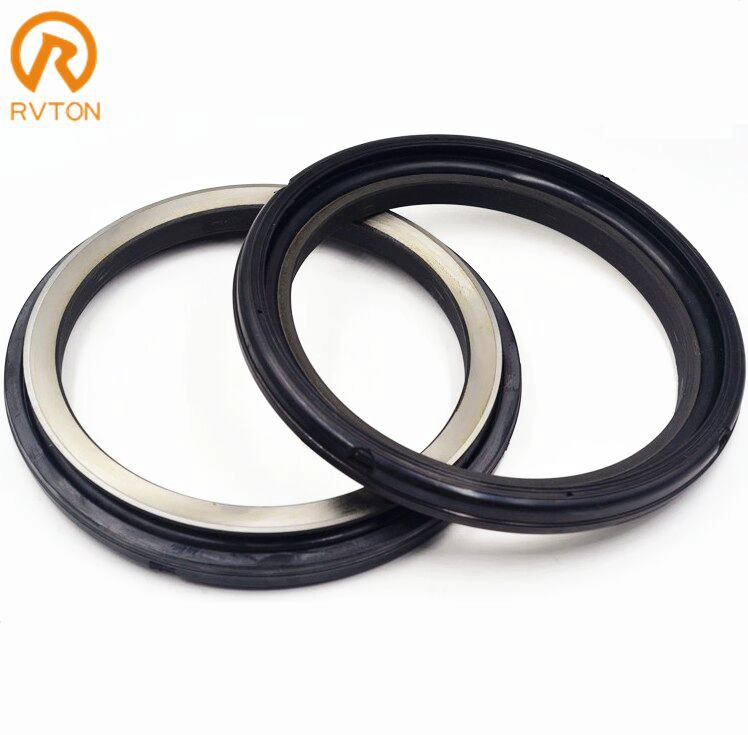

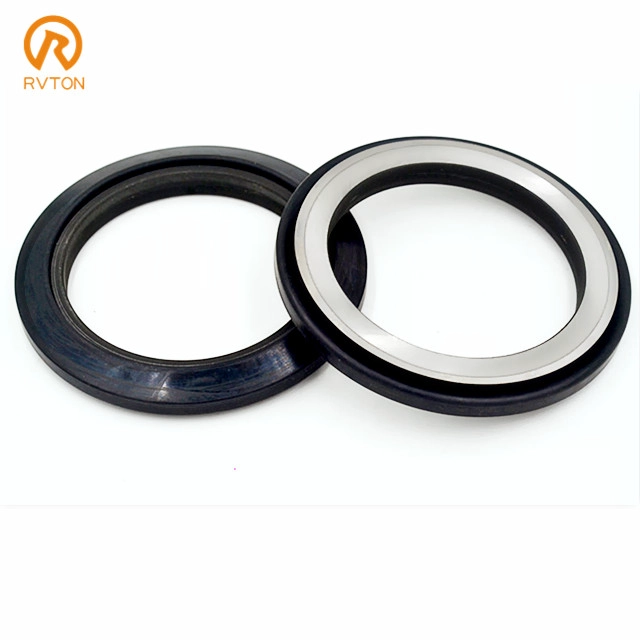

76.97H-32 Mechanical Face seal supplier
| One SET= 2 metal rings +2 rubber rings | |||
 + = |
|||
| Specifications of Metal ring | |||
| Material |
Gcr15/ 100Cr6 | Cast 15Cr3Mo | |
| Surface smoothness/Roughness | ≤Ra0.2μm | 6.3-12.5μm | |
| Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm | |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa | |
| Forging line speed | 2m/s | 3m/s | |
| Temperature range | —100~200℃ | -40~160°C | |
| Hardness(HRC) | 58-62 | 60-68 | |
| Lifetime(Hours) | 3000 | 5000 | |
| Specifications of rubber ring | |||
| Material | NBR | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
packing & Shipping
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Common questions
Q: Are you the manufacturer?
A: Yes, we are
Q: Are you providing OEM service?
A: Yes, and MOQ is 1pcs
Q: How do you control the quality?
A: 100% inspect the size in each procedure before a seal is exported.
Q: How long is the delivery time?
A: For cart size is only 1 day, for non-standard usually 1 month
Q: Gurantee using life time?
A: 5000 hours
