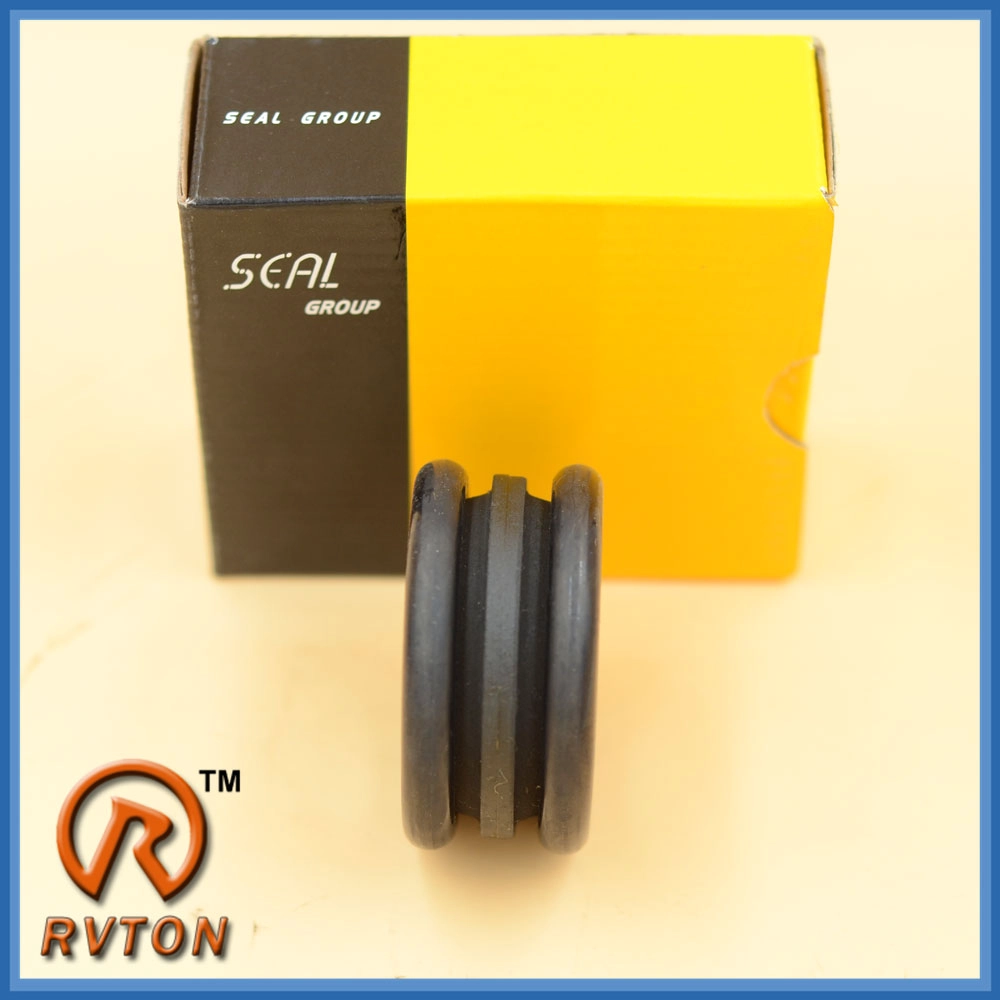

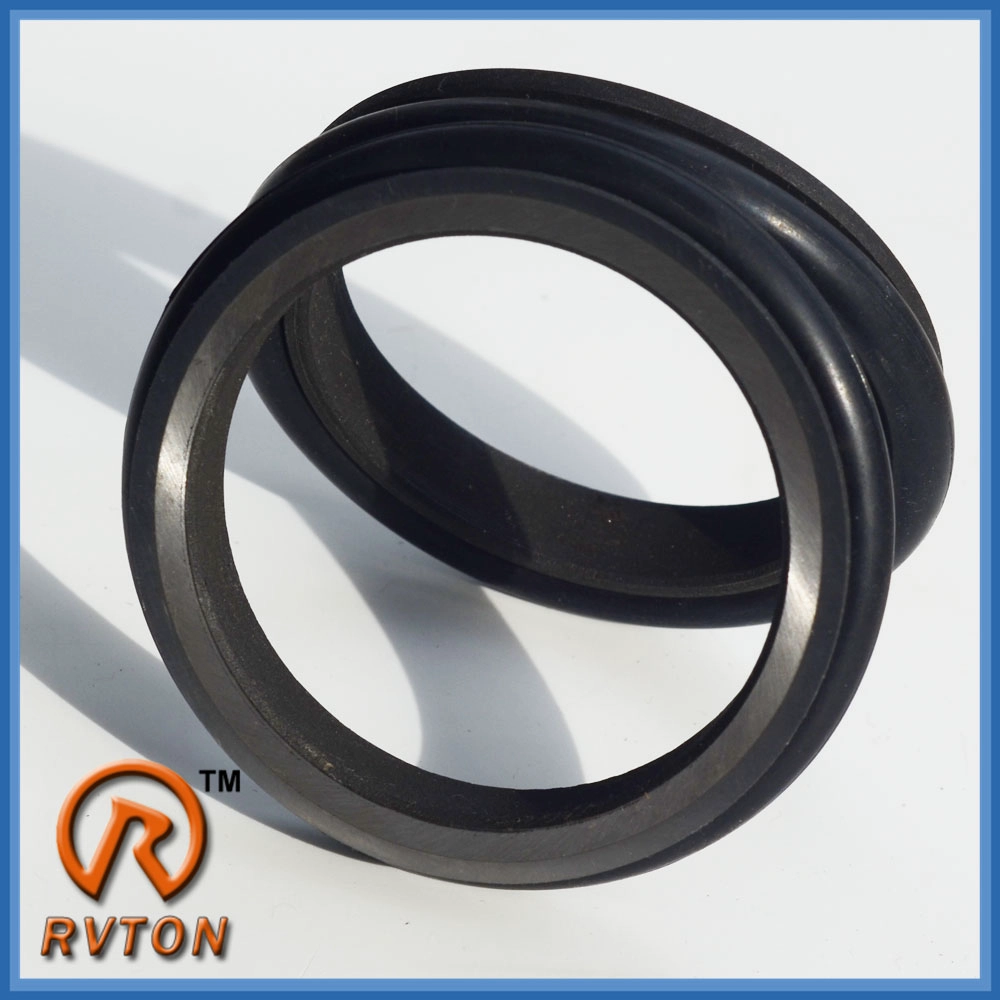

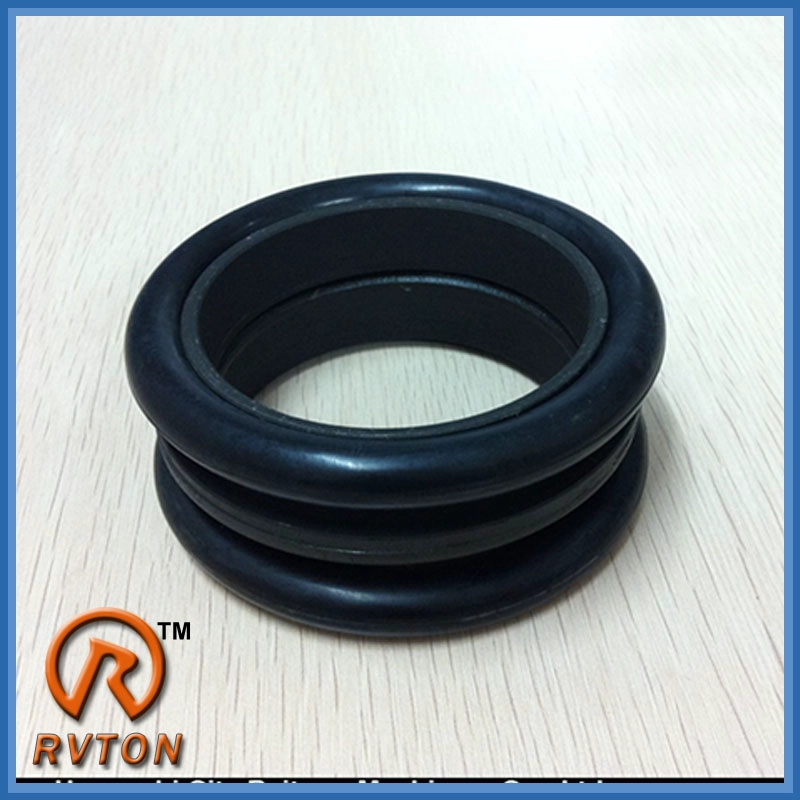

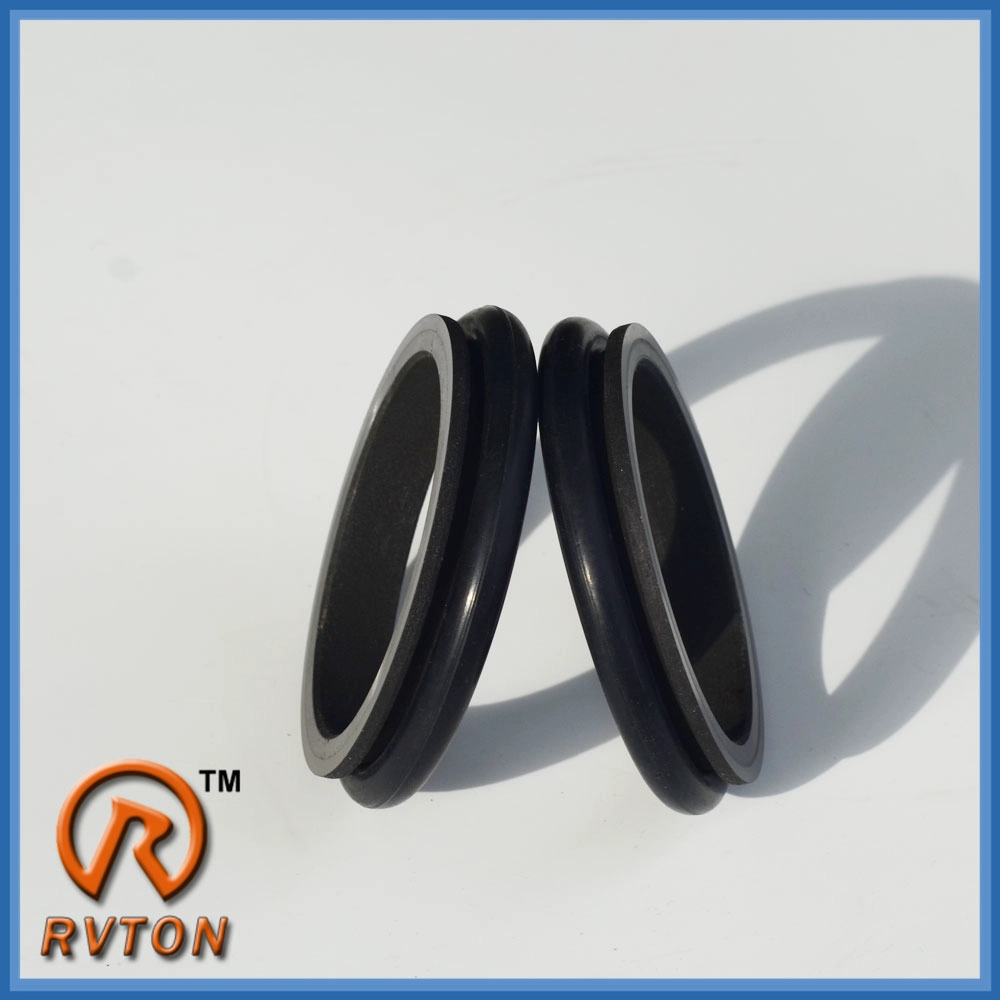

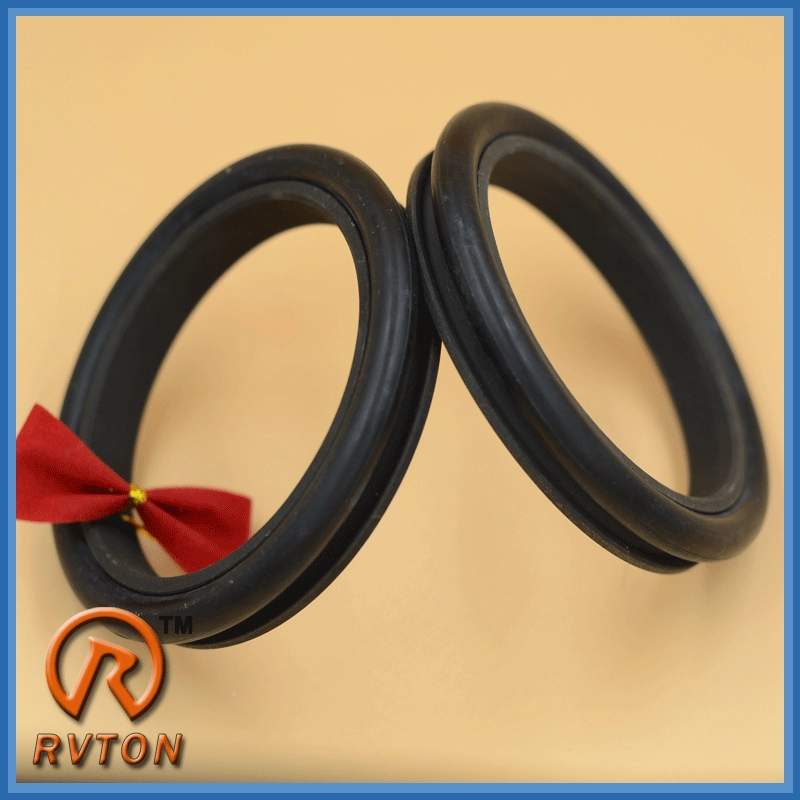

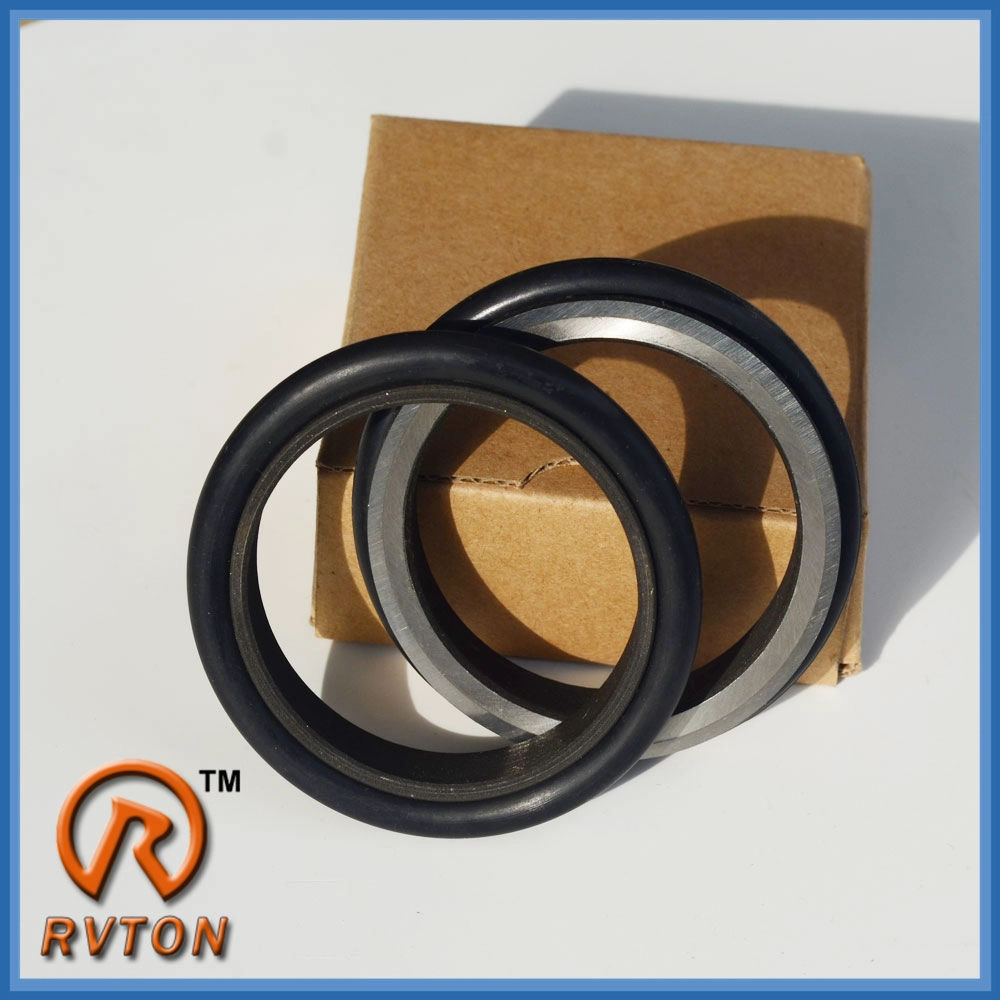

| Product | Bottom Roller Parts Floating Seals, 141-30-00610 seal group supplier |
| One set | Consist of two metal seal rings and two NBR o rings |
| Factory# | R0580 |
| Part# | 141-30-00610 |
| Weight | 0.27 kgs |
| OEM | We do oem and custom designs. OEM covers different brands. |
| Process | Forge |
| Lifetime | 5000HOURS |
| FOB | Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen |
| Packing | Outside: Standard export carton. Inside: inner box with our log. Each set will be placed in the pp bag tidily. |
| Warranty | 18 months |
| Used for | Excavators and bulldozers undercarriage parts, travel motors, front idlers, track rollers, final drives; tractors; trucks |
| METAL | |
| Surface smoothness/roughness: | ≤Ra0.2μm |
| Work face smoothness | ≤Ra0.015μm |
| Pressure loading | ≤0.3MPa |
| Forging line speed | 2m/s |
| Casting line speed: | 3m/s |
| Temperature range | —100~200°C |
| RUBBER | NBR | Silicone | Fluor |
| Rubber Ring hardness | 60-65 | 60-65 | 72-78 |
| Minimum tensile strength | 11MPa | 10.6MPa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | ≤12% | 8% | 25% |
| Temperature range | –40°C to +120°C | –49°C to +230°C | –30°C to +250°C |
Welcome to contact us for our product catalog! If the part# and size you can not find in it, we can also make the seals with your size details or drawings.
The special floating seals and irregular type floating seals are welcomed to be passed to us, our engineer team will solve them.
About Us
1).We have manufactured floating seals for over 13 years.
We are a professional manufacturer of floating seals in Hubei,China. We have a team of engineers and inspectors and the advanced techonogy absorbed from Italy.
2).The output is 50000 sets per month .
Our innovated techonogy have our product' performace perfect and speed up the producing process.
3).We have our own brand “ RVTON ”
Our own brand "RVTON" has high reputation among local and abroad. We sincerely hope you will be one of our partners.
|
|
|
|
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
428-33-00022 FLOATING SEAL ASS'Y ( SPARE PARTS FOR KOMATSU CONSTRUCTION & MINING MACHINERY )
Type: Standard type
Rvton Inner size: 38-700mm
MOQ: 1 SET
Stock: Yes
Process: Forge
Hardness: HRC58-62
Life-span: 5000hours
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: NBR60
Packaging & Shipping - Outside: Standard export carton. - Inside: Inner box.
