1. Floating seal also called toric seals, seal group, Duo cone seal, mechanical face seal, lifetime seal
2. Diemension of metal seal: 132/114/
3. Working lifetime: 5000 hours / 8000hours
4. Warranty: 18 months each shipment, take care of afterservices

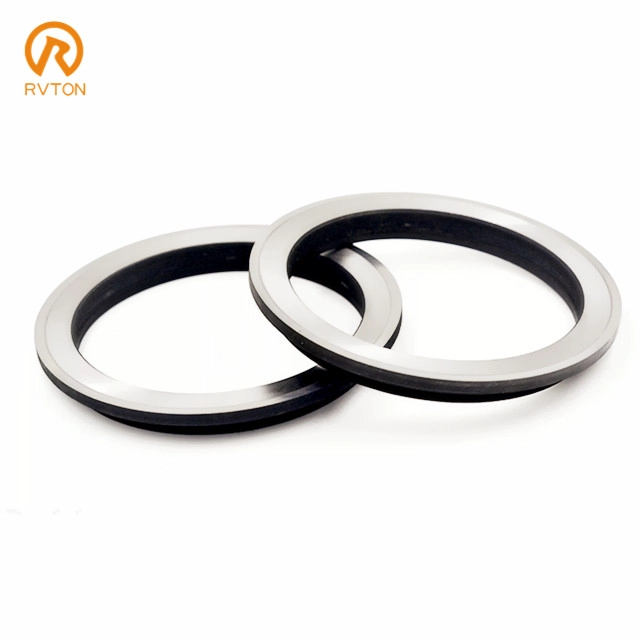

The seal group are consist of metal rings and rubber washers. The metal rings:
| Surface finish / Roughness | ≤ Ra0.2μm |
| Face finish | ≤ Ra0.015μm |
| Pressure | ≤ 0.3MPa |
| Forged line speed | 2m / s |
| Casting line speed | 3m / s |
|
Temperature
|
-100 ~ 200 °C |
The rubber washers:
| Shore hardness | 60 ° ~ 65 ° |
| Minimum tensile strength | 11MPa |
| Minimum elongation at break | 300% |
| Flexible change | ± 5 ° |
| permanent deformation | ≤ 12% |
The advantages of our product:
1.Coexistence of high quality and competitive prices
2.Long service life
3.Easy to install
4.High yield
5.Good performance
Method of installation:
1.Usingspecialized tools installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is mounted between the metalfloating ring and the rubber ring, toward the seat hole, the rubber ringis evenly pressed into the hole.
2.Otherinstallation methods: One auxiliary O-ring is fixed between the conicalring surface of the floating oil seal and sealing O-ring (as shown).The ring of the floating oil seal is applied uniformly by pressure andthe auxiliary O-ring braces the sealing O-ring to ensure the othercorrect mounting positions.
Thereare too many specifications that I just list a small part. Pleasecontact me to ask if you havn't found what you want. Thank you!
Standard Type
|
4176379 |
38mm |
51mm |
20.4mm |
|
1791292 |
63.5mm |
82.5mm |
31.8mm |
|
170-27-00010 |
130mm |
151mm |
32mm |
|
9W 6668 |
163.3mm |
191.2mm |
38mm |
|
9W 6672 |
182.3mm |
210.3mm |
38mm |
|
9W 3732 |
264.9mm |
292.8mm |
38mm |
|
4066695 |
298mm |
328mm |
42mm |
L Type
|
Product number |
OD |
Diameter |
Height |
|
U17386 |
62.1 |
47.1 |
10 |
|
U16187 |
72 |
54 |
10 |
|
U16186 |
87 |
66.9 |
11.6 |
|
655973C91 |
93 |
73.5 |
10 |
XY Type
|
Product Number |
OD |
Diameter |
Height |
|
7T4080 |
70.5 |
53.7 |
31.5 |
|
7T0158 |
82.2 |
66.5 |
31 |
|
7T0159 |
93 |
76 |
32.5 |
|
7T0157 |
99 |
82 |
32.5 |
Iron Plate Type
|
Product Number |
OD |
Diameter |
Height |
|
TZ300A-1010 |
180 |
164 |
9.7 |
|
TZ310B-1027 |
185 |
158.7 |
12.3 |
|
TZ550A-1010 |
210 |
186 |
11.4 |
|
TZ850A-1010 |
230 |
201 |
13.3 |
|
TZ150A-1010 |
260 |
216 |
13.3 |
|
TZ150F-1027 |
284 |
247 |
13.3 |
|
TZ200B-1010 |
290 |
248 |
13.3 |

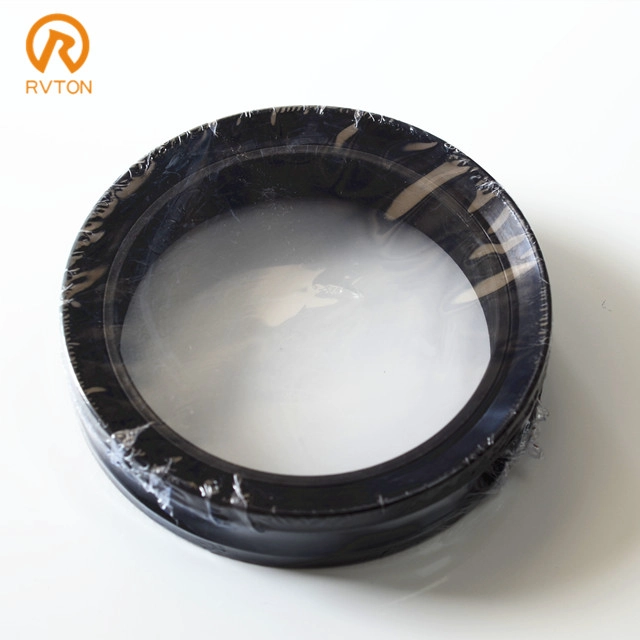

About packing:
Thereare three styles of our box. And we also have cartons and trays. We putseal group in box, then put several boxs in cartons.
About our factory:
Our company's products are widely used on crawler dozers, excavators, heavy vehicles and machinery. Theysold throughout the country and Southeast Asia, Europe and America, andthe customers always feel satisfied. Using RVTONG floating seal ringwill make you even more powerful and successful.
Welcome to contact following Macy for a quick answer :
Macy Cao
Macy Cao - Sales Supervisor
Email - floatingseal03@rvton.com
Skype - rvton.seals
Whatsapp- 0086 13886465358
Facebook - Cao. Macy
QQ - 2917299701
Direct line- 0086 15717237241
http://www.sealgroupsupplier.com
Huangshi Rvton Machinery Co., Ltd.
1004, Block 5, Yijing plaza, Huangshi, Hubei, China
Tel - 0086 15717237241 0086 15717233790
Fax - 0086 714 6277689
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: FT 953 Seal Group for Berco Mining Products
4.package:Inner packing in shrink wrapped plastic bags and boxes,outer packing in cartons and wooden pallets. And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
