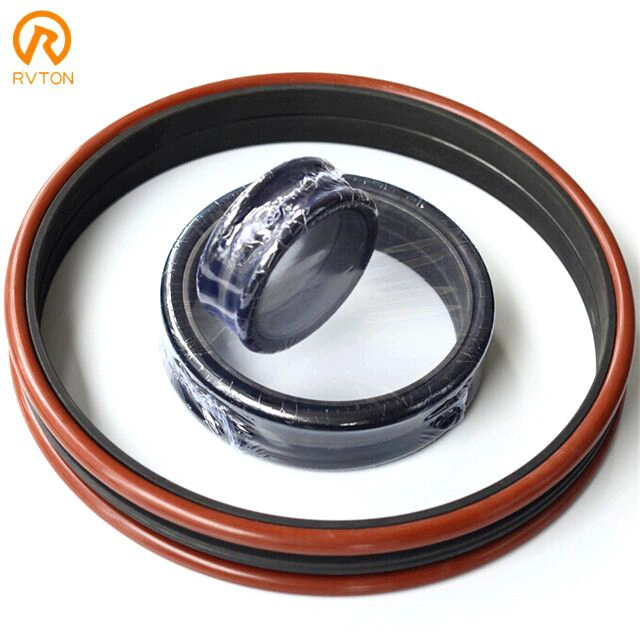

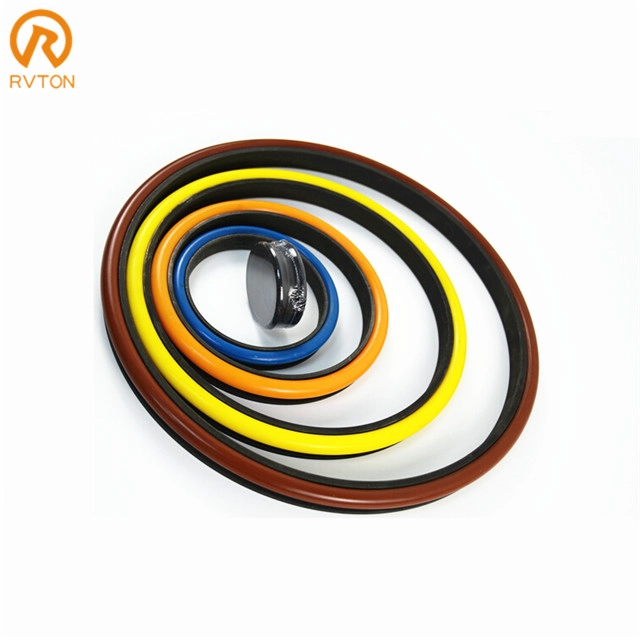

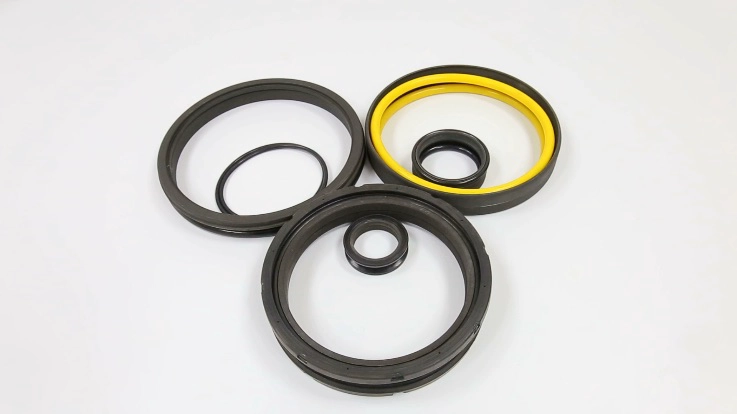

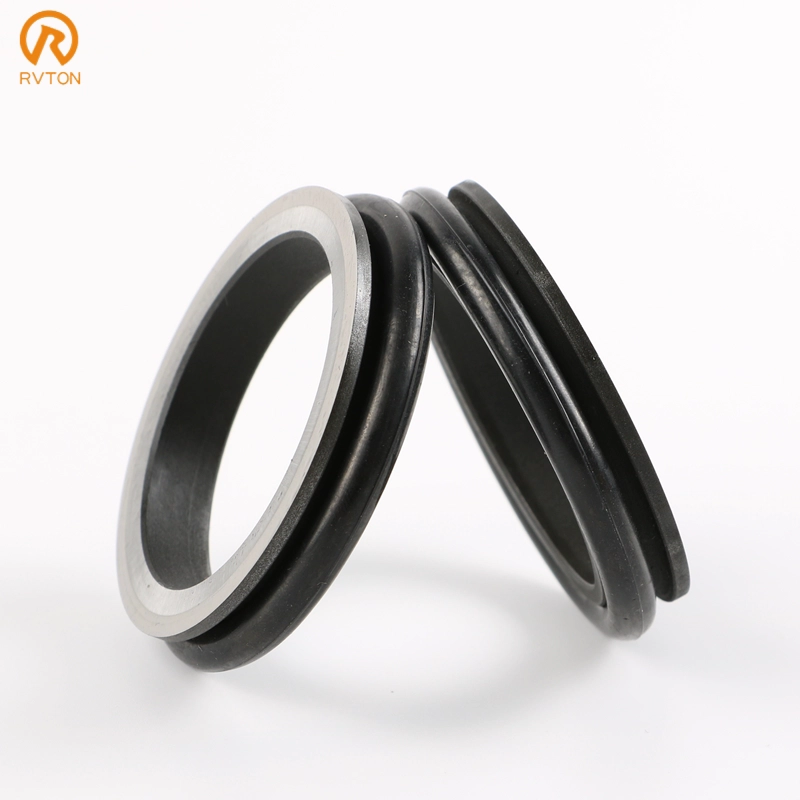

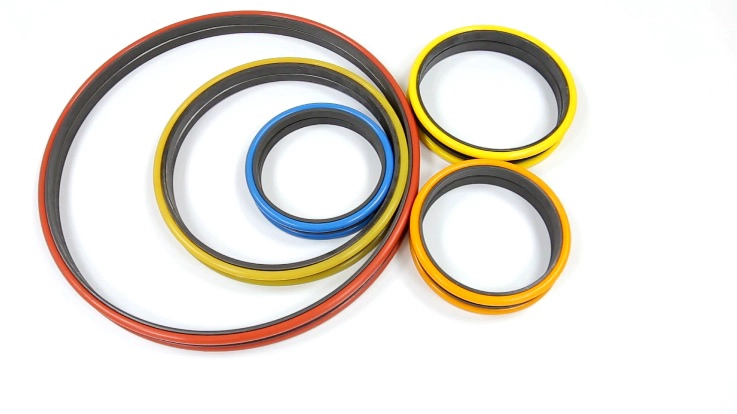

CR3875 Duo Cone Seals Manufacturer
| One SET= 2 metal rings +2 rubber rings | |||
 + = |
|||
| Specifications of Metal ring | |||
| Material |
Gcr15/ 100Cr6 | Cast 15Cr3Mo | |
| Surface smoothness/Roughness | ≤Ra0.2μm | 6.3-12.5μm | |
| Work face smoothness | ≤Ra0.015μm | ≤Ra0.1μm | |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa | |
| Forging line speed | 2m/s | 3m/s | |
| Temperature range | —100~200℃ | -40~160°C | |
| Hardness(HRC) | 58-62 | 60-68 | |
| Lifetime(Hours) | 3000 | 5000 | |
| Specifications of rubber ring | |||
| Material | NBR | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
packing & Shipping
Packing : neutral packing, yellow box, and welcome your logo in packing
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Contact Nina Huang for more details.
Email - floatingseal02@rvton.com
Skype - ninahuang1
Wechat /Whatsapp:0086 159 7155 1091
QQ - 2881724353
Direct line - 0086 015717237241
Huangshi Rvton Machinery Co., Ltd.
1004, Block 5,
Website- www.sealgroupsupplier.com
Factory for floating seals since 2003
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
1, Part Nr:5P 9121
2, new aftermarket parts
3, material: steel 100CR6 + NBR60
4, metal hardness: 58-62 HRC
5, rubber hardness: 60-65 °
6, life: 3000-5000 hours
7, warranty: 18 months
8, Packing: Shrink Films + Inner Box + Standard Export Carton + Wooden Pallet + Wooden Box
