Excavator PC220-7 Seal Group for Swing Reduction Gearbox

Home > Category > Floating seal for Komatsu Aftermarket  > Excavator PC220-7 Seal Group for Swing Reduction Gearbox

Browse Categories

China Excavator PC220-7 Seal Group for Swing Reduction Gearbox manufacturer China Excavator PC220-7 Seal Group for Swing Reduction Gearbox manufacturer China Excavator PC220-7 Seal Group for Swing Reduction Gearbox manufacturer China Excavator PC220-7 Seal Group for Swing Reduction Gearbox manufacturer China Excavator PC220-7 Seal Group for Swing Reduction Gearbox manufacturer China Excavator PC220-7 Seal Group for Swing Reduction Gearbox manufacturer

Excavator PC220-7 Seal Group for Swing Reduction Gearbox

  • 1.Lifetime:5000Hours/8000hours
  • 2.Hardness:58-62HRC/62-68HRC
  • 3.Material of Seal:100cr6/Gcr15/E52100/534A99/SUJ2
  • 4.Inner diameter:38mm-1000mm
  • 5.Material of O-Ring:NBR/Viton/Silicone/HNBR
  • 6.Process of Seal:Forging & Casting
  • 7.O-Ring color:Black/Blue/Red/Custom
  • 8.Warranty:18 months after shipment
  • 9.Rubber Ring Hardness:60-65°
  • Product Details

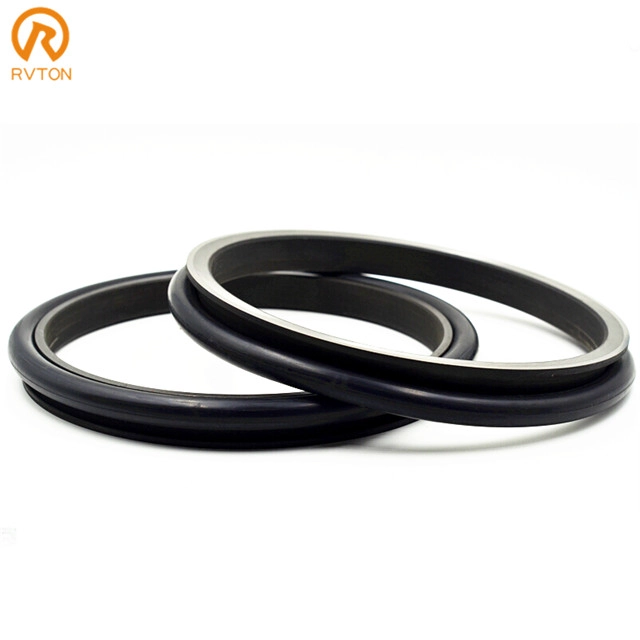

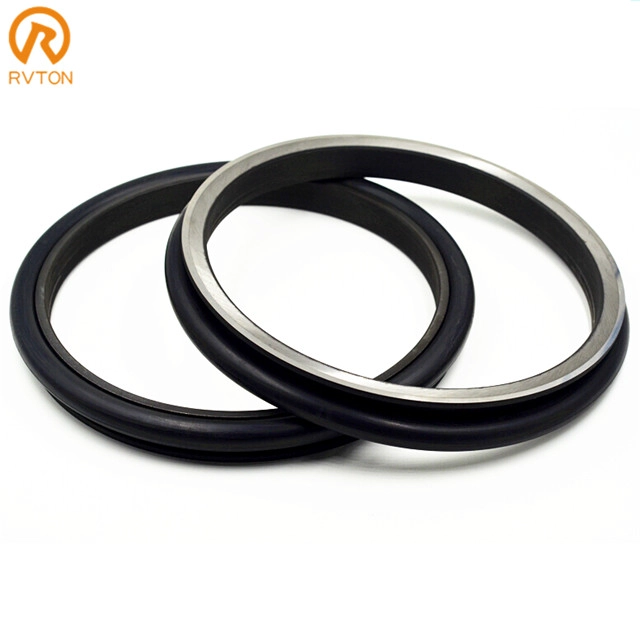

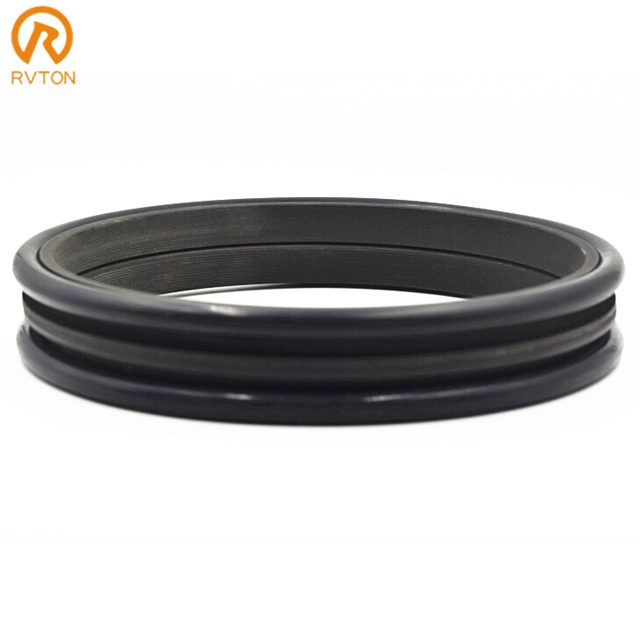

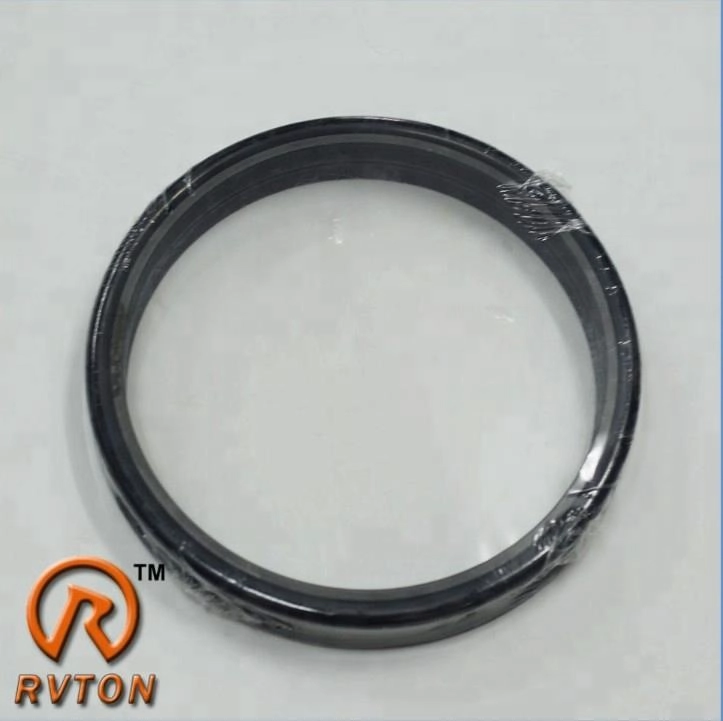

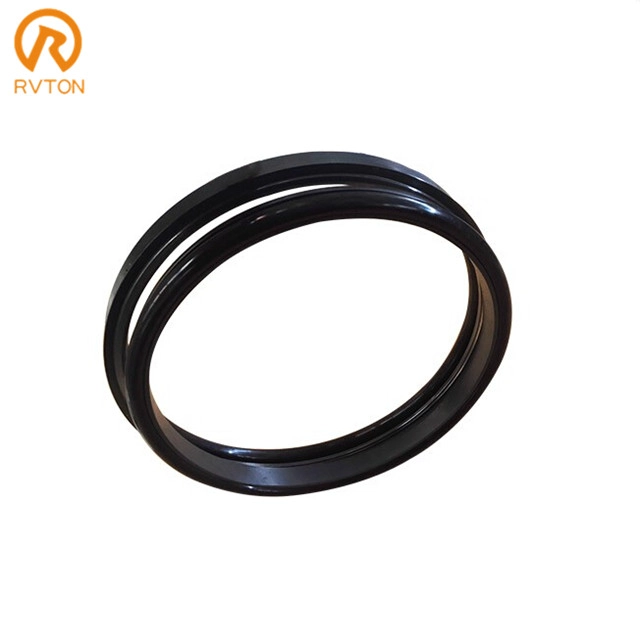

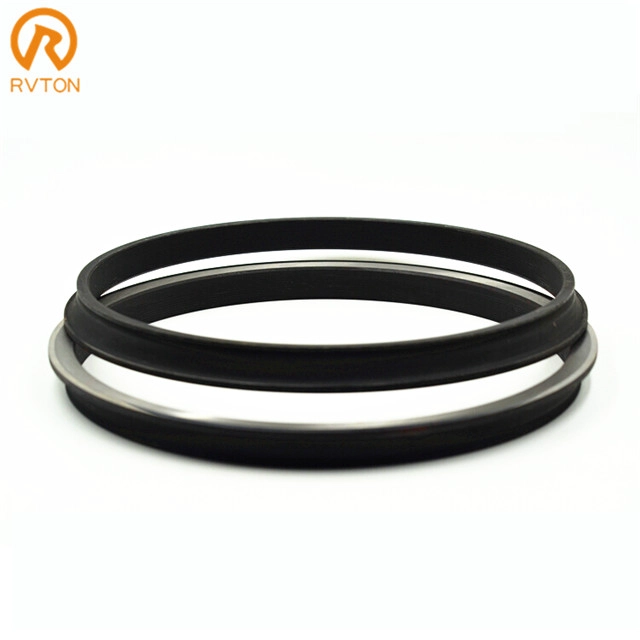

Excavator PC220-7 Seal Group for Swing Reduction Gearbox


Product Description
  •      Rvton Seal is also called floating seal, seal group, Duo cone seal, mechanical face seal, lifetime seal
  •      the outer diameter of floating seal is from 35mm-1,000mm.
  •      The hardness is HRC58-62 , the working face precision within 0.015um.
  •      Flatness up to 0.1um-0.2um ,the lifetime is more than 4,000HRS.

    Rvton seal group Set are consist of metal rings and rubber o ring

  •  - The metal rings


    Surface finish / Roughness ≤ Ra0.2μm
    Face finish ≤ Ra0.015μm
    Pressure ≤ 0.3MPa
    Forged/Casting  line speed 2m / s &  3m / s
    Hardness 58 - 62 HRC
    Temperature

     -100 ~ 200 °C



     - The rubber o ring



    Shore hardness 60 ° ~ 65 °
    Minimum tensile strength  11MPa
    Minimum elongation at break  300%
    Flexible change  ± 5 °
    permanent deformation ≤ 12%

OEM Service
OEM steel printings could be free of charge

Model

OEM Codes

Komatsu

195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121, 140-30-00040 , 130-27-00010 , 741857c91 , 170-27-00010，428-33-00022 ...

Kobelco

R45P0018D, R45P0018D6, R45P0018D18, YN15V00037S029，LQ15V00031R200，R45P00018D9,R45P0018D25, R45P0018D12, R45P0018D27, R45P0018D13, SK200-8,R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, YN15V00037S029，R45P0018D30.

Caterpillar

1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 1M 8747, 9W 6647, 9W 6648, ,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201，314-4130，317-6441，172-5284，365-4922，3144128，2059025，1326141,Cat 320...

Hitachi

4283635, 4176379 , 4177260 , 4082631, 4642180,  4110363, ES-110,4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64,4138544,4082698,EX400,E215...
Packaging & Shipping

Packing : neutral packing, yellow box, white box, and welcome your logo in packing


Application:
-- Farm, construction, earthmoving, coal mining machinery

-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe

-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling

-- For OEM Komatsu, Caterpillar, Shantui, Sany, Kubota, SK Kobelco, JCB, Volvo, Hitachi,
   John Deere, Fiat Allis, New Holland, Commins, Terex, BOB-Cat,DOOSAN, Case IH... etc.


Trade Shows

Bauma Machinery Shanghai 2014

Bices Beijing 2015

Bauma Shanghai 2016

Bauma Shanghai 2018

Bauma Munica 2019


Company Information

Huangshi Rvitong Machinery Comapany Limited

1. A factory founded in 2004.

2. two production line:

    a. one is for forgeable piece 100Cr6, hardness is HRC58-62, worktime is 5000HRS;

    b. Two is for cast iron 15Cr1Mo/15Cr3Mo, hardness is HRC62-68, worktime is 8000HRS.

3. Inner diameter 35 - 1,000mm.

4. Four different types: standard type, XY type, L type and iron plate type.

HTB1RtNDHpXXXXazapXXq6xXFXXXq

FAQ

1. Are you a real manufacturer for floating seals ?

    Rvton is a real manufacturer for floating seals only. We also designfloating seals, draw floating seals, assemble and manufacture seals. Weaccept customer's design, drawing, and samples.


2. As an inland company, how to arrange shipment ?

   This could be our advantage, as we are located in middle of China, ittakes us same times to send goods either to Wuhan, Shanghai, Ningbo,Shenzhen, or Xiamen port. We can deliver to most of ports for seashipments, and arrange express DHL UPS Fedex TNT EMS Freely to Doorservice.



3. Usually how long it take to finish an order ?

   3 - 4 weeks for a common order around 1000 sets, and we keep regularstocks for sample order or trial orders, which can supply immediatedelivery.





4. Tell us more about your manufacturing process ?

    The main manufactuer process is listed in following chart, feel free to ask more.

More questions ?? Any request now ?

Welcome to contact following Macy for a quick answer, quick online service

Macy Cao

Email - floatingseal03@ rvton.com

            rvtonseals@gmail.com

Skype: rvton.seals

Wechat:rt15387239910

Tel: 0086 15387239910

Website: www.rvton.com
