Huangshi Rviton Machinery Co.,Ltd

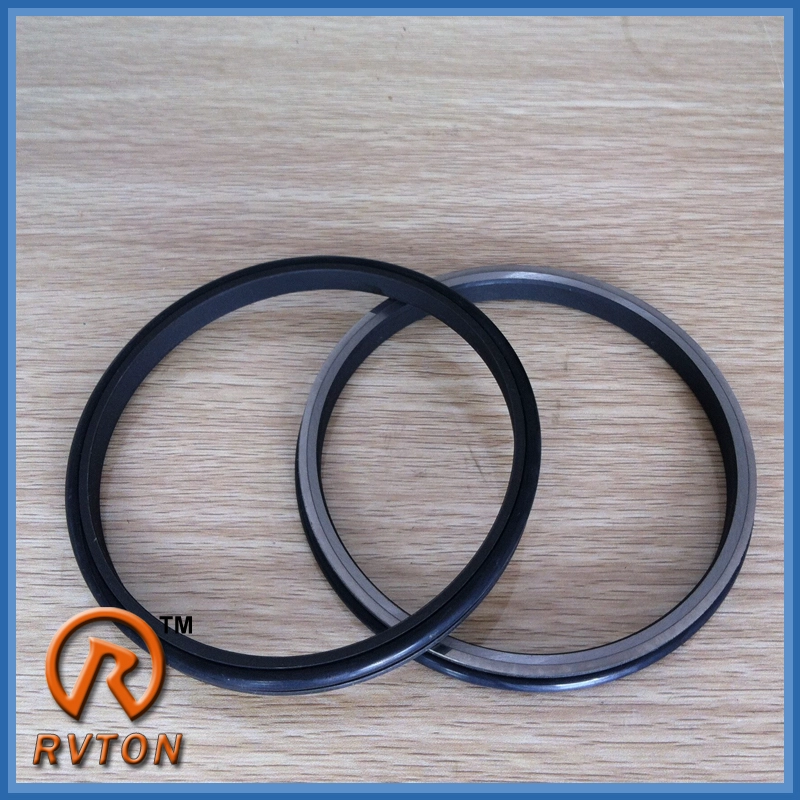

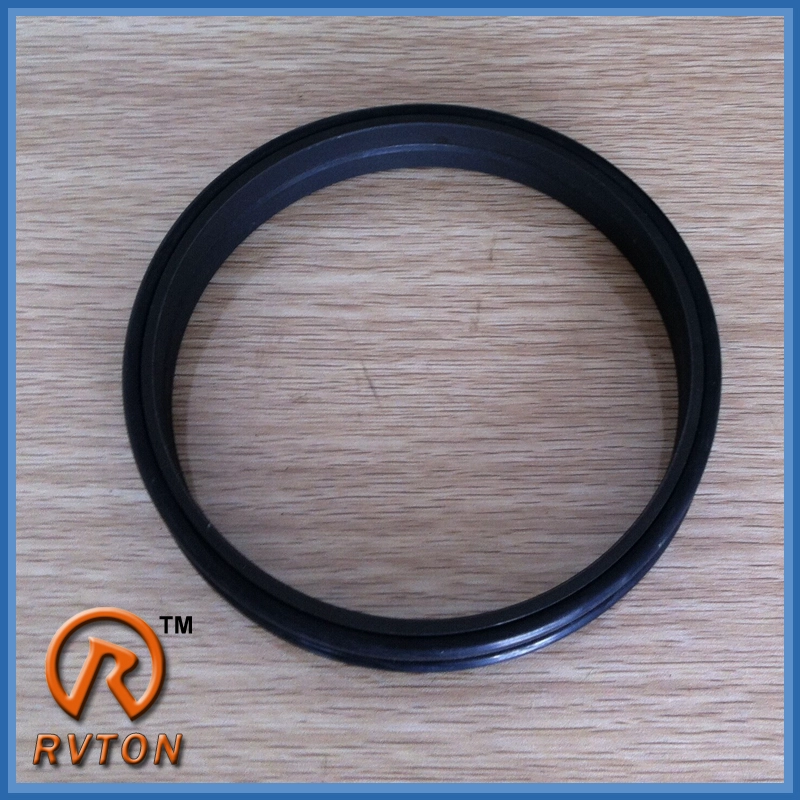

| One SET= 2 metal rings +2 rubber rings | |||
 + = |
|||
| Specifications of Metal ring | |||
| Material |
Gcr15/ 100Cr6 | Cast 15Cr3Mo | |
| Surface smoothness/Roughness | ≤Ra0.2μm | 6.3-12.5μm | |
| Work face smoothness | ≤Ra0.015μm | ≤Ra0.1μm | |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa | |
| Forging line speed | 2m/s | 3m/s | |
| Temperature range | —100~200℃ | -40~160°C | |
| Hardness(HRC) | 58-62 | 60-68 | |
| Lifetime(Hours) | 3000 | 5000 | |
| Specifications of rubber ring | |||
| Material | NBR | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
Advantages:
1.Coexistence of high quality and competitive prices
2.Long service life
3.Easy to install
4.High yield
5.Good performance
Method of installation:
1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.
2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.
| BRAND | MODEL | BOTTOM ROLLER | CARRIER ROLLER | FRONT IDLER | SPROCKET |
| Caterpillar | D5、D5B、D5LGP、D6、D6B、955K | 2M2858 5K6191 9W7216 9W7223 |
1M8747 9W6647 |
2M2858 5K6191 9W7216 9W7223 |
7M0481 9G5313 9W6668 9W6669 |
| Komatsu | D60,D65-6、7、8,D66S-1,D75A-1 | 141-30-00610 141-30-00616 | 141-30-00610 141-30-00616 | 141-30-00610 141-30-00616 | 141-27-00015 150-27-00015 150-27-00015 150-27-00025 150-27-00026 |
| Kobelco | SK07-2,SK07-LC-2 | R0900A | R0560 | R1000 | |
| Sumitomo | S280FJ | R0900B | R0580 | R0900B | R2500 |
| Hitachi | UH 07-5(UH081) | 4317586 | 4060222 4110359 4512571 |
4056360 4110362 4153732 4508193 |
packing & Shipping
Packing : neutral packing, yellow box, and welcome your logo in packing
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004. Our factory absorb the Italian GNL advanced technology of production as many years and research and experience, we have a special system to reach different customers requirement. Our products are selling nationally worldwide, such as USA, Italy, France, Japan,Pakistan, Malaysia ,Singapore, Indonesia, Thailand and other countries for few years.We have over 10 years' experience in trading service.
|
Iris Li |
||
|
Skype - iris_floatingseal Whatsapp- 0086 18971770045 Facebook - Yi Yu QQ - 2881724357 Tel - 0086 18971770045
http://www.sealgroupsupplier.com/
Huangshi Rvton Machinery Co., Ltd. 1004, Block 5, Yijing plaza, Huangshi, Hubei, China Tel - 0086 15717237241 0086 15717233790 Fax - 0086 714 6277689 |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china
1, Nth: 76592460
2, new aftermarket parts
3, material: steel 100Cr6 + NBR60
4, metal hardness: 58-62 HRC
5, rubber hardness: 60-65 °
6, life: 3000-5000 hours
7, warranty: 18 months
8, packaging: shrink film + internal box + standard export carton + wooden pallet + wooden box
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china
1.Part#423471
2.New Aftermarket parts
3.Material:Steel 100CR6 + NBR60
4.Metal Hardness:58-62 HRC
5.Rubber Hardness:60-65°
6.Lifetime:3000-5000 hours
7.Warranty:18 months
8.Stock offered
9.Packing:Shrink films + Inner box + standard export carton + wood pallet + wood box
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china
Rexroth GFT110 Travel Reduction Floating Seal Axle Face Seal China Supplier， travel reduction seals factory, travel motor floating seal manufacturer, Axle face seal china supplier
Part No.: GFT110
1.Lifetime: 3000-5000 hours
2.Hardness:58-62 HRC
3.Material of seal: steel 100CR6
4.In stock
5.Material of rubber: NBR ring
6.Rubber ring Hardness:60-65°
7.O-ring color:Black
8.Warranty:18 months after shipment
9, Packaging: Neutral box
