Excavator machinery O-ring 9W7230 track roller seal

  • 1. Part number: 9W7230
  • 2. New aftermarket parts
  • 3. Material: Steel 100CR6 + NBR60
  • 4. Metal hardness: 58-62 HRC
  • 5. Rubber hardness: 60-65 °
  • 6. Service life: 3000-5000 hours
  • 7. Warranty period: 18 months
  • 8. Spot
  • 9. Packing: shrink film + inner box + standard export carton + wooden tray + wooden box
  • Product Details

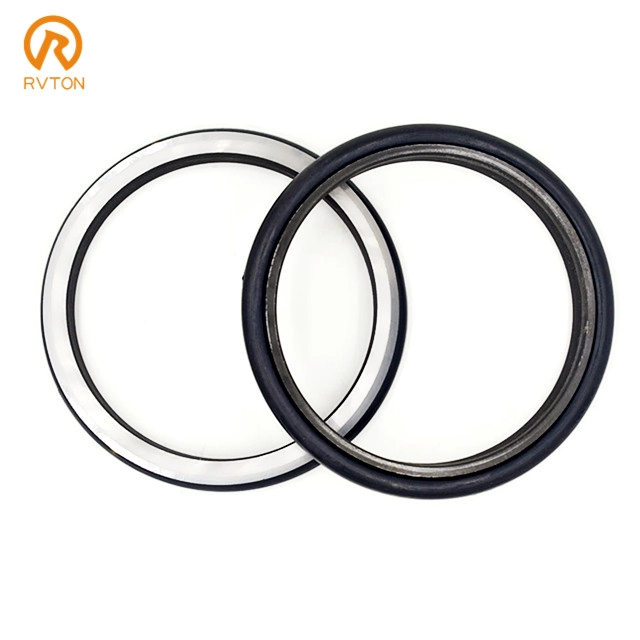

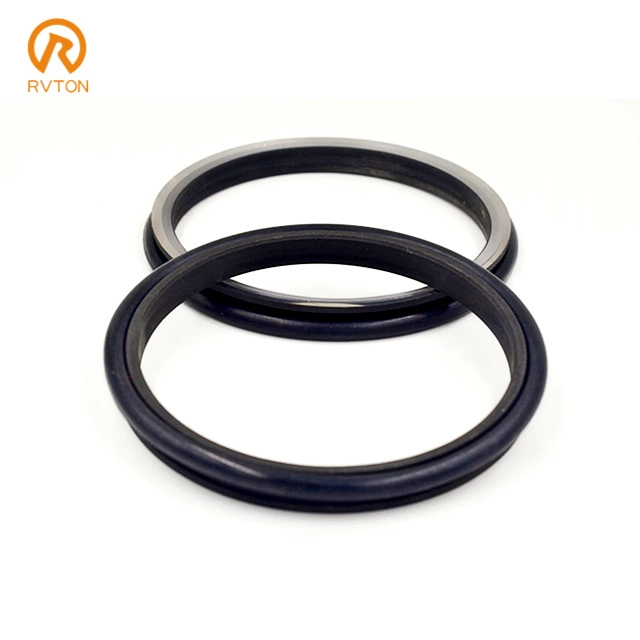

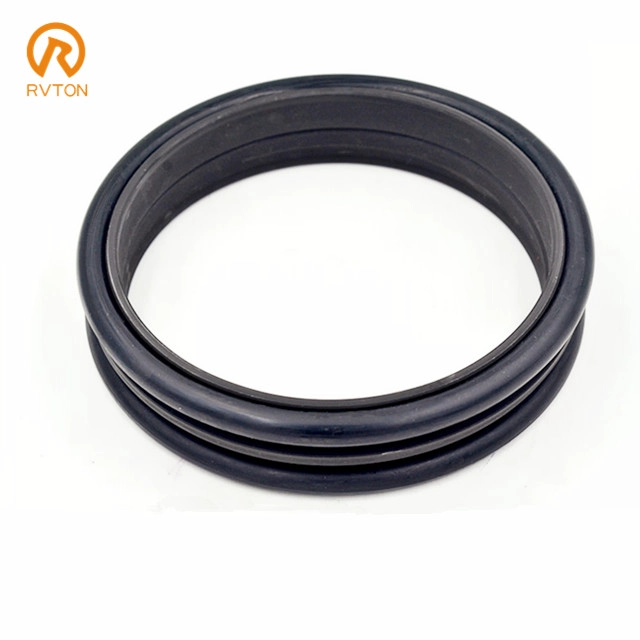

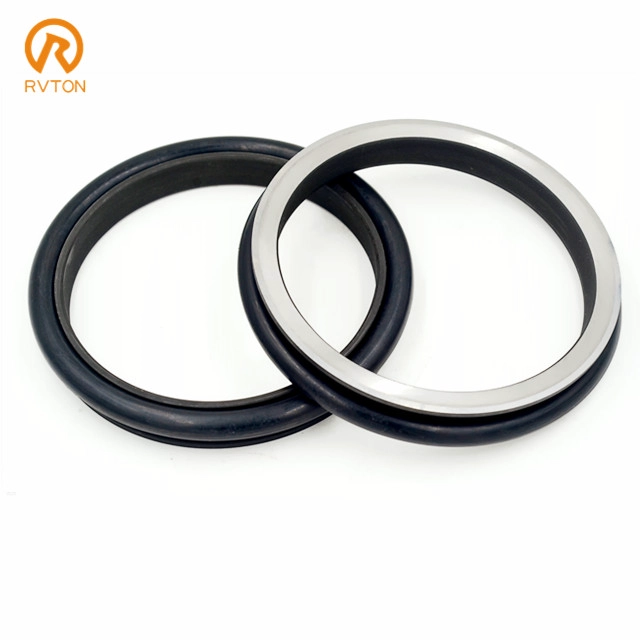

Excavator machinery O-ring 9W7230 track roller seal




Excavator Mechanical O Ring 9W7230 Track Roller Seals

OEM section# 9W7230
One group contain of two metal seal Ring with two rubber Ring
material 100CR6 steel + NBR60
Guarantee 18 years old month
stock usable
FOB Wuhan ,Shanghai Qingdao Ningbo , Shenzhen ,Xiamen
package shrink the film + Inside frame + standard Export Carton + wood Pallet + wood frame
application Build mechanical ,farm mechanical ,coal mining mechanical 


High precision of mechanical face seal Parts, minimal materials and design details all affect quality.
The ring is processed by CNC machine tool, with high precision, which improves the clamping ability of the O-ring and eliminates the slip of the O-ring to ensure the operation
smoothly.

The surface flatness of Rvton products is within 3 light bands of the optical interference of monochromatic light, our working surface roughness standard≤Ra0.1μm

Floating seals are designed to withstand extreme wear and tear.Floating seals are designed for heavy rotating applications and can withstand extreme wear and tear.There are four types of floating seals: standard type / XY type / L type / iron plate type




1. Metal: steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
metal Steel Gcr15 / 100Cr6 Cast 15Cr3Mo
Surface smoothness / roughness     ≤Ra0.2μm 6.3-12.5 microns
Working surface smoothness ≤Ra0.15μm ≤Ra0.1 microns
Pressure load ≤0.15MPa ≤0.3MPa
Forging line speed 2m / s 3m / s
temperature range -100 ~ 200 ° C -40 ~ 160 ° C
Hardness (HRC) 58-62 62-68
Life (hours) 3000-5000 5000-8000

2.Rubber ring: NBR60, silicone rubber and FKM rubber ring
material NBR60 Silicone FKM
hardness 60 ° -65 ° 60 ° -65 ° 72 ° -78 °
Minimum requirements pull strength 11 MPa 10.6 MPa 11 MPa
Minimum requirements elongation in break in 300% 400% 260%
permanent deformation  12% 8% 25%
temperature range -42 ℃ -120 ℃ -49 ℃ -230 ℃ -30 ℃ -250 ℃
specific gravity 1.25 1.2 1.8

-Heavy industry: mining, construction, agriculture


-Crawler vehicles: excavator, bulldozer, tractor, truck ...


-Axle


Conveyor system


-Tunnelbohrmaschine


-Travel engine, final drive, track roller, idler ...

  machine  section#
Komatsu number 110-30-00085 110-30-00045 141-30-00610 140-30-00040 140-30-00141 170-30-00110 170-30-00210 175-30-00070 175-30-00700 20Y-30-00040 130-27-00020 150-27-00025 150-27-00026 150-27-00027 204-30-00041 20Y-30-00100 150-30-00035 154-30-00035 154-30-00830 154-30-00832 154-30-00833 170-27-00010 198-30-00072 21T-30-00110 198-30-00072 423-33-00020 423-33-00021 205-30-00052 14X-27-00100 205-30-00050 22B-30-00030 195-27-00022 175-27-00120 175-30-00900 20Y-30-00430 22U-30-00060 20Y-30-13210 204-30-00100 198-30-00140 195-27-00100 568-33-00016 TZES 100-154S
Number of caterpillars 9G5311 9W6666 1M8747 9W6647 5M1176 6T8433 9G5315 9W6671 9W6680 9W7220 8E5609 9W7225 6P3595 9G5345 9W6690 9W6691 9W7216 2M2858 9W7223 9W6691 1P7249 5P7146 9W7243 7M0481 5P0204 7T0159 9W6651 9W7233 7T0157 108-6997 5P0373 9W7213 9P9663 8E2042 9W6694 9W3732 9W7201 9W7202 9W6620 9W6619 9W3956 169-6442 6Y0855 9W7204 6Y0856 9G5349 3144128 205-9025 9W7204 6Y0856 9G5349 1796862 1796863 145-6034 9W6644 9W6822 3T6602 365-4920 2627244 3176441 9W7206 1796864 1C9748 1456035 3144130 1791292   
Hitachi Digital 4176379 4110358 4128201 4508192 4128201 4508192 4060222 4110359 4512571 4060225 4047279 4104605 4110360 4153468 4163731 4068433 4153711 4163711 4110362 4153732 4508193 4056360 4111361 4507221 4642180 4110366 4110367 4513173 4092483 4082631 4179368 4179369 4179368 4179369 
Kobelco number 58845-01500 R45P0018D2 R45P0018D3 TD00348 / 17 R45P0018D4 5691020160 MT4000-7918 R45P0018D6 JB5680 619-89900440 71418383 05/9038111 180-00512 CR3069 XZ993774 MT40211881 R45P0018D21 R45P0018D25 TD0352 / 04 0964294 5691020340 5691020530 R45P0018D12 2445Z1110 R45P0018D27 TD00611 / 02 R45P0018D13 UK 5500 R45P0018D14 R45P0018D14 204-50805000 R45P0018D29 RG-30 OK5110H-25 JB5820 619-95032001 R45P0018D20 760S247F JS2650S YN53D00008S023 LQ15V00020S067 R45P0018D22 760S297FS YN15V000D00400120024004200U24U2  


1. Thoroughly clean the installation groove and seal.
2. Check the position of the rubber ring based on the seam position.

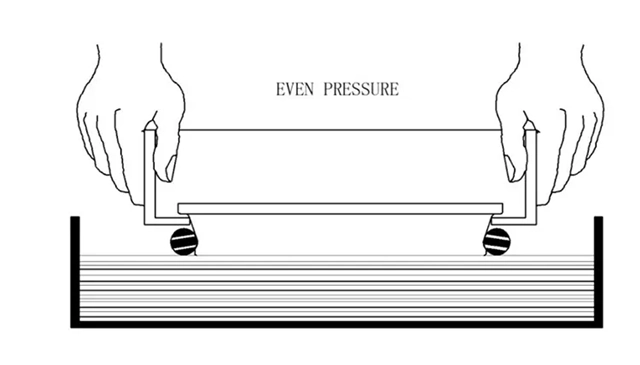

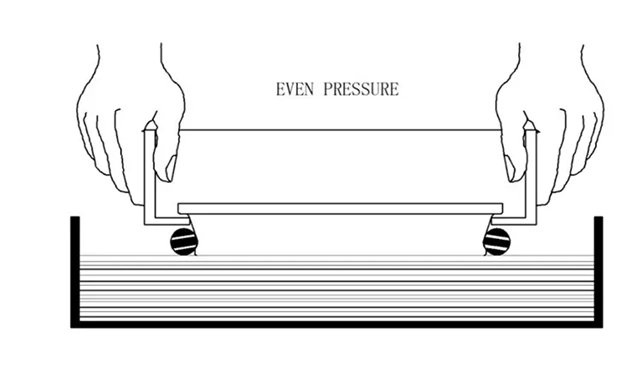

3. Use a special tool to put half of the seal into the entrance of the device.

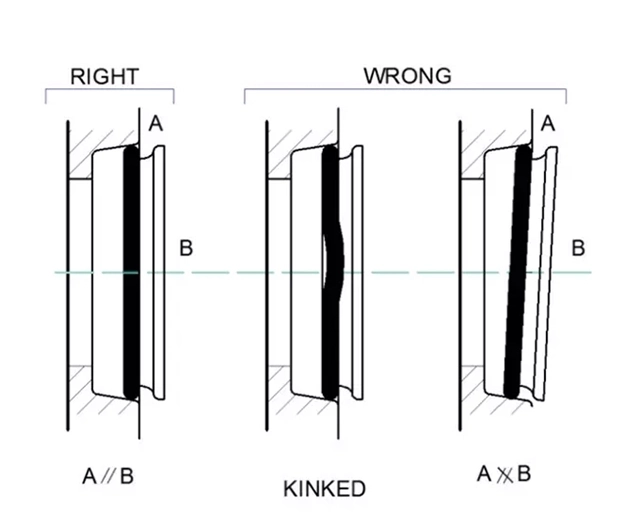

4. Check the rubber ring to make sure it is not twisted or asymmetrical.
5. Apply a thin layer of lubricant to the working surface of the metal seal.
6. Install another seal and adjust the gap so that the working pressure meets the operating requirements.



-Outside: standard export carton
-Inside: inner box. Each set will be neatly placed in the pp bag
-Wooden tray free
-Welcome to use the packaging with logo


  Maritime transport-containerized heavy cargo, FOB Wuhan ,Shanghai Qingdao Ningbo , Shenzhen ,Xiamen port.



Air to the port --- for goods above 100KG, this is the customer's economic choice.



International Express-DHL, TNT, FEDEX, UPS, EMS, etc. This is the best choice for ordering samples. Welcome to your consignee account.


1. Reliable design and simple installation
2. Low cost and high efficiency
3. Long service life
4. Automatic compensation of shaft eccentricity
5. Self-repair grinding sealing surface



Hitachi 4110358 Seal Group for EX200-1 excavator


-Yes you plant ?
 Yes 15 years plant in Hubei Province ,China 
-how about it do you control of quality ?
 100% an examination of size four Times in of manufacturing deal with prior to One seal Yes Exports
-how about it long to Make One shipment ?
 in 2 day versus stock , 2-5 week according to to Your buy Quantity in case No stock
-were able I buy One to try ?
 Yes we provide try out order with sample order for quality Evaluation
