Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...

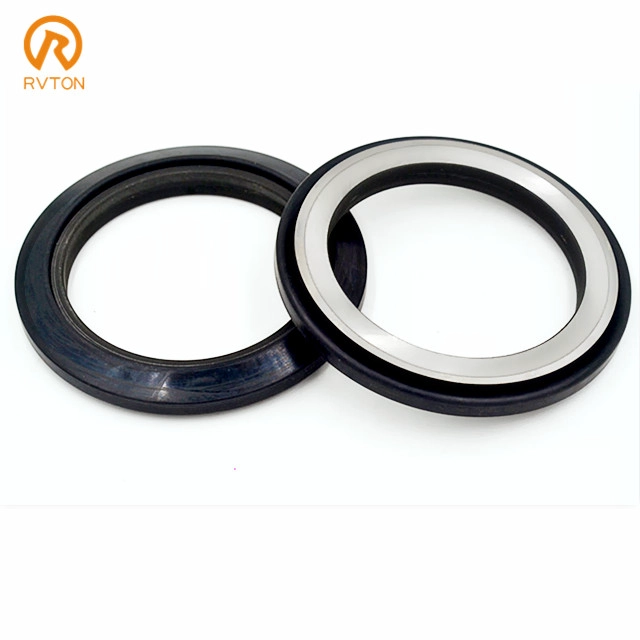

1 set =2 metal seal rings and 2 rubber seals .
| Specifications of metal seals |
| Material | Forge Gcr15 | Cast 15Cr3Mo |
| Surface smoothness | ≤0.2um | 6.3-12.5um |
| Workface smoothness | ≤0.15um | ≤0.1um |
| Pressure loading | ≤0.15MPa | ≤0.3MPa |
| Forging line speed | 2m/s | 3m/s |
| Temperature range | -100℃-200℃ | -40℃-160℃ |
| Haedness(HRC) | 58-62 | 62-68 |
| Lifetime(H) | 3000-5000 | 5000-8000 |
| Specifications of rubber ring |
| Material | NBR | SILICONE | FKM |
| Hardness | 60°-65° | 60°-65° | 72°-78° |
| Minimum tensile strength | 11MPa | 10.6MPa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Temperature range | -40℃-120℃ | -49℃-230℃ | -30℃-250℃ |
| Permanent deformation | ≤12% | ≤8% | ≤25% |
At present,we have standard type,L type,XY type,Steel sheet type 4 types of floating seals and rubber rings of different materials and colorsof course,you are welcome to customize.
Type of floating seal

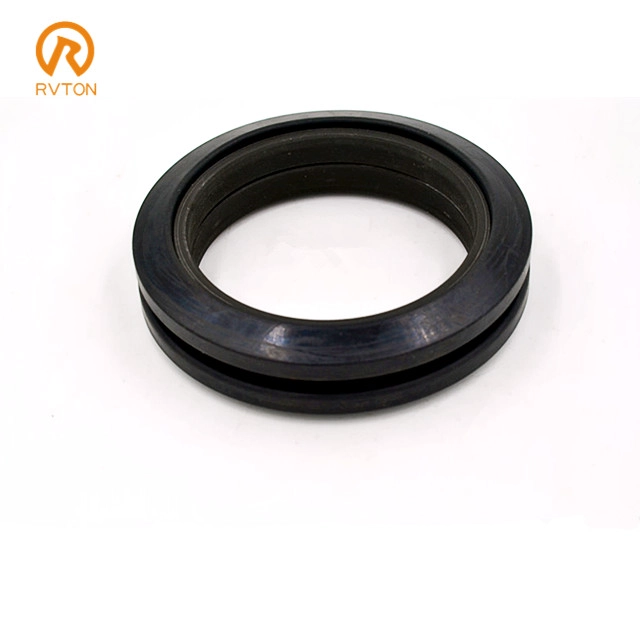

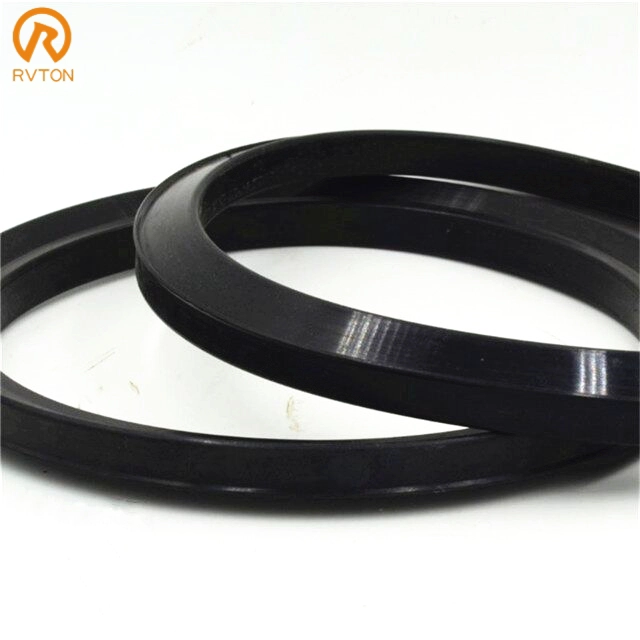

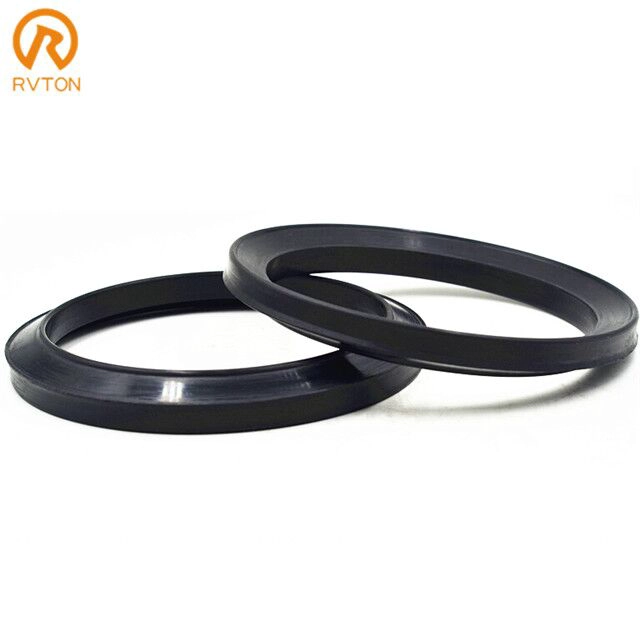

Rubber rings
In order to meet the needs of our customers, we have prepared stocks of common parts.
Part#
| 110-30-00085 | 110-30-00045 | 141-30-00610 | 140-30-00040 | 140-30-00141 |
| 170-30-00110 | 170-30-00210 | 175-30-00070 | 175-30-00700 | 130-27-00020 |
| 9G5311 | 9W6666 | 1M8747 | 9W6647 | 5M1176 |
| 6T8433 | 9G5315 | 9W6671 | 9W6680 | 8E5609 |
| 2627244 | 3176441 | 1796864 | 1456035 | 3144130 |
| 20Y-30-00100 | 20Y-30-00040 | 22U-30-00060 | 21N-30-00040 | 14X-27-00100 |
Application
--Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
--Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
Packaging
--Outside:Standerd export carton.
--Inside:Inner box.Each set will be placed in the pp bag tidily
--Wood pallet free of charge
--Cusmized packing with your logo is welcome.
Shipping
Via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...We have many shipping forwarders that have copperated for many years, reliable service and better shipping cost will be offered.
Exhibition
Factory
Q:Are you manufacturer?
A:Yes,we are
Q:Are you supply OEM service?
A:Yes,and MOQ is 1pcs
Q:How do you control the quality?
A:100% inspect the size in the each procedure before a seal is exported.
Q:How long is the delivery time?
A:For stand size is just 1 day,for non-standard one normally 1 month
Q:Gurantee using life time?
A:5000 hours
