Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages

  • Type:Standard
  • Part Nr:365-4920
  • MOQ: 1 set
  • Stock: Yes
  • Process: Forged
  • Hardness: HRC58-62
  • Life: 5000 hours
  • Warranty: 18 months
  • Colour: Black
  • Metal: Steel / Cast iron
  • Rubber: NBR60
  •
  • Product Details

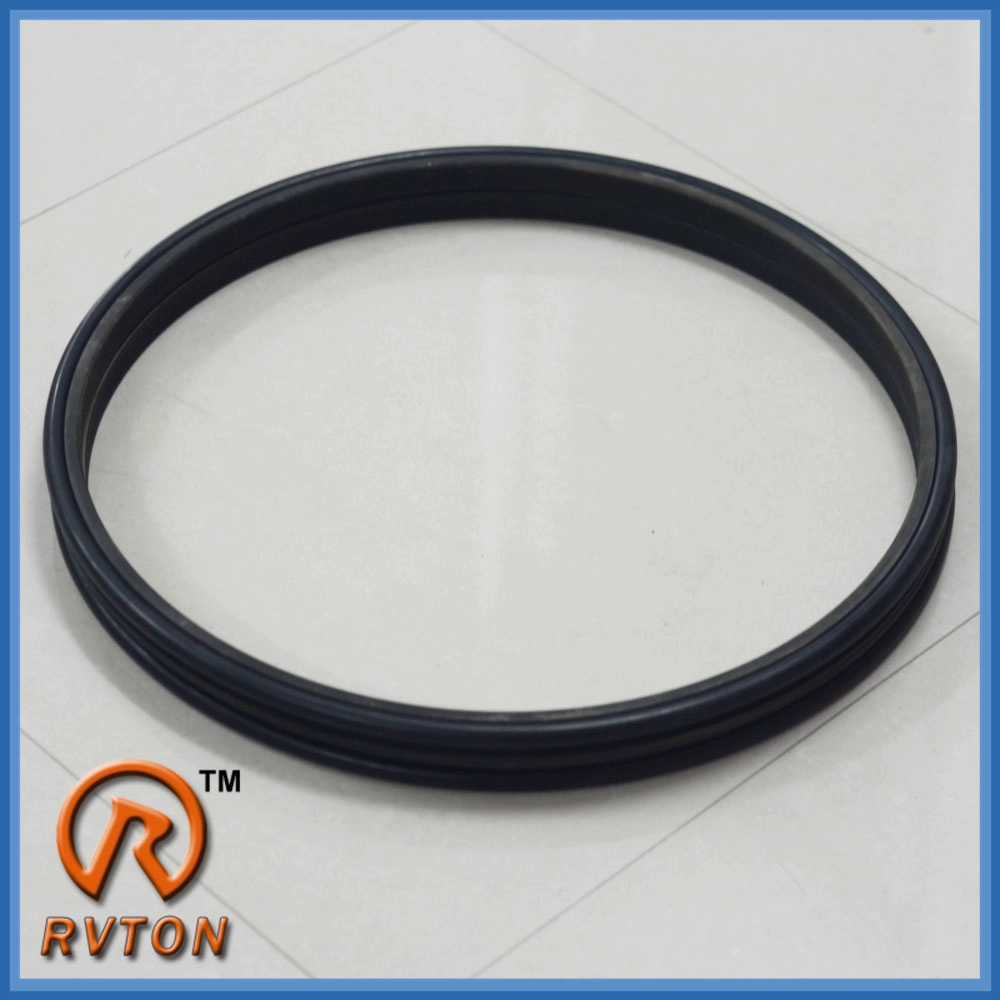

Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages

Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages
Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages
Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages

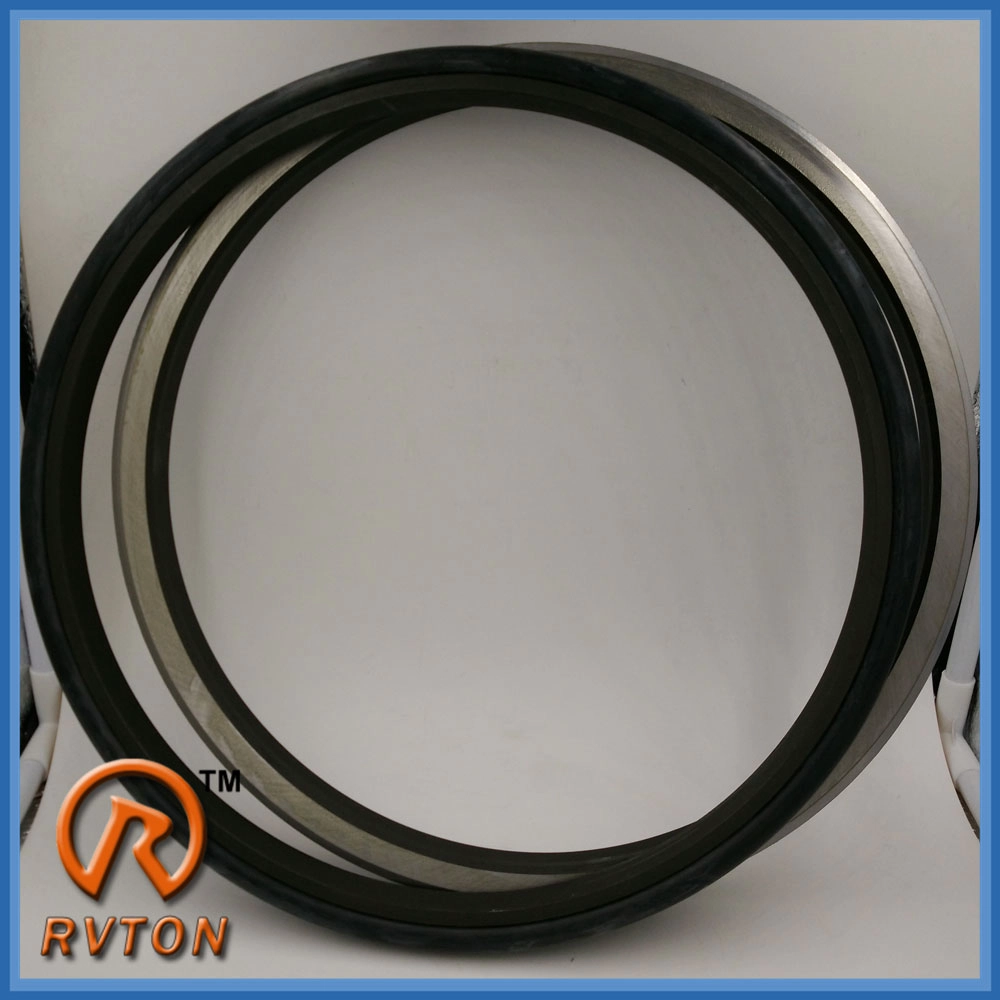

- Seals for undercarriages of construction machinery (track rollers, travel drivers and idlers)

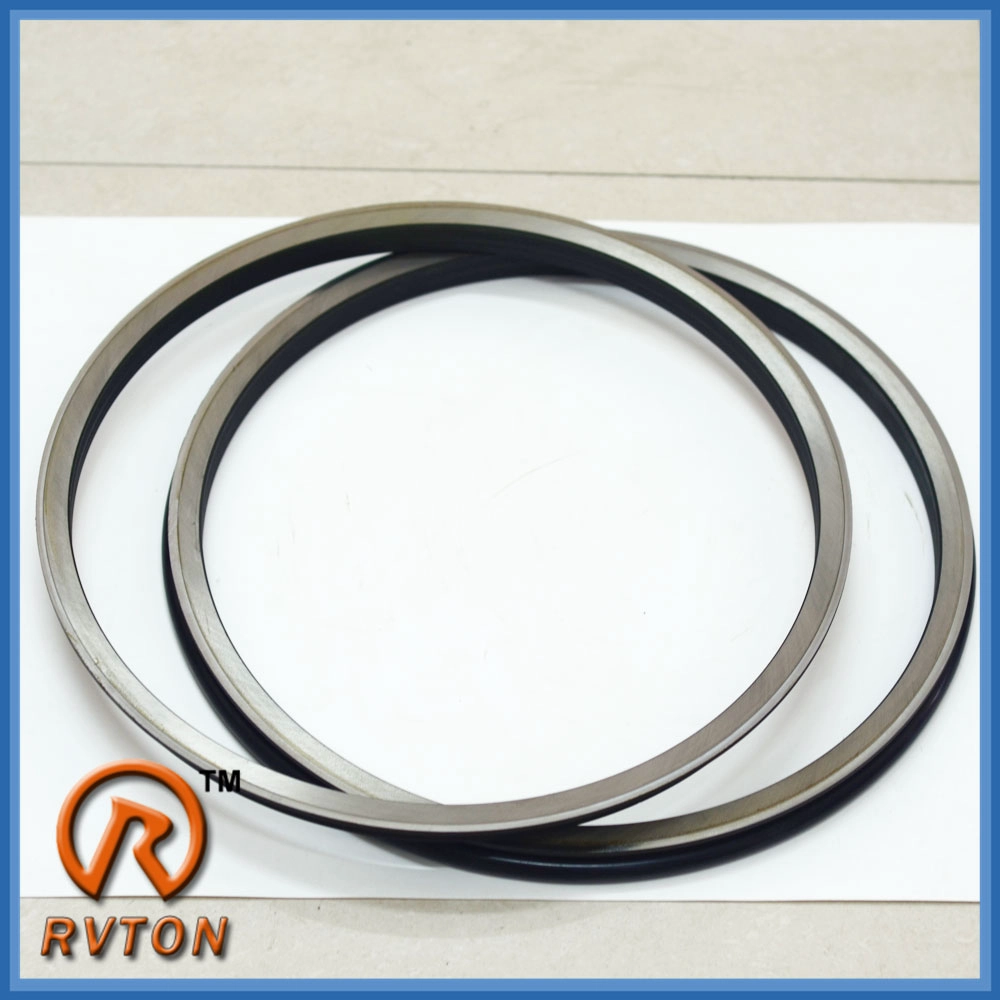

- Simple structure consisting of an O-ring and a seal ring made of special cast iron and steel
- Optimum seals for undercarriages of bulldozers and hydraulic excavators frequently exposed to sand, dirt and other foreign matter
- Rvton offers designings.

1 set It consists of two metal sealing rings and two rubber seals
Part Nr 365-4920 3654920
MOQ 1 set
Models

CAT

Material Steel / 15Cr3Mo cast iron + NBR60 rubber
lifetime 3000-5000 hours
FOB Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
Package

Shrink films + Inner box + standard export carton + wood pallet + wood box

Availability in stock

Rvton OEM covers:

Komatsu, Caterpillar, Hitachi, Kubota, Kobelco, Danapac, Goetze, Trelleborg...

Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages

model# Bottom roller Carrier Roller Front idler Final Drive
PC60 110-30-00085 140-30-00040 141-30-00610
PC200 20Y-30-00040 20Y-30-00090 10Y-30-00100 150-27-00026
E200B 1M8746 8E5609 5P0204
E320 9W7220 8E5609 9W7225
D60 141-30-00616 141-30-00616 141-30-00610 141-27-00015
D85ESS-1 154-30-00832 154-30-00832 154-30-00832 192-27-00022
D3 9E6690 9E7216 9E6691



About Rvton Factory



We have three floating seals production lines, each month output reaches more than 50000 sets.Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages
There are 2 materials:
Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness: ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range —100~200°C -40~160°C
Hardness (HRC) 58-62 60-68
Lifetime (Hours) 3000 5000

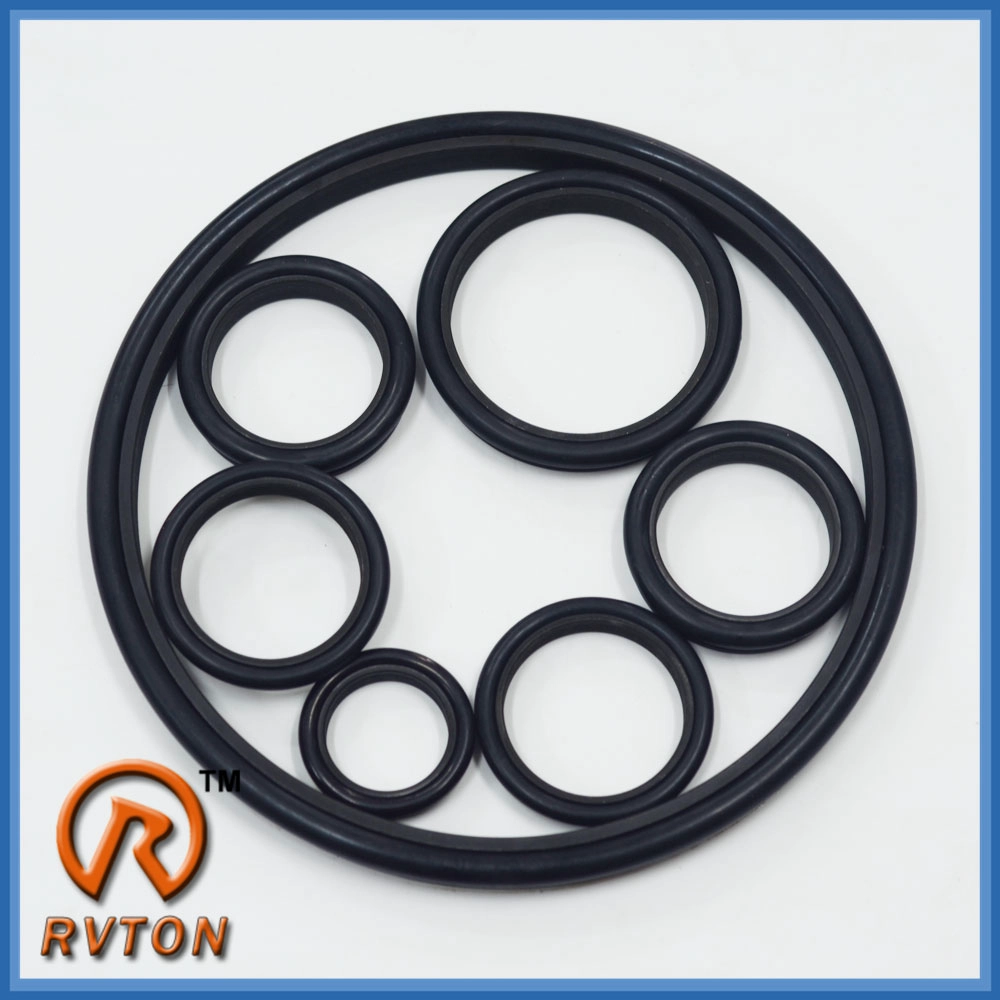

NBR60, silicone and FKM rubber rings are offered
  Material  NBR60  SILICONE  FKM
 Hardness  60°~ 65°  60°~ 65°  72°~ 78°
 Minimum tensile strength  11MPa  10.6Mpa  11MPa
 Minimum elongation at break  300%  400%  260%
 Permanent deformation  12%  8%  25%
 Temperature range  -40℃- +120℃  -49℃- +230℃  -30℃- +250℃
 Specific Gravity(g/cm3)  1.25  1.2  1.8

-Why Rvton deliver so fast?


-As we stock lots of raw materials,packing boxes and completed products.

Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages


-How do Rvton make print on floating seals/ seal group?

-Using the lasing print machine to print the log,part# according to the customers' demand.
Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages

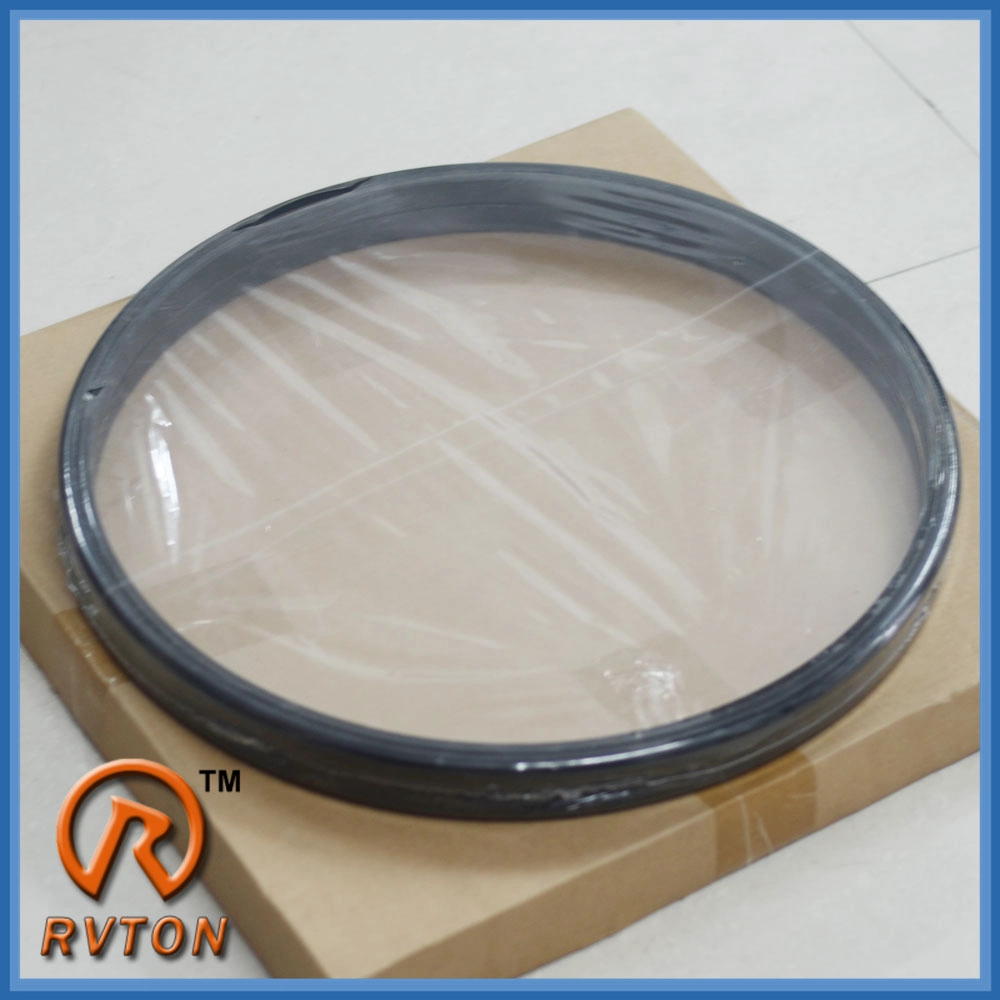

-We place the oil during packing to protect each seal from the scratches caused by the transport.
Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages



FAQ

 -You're the factory?

   Yes, we are a 13 years factory in Hubei Province, China



- How do you control the quality?

  Each seal is 100% inspected in every process before exported



- How long to make the shipment?

  In three days with stocks, 15-30 days according to the order qty.



- Can i buy one to test?

  Yes, we offer a trial order and sample order for your Quality Evaluation.


Welcome to contact us and visit us!

Fast Moving 365-4920 Floating Seals for Construction Machinery Undercarriages

 For more information, please contact me! Good offer will be sent to you.
