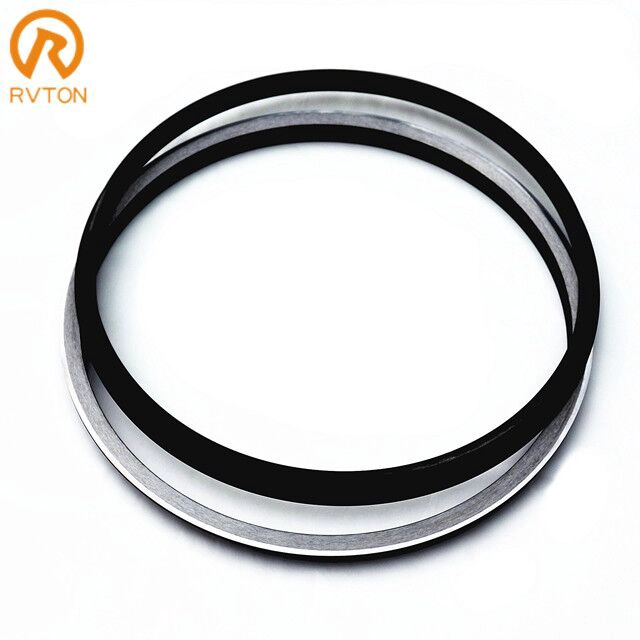

Final drive spare parts 386-1033 floating seal
| One SET= 2 metal rings +2 rubber rings | |||
 + = |
|||
| Specifications of Metal ring | |||
| Material |
Gcr15/ 100Cr6 | Cast 15Cr3Mo | |
| Surface smoothness/Roughness | ≤Ra0.2μm | 6.3-12.5μm | |
| Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm | |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa | |
| Forging line speed | 2m/s | 3m/s | |
| Temperature range | —100~200℃ | -40~160°C | |
| Hardness(HRC) | 58-62 | 60-68 | |
| Lifetime(Hours) | 3000 | 5000 | |
| Specifications of rubber ring | |||
| Material | NBR | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
packing & Shipping
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Common questions
Q: Are you the manufacturer?
A: Yes, we are
Q: Are you providing OEM service?
A: Yes, and MOQ is 1pcs
Q: How do you control the quality?
A: 100% inspect the size in each procedure before a seal is exported.
Q: How long is the delivery time?
A: For cart size is only 1 day, for non-standard usually 1 month
Q: Gurantee using life time?
A: 5000 hours
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china factory
floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china
Part#: 420-5321
1.Lifetime:5000Hours/8000hours
2.Hardness:62-68HRC
3.Material of seal:Gr15/15Cr3Mo
4.Process of seal:Casting/forged
5.Inner diameter:38mm-1175mm
6.Material of o-ring:NBR/FKM/Silicone/HNBR
7.Rubber ring Hardness:60-65°
8.O-ring color:Black/Blue/Red/Custom
9.Warranty:18 months after shipment
10.OEM accept:Accept OEM
Part#: 309-7664
1.Lifetime:5000Hours/8000hours
2.Hardness:62-68HRC
3.Material of seal:Gr15/15Cr3Mo
4.Process of seal:Casting/forged
5.Inner diameter:38mm-1175mm
6.Material of o-ring:NBR/FKM/Silicone/HNBR
7.Rubber ring Hardness:60-65°
8.O-ring color:Black/Blue/Red/Custom
9.Warranty:18 months after shipment
10.OEM accept:Accept OEM
