Huangshi Rviton Machinery Co.,Ltd

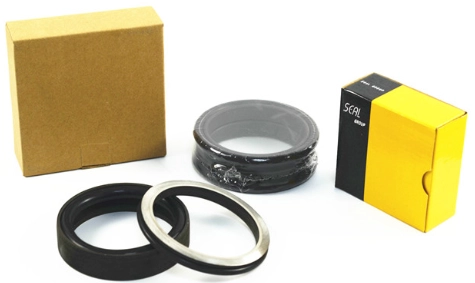

1.One set=2 metal rings+2 rubber orings
| 2 metal rings | 2 rubber rings |
| size: 50-1000MM(id) | material: NBR/Viton/Silicone/HNBR |
| material: fogerd steel or cast iron (Gcr15 &100Cr6) hardess 58-62HRC/65-72HRC | color: Black/Blue/Red/yellow/Custom |
| temperature:-30C+100C |
hardness: 60°-65° |
| Speed:2m/s |
2, 4 Types for your reference
Apply for all kinds of brand heavy machine: EXCAVATOR ,BULLDOZER ,TRACTOR ,TRAVEL MOTOR ,FINAL DRIVE ,SWING MOTOR caterpillars' articulations of construction vehicles, heavy construction vehicles and agricultural equipment , tunnel boring and underground mining machinery
track rollers of construction machines and mining machinery. the undercarriage of bulldozers and excavators
Various loaders and land levelers, cranes, mixers, mining machines, Off Highway Mining Trucks,Shovels,Continuous Miners,Longwall Shearers,Wheel Ends,Wet & Dry Brakes,axles,heavy trucks ,tracked vehicles,Idlers,Rollers,Gearboxes,Cutting Heads. for aftermarket
Our floating seals can be replaced for well known construction and mining machinery such as KOMATSU, CAT, Hitachi,Mitsubishi ,Daewoo, Kobelco, Sumitomo and Hyundai. Some models are listed below.
| models | part no | |||
| PC200-3, PC200, PC200-5,6, PC300-7, PC400-5 |
170-27-00020
|
|||
| 215B, 215C,215D, E200B,EL200B |
2M2858/5K6191/9W7216/ 9W7223,1M8746/9W7220 |
|||
| EX200-1, EX200 , EX300, UH 07-5(UH081) | 4110358,4060222/4110359/4512571 |
packing
part no on the seals and box.
Inner packing with plastic bags and box, outer packing with carton,wood pallet,wood carton.
Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004.
Our factory absorb the Italian GNL advanced technology of production as many years and
research and experience, we have a special system to reach different customers
requirement.
The inner diameter of floating seal is from 50-1400mm. Now my factory have two production
line: one is for forgeable piece, hardness is HRC58-62, worktime is 4000HRS; the other is
for cast, hardness is HRC65-72, worktime is 6000HRS. There are four different types:
stander type, XY type, L type and iron plate type.
Customers Design and Small Quantity Trial Orders are welcomed. We are doing my best to
reach your requirement in good service, reputation and faith for long and strong
relationship.
We sincerely welcome you to join us.
Japan ,France ,Italy customer visit our factory
20141125-20141128 Shanghai Bauma Exhibition
for the first business ,one small free sample avaliable for your checking.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Process:Cast iron
Warranty: 18 months
Rubber: Silicone
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 8000 hours.
4,The hardness is HRC65-68,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 0.15-0.3 Mpa
Temperature range: -40 ~ 160 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC58-62
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC58-62
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC60-65
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC60-65
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
