Goetze 76.95 -29 DF Sqauare ring mechanical face seals

Home > Category > Mechanical Face Seal for Goetze Replacement  > Goetze 76.95 -29 DF Sqauare ring mechanical face seals

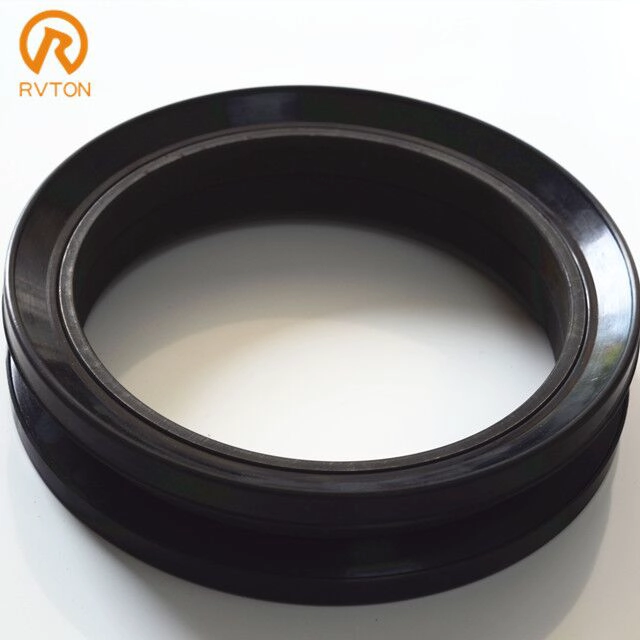

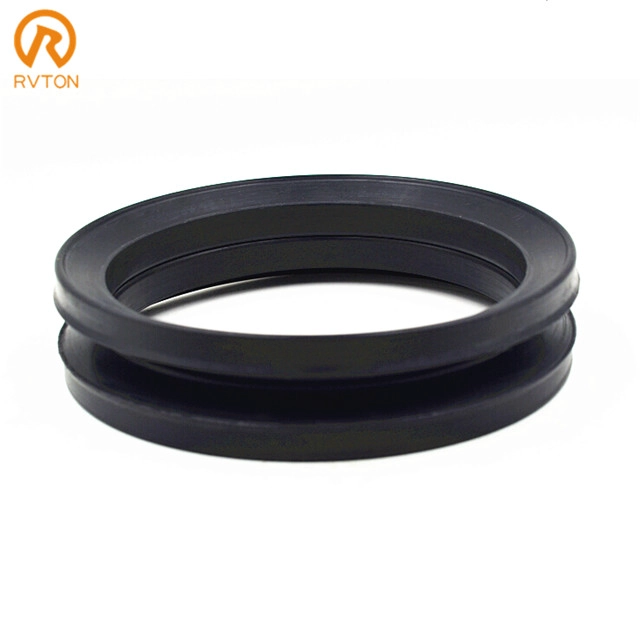

Goetze 76.95 -29 DF Sqauare ring mechanical face seals

  • 1.Lifetime: 5000hours / 8000hours
  • 2.Hardness: 58-62HRC / 62-68HRC
  • Printing 3.Material: 100Cr6 / Gcr15 / E52100 / 534A99 / SUJ2
  • 4.Inner Diameter: 38mm-1000mm
  • 5.Material of O-Ring: NBR / Viton / Silicone / HNBR
  • 6.Process Printing: Forging and Casting
  • Color 7.O-Ring: black / blue / red / custom
  • 8.Warranty: 18 months after shipment
  • 9.Rubber ring hardness: 60-65 °
  • Product Details

Goetze 76.95 -29 DF Sqauare ring mechanical face seals



product description
  •      Rvton seal is also called floating seal, seal group, Duo Cone seal, mechanical seal, seal life
  •      the outer diameter of the floating seal 35 mm-1000 mm.
  •      Hardness HRC58-62, culling accuracy within 0.015um.
  •      Uneven to 0.1um-0.2um, life is more than 4,000HRS.

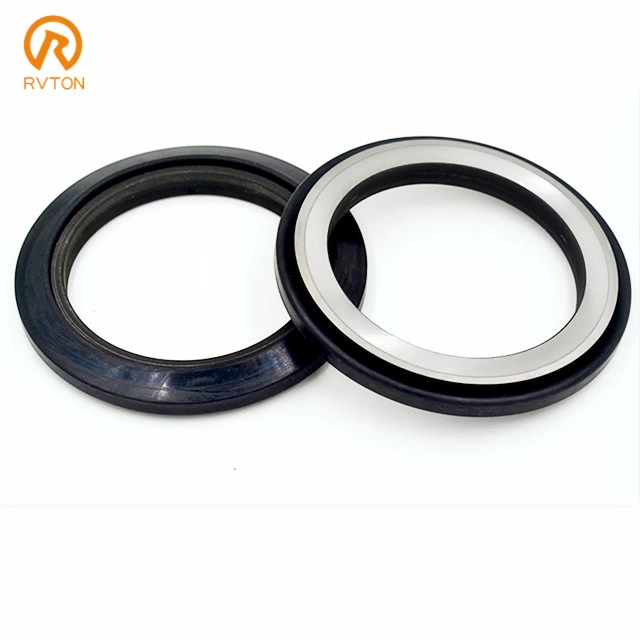

    Rvton seal group set are composed of metal rings and rubber seals



    QQ20150128191839

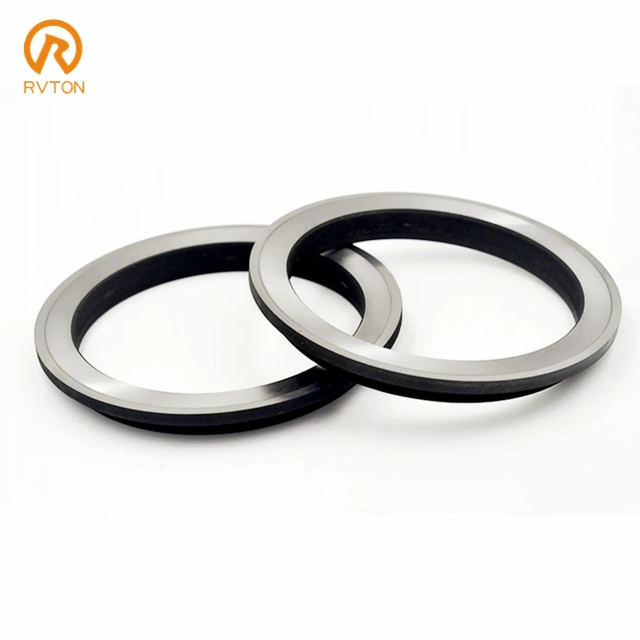

  •  - Metal rings



    surface finish / roughness ≤ Ra0.2μm
    Face the end ≤ Ra0.015μm
    pressure ≤ 0.3MPa
    Forged /Casting  line speed 2 m / s & amp; Amp;  3m / s
    hardness 58 - 62 HRC
    temperature

     -100 ~ 200 ° C



     - A rubber O-ring



    Shore hardness 60 ° ~ 65 °
    minimum strength limit  11MPa
    minimum Elongation at break  300%
    flexible change  ± 5 °
    permanent deformation ≤ 12%
OEM Service
OEM editions steel can be free



Model

OEM codes

Komatsu

195-30-00302, 154-30-00831, 141-30-00616, 150-27-00017. 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

140-30-00040, 130-27-00010, 150-30-00035, 170-27-00010 ...

Kobelco

R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9, R45P0018D25,

R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28 ...

caterpillar

1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 7249 1P, 5P 7147, 0433 3P, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 5317 9G, 9W7201 ...

Hitachi

4283635, 4176379, 4177260, 4082631, 4642180, 4110363, ES-110,

4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64 ...



20140409150127

Packaging & amp; Amp; Shipping

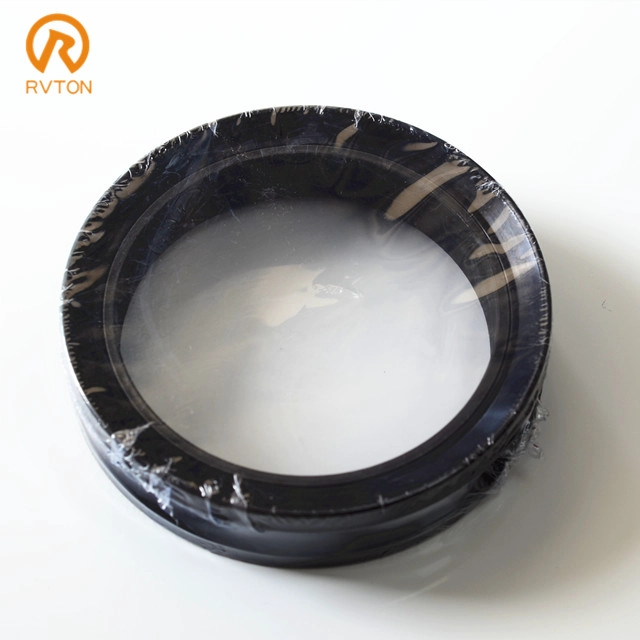

Packing: neutral packing, Yellow box, white box, and welcome your logo on the packaging


Application:
- Farm, construction, excavation, coal mining equipment

- Excavators, bulldozers, tractors, cranes, truck, heavy truck, backhoe

- Undercarraige, hydraulic motor, travel motor, gearbox axle hub, tunneling

- For OEM Komatsu, Caterpillar, Shantui, Sany, Kubota, Kobelco, JCB, Volvo, Hitachi,
   John Deere, Fiat Allis, New Holland, Cummins, Terex, Bob-Cat ... etc.



Tradeshows

Rvton welcomed many customers during the Bauma 2014, is a valuable experience for us.




Information about the company

Huangshi Rvitong Machinery Limited Comapany

1. The factory was founded in 2004.

2. two production lines:

    a. one for a piece of stringy 100Cr6, hardness HRC58-62, WorkTime is 5000hrs;

    b. Two for iron 15Cr1Mo / 15Cr3Mo, hardness HRC62-68, WorkTime is 8000HRS.

3. The inner diameter of 35 - 1000 mm.

4. Four different types: standard type, XY type, type L and type. iron plate

HTB1RtNDHpXXXXazapXXq6xXFXXXq

FAQ

1. You are a real manufacturer for floating seal?

    Rvton is a real manufacturer for floating seal only. We are also developingfloating seal, floating seal paint, assembly and production of stamps. weaccept customer design, drawing and samples.


2. As an internal company how to arrange shipment?

   This could be our advantage, because we are in the middle of China, itWe take the same time to send the goods either in Wuhan, ShanghaiNingbo,Shenzhen, Xiamen or port. We can deliver to most of the sea portsdelivery, as well as to organize express DHL UPS FEDEX TNT EMS Free-to-doorprovision of services.



3. As a general rule, it takes time to complete the order?

   3 - 4 weeks for a total order of about 1000 sets, and we continue to regularlyreserves for sample order or trial order, which can provide immediateDelivery.





4. Tell us more about your manufacturing process?

    The basic process Manufactuer shown in the chart below, do not hesitate to ask for more.

More questions ?? Any inquiry now?

Welcome contact the following Macy quick response, fast service online


Macy Cao

Email - floatingseal03 @ rvton.com

Skype: rvton.seals

Whatsapp: 0086-3886465358

TM: cn1500379557

Phone: 0086 15717237241

Web site: www.rvton.com


Send Us An Inquiry
We will contact you as soon as possible!
Phone
Phone
WeChat
Skype
Whatsapp
captcha
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
