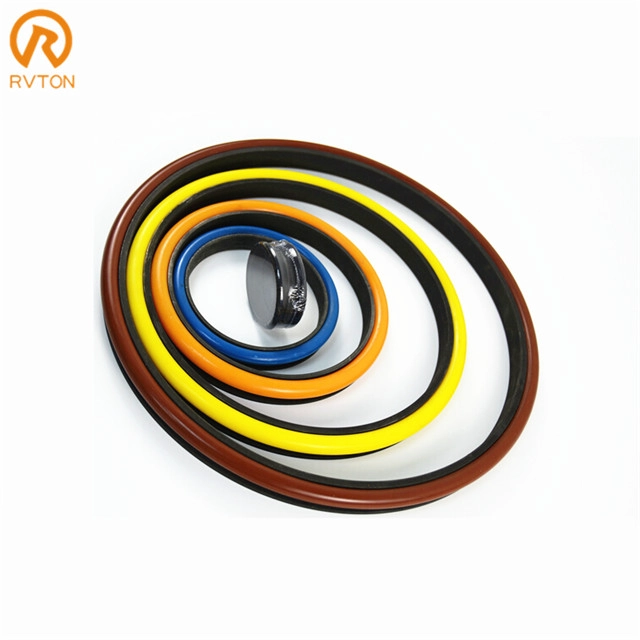

Goetze seal 76.90H18 face seal

  • 1.Lifetime:5000Hours/8000hours
  • 2.Hardness:58-62HRC/62-68HRC
  • 3.Material of Steal:100cr6/Gcr15/15cr3Mo
  • 4.Material of Rubber: Nitrile/ Silicone/ Viton
  • 5.Process: Forging & Casting
  • 6.Warranty:18 months
  • Product Details

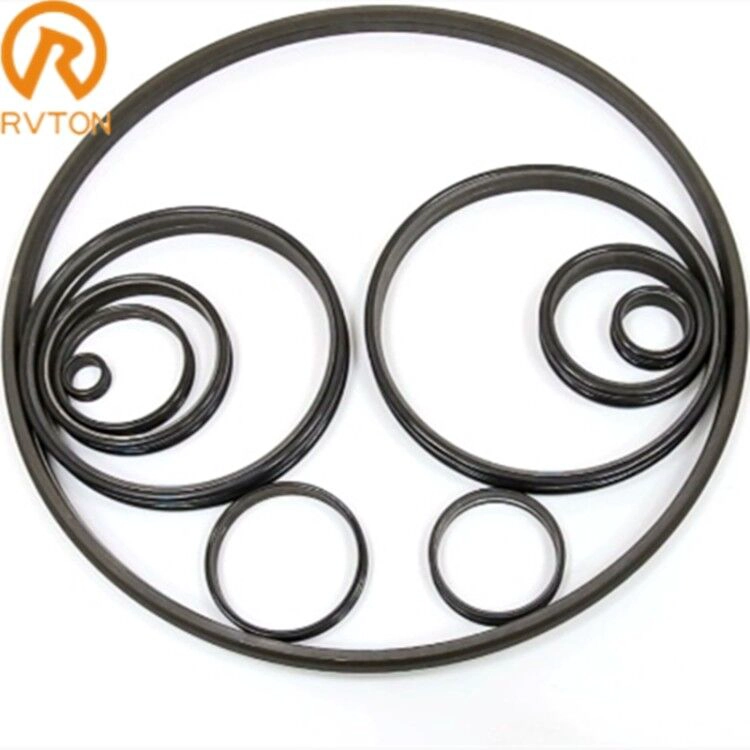

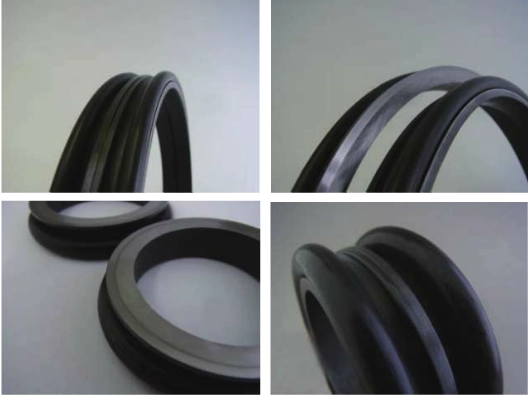

Goetze seal 76.90H18 face seal

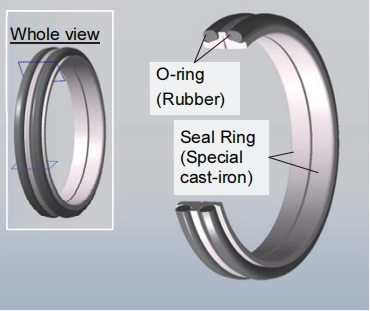

One SET= 2 metal rings +2 rubber rings
+=
Specifications of Metal ring
Material
Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/Roughness ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.015μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range —100~200℃ -40~160°C
Hardness(HRC) 58-62 60-68
Lifetime(Hours) 3000 5000
Specifications of rubber ring
Material NBR SILICONE FKM
Hardness 60°~ 65° 60°~ 65° 72°~ 78°
Minimum tensile strength 11MPa 10.6Mpa 11MPa
Minimum elongation at break 300% 400% 260%
Permanent deformation 12% 8% 25%

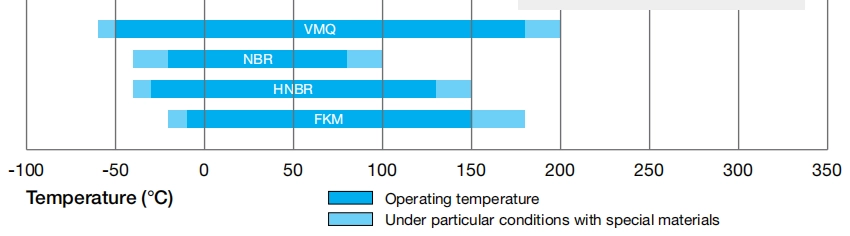

Temperature range -40℃- +120℃ -49℃- +230℃ -30℃- +250℃

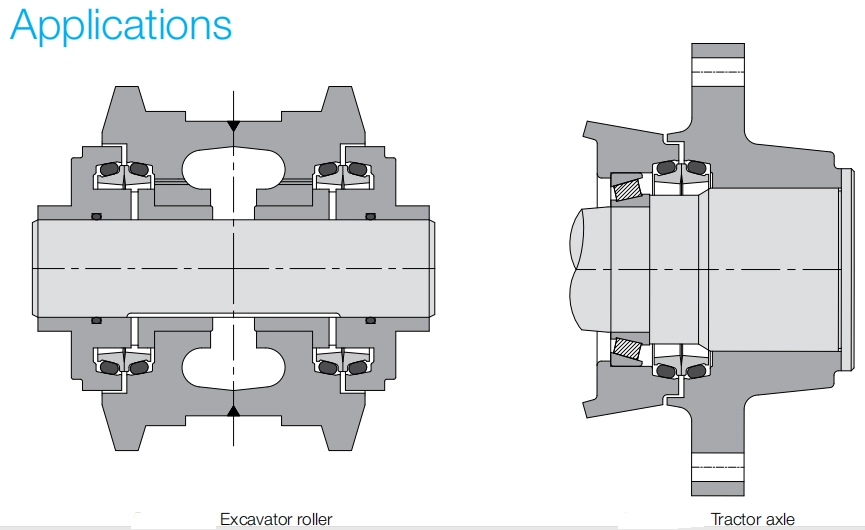

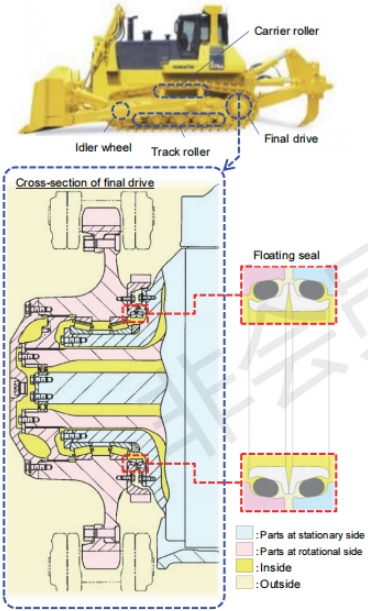

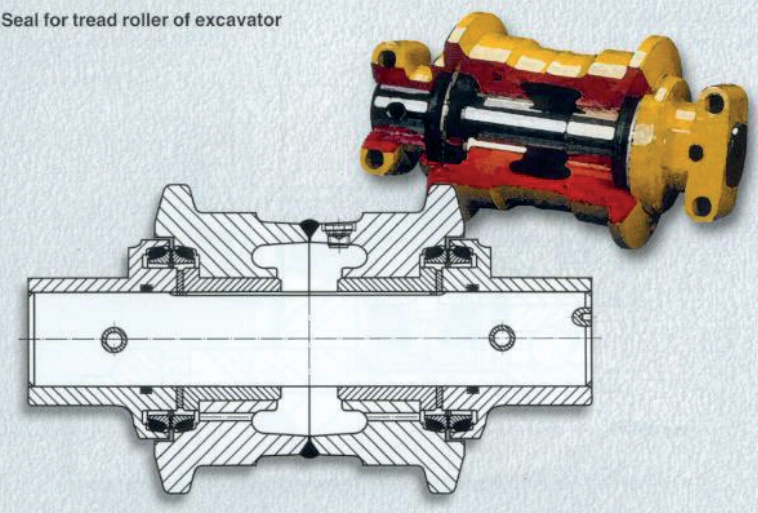

Application

-- Farm, construction, earthmoving, coal mining machinery

-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe

-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling

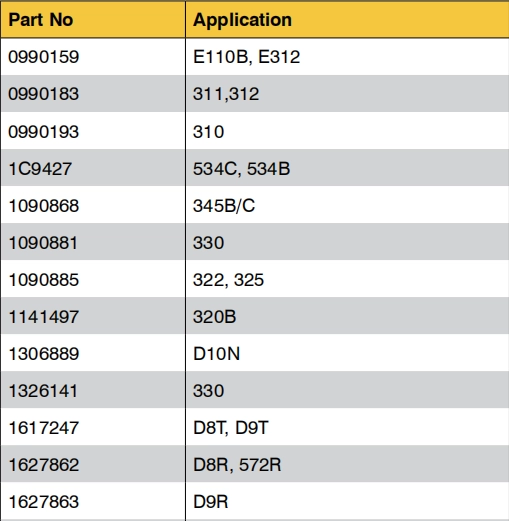

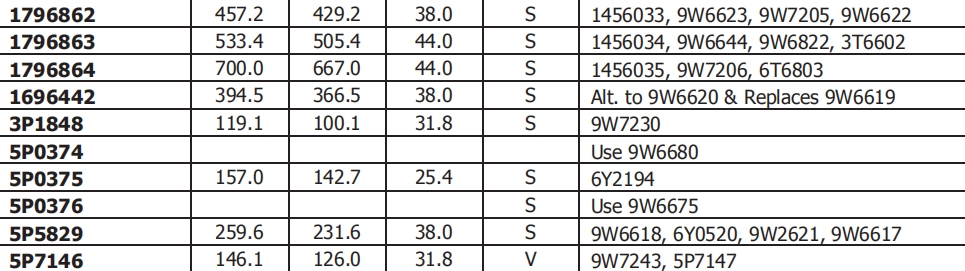

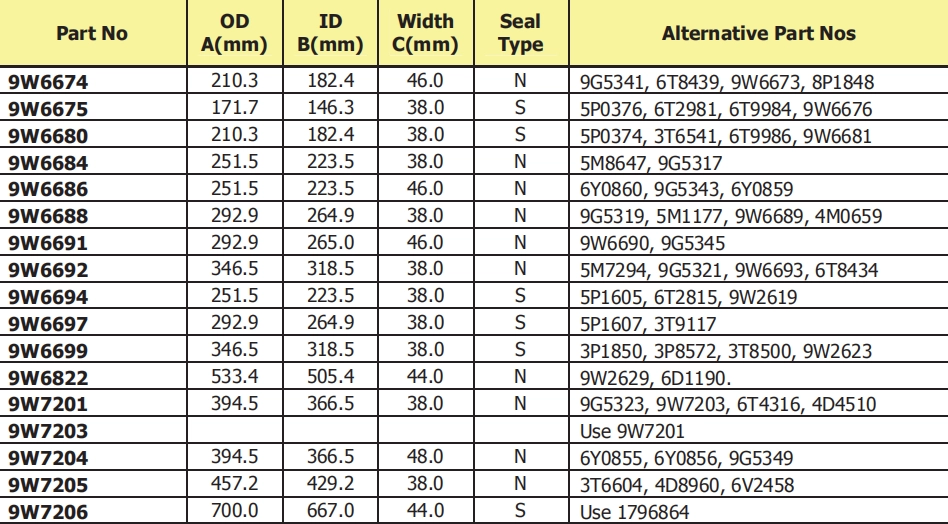

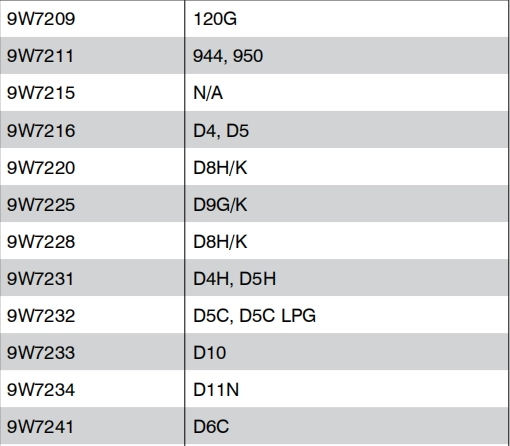

OEM Number

packing & Shipping



Packing : neutral packing, yellow box, and welcome your logo in packing

Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.


Contact Nina Huang for more details.

Email - floatingseal02@rvton.com

Skype - ninahuang1

Wechat - rt15387235310 /nina328421070

QQ - 2881724353

WhatsApp - +86 159 7155 1091

Direct line - 0086 015717237241

Huangshi Rvton Machinery Co., Ltd.

1004, Block 5, International Trade Center,

Huangshi, Hubei, China

Website- www.sealgroupsupplier.com

Factory for floating seals since 2003



Send Us An Inquiry
We will contact you as soon as possible!
Phone
Phone
WeChat
Skype
Whatsapp
captcha
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

RELATED PRODUCTS

Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

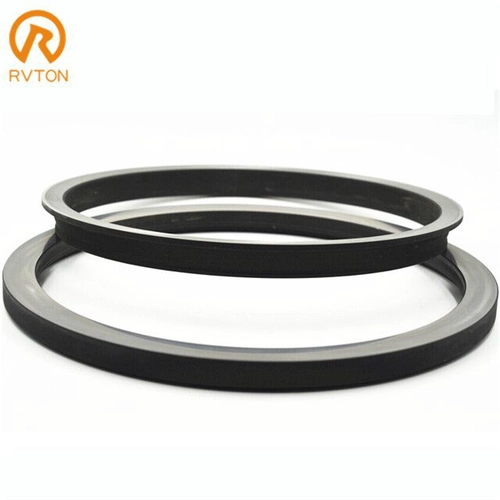

China 76.90 H-89 Mechanical Face Seal Inner Dia 530mm China Factory Supply manufacturer

76.90 H-89 Mechanical Face Seal Inner Dia 530mm China Factory Supply

China mechanical face seal manufacturer, China floating oil seal supplier, Goetze 76.90/76.97 mechanical face seal supplier, Goetze mechanical face seal supplier

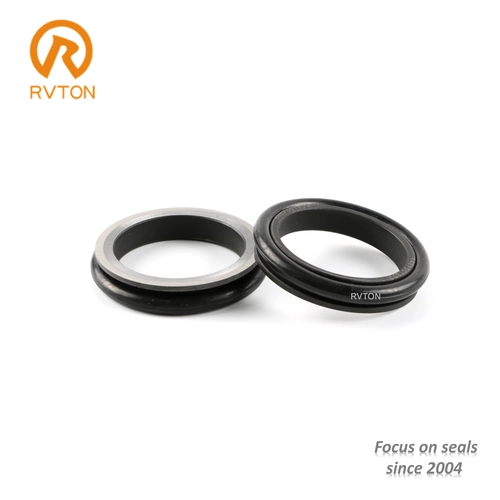

China 76.90 H-08 A5 Mechanical Face Seal 110.8*97*24 Factory Supply manufacturer

76.90 H-08 A5 Mechanical Face Seal 110.8*97*24 Factory Supply

China mechanical face seal manufacturer, China floating oil seal supplier, h-08 A5 mechanical face seal supplier, Goetze mechanical face seal supplier

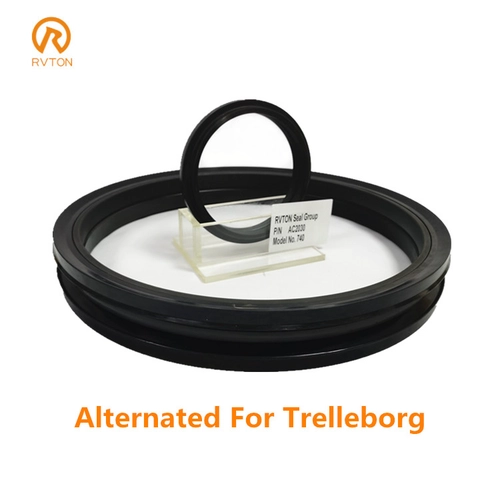

China China Final Drive Face Seal Trelleborg Sealing Replacement Metal Face Seal Catalog Factory manufacturer

China Final Drive Face Seal Trelleborg Sealing Replacement Metal Face Seal Catalog Factory

Part No.: TLDOA, TLDOB, TLDF
One set = 2 metal rings + 2 rubber ring
1.Dimension: 38 - 1175 mm
2.Metal: Steel 100CR6
3.Hardness:58-62HRC
4.Lifetime: 3000-5000 hours
5.Rubber: NBR60 ring
6.Rubber shore hardness:60-65°
7.O-ring color:Black
8.Warranty:18 months after shipment
9.Application: Construction / Agriculture / Mining industry
10.Packing: Nuetral box, wooden pallet, wooden case
Made in China

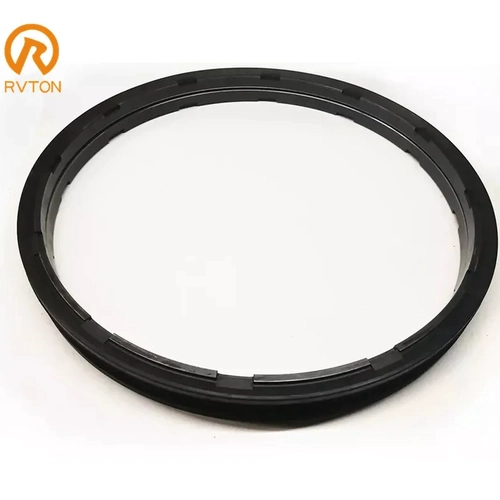

China 76.95-64 Mechanical face seal 441*478*42 China Manufacturer manufacturer

76.95-64 Mechanical face seal 441*478*42 China Manufacturer

76.95-64 Mechanical face seal 441*478*42 China Manufacturer

20 years manufacturer focus on floating seals

Goetze 76.90 76.95 76.97 mechanical face seal replacement supplier

Aftermarket floating seals for Komatsu, Caterpillar, Hitachi, Volvo, Kobelco, Kubota, Hyundai, Liebherr, Fiat Allis, Shantui, Doosan, Liugong, Lingong

Rvton mechanical face seal manufacturer

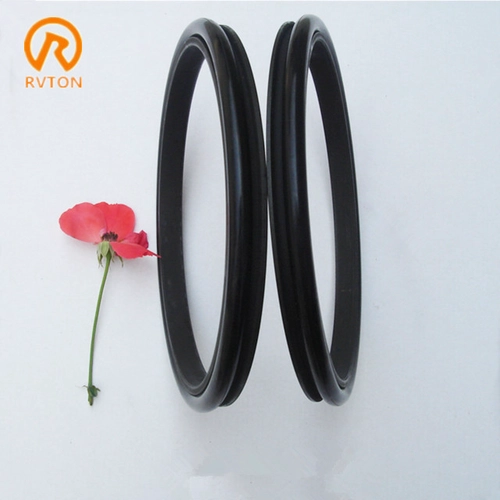

China Duo cone seal replacement for komatsu part no.154-27-00020 - COPY - rnf7f5 manufacturer

Duo cone seal replacement for komatsu part no.154-27-00020 - COPY - rnf7f5

Floating seal manufacturer, double cone seal factory in China, China Sealing Group Corporation, floating oil seal supplier in China, traveling motor seal supplier in China, heavy duty seal supplier in China, mechanical face seal company in China, final drive floating seal factory in China

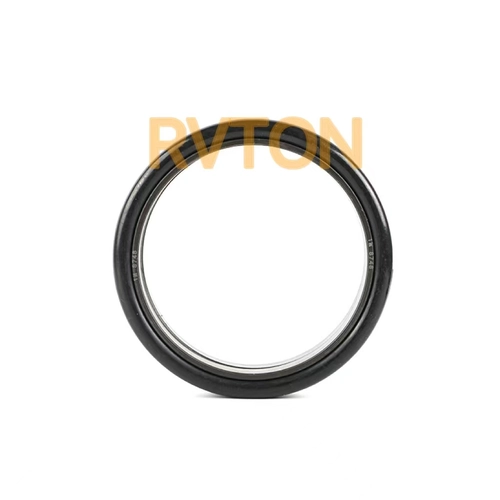

China Duo cone seal replacment for komatsu part no.154-27-00020 manufacturer

Duo cone seal replacment for komatsu part no.154-27-00020

floating seal manufacturer, china duo cone seal factory, china seal group company, china floating oil seal supplier, travel motor seal supplier china, china heavy duty seal supplier, mechanical face seal company china, final drive floating seal china factory

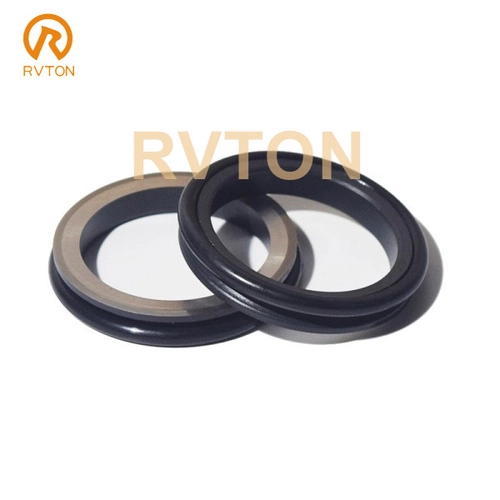

China Hyundai aftermarket replacement of track drive motor seals 760S107FS manufacturer
