Good Price GNL KO.4860 KO.4890 Duo Cone Seal

Home > Category > Duo cone seal for Caterpillar aftermarket  > Good Price GNL KO.4860 KO.4890 Duo Cone Seal

Good Price GNL KO.4860 KO.4890 Duo Cone Seal

  • 1, Part Nr: KO.4860 KO.4890
  • 2, Crossover to GNL
  • 3, MOQ: 2 set
  • 4, Material: Steel 100CR6 + NBR60 / HNBR
  • 5, Metal Hardness: 58-65 HRC
  • 6, Rubber Hardness: 60-65°
  • 7, Life: 3000-5000 hours
  • 8, Warranty: 18 months
  • 9,Please kindly check availability via floatingseal04@rvton.com
  • 10, Packing: Shrink films + Inner box + standard export carton + wood pallet + wood box
  • Product Details

Good Price GNL KO.4860 KO.4890 Duo Cone Seal

Good Price GNL KO.4860 KO.4890 Duo Cone Seal

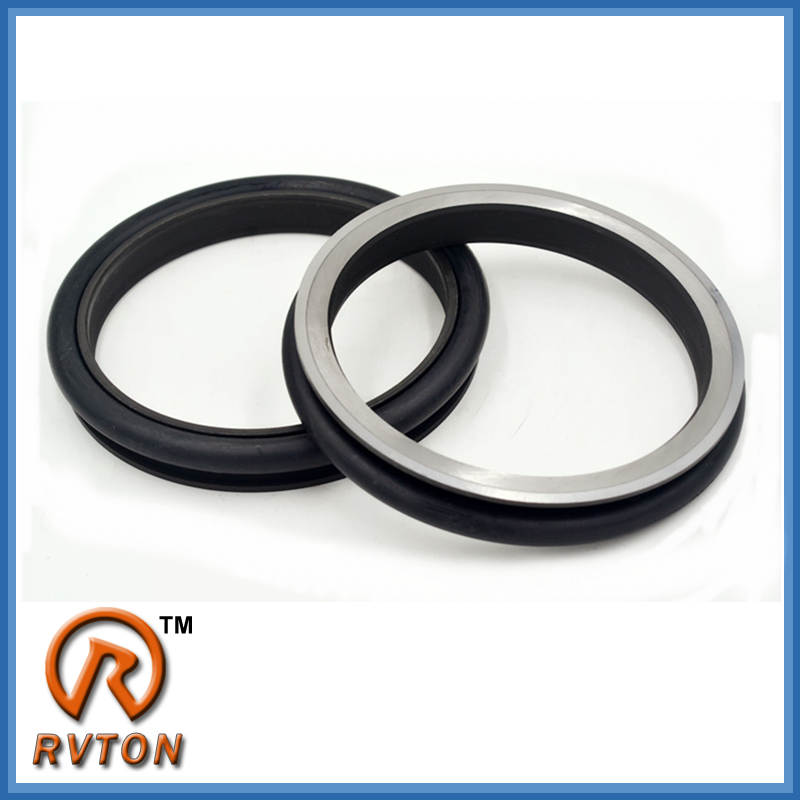

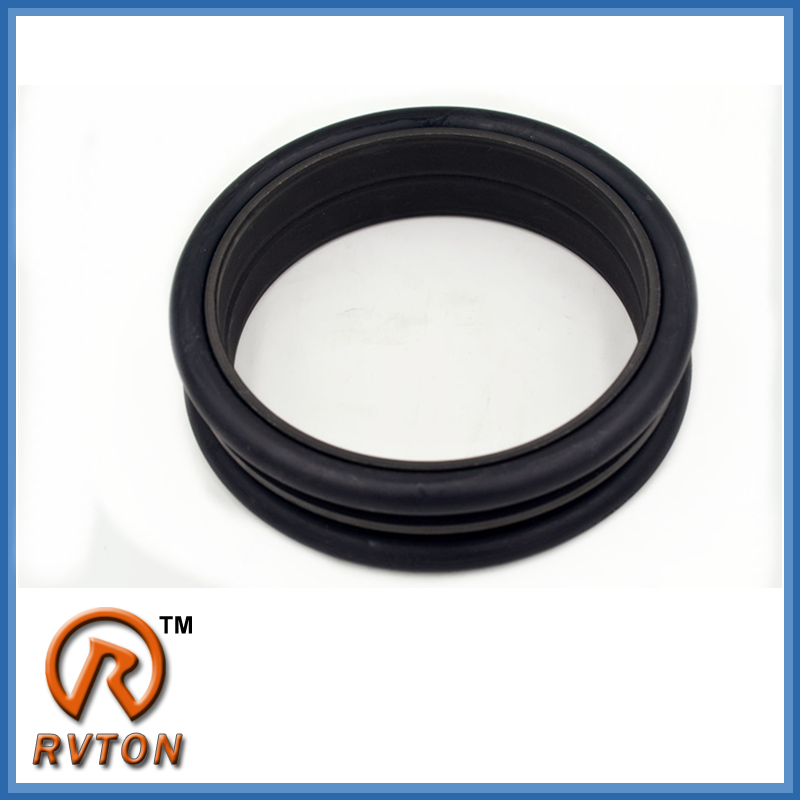

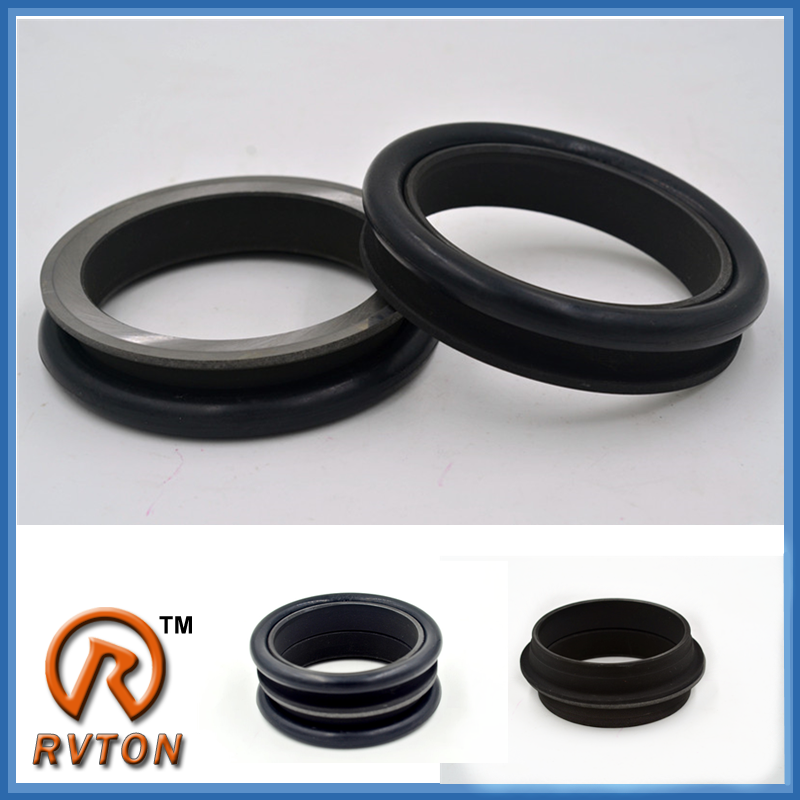

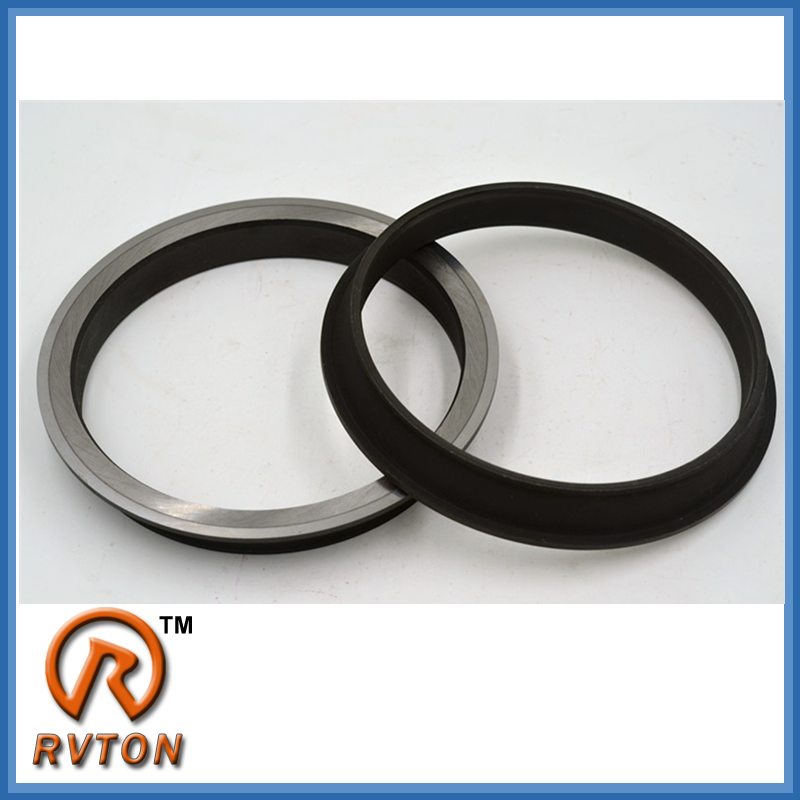

1 set It consists of two metal sealing rings and two rubber seals
Part# KO.4860 KO.4890
Crossover GNL
Stock 20 sets

Material 100CR6 steel + NBR60 / HNBR
Warranty 18 months
FOB Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
Package

Shrink films + Inner box + standard export carton + wood pallet + wood box

Guarantee 18 months

More parts crossover to wide range of models
Good Price GNL KO.4860 KO.4890 Duo Cone Seal

 Machines Part#
 Komatsu 110-30-00085 110-30-00045 141-30-00610 140-30-00040 140-30-00141 170-30-00110 170-30-00210
175-30-00070 175-30-00700 20Y-30-00040 130-27-00020 150-27-00025 150-27-00026 150-27-00027
204-30-00041 20Y-30-00100 10Y-30-00100 150-30-00035 154-30-00035 154-30-00830 154-30-00832
154-30-00833 170-27-00010 198-30-00072 21T-30-00110 198-30-00072 423-33-00020 423-33-00021
205-30-00052 14X-27-00100 566-33-00010 205-30-00050 195-27-00022 175-27-00120 175-30-00900
205-30-00200 20Y-30-00430 22U-30-00060 22B-30-00030 20Y-30-13210 204-30-00100 198-30-00073
175-27-00102 205-27-00040 21N-30-00040 207-27-00310 421-33-00050 17M-27-00101 208-27-00140
195-27-00100 568-33-00016 562-33-00200 TZES 100-154S TZES 100-154B TZ-ES100-250-A
 Caterpillar 9G5311 9W6666 1M8747 9W6647 5M1176 6T8433 9G5315 9W6671 9W6680 9W7220 8E5609 9W7225
 6P3595 9G5345 9W6690 9W6691 9W7216 2M2858 9W7223 9W6691 1P7249 5P7146 9W7243 7M0481
 5P0204 7T0159 9W6651 9W7233 7T0157 108-6997 5P0373 9W7213 9P9663 8E2042 9W6694 9W3732
 1141497 9W7201 9W7202 9W6620 9W6619 9W3956 169-6442 6Y0855 9W7204 6Y0856 9G5349 3144128
 205-9025 9W7204 6Y0856 9G5349 1796862 1796863 145-6034 9W6644 9W6822 3T6602 365-4920
 2627244 3176441 9W7206 1796864 1C9748 1456035 3144130 1791292
 Hitachi 4176379 4110358 4128201 4508192 4128201 4508192 4060222 4110359 4512571 4060225 4047279
 4104605 4110360 4153468 4163731 4068433 4153711 4163711 4110362 4153732 4508193 4056360
 4111361 4507221 4642180 4110366 4110367 4513173 4092483 4082631 4110368 4110369 4114753
 4634693 4514259 4179741 4066695 4317584 4138544 4082698 ZAX200-5G XKAH-00916 XKAQ-00219
 XKAH-01012 4245703 / 4200413 / 4350347 / 4344155 4082698
 Others 58845-01500 R45P0018D2 R45P0018D3 TD00348/17 R45P0018D4 5691020160 MT4000-7918
R45P0018D6 JB5680 619-89900440 71418383 05/903811 1.180-00512 CR3069 XZ993774 MT40211881
 R45P0018D21 R45P0018D25 TD0352/04 0964294 5691020340 5691020530
 R45P0018D12 2445Z1110 R45P0018D27 TD00611/02 R45P0018D13 UK 5500 R45P0018D14
204-50805000 R45P0018D14 R45P0018D15 760S126FS TLDOA1460 R45P0018D16 R45P0018D18
 R45P0018D8 R45P0018D29 RG-30 OK5110 H-25 JB5820   619-95032001 R45P0018D20 760S247F JS2650S YN53D00008S023 LQ15V00020S067 R45P0018D22 760S297FS YN15V00037S029
 11.3209 24100U1743S24 R45P0018D28 58845- 20500 U14568 45P0018D18 45P0018D18 R45P00018D9
 988430 R45P0018D9 20306 U16184 2445Z1109  HEL-127 A2

Good Price GNL KO.4860 KO.4890 Duo Cone SealGood Price GNL KO.4860 KO.4890 Duo Cone SealGood Price GNL KO.4860 KO.4890 Duo Cone Seal



Product Descritopns


Name: Floating Seals; Heavy Duty Seal; Seal Group; Duo Cone Seal; Drift Oil Seal Ring; Floating Oil Seal
Size from 38mm to 1000mm
ISO 9001 : 2000 certified factory


Floating Seals Materials

Good Price GNL KO.4860 KO.4890 Duo Cone Seal


1, Metal:  Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
Good Price GNL KO.4860 KO.4890 Duo Cone Seal

METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness: ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range —100~200°C -40~160°C
Hardness (HRC) 58-62 65-68
Lifetime (Hours) 3000-5000 5000-8000

2, Rubber ring: NBR60, silicone and FKM rubber rings are offeredGood Price GNL KO.4860 KO.4890 Duo Cone Seal
Material  NBR60  SILICONE  FKM
Hardness  60°~ 65°  60°~ 65°  65°~ 70°
Minimum tensile strength  11MPa  10.5Mpa  12MPa
Minimum elongation at break  320%  500%  240%
Permanent deformation  12%  8%  25%
Temperature range  -42℃- +120℃  -48℃- +210℃  -30℃- +230℃
Specific Gravity(g/cm3)  1.25  1.19  1.75

Product Uses

Good Price GNL KO.4860 KO.4890 Duo Cone Seal



 Packing & Shipping

-Using the lasing print machine to print the log, part# according to the customers' demand.
Good Price GNL KO.4860 KO.4890 Duo Cone Seal
-We place the oil during packing to protect each seal from the scratches caused by the transport.
Good Price GNL KO.4860 KO.4890 Duo Cone Seal
- Yellow box and Brown Neutral box
Good Price GNL KO.4860 KO.4890 Duo Cone Seal

- DHL/ FEDEX/ UPS/ TNT express; Air / Sea shipping are offered in competitive prices
- FOB Shanghai / Guangzhou / Shenzhen / Ningbo / Fujian / Qingdao
Good Price GNL KO.4860 KO.4890 Duo Cone Seal



FAQ

 -Are you factory?

   Yes, we are a 13 years factory in Hubei Province, China



- How do you control the quality?

  We have passed ISO9001certified and professional QC team, each seal is 100% inspected in every producing process before exported



- How long to make the shipment?

  In three days with stocks, 15-30 days according to the qty.



- Can i buy samples to test?

  Yes, we offer trial order and sample order for your Quality Evaluation. We looking forward to doing more business with you in future.


Welcome to contact us and visit us!

Good Price GNL KO.4860 KO.4890 Duo Cone Seal

 For more information, please contact me! Good offer will be sent to you.

Good Price GNL KO.4860 KO.4890 Duo Cone Seal

Fay Xu

Sales Representative

E: floatingseal04@rvton.com

T: 8615327878823

Skype: fay.xu3

Wechat: Rvtonseal04

Whatsapp: 86 15327878823
