H-61 SIL60 Mechanical Face Seal for Conveyor For Abrasive Media

  • Process:Cast iron
  • Warranty: 18 months
  • Rubber: Silicone
  • 2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
  • 3,The lifetime is more than 8000 hours.
  • 4,The hardness is HRC65-68,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
  • 5,Specifications
  • Pressure: 0.15-0.3 Mpa
  • Temperature range:  -40 ~ 160 °C
  • Circumferential speed: 2-3m/ sec (max).
  • 6,The size of the floating seals are various,the inner diameter is from 30-1000mm
  • Product Details

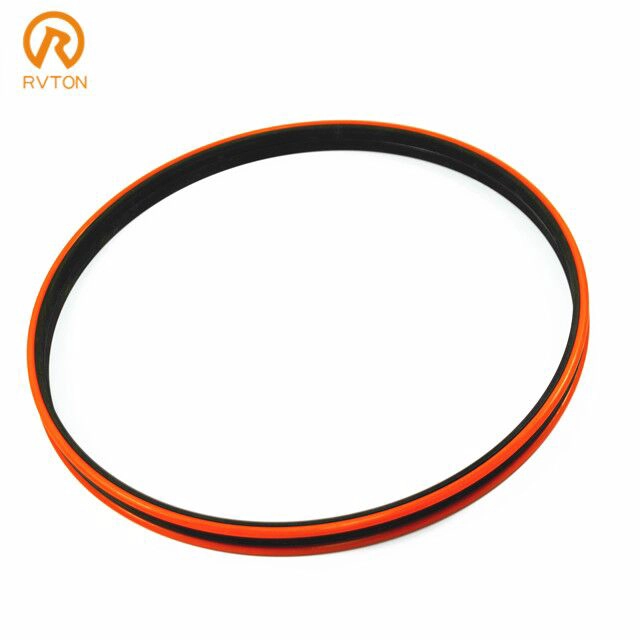

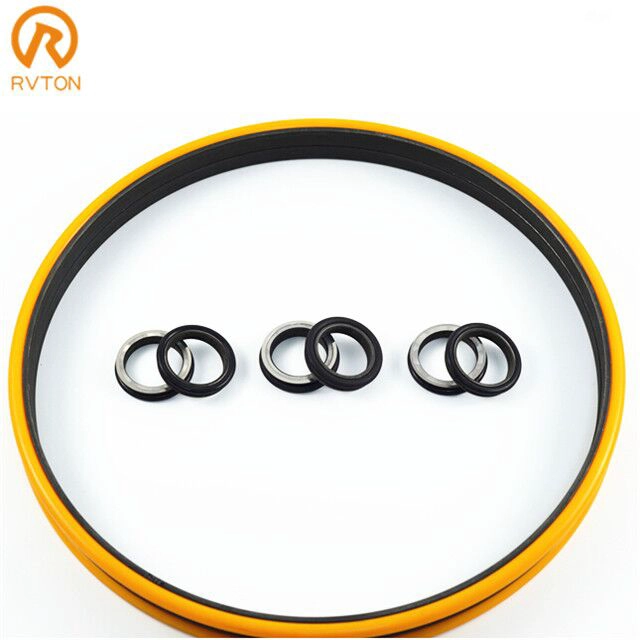

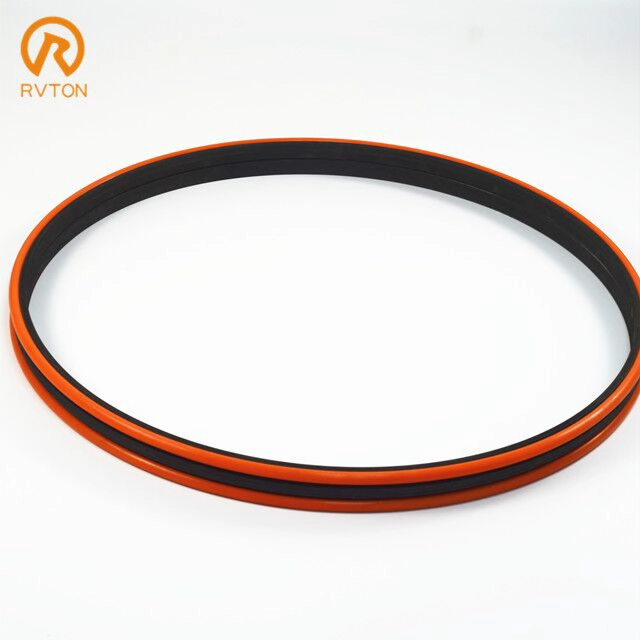

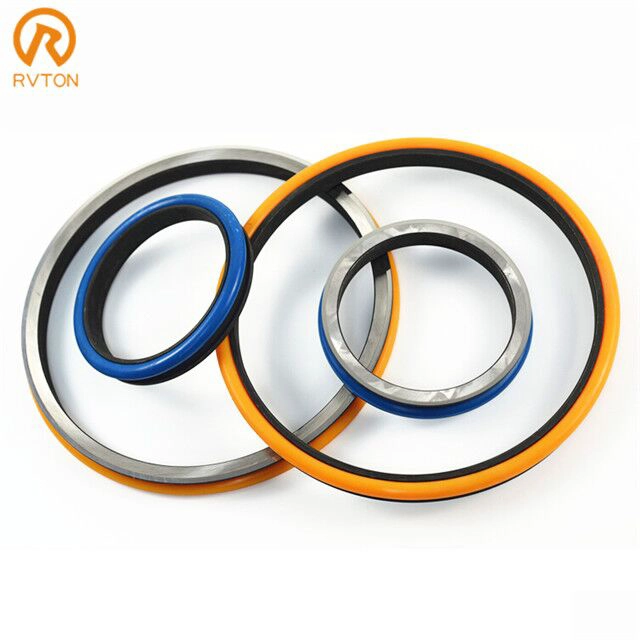

H-61 SIL60 Mechanical Face Seal for Conveyor For Abrasive Media

1 Set Consist of two metal seal rings and two rubber seals
Weight 4.2 kgs
OEM/Aftermarket aftermarket
OEM converts

H-61 SIL60
Material Forged Bearing Steel& Nitrile rubber
Brand Rvton
FOB Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
Packing

Outside: Standard export carton.

Inside: Nuetral box.

Free wooden pallets, wooden case
Warranty 18 months



There are 2 materials:
Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness: ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range —100~200°C -40~160°C
Hardness (HRC) 58-62 60-68
Lifetime (Hours) 3000 5000

NBR60, silicone and FKM rubber rings are offered
MATERIAL  NBR60 SILICONE FKM
Hardness  60-65 60-65 72-78
Minimum tensile strength  11mpa 10.6mpa  11mpa
Minimum elongation at break  300% 400% 260%
Permanent deformation  12% 8% 25%
Temperature range -40℃ - +120℃ -49℃ - +230℃ -30℃ - +250℃


As the increased requirement, we have prepared a lot of goods in stock to meet our customers and our partners' urgent need.
Model# Bottom roller Carrier roller Front idler Sprocket
PC60 110-30-00085 140-30-00040 141-30-00610
PC200 20Y-30-00040 20Y-30-00090 10Y-30-00100 150-27-00026
E200B 1M8746 8E5609 5P0204
E320 9W7220 8E5609 9W7225
D60 141-30-00616 141-30-00616 141-30-00610 141-27-00015
D85ESS-1 154-30-00832 154-30-00832 154-30-00832 192-27-00022
D3 9E6690 9E7216 9E6691
seal group in stock


Rvton Seals are also made upon your designs and drawings.



Packaging & Shipping



- Outside: Standard export carton.

- Inside: Inner box. Each set will be placed in the pp bag tidily.

               Your special requirement are welcomed.

- Wood pallet free of charge

- Shipping via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...We have many shipping forwarders that have copperated for many years, reliable service and better shipping cost will be offered.







FAQ

 - Are you factory?

   Yes, founded in 2004, we are in Huangshi City of Hubei province, China



- How do you control the quality?

  100% inspect the size in the each procedure before a seal is exported.



- How long to make a shipment?

  In 3 days with stocks, 2-5 weeks according to your purchasing quantities if no stocks.




 More details please feel free to contact me.
