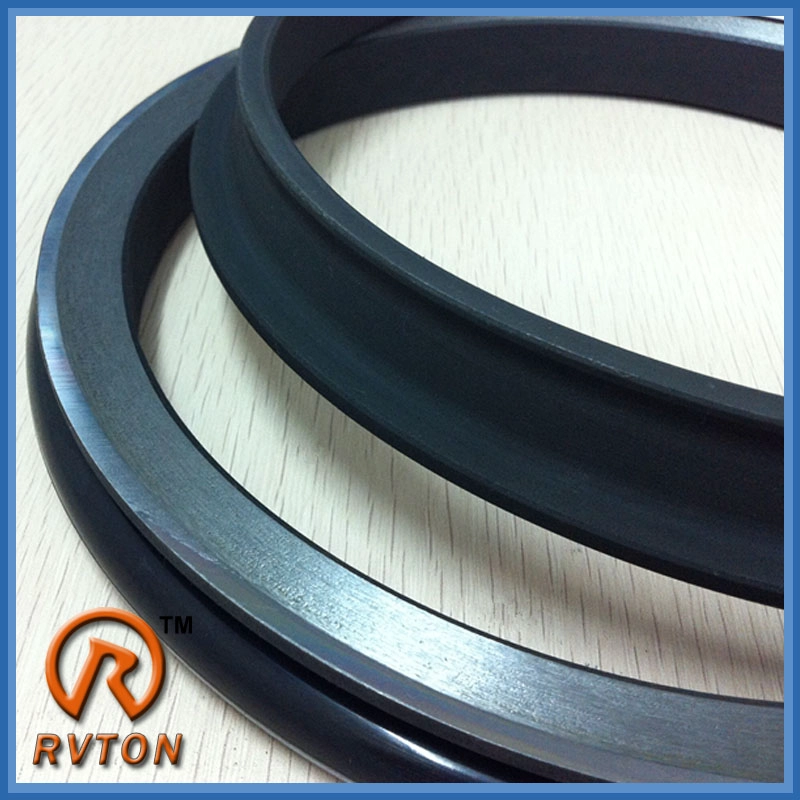

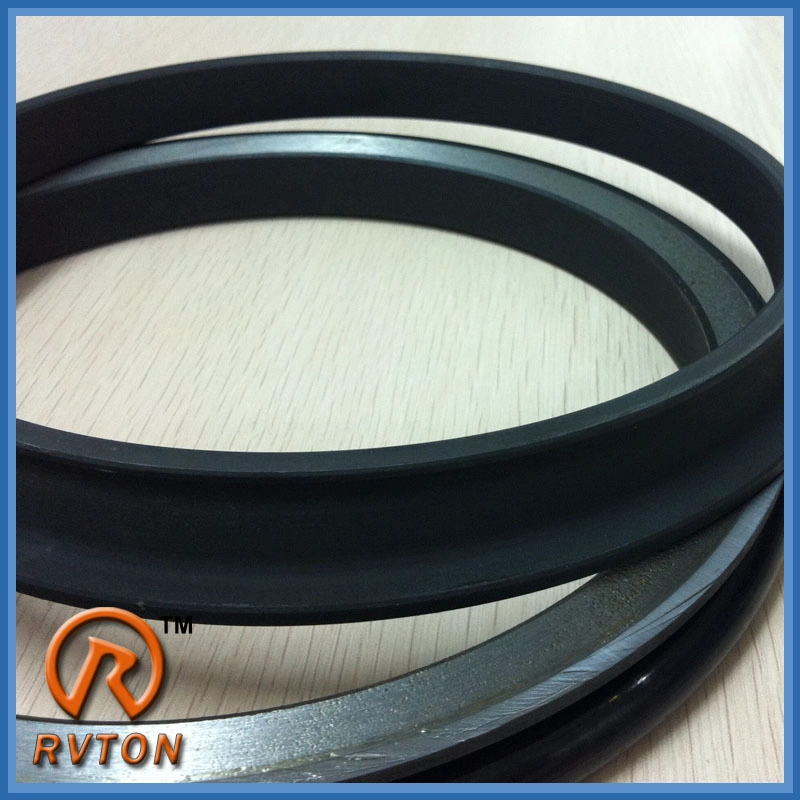

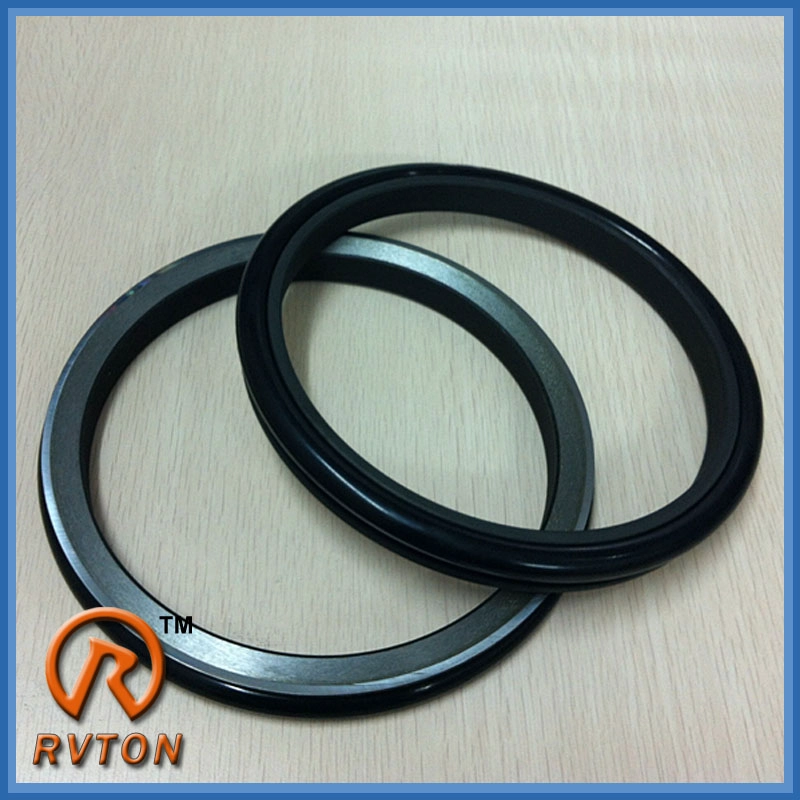

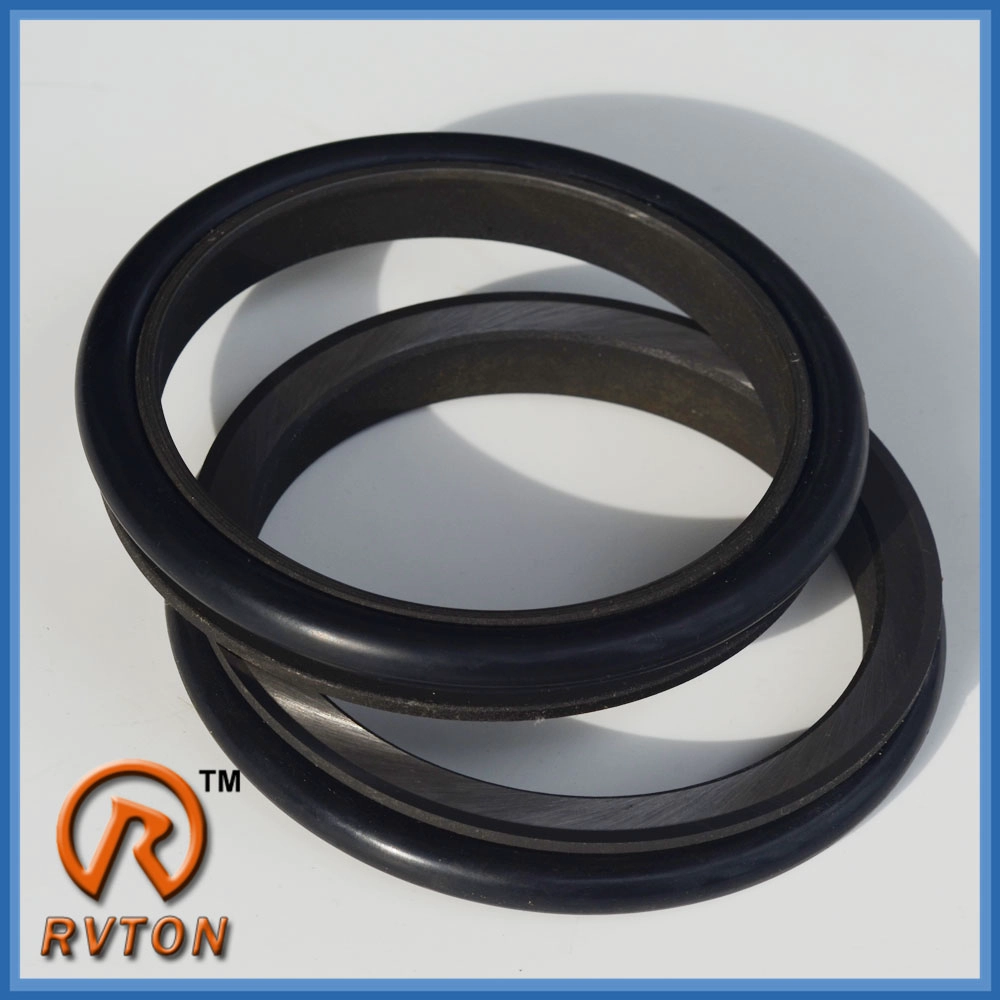

|One SET= 2 metal rings +2 rubber rings|
|Specifications of Metal ring|
||Gcr15/ 100Cr6||Cast 15Cr3Mo|
|Work face smoothness||≤Ra0.015μm||≤Ra0.1μm|
|Pressure loading||≤0.15MPa||≤0.3 MPa|
|Forging line speed||2m/s||3m/s|
|Specifications of rubber ring|
|Hardness||60°~ 65°||60°~ 65°||72°~ 78°|
|Minimum tensile strength||11MPa||10.6Mpa||11MPa|
|Minimum elongation at break||300%||400%||260%|
|Temperature range||-40℃- +120℃||-49℃- +230℃||-30℃- +250℃|
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
1.Coexistence of high quality and competitive prices
2.Long service life
3.Easy to install
Method of installation:
1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.
2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.
|BRAND||MODEL||BOTTOM ROLLER||CARRIER ROLLER||FRONT IDLER||SPROCKET|
|Komatsu||D60,D65-6、7、8,D66S-1,D75A-1||141-30-00610 141-30-00616||141-30-00610 141-30-00616||141-30-00610 141-30-00616||141-27-00015 150-27-00015 150-27-00015 150-27-00025 150-27-00026|
packing & Shipping
Packing : neutral packing, yellow box, and welcome your logo in packing
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004. Our factory absorb the Italian GNL advanced technology of production as many years and research and experience, we have a special system to reach different customers requirement. Our products are selling nationally worldwide, such as USA, Italy, France, Japan,Pakistan, Malaysia ,Singapore, Indonesia, Thailand and other countries for few years.We have over 10 years' experience in trading service.
Skype - iris_floatingseal
Whatsapp- 0086 18971770045
Facebook - Yi Yu
QQ - 2881724357
Tel - 0086 18971770045
Huangshi Rvton Machinery Co., Ltd.
1004, Block 5, Yijing plaza, Huangshi, Hubei, China
Tel - 0086 15717237241 0086 15717233790
Fax - 0086 714 6277689
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
3.Rubber Ring Hardness:60-65°
4.Material of Seal:100cr6/Gcr15/E52100/534A99/SUJ2
6.Material of O-Ring:NBR/Viton/Silicone/HNBR
7.Process of Seal:Forging & Casting
9.Warranty:18 months after shipment
10.OEM accept:accept OEM
3.Material of Steal:100cr6/Gcr15/E52100/534A99/SUJ2
4.Material of Rubber: Nitrile/ Silicone/ Viton
5.Process:Forging & Casting
7.OEM accept:accept OEM
