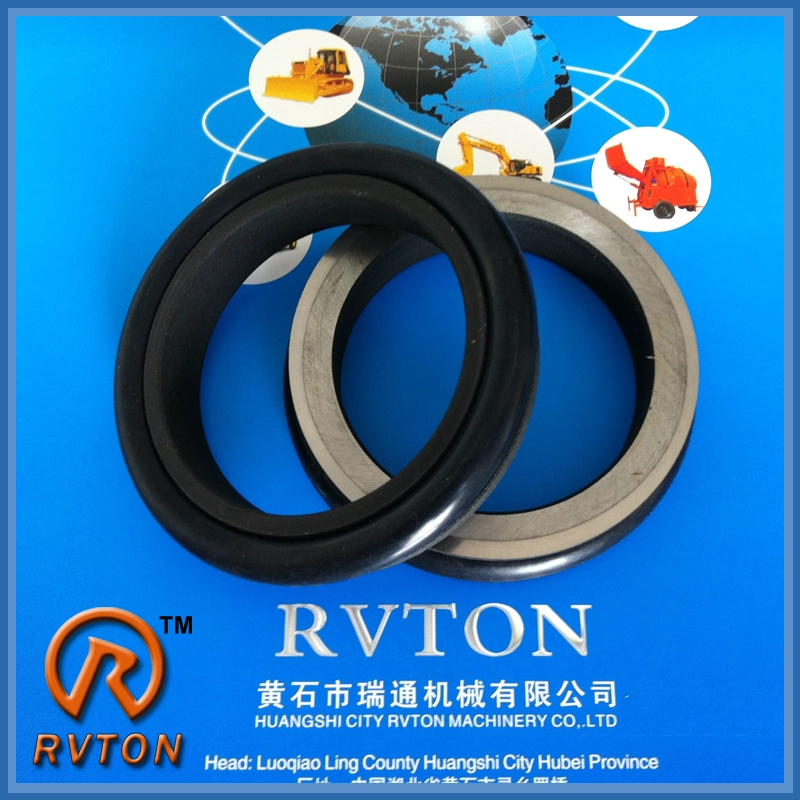

Mechanical face seals for JCB 3DX MODEL 2011.

  • 1.Lifetime: 5000Hours / 8000hours
  • 2.Hardness: 58-62HRC / 62-68HRC
  • 3 of stealing material: 100Cr6 / Gcr15 / E52100 / 534A99 / SUJ2.
  • 4.Material Tires: nitride / silicone / Viton.
  • 5.size: 50-1000mm
  • 6.Process forging and casting
  • 7.Warranty: 18 months
  • 8.OEM accept accept OEM
  • Product Details

Mechanical face seals for JCB 3DX MODEL 2011.

Details

one SET = 2 metal ring 2 rubber ring
+=
Specifications of the metal ring
Material
GCr15 / 100Cr6 throw 15Cr3Mo
surface Smoothness / roughness ≤Ra0.2μm 6.3-12.5μm
work the face smooth ≤Ra0.015μm ≤Ra0.1μm
pressure load ≤0.15MPa ≤0.3 MPa
counterfeit Line speed 2M / S 3M / S
temperature range -100 ~ 200 ℃ -40 ~ 160 ° C
Hardness (HRC) 58-62 60-68
Lifetime(Hour) 3000 5000
Specifications rubber ring
Material  NBR  silicone  FKM
 hardness  60 ° ~ 65 °  60 ° ~ 65 °  72 ° ~ 78 °
 minimum tensile strong  11MPa  10.6Mpa  11MPa
 minimum Prolongation At Stop  300%  400%  260%
 permanent Anomaly  12%  8%  25%
 temperature range  -40 ℃ - + 120 ℃  -49 ℃ - + 230 ℃  -30 ℃ - + 250 ℃

category:

Application

- Farming, construction, transportation machinery, coal mining.

- Bulldozer excavators, tractors, cranes, forklift trucks, heavy trucks, backhoe.

- UNDERCARRAIGE Motor hydraulic motor to a gearbox shaft hub tunnel.




Advantages:

1.Coexistence High quality and competitive price.
Lifetime 2.Long
3 easy to install.
Yields 4.
performance 5.Good


How to install:
One used to install a special tool: the pressure is applied to the O-rings directly. As shown special tool is mounted between the floating metal ring and rubber ring rubber ring is pressed to the seat holes evenly in the hole.

How to install 2.Other: one extra O-ring is fixed between the surface of the cone floating oil seal and O-ring sealing (as) ring of floating oil seal is applied uniformly by the pressure. and O-ring seal teeth O- rings to ensure that the installation position more accurate.



OEM number

brand MODEL below roller Service Providers roller FRONT IDLER Pat
Caterpillar D5, D5B, D5LGP, D6, D6B, 955K. 2M2858
5K6191
9W7216
9W7223
1M8747
9W6647
2M2858
5K6191
9W7216
9W7223
7M0481
9G5313
9W6668
9W6669
Komatsu D60, D65-6,7,8, D66S-1, D75A-1.  141-30-00610  141-30-00616 141-30-00610  141-30-00616 141-30-00610    141-30-00616  141-27-00015      150-27-00015    150-27-00015    150-27-00025    150-27-00026
Kobelco SK07-2, SK07-LC ​​-2 R0900A R0560 R1000
Sumitomo S280FJ R0900B R0580  R0900B R2500
Hitachi UH 05/07 (UH081) 4317586 4060222
4110359
4512571
4056360
4110362
4153732
4508193




Packaging & amp; amp; Product delivery


Packing: neutral yellow box and welcome your logo on the packaging.

Shipping: FOB Shanghai, Ningbo, Shenzhen, Xiamen, on request.





company information

Huangshi Rvitong Machinery Co., Ltd. is a professional factory sealed floating Founded in 2004, our factory absorbs Italy GNL advanced technology in production for many years of research and experience, we have a special, different. to access the customer's needs. Our products are sold in countries around the world such as USA, Italy, France, Japan, Pakistan, Malaysia, Singapore, Indonesia, Thailand and other countries a few years, we have over 10 years experience in providing trading.
