| 1 set | It consists of two metal sealing rings and two rubber seals |
| Part# | 205-30-00052, 140-30-00040, 20Y-30-00100, 140-30-00141, 10Y-30-00100, 150-27-00025, 130-27-00020, 20Y-30-00040 |
| Stock | Yes |
| OEM for |
Komatsu |
| Material | GCr15 steel + NBR60 rubber |
| Lifetime | 5000 hours |
| FOB | Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen |
| Package |
Outside: standard export carton. Each group will be placed in a PP bag neatly. |
| Guarantee | 18 months |
Komatsu, Caterpillar, Hitachi, Kubota, Kobelco, Danapac, Goetze, Trelleborg...
| model# | Bottom roller | Carrier Roller | Front idler | Final Drive |
| PC60 | 110-30-00085 | 140-30-00040 | 141-30-00610 | |
| PC200 | 20Y-30-00040 | 20Y-30-00090 | 10Y-30-00100 | 150-27-00026 |
| E200B | 1M8746 | 8E5609 | 5P0204 | |
| E320 | 9W7220 | 8E5609 | 9W7225 | |
| D60 | 141-30-00616 | 141-30-00616 | 141-30-00610 | 141-27-00015 |
| D85ESS-1 | 154-30-00832 | 154-30-00832 | 154-30-00832 | 192-27-00022 |
| D3 | 9E6690 | 9E7216 | 9E6691 |
| METAL | Steel Gcr15/ 100Cr6 | Cast 15Cr3Mo |
| Surface smoothness/roughness: | ≤Ra0.2μm | 6.3-12.5μm |
| Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa |
| Forging line speed | 2m/s | 3m/s |
| Temperature range | —100~200°C | -40~160°C |
| Hardness (HRC) | 58-62 | 60-68 |
| Lifetime (Hours) | 3000 | 5000 |
| Material | NBR60 | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
| Specific Gravity(g/cm3） | 1.25 | 1.2 | 1.8 |
-Why Rvton deliver so fast?
-As we stock lots of raw materials,packing boxes and completed products.
-You're the factory?
Yes, we are a 13 years factory in Hubei Province, China
- How do you control the quality?
Each seal is 100% inspected in every process before exported
- How long to make the shipment?
In three days with stocks, 15-30 days according to the order qty.
- Can i buy one to test?
Yes, we offer a trial order and sample order for your Quality Evaluation.
Welcome to contact us and visit us!
For more information, please contact me! Good offer will be sent to you.
Fay Xu
Sales Representative
E: floatingseal04@rvton.com
T: 8615327878823
Skype: fay.xu3
Wechat: fayxu323
Whatsapp: 8618772280161
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

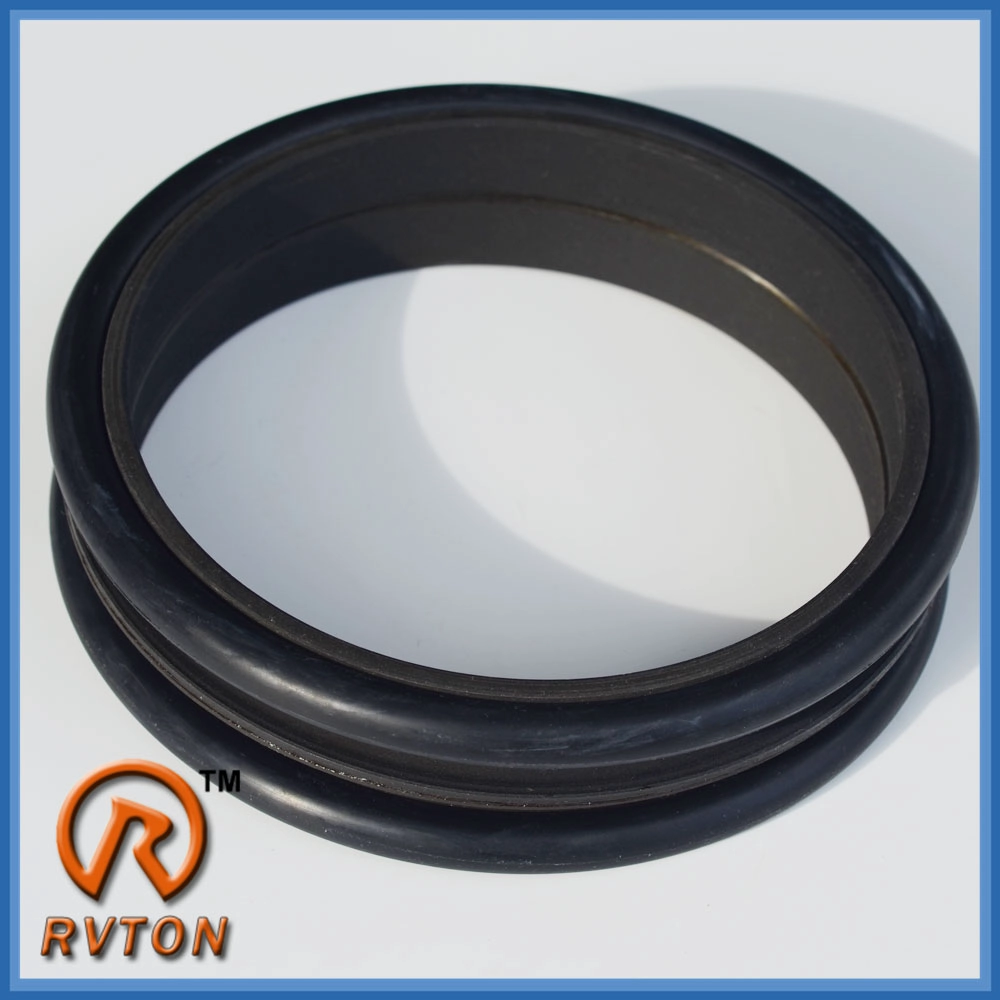

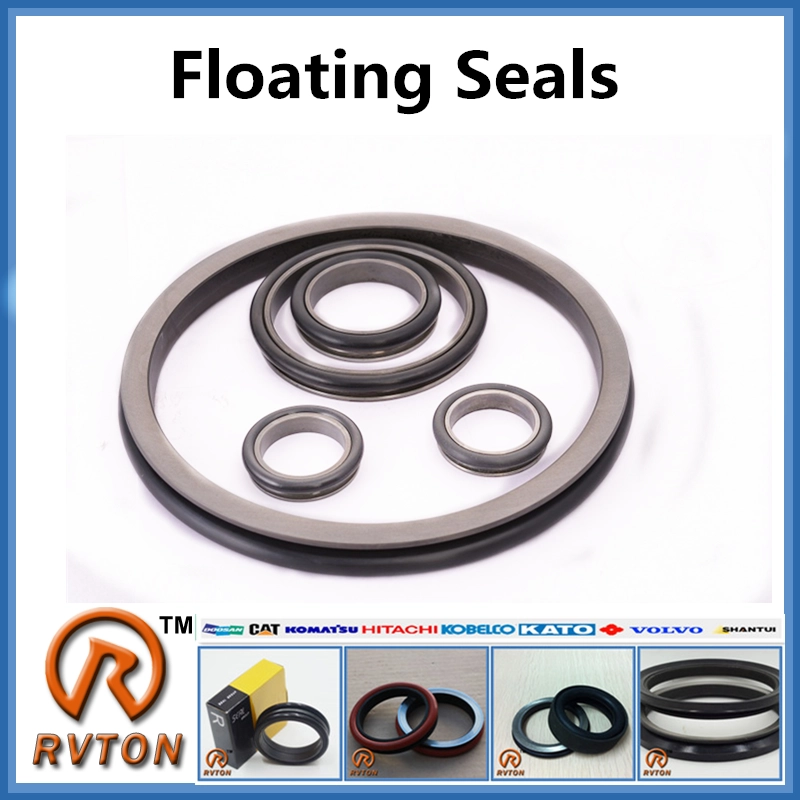

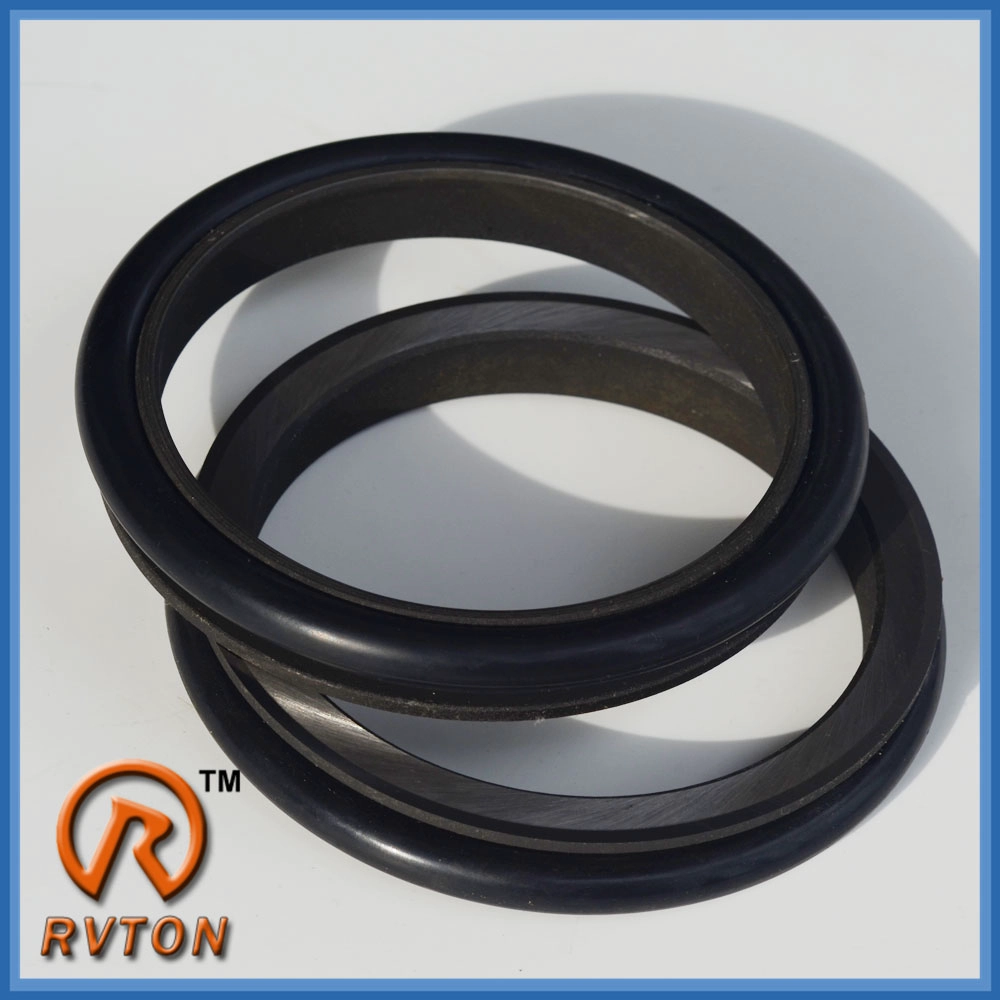

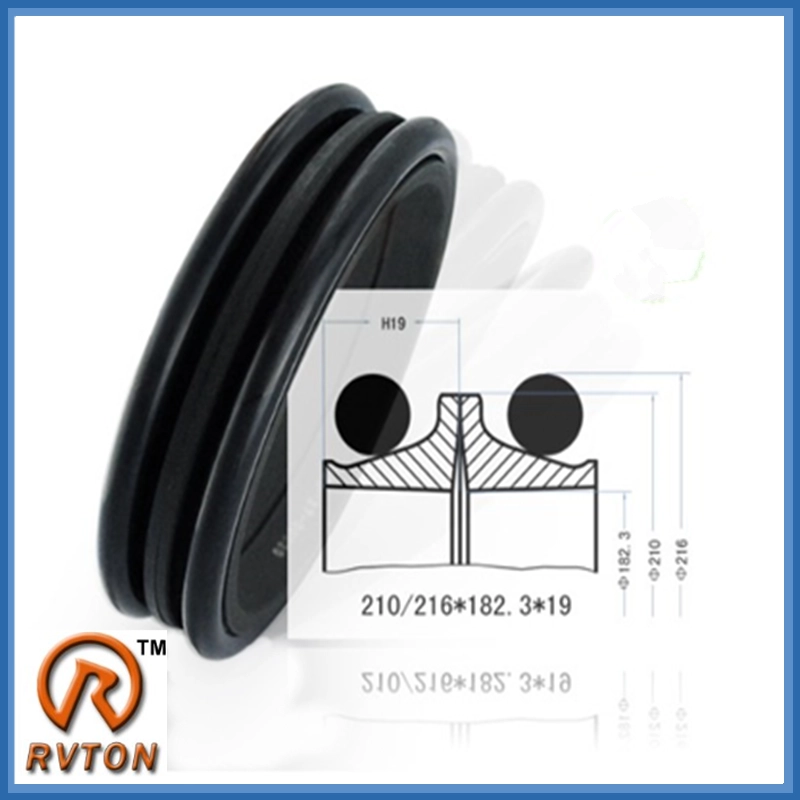

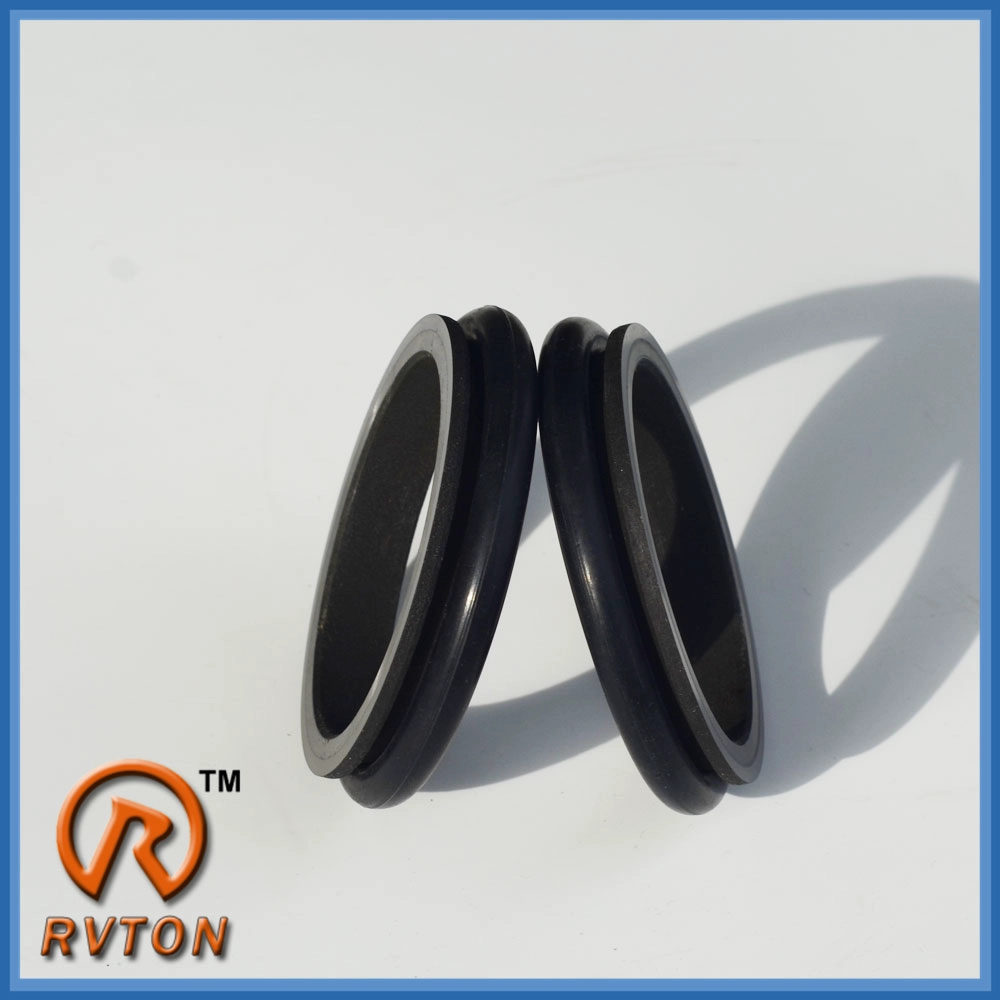

Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
Floating seal also called seal group, duo cone seal, mechanical face seal, lifetime seal, toric seals
-one set contains two metal rings + two rubber rings.
-Inner diameter from 38 mm to 1175 mm.
