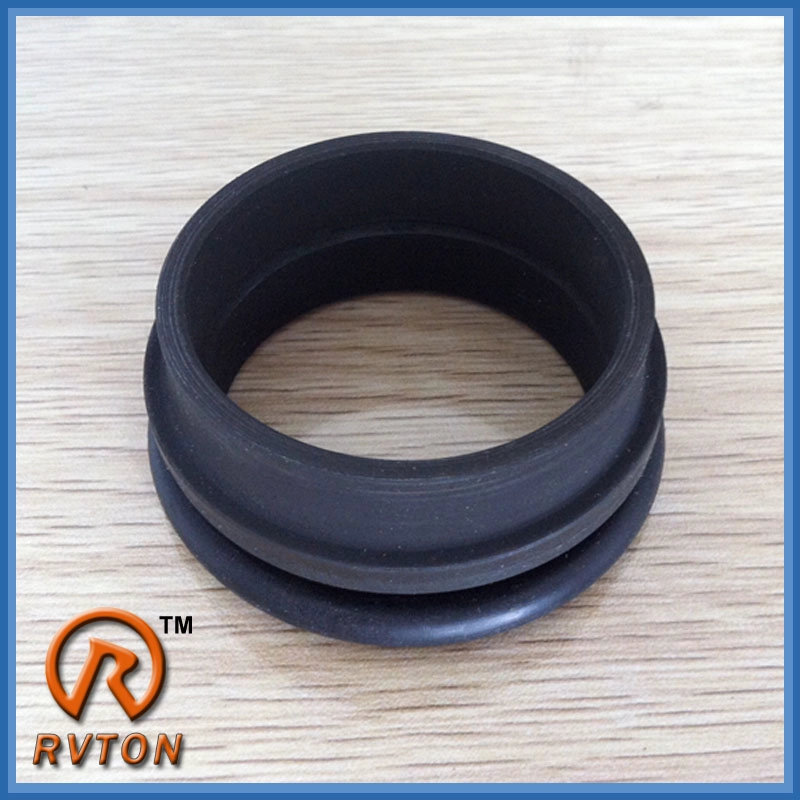

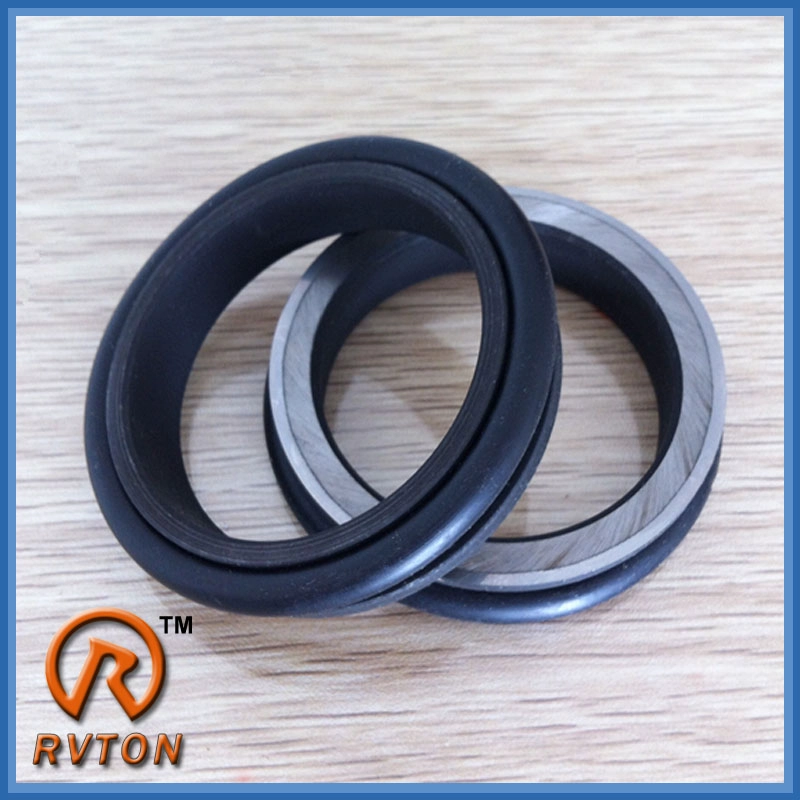

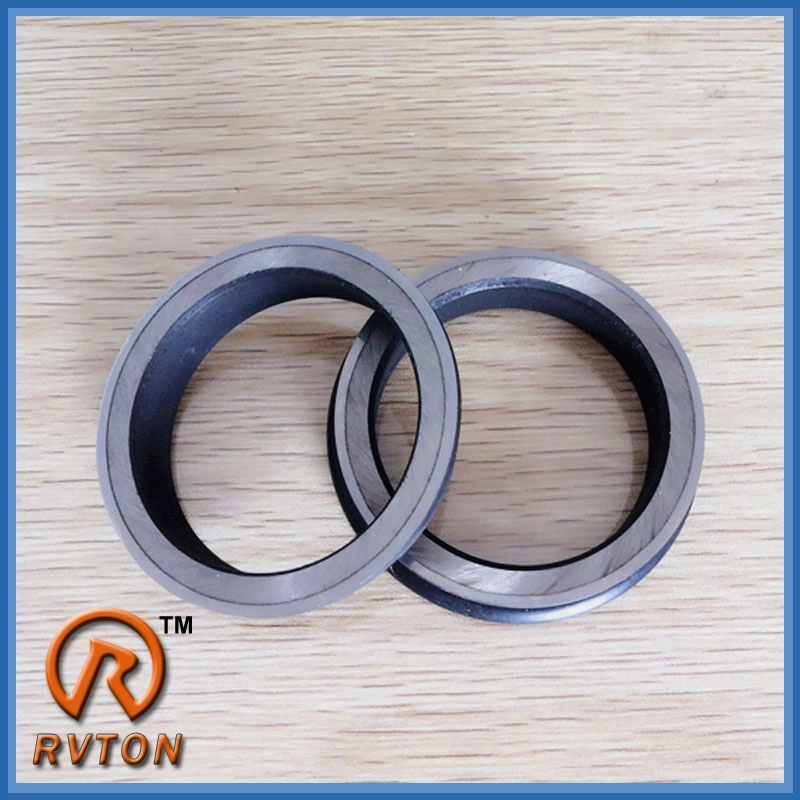

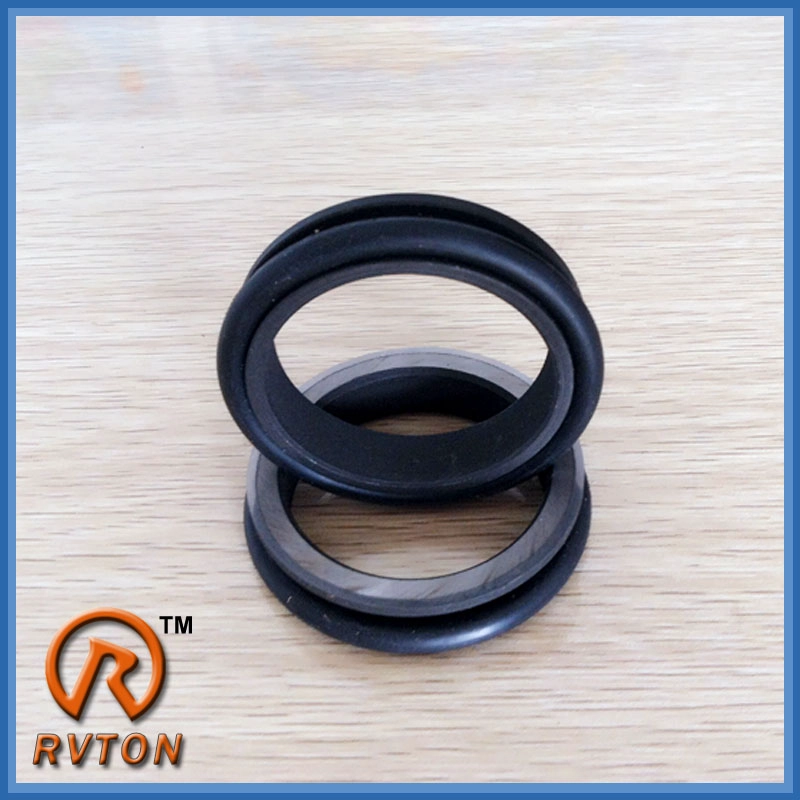

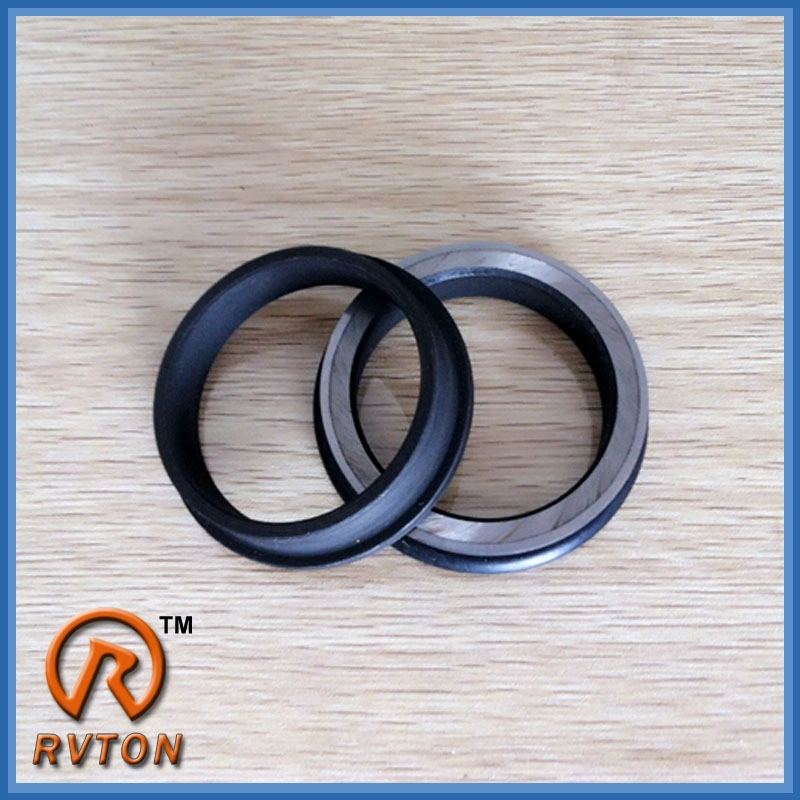

Oil seal for Komatsu/CAT Excavator Carrier Roller

  • 2016 hot selling Komatsu / CAT floating seal.
  • 1.Metal O- ring material: Gcr15 or 15Cr3Mo.
  • 2.Process O- rings of metal forging / casting.
  • 3.O ring material: NBR, FKM, Silicone, HNBR.
  • 4.Certification: ISO9000
  • O- rings of metal 5.Color: black.
  • The O-ring 6.Color: black, yellow, white or respond reuqest.
  • Size 7.Inner: 38-1000MM
  • 8.Hardness metal O- rings: 58-62HRC / 60-68HRC.
  • 9.Hardness of O-ring: 60-65
  • 10.MOQ: One set of samples available.
  • 11.Warranty: 18 months by the B / L.
  • Product Details

Oil seal for Komatsu/CAT Excavator Carrier Roller

Product Rvton Description (part 2).


floating seal Also known as The stamp, seal or double mechanical seal face, face seal cone.

It was the second Separate metal seal ring and two O-rings are suitable for packaging. Domestic and international market

metal

steel GCr15 / 100Cr6

Casting 15Cr3Mo

surface Smoothness / roughness:

≤Ra0.2μm

6.3-12.5μm

smooth the face

≤Ra0.15μm

≤Ra0.1μm

pressure load

≤0.15MPa

≤0.3 MPa

counterfeit Speed ​​Production Line

2 Miss

3 Miss

temperature range

-100 ~ 200 ℃

-40 ~ 160 ℃

hardness (HRC)

58-62

60-68

Life (H)

3000

5000



NBR60, silicone rubber and fluorine rubber ring provided.

Material

 NBR60

 Silicone

 FKM

hardness

 60 ° ~ 65 °

 60 ° ~ 65 °

 72 ° ~ 78 °

minimum Tensile strength

 11MPa

 10.6Mpa

 11MPa

minimum Elongation at break

 300%

 400%

 260%

permanent Anomaly

 12%

 8%

 25%

temperature range

 -40 ℃ - + 120 ℃

 -49 ℃ - + 230 ℃

 -30 ℃ - + 250 ℃

especially Gravity (g / cm3) is.

 1.25

 1.2

 1.8





OEM orders are welcome customers a free edition are available.



 About Us Company Rvton (floating seal).

Our business Based on a good team, we have a factory which expericed strictly controlled. The cost and quality of the sales team to provide excellent service for. customers

We are here to pick Rvton (floating seal) to. Save your time!

Packing and shipping.

1.Packing: Neutral packaging or packaged specifically to meet your requirements.

2.By Express, for example, or to order the trial of the sea or the client has confirmed.


You may wonder:

1.Are you plant it?

 Yes.we we have our own. Factory Pingxiang Xingtai, Hebei province, China.

2.Is your products more expensive?

Does not match up with different designs and materials. Common types of Viton NBR for it to be more expensive. High performance.

3.Any stamped from a mold you need to open new?

 Good answer question.the Is not because we have some mold.

 So if you want a product that We do not need to open a new one.                  Sample time: 3 days.

4I. Can you get free samples?

Yes, less than 1 USD, but we do not charge. You should pay the shipping to your city.

5.How can I pay you?

Meet reuqest.Normally Our customers choose T / T. Western Union.Convenient and cheap.

6. To deliver Products to us?

We can send you a few of the gates to our door. With the cooperation of our international express themselves. (5-10days), if you have a container. In the near future, we can send to your container by sea. (One month) if you A representative of Guangzhou, Shanghai, etc., we can send to your representative. By (3-6days)

7. What importent, that's nice of you. quality?

I think the only thing that makes the plant more and better. To customers, so we will not make a bad product to lose our customers and our seal. Have been exported to Europe, America, Japan, Middle East etc., except the military. Force majeure factors, such as heavy rainfall, earthquakes clients not to comment on. Quality issues



What do feel free to contact MS Ivy Monday we will try our best.
