PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer

Home > Category > Floating seal for Komatsu Aftermarket  > PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer

Browse Categories

China PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer manufacturer China PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer manufacturer China PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer manufacturer China PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer manufacturer

PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer

  • 1.Part#:130-27-00010
  • 2.New Aftermarket Parts
  • 3.Material:Steel 100CR6 + NBR60
  • 4.Metal Hardness:58-62 HRC
  • 5.Rubber hardness:60-65 °
  • 6.Lifetime:3000-5000 hours
  • 7.Warranty:18 months
  • 8.Stock offered
  • 9.Packing: Shrink films + inner box + standard export carton + wood pallet + wooden box
  • Product Details

PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer



PC120-5 Mechanical Face Seal 130-27-00010 Floating Seal Manufacturer

OEM Part# 130-27-00010

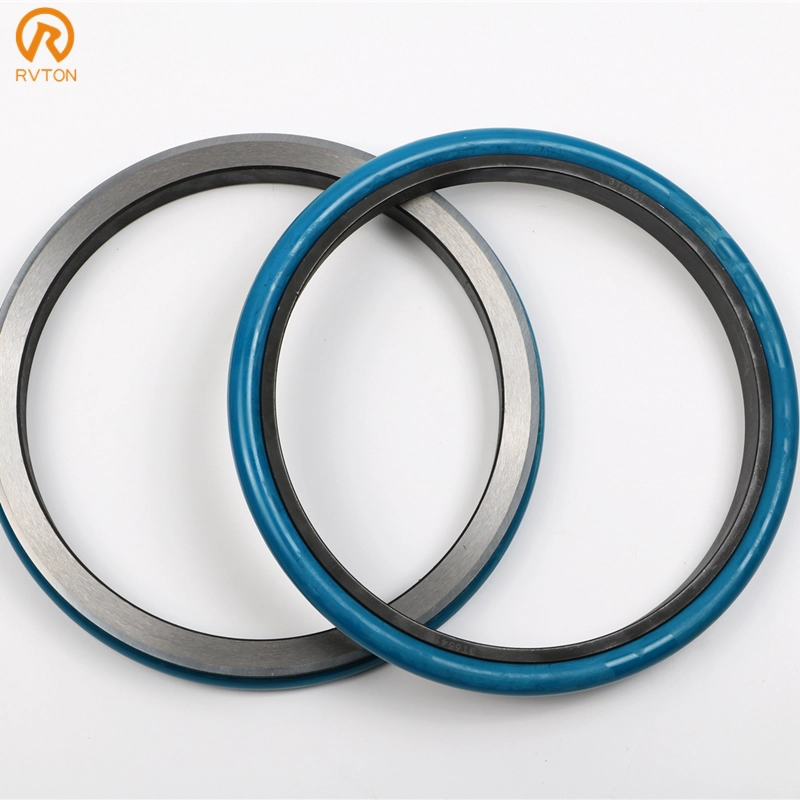

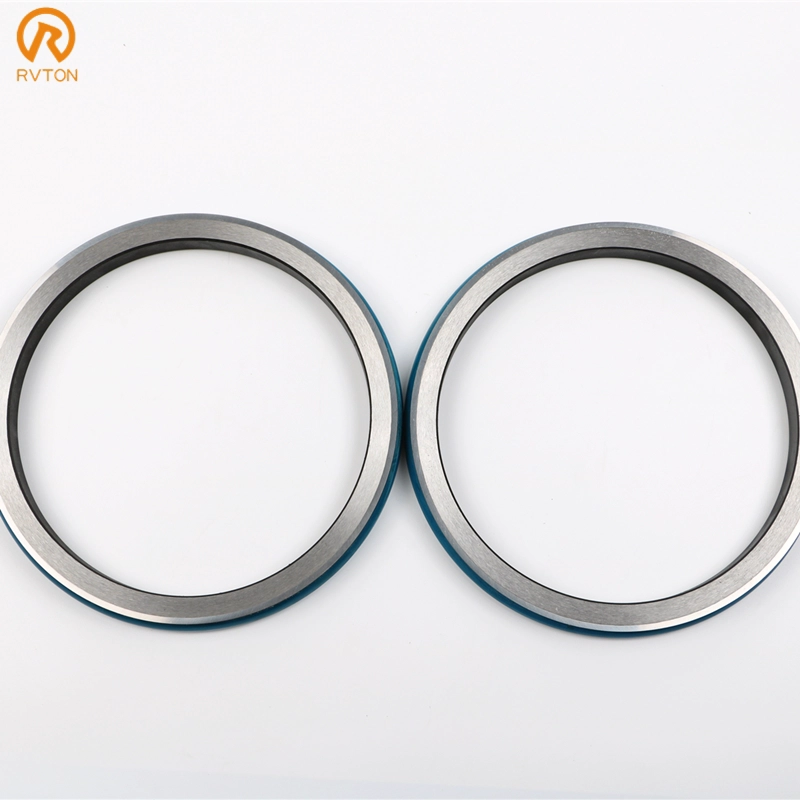

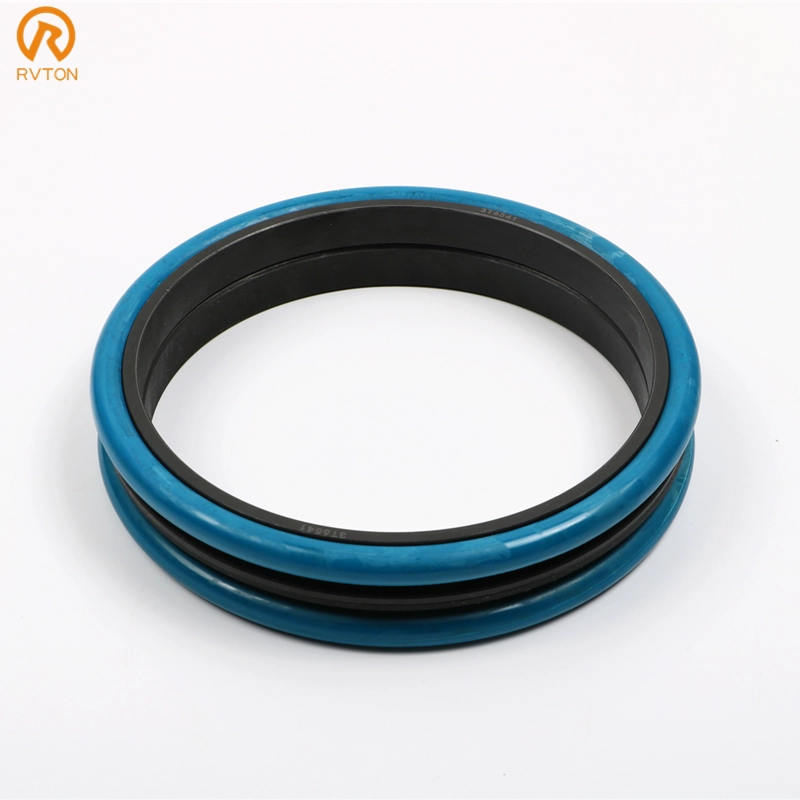

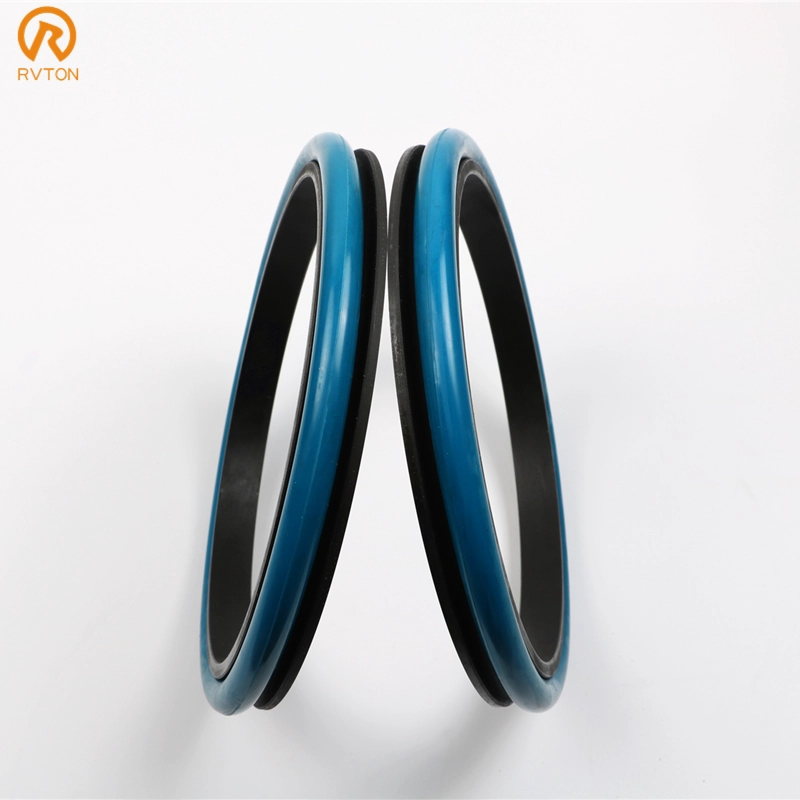

One set Consists of of two metal rings and two rubber rings
material 100Cr6 Steel + NBR60
Guarantee 18 months
Stock available
FOB Wuhan , Shanghai , Qingdao , Ningbo , Shenzhen , Xiamen
Package Shrink films + inner Box + standard export carton + wood pallet + wood Box
Application Constuction Machinery , Farm Machinery Coal Minerals Machinery 


Mechanical face seals are accurate The smallest of components, materials and design details can affect quality. Metal
The ring is processed by a CNC machine, fine precision increases O-ring gripping capability, eliminates O-ring sliding, ensures run
Smoothly.

Polishing achieved by the Lapping process. Surface flatness of Rvton products is within 3 light bands of monolithic disruption of optical light, the standard μRa of our work surface roughness is 0.1μm

1. Metal: steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
Metal Steel Gcr15 / 100Cr6 Cast 15C33Mo
Surface smoothness / roughness  ≤Ra0.2μm 6.3-12.5μm
Handy face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m / s 3 m / s
Temperature range -100 ~ 200 ° C -40 ~ 160 ° C
Hardness (HRC) 58-62 65-68
Lifetime (hours) 3000-5000 5000-8000

2.Rubber Ring: NBR60, Silicon and FKM Rubber Rings
material NBR60 Silicon FKM
Hardness 60 ° –65 ° 60 ° –65 ° 72 ° -78 °
Minimum tensile strength 11MPa 10.6MPa 11MPa
Minimum elongation on break 300% 400% 260%
Permanent deformation  12% 8% 25%
Temperature range -42 ℃ -120 ℃ -49 ℃ -230 ℃ -30 ℃ -250 ℃
Specific gravity 1.25 1.2 1.8

-Farm, construction, earthmoving, coal mining machinery
-Carrator, bulldozer, tractor, crane, forklift, heavy truck, backhoe
-Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub, tunneling

Mechanical face seal 87571954 for C185 new holland track machine

Type of floating seal and welcome to customize






  The machines  Part#
Komatsu Number 110-30-00085 110-30-00045 141-30-00610 140-30-00040 140-30-00141 170-30-00110 170-30-00210 175-30-00070 175-30-00700 20Y-30-00040 130-27-00020 150-27-00025 150-27-00026 150-27-00027 204-30-00041 20Y-30-00100 150-30-00035 154-30-00035 154-30-00830 154-30-00832 154-30-00833 170-27-00010 198-30-00072 21T-30-00110 198-30-00072 423-33-00020 423-33-00021 205-30-00052 14X-27-00100--30-00050 22B-30-00030 195-27-00022 175-27-00120 175-30-00900 20Y-30-00430 22U-30-00060 20Y-30-13210 204-30-00100 198-30-00140 27-27-00100 568-33-00016 TZES 100-154S
Caterpillar number 9G5311 9W6666 1M8747 9W6647 5M1176 6T8433 9G5315 9W6671 9W6680 9W7220 8E5609 9W7225 6P3595 9G5345 9W6690 9W6691 9W7216 2M2858 9W7223 9W6691 1P7249 5P7146 9W7243 7M0481 5P0204 7T0159 9W6651 9W7233 7T0157 108-6997 5P0373 9W7213 9P9663 8E2042 9W6694 9W3732 9W7201 9W7202 9W6620 9W6619 9W3956 169-6442 6Y0855 9W7204 6Y0856 9G5349 3144128 205-9025 9W7204 6Y0856 9G5349 1796862 1796863 145-6034 9W6644 9W6822 3T6602 365-4920 2627244 3176444 9W7206 1796864 1C9748 1456035 3144130 179129292   
Hitachi Number 4176379 4110358 4128201 4508192 4128201 4508192 4060222 4110359 4512571 4060225 4047279 4104605 4110360 4153468 4163731 4068433 4153711 4163711 4110362 4153732 4508193 4056360 4111361 4507221 4642180 4110366 4110367 4513173 4092483 4082631 4110368 4110369 4114753 4634693 4514259 4179741 4066695 4317584 4138544 4082698 ZAX200-5G XKAH-00916 XKAQ-00,219 XKAH -01012 4245703 4200413 4350347 4344155 4082698 
KobelcoKobelco number 58845-01500 R45P0018D2 R45P0018D3 TD00348 / 17 R45P0018D4 56 9 1020160 MT4000-7918 R45P0018D6 JB5680 619-89900440 71418383 05/9038111 180-00512 CR3069 XZ993774 MT40211881 R45P0018D21 R45P0018D25 TD0352 / 04 0964294 56 9 1020340 +56 9 1020530 R45P0018D12 2445Z1110 R45P0018D27 TD00611 / 02 R45P0018D13 UK 5500 R45P0018D14 R45P0018D14 204- 50,805,000 R45P0018D29 RG 30 OK5110H -25 JB5820 619-95,032,001 R45P0018D20 760S247F JS2650S YN53D00008S023 LQ15V00020S067 R45P0018D22 760S297FS YN15V00037S029 11.3209 24100U1743S24 R45P0018D23 58845-20500 U14568 45P0018D18 R45P00018D9 988430 R45P0018D9 20306 U16184 2445Z1109 HEL-127 A2  


1. Using Special Equipment Installation: Pressure will be applied directly to the O-ring. As shown, the special device is placed between the metal floating ring and the rubber ring, towards the seat hole, the rubber ring is evenly pressed into the hole.

2. Other installation methods: An auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied uniformly by pressure and the auxiliary O-ring brakes the sealing O-ring to ensure other critical mounting positions.



-Side: Standard Export Carton
-Inside: inner box. Each set will be tidily placed in PP bag
-Small palette free
-Cusmized packing with your logo is welcome


 GNL 5860 Toric Floating Oil Seal Metal Face Seal By sea --- Heavy goods by container transport, FOB is Wuhan , Shanghai , Qingdao , Ningbo , Shenzhen , Xiamen Harbour.



Air to port --- For goods above 100KG, it is economical choice for customers.



International Express --- Such as DHL, TNT, FedEx, UPS, EMS and so on. This is the best choice for sample orders. Your consign account is welcome.


1. Survival of high quality and competitive prices
2. Have long service life
3. Easy to install
4. High yield
5. Good performance


Hitachi 4110358 Seal Group for EX200-1 excavator


-you you Factory The
 Yes.15 Years Factory In HubeiProvince ,China 
-How do you Control  Quality The
 100% inspection  Shape Four times In  Manufacturing process before a The seal is Export
-How long To Make a The shipment The
 In 2 day Together Shares , 2-5 Week according To your Purchase The quantity if No Shares
-can do I am Purchase One To try The
 Yes we Offer testing Order And The sample Order for Quality Evaluation
