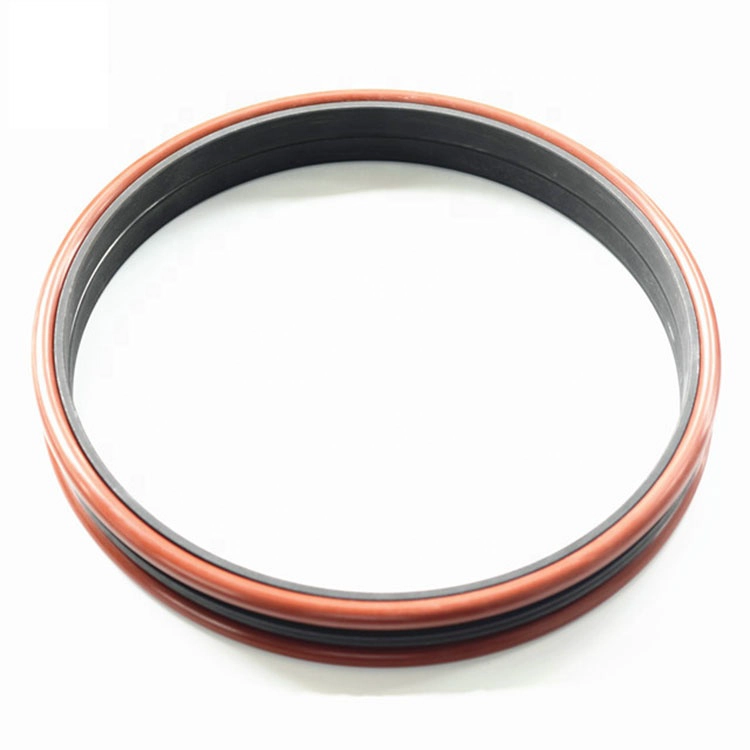

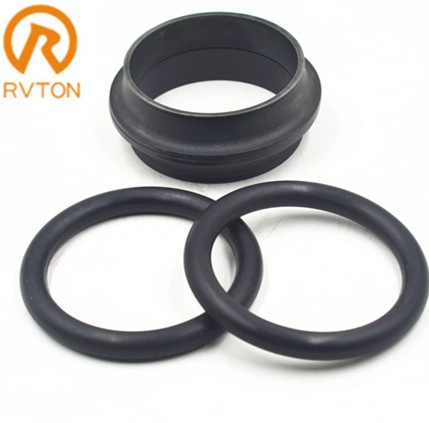

Rvton Good Seal Group for Engineering Equipment

  • Process: Forge
  • Warranty: 18 months
  • Metal:  Steel GCR15
  • Rubber: Nitrile/ Silicone/ Viton
  • 2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
  • 3,The lifetime is more than 4000 hours.
  • 4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
  • 5,Specifications
  • Pressure: 1.0-1.7bar/cm2 (max.)
  • Temperature range:  -100 ~ 200 °C
  • Circumferential speed: 2-3m/ sec (max).
  • 6,The size of the floating seals are various,the inner diameter is from 30-1000mm
  • Product Details

Rvton Good Seal Group for Engineering Equipment

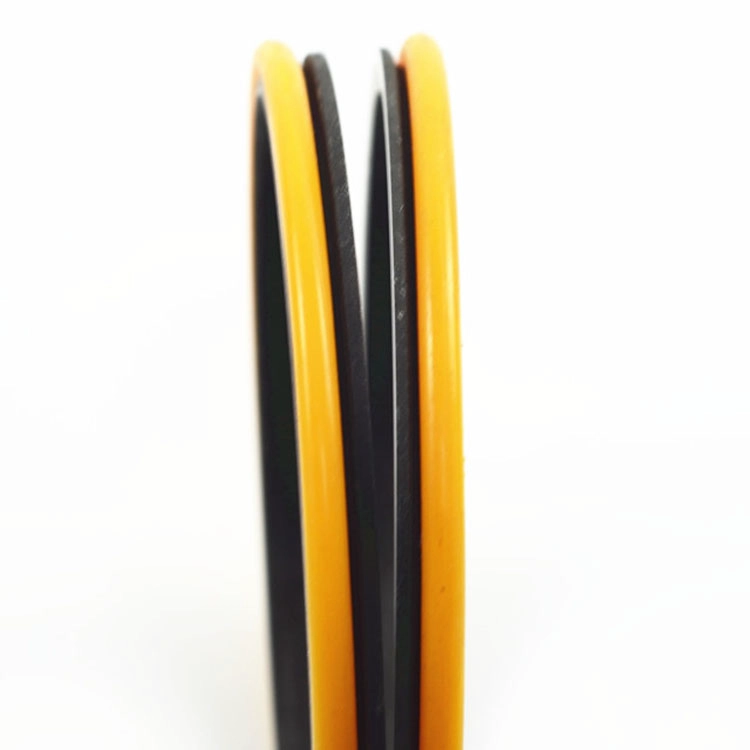

1 Set Consist of two metal seal rings and two rubber seals
Size 38 mm - 1000 mm
OEM/Aftermarket aftermarket
OEM converts

PC100, PC200, PC300, E320, ZAX, VOE
Material Forged Bearing Steel& Nitrile rubber
Brand Rvton
FOB Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
Packing

Outside: Standard export carton.

Inside: inner box with our log.

Free wooden pallets, wooden case
Warranty 18 months

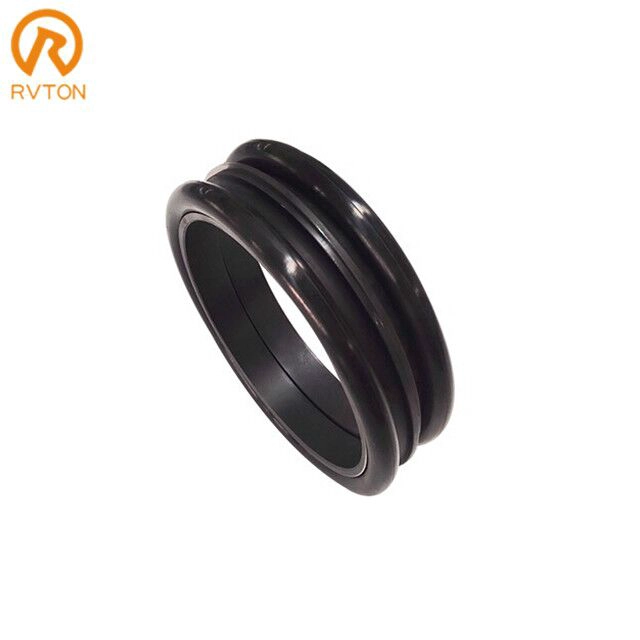

Rvton Good Seal Groups for Engineering Equipment
Rvton Good Seal Groups for Engineering Equipment
Rvton Good Seal Groups for Engineering EquipmentRvton Good Seal Groups for Engineering Equipment

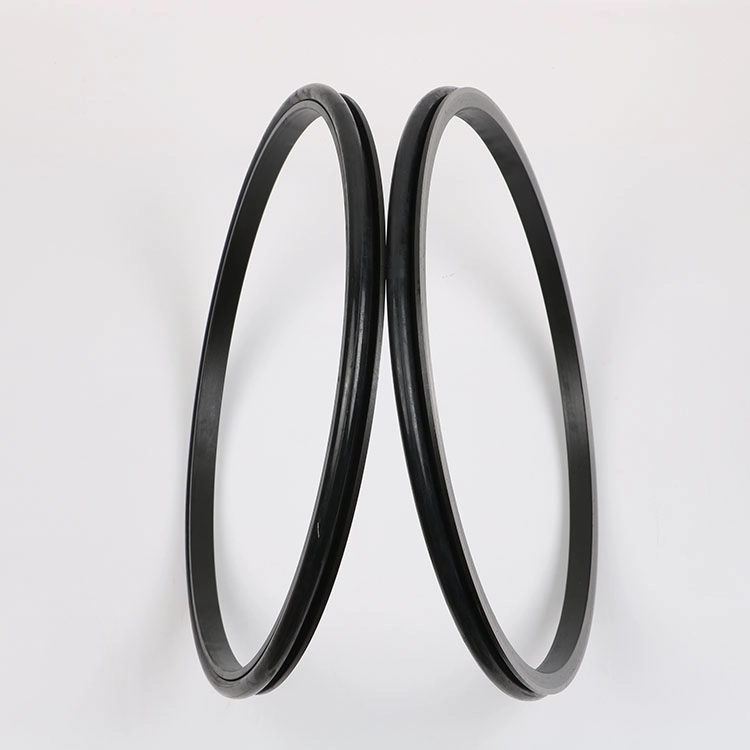

There are 2 materials:
Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness: ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range —100~200°C -40~160°C
Hardness (HRC) 58-62 60-68
Lifetime (Hours) 3000 5000

NBR60, silicone and FKM rubber rings are offered
MATERIAL  NBR60 SILICONE FKM
Hardness  60-65 60-65 72-78
Minimum tensile strength  11mpa 10.6mpa  11mpa
Minimum elongation at break  300% 400% 260%
Permanent deformation  12% 8% 25%
Temperature range -40℃ - +120℃ -49℃ - +230℃ -30℃ - +250℃


As the increased requirement, we have prepared a lot of goods in stock to meet our customers and our partners' urgent need.
Model# Bottom roller Carrier roller Front idler Sprocket
PC60 110-30-00085 140-30-00040 141-30-00610
PC200 20Y-30-00040 20Y-30-00090 10Y-30-00100 150-27-00026
E200B 1M8746 8E5609 5P0204
E320 9W7220 8E5609 9W7225
D60 141-30-00616 141-30-00616 141-30-00610 141-27-00015
D85ESS-1 154-30-00832 154-30-00832 154-30-00832 192-27-00022
D3 9E6690 9E7216 9E6691

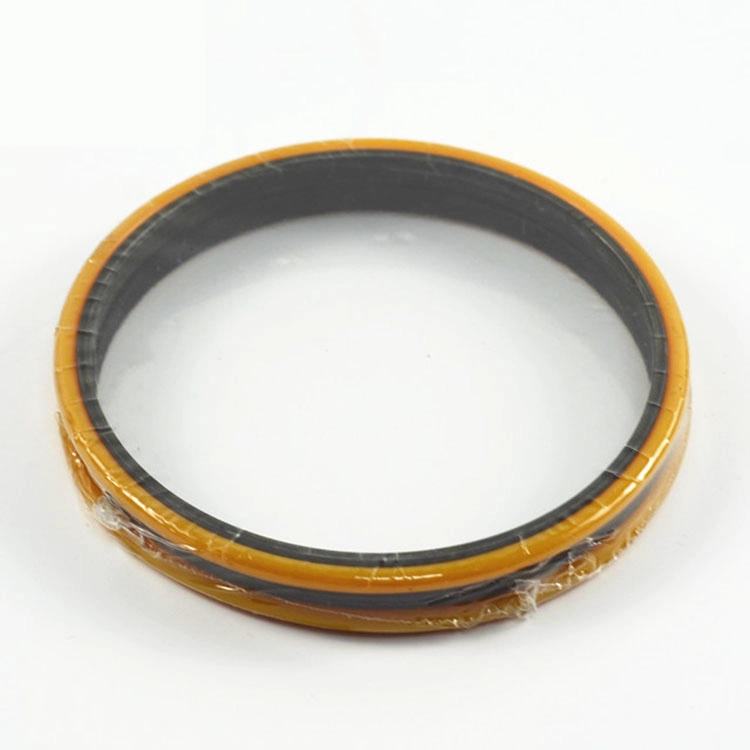

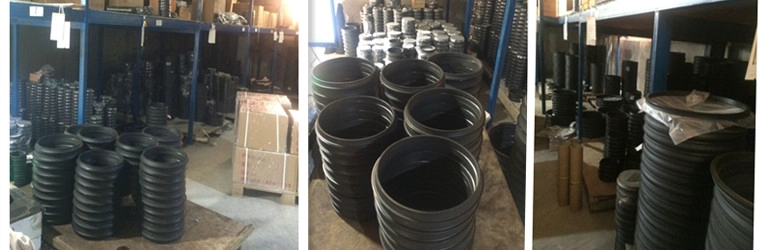

seal group in stock


Rvton Seals are also made upon your designs and drawings.

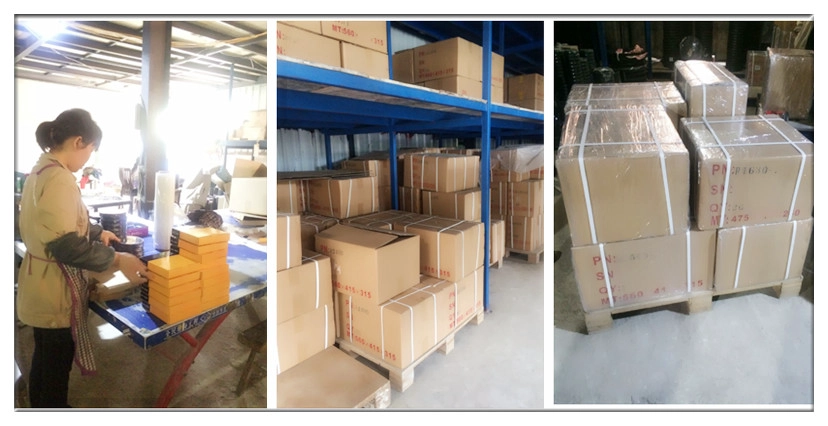

Packaging & Shipping

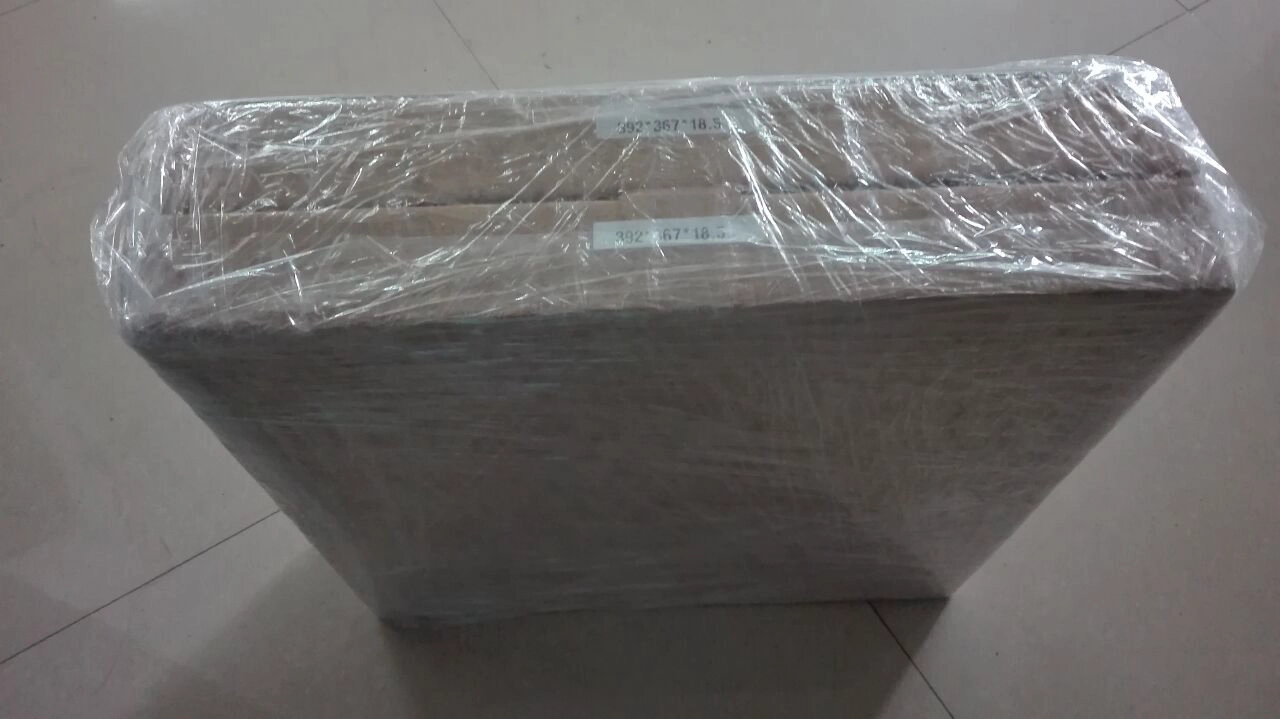

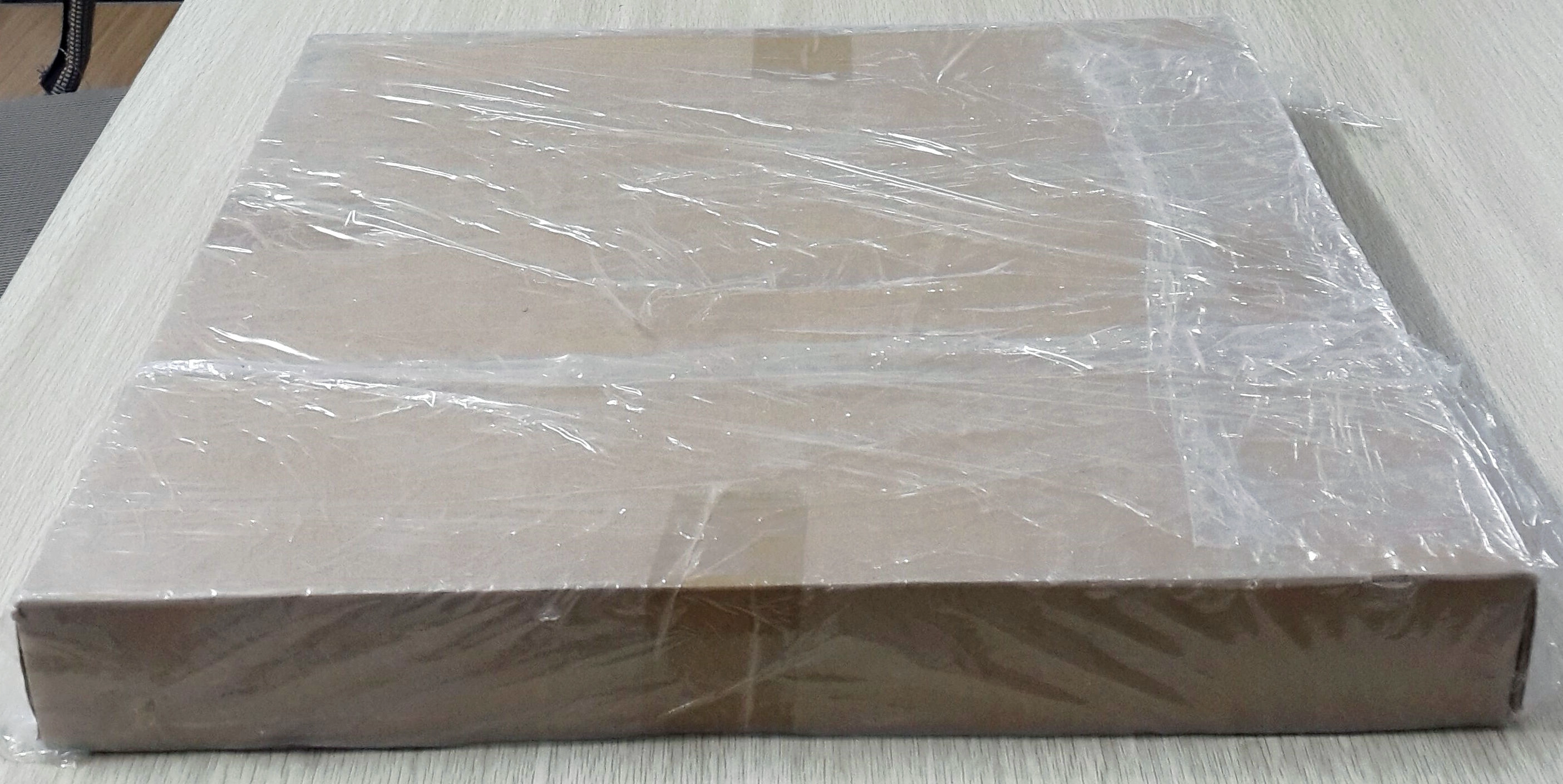

- Outside: Standard export carton.

- Inside: Inner box. Each set will be placed in the pp bag tidily.

               Your special requirement are welcomed.

- Wood pallet free of charge

- Shipping via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...We have many shipping forwarders that have copperated for many years, reliable service and better shipping cost will be offered.







FAQ

 - Are you factory?

   Yes, founded in 2004, we are in Huangshi City of Hubei province, China



- How do you control the quality?

  100% inspect the size in the each procedure before a seal is exported.



- How long to make a shipment?

  In 3 days with stocks, 2-5 weeks according to your purchasing quantities if no stocks.




 More details please contact me! Good offer will be given to you.
