Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

Home > Category > Mechanical Face Seal for Goetze Replacement  > Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

  • Part# Rvton R0380 TLDOC0380 H-50
  • Size: 51 x 38 x 20.4 mm
  • Weight: 0.1 kgs
  • One set = 2 metal rings + 2 rubber ring
  • Material: CAST / steel + NBR60 / silicone
  • Application: Construction / Agriculture / Mining industry
  • Stock offered
  • Made in China
  • Packing: Shrink films + inner box + Standard export carton + fixing band
  • Free wooden pallets and wooden boxes offered
  • Product Details

Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

Rvton R0380 TLDOC0380 H-50 Floating Seal RingsRvton R0380 TLDOC0380 H-50 Floating Seal Rings
Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

Part# R0380 TLDOC0380 H-50
Weight: 0.1 kgs
One set = 2 metal rings + 2 rubber rings
Material: Cast 15CR3MO / steel 100CR6
Hardness: 68-72 HRC / 58-62 HRC

Rvton R0380 TLDOC0380 H-50 Floating Seal Rings
1, Competitive Pricing, 30% - 50% lower than the original parts
2, ISO certified Products
3, Experienced team with years of knowledge
4, In-House engineering and Design Capabilities
5, Just-in-time Inventory Programs for OEM/OES
6, MOQ 1 Set
    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings


    Floating Seal Description

    - Our Products: floating seals (duo cone seals, seal group, lifetime seals, heavy duty seals).


    Material: 1) Steel Gcr15 / 100Cr6; Hardness: 58-62HRC

                     2) cast iron 15Cr3mo; Hardness: 60-68HRC


    - Rubber Rings: NBR60, silicone, Viton, HNBR.

    - Hardness: 58-62HRC / 60-68HRC

    -Size: 38-1000mm

    - Rvton Floating seals types: Standard Type / XY-type / L type / iron plate type / custom type

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

    Specifically engineered for heavy duty, rotating applications, floating seals are designed to withstand extreme wear and tear. They consist of two identical metal seal rings mounted face-to-face in separate housings, and each metal ring is centered within its housing with an elastomeric element. This allows one half of the mechanical face seal to remain static in the housing, while the other half rotates and seals on the lapped surfaces.


    Applications of floating seals

    Designed for use in transmissions, pumps, axles, wet braking systems, axles, rollers, and final drives; these seals are developed using special cast iron materials resulting in extraordinary wear-resistance. Mechanical Face seals have proven beneficial in gearboxes, mixers, stirrers, wind-driven power stations as well as other applications requiring maintenance-free lifetime sealing.

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings



    -Heavy Industry: Mining, Construction, Agriculture


    -Tracked Vehicles: excavators, bulldozers, tractors, trucks ...


    -Axles


    -conveyor system


    -Tunnelbohrmaschine


    -Travel Engines, final drives, track rollers, idlers ..


    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings


    OEM Service

    Floating Seals OEM for Komastu, Hitachi, Caterpillar, Trelleborg, Goetze, Kobelco, Kubota ...

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings


    2445Z1109
    CR3069
    MT4021-1881
    R45P0018D25
    TD0352 / 04
    5691020340
    5691020530
    TD00611 / 02
    UK5500
    204-50805000
    TZES 100-154B
    TZ300A-1010
    TZ310B-1027
    TZ550A-1010
    TA860A-1010
    TZ150A-1010
    ES-64
    58.845 to 20.500
    7T0158
    45P0018D18
    655973C91
    988 430
    R45P0018D9
    R45P0018D27
    R45P0018D13
    R45P0018D14
    R45P0018D16
    R45P0018D18
    R45P0018D29
    R45P0018D20
    CR1857
    TZ010F-1027

    U17386
    CR 4359
    ES-56
    5691020160
    MT4000-7918
    R45P0018D6
    JB5680
    R45P0018D12
    ES-102
    R45P0018D15
    TLDOA1460
    619-95032001
    ES-209
    TZES100-250-A
    GZ5810
    TLDOA5300-2CP00
    YN53D00008S023
    TZ150F-1027
    TZ200B-1010
    110-30-00085
    110-30-00045
    123-0638
    1C9748
    LQ15V00020S067
    760S297FS
    YN15V00037S029
    4176379
    4110358
    JB5830
    R45P0018D28
    VOE14522998
    140-30-00040
    140-30-00141
    141-30-00610
    317-6441
    9W7206
    1796863
    4128201
    4508192
    4060222
    170-30-00110
    170-30-00210
    175-30-00070
    3176441
    9W6644
    1456034
    4110359
    4512571
    4060225
    20Y-30-00040
    130-27-00020
    150-27-00025
    9W6822
    3T6602
    6D1190
    4317586
    4047279
    4104605
    150-30-00035
    154-30-00035
    154-30-00833
    154-30-00830
    154-30-00832
    154-30-00831
    CR3820
    CR4050
    9W2629
    205-9025
    9W9230
    9W6622
    4110360
    4153468
    4163731
    4068433
    4153731
    4163731
    141-27-00015
    150-27-00015
    150-27-00016
    204-30-00041
    170-27-00020
    9W7205
    4D8960
    9W6623
    6Y0855
    3144128
    4110362
    4153732
    4508193
    4056360
    4111361
    170-27-00025
    195-27-00022
    423-33-00020
    423-33-00021
    6Y0856
    9G5349
    1326141
    4D4471
    4110363
    4507221
    4642180
    4110364
    100-27-00030
    175-27-00120
    175-27-00121
    21T-30-00110
    9G5323
    4D4510
    9W7202
    9W7201
    4110366
    4110367
    4513173
    4092483



    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

     Still other sizes and part numbers of the seal group please contact me!



    installation

    Installation Methods:

    1. With special tools Installation: The pressure is directly to the O-ring. As shown, the special tool between the metal floating ring and the rubber ring is mounted in the direction of the seat hole, the rubber ring is pressed evenly into the hole.

    . 2 Other Methods of Installation: An auxiliary O-ring between the conical annular surface of the floating oil seal and sealing O-ring is attached (see figure). The ring of the floating oil seal evenly by the pressure and the auxiliary O-ring clamp the O-ring is applied to ensure the other correct installation position.

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings



    about us


    - As a manufacturer, we have been focused on the producing and researching floating seals for 16 years.


    - Rvton is the Italy Top undercarriage parts company's regular supplier.


    - Rvton floating seals are exported to Asia, Africa, Europe, the Middle East. North America, South America, Oceania.. ISO and TÜV certified.

    - Support the new designs, the floating seals is made according to your drawings and samples.

    - We keep regular goods in stock for fast delivery.

    - Free printing service on the metal seal rings. Log, size, part # are offered upon your request.


      For more information please contact me! The catalog and price list will be sent to you upon request :)

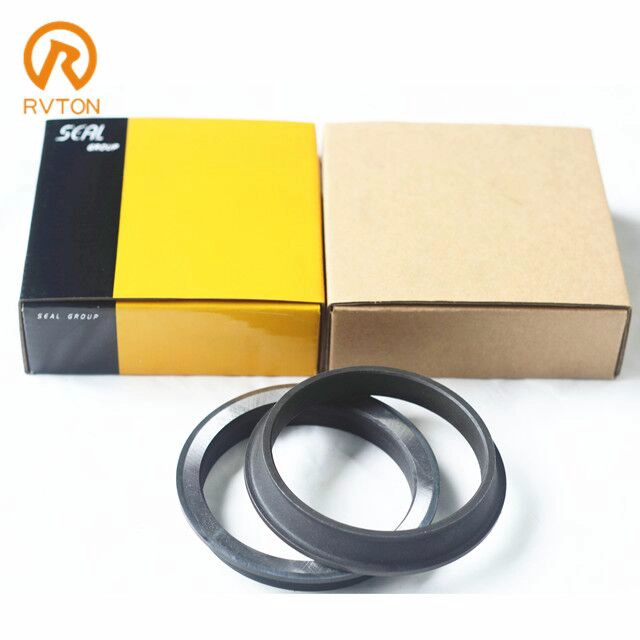

    Packaging of Floating Seal Group

    Brown / yellow box + inside shrink films + standard export carton.

    Free wood pallets and wood case are available on request.

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

     - Convenient transportation and economic shipping cost.

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

     Contact me freely now for price and more details :)

    Rvton R0380 TLDOC0380 H-50 Floating Seal Rings

    Fay Xu

    Sales Representative

    E: floatingseal04@rvton.com

    WeChat: 008618772280161

    Skype: fay.xu3


    Send Us An Inquiry
    We will contact you as soon as possible!
    Phone
    Phone
    WeChat
    Skype
    Whatsapp
    captcha
    If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
