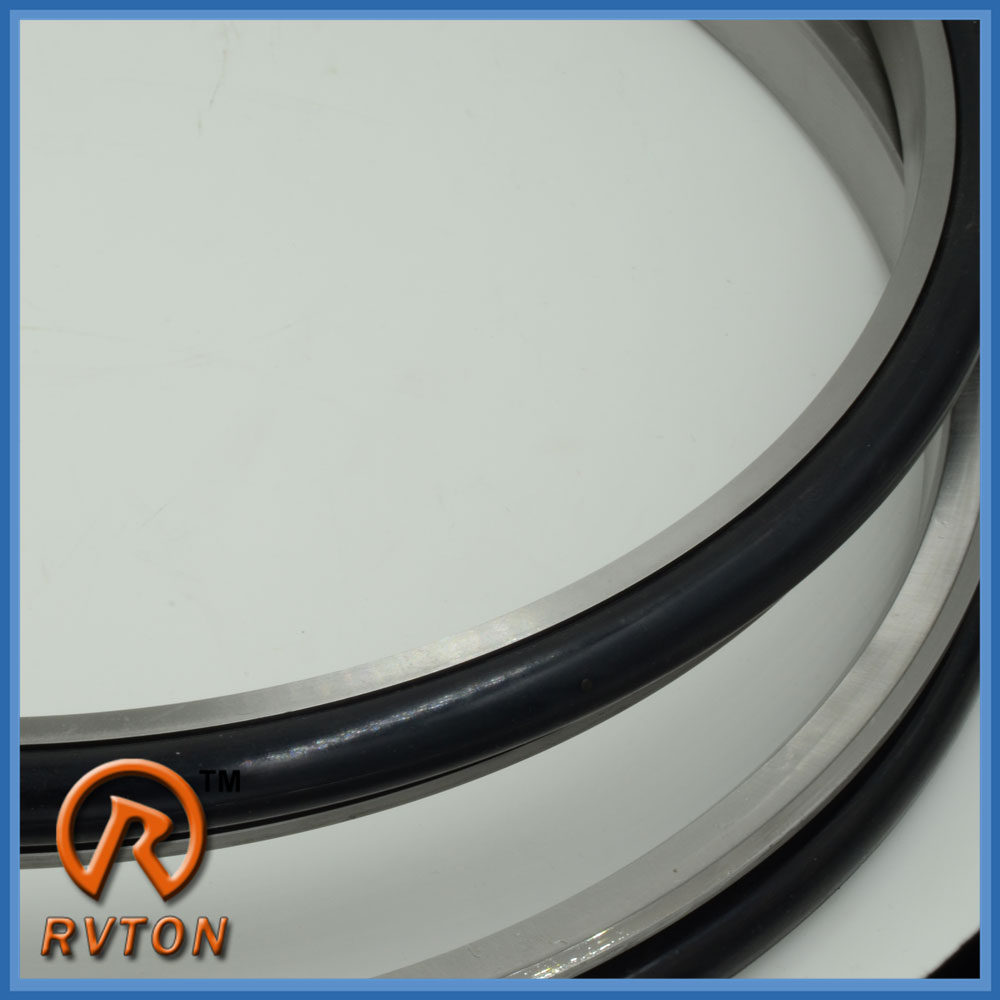

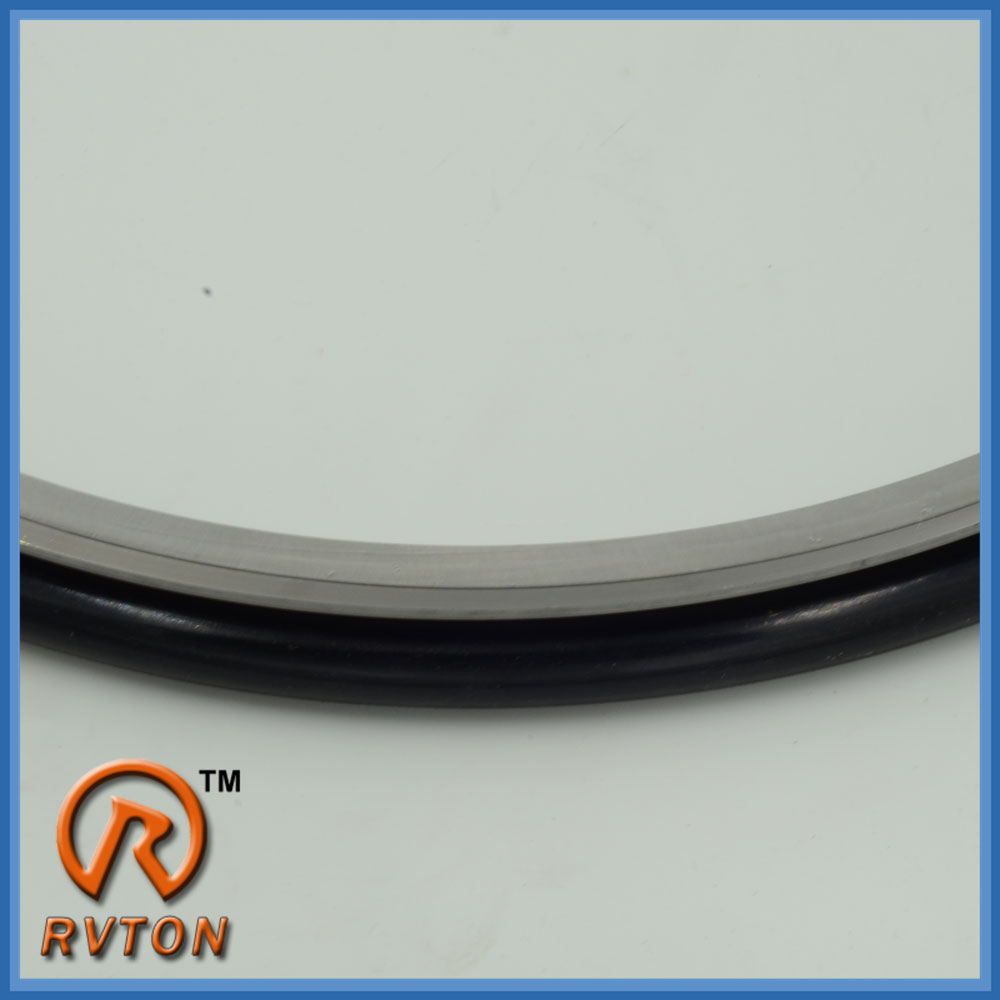

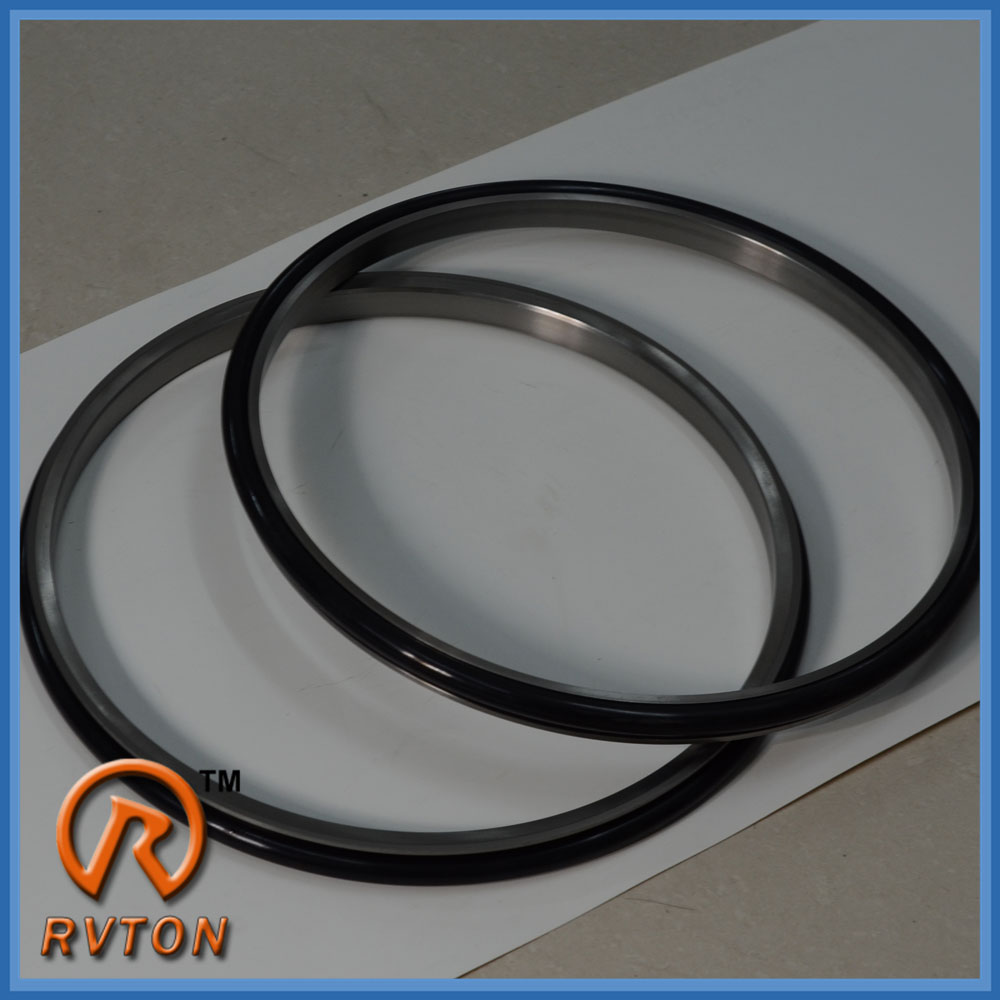

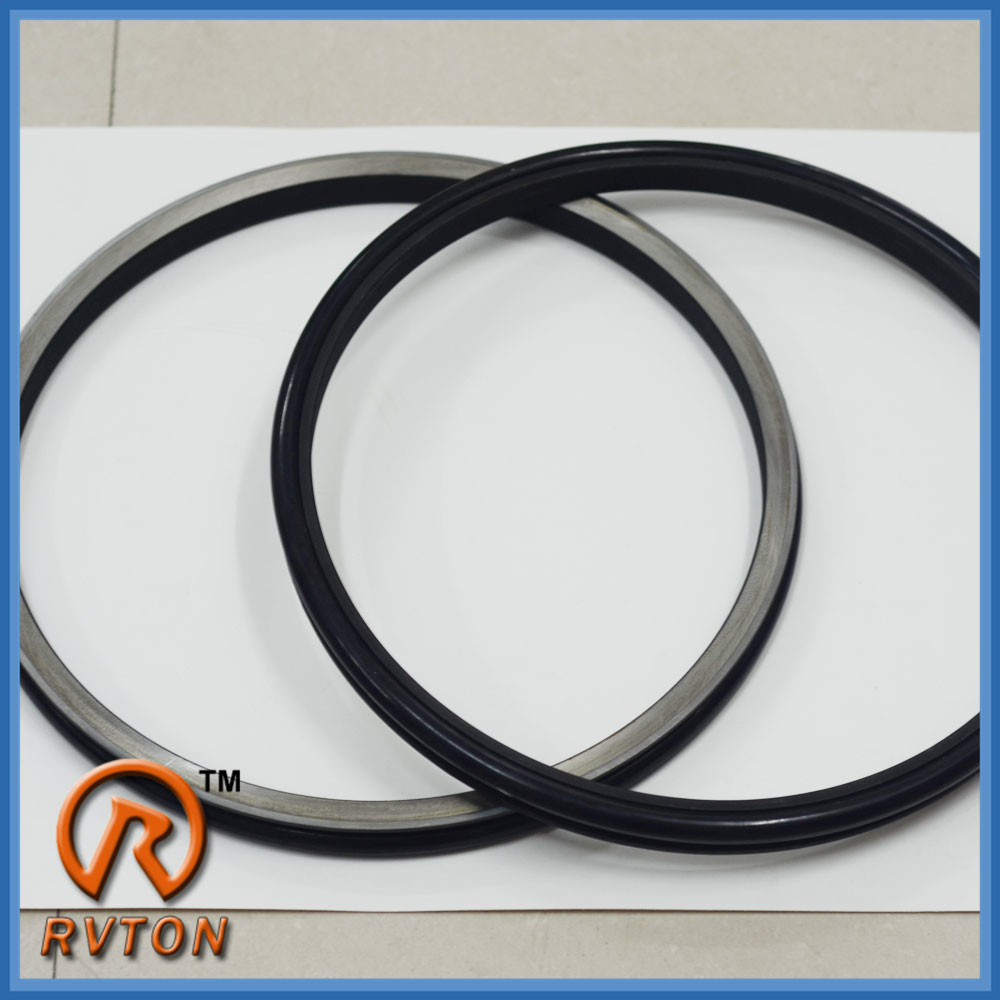

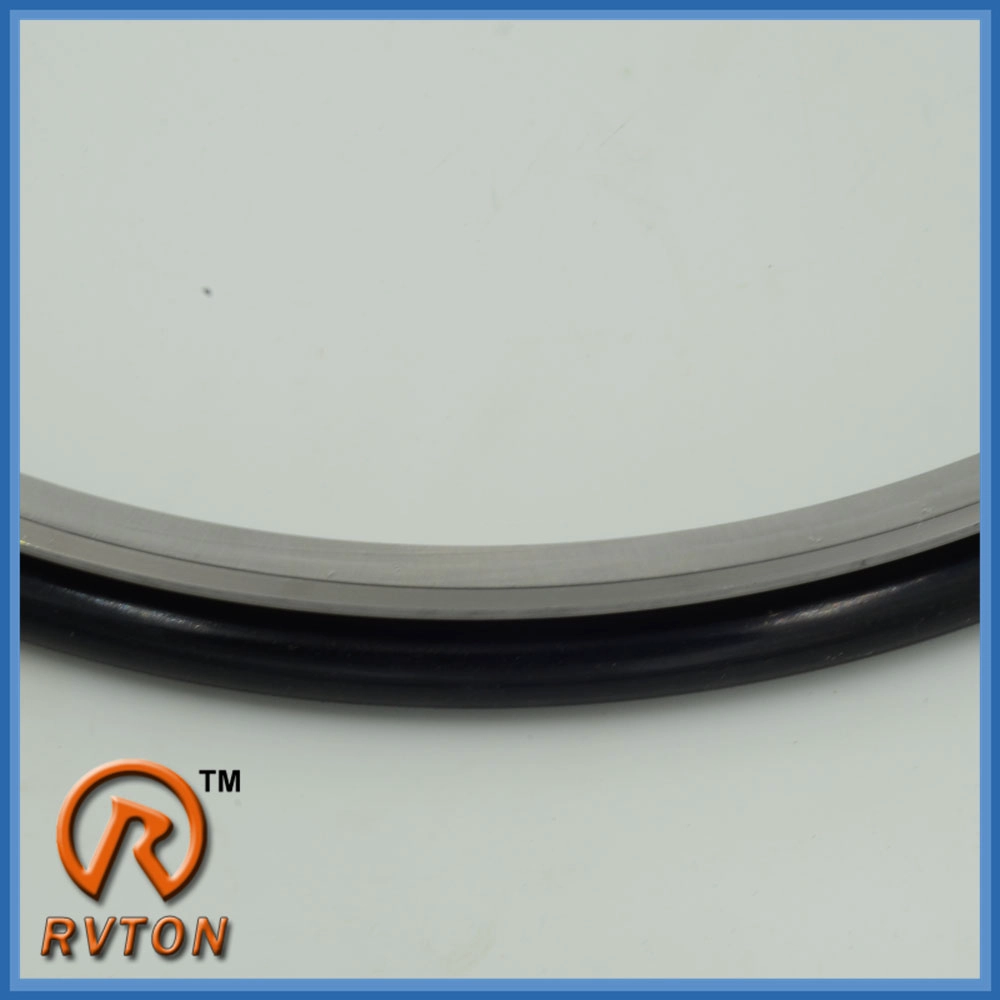

1. also called floating seal ring face seal, seal group, dual-core cone seal, mechanical seal, seal life
2. Diemension metal seal: 375 * 351 * 19
3. Working Life: 5000 hours / 8000 hours
4. Warranty: 18 months for each shipment, to take care of afterservices

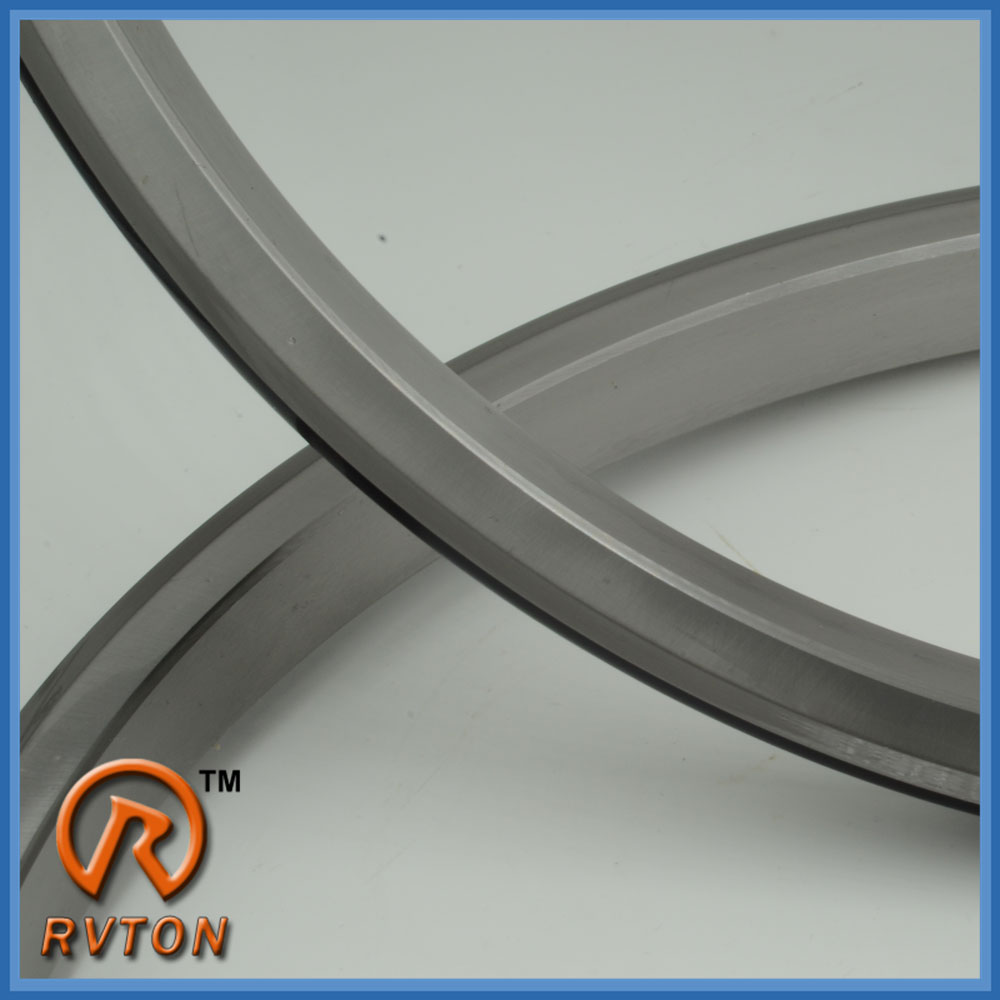

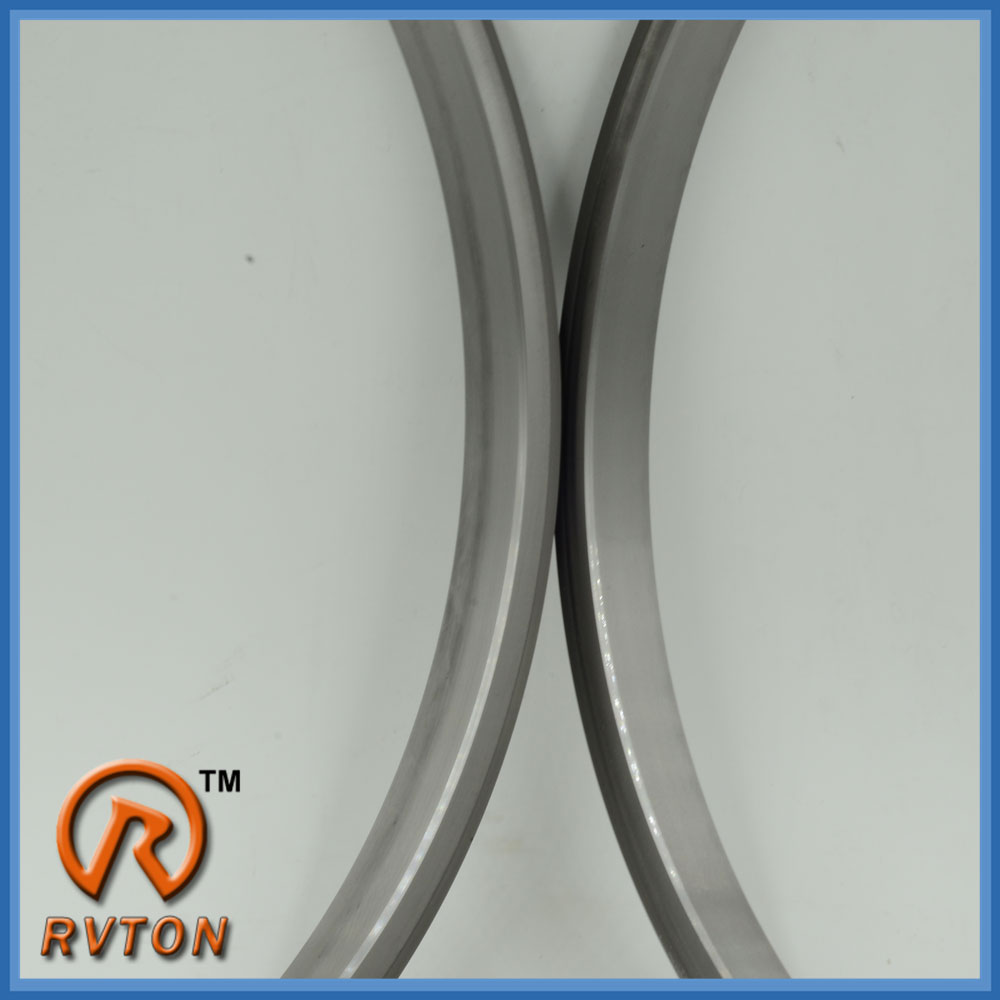

Metal ring:
| smoothness of the surface / Roughness | ≤Ra0.2μm |
| face Finish | ≤Ra0.015μm |
| pressure | The ≤0.3MPa |
| Forged Line speed | 2 m / s |
| casting Line speed | 3 m / s |
|
temperature
|
-100~200 ℃ |

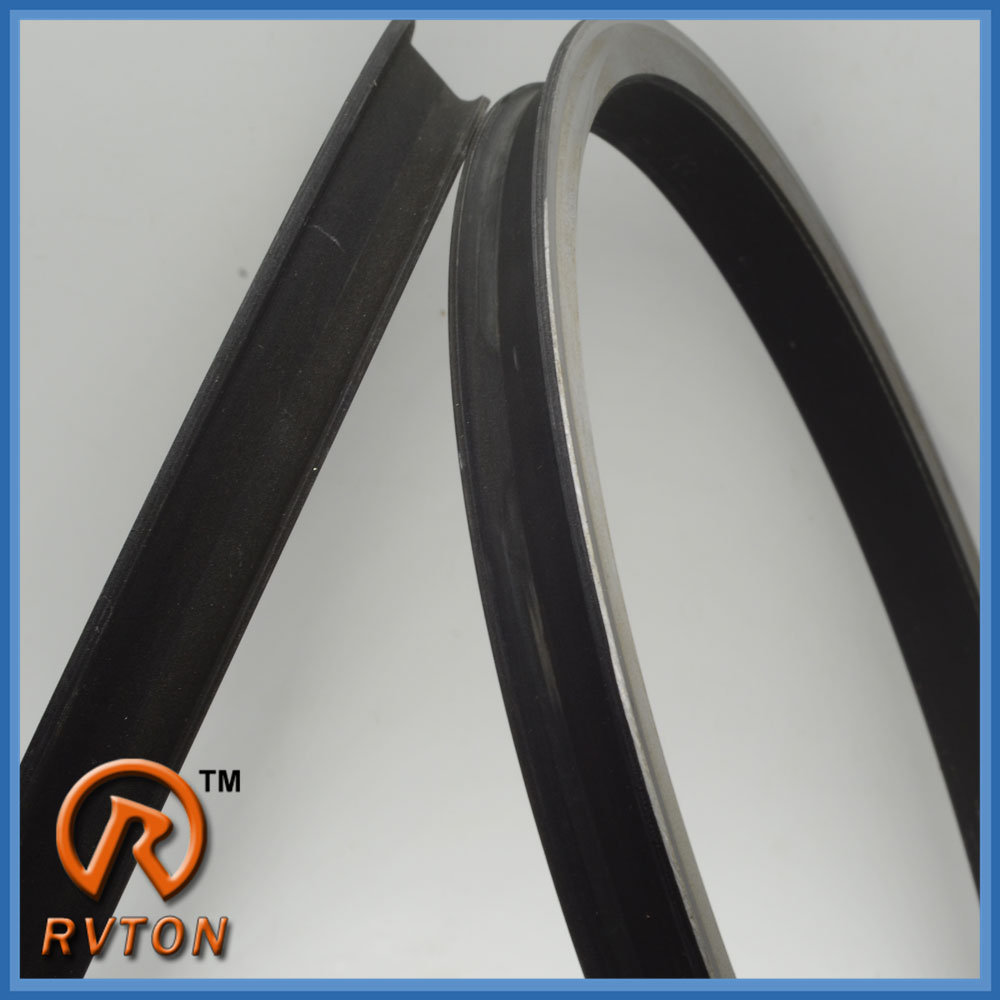

Rubber gaskets:
| Shore hardness | 60 ° ~65 ° |
| at the lowest limit tensile strength | 11MPa |
| at the lowest limit Elongation at break | 300% |
| flexible change | ± 5 ° |
| Permanent deformation | ≤12% |
Our product advantages:
High quality and competitive price 1.Coexistence
2.Long life
3. Easy to install
4, high yield
5. Good performance
installation method:
1. Use Professional installation tool: the pressure will be applied to O-rings straight. As shown, a special tool is installed between the metal Floating ring and rubber ring towards the housing bore, the rubber ring It is pressed into the bore evenly.
2. Other Installation methods: one secondary seal is fixed between the cone Floating seal and O-ring seal annulus (as shown). Floating seal ring and by applying pressure uniformly Auxiliary O-ring O-ring brackets to ensure that other Correct position.
There
There are too many standards, I list only a few. please
Contact me, ask if you do not find what you want with. Thank you!

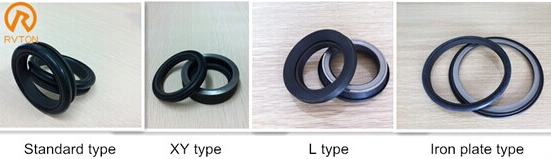

Standard
|
4176379 |
38 mm |
51 mm |
20.4 mm |
|
1791292 |
63.5 mm |
82.5 mm |
31.8 mm |
|
170-27-00010 |
130 mm |
151 mm |
32 mm |
|
9W 6668 |
163.3 mm |
191.2 mm |
38 mm |
|
9W 6672 |
182.3 mm |
210.3 mm |
38 mm |
|
9W 3732 |
264.9 mm |
292.8 mm |
38 mm |
|
4066695 |
298 mm |
328 mm |
42 mm |
L type
|
Product number |
OD |
diameter |
height |
|
U17386 |
62.1 |
47.1 |
10 |
|
U16187 |
72 |
54 |
10 |
|
U16186 |
87 |
66.9 |
11.6 |
|
655973C91 |
93 |
73.5 |
10 |
XY type
|
Product number |
OD |
diameter |
height |
|
7T4080 |
70.5 |
53.7 |
31.5 |
|
7T0158 |
82.2 |
66.5 |
31 |
|
7T0159 |
93 |
76 |
32.5 |
|
7T0157 |
99 |
82 |
32.5 |
Iron formula
|
Product number |
OD |
diameter |
height |
|
TZ300A-1010 |
180 |
164 |
9.7 |
|
TZ310B-1027 |
185 |
158.7 |
12.3 |
|
TZ550A-1010 |
210 |
186 |
11.4 |
|
TZ850A-1010 |
230 |
201 |
13.3 |
|
TZ150A-1010 |
260 |
216 |
13.3 |
|
TZ150F-1027 |
284 |
247 |
13.3 |
|
TZ200B-1010 |
290 |
248 |
13.3 |

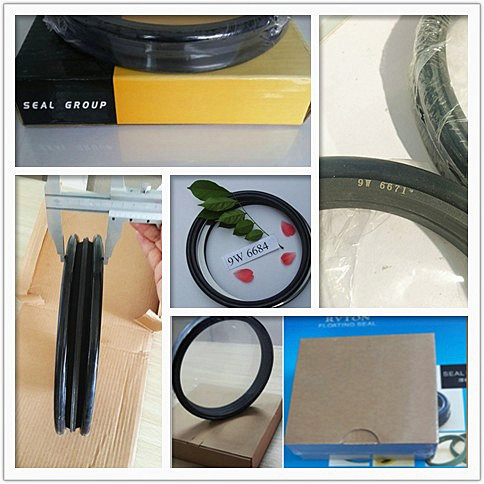

About Packing:
There Three styles of our mailbox. We also have cartons and pallets. We Seal group, and then a few boxs cartons.
About our factory:
Our company's products are in track-type tractors, excavators, heavy vehicles and machinery widely used. they Sold throughout the country and Southeast Asia, Europe and America, and The customer is always satisfied. Use RVTONG floating seal ring Make you more powerful and successful.
Feel free to contact the following Messi A quick answer:
Cao Messi
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Excavator Komatsu PC08UU Floating Seal Style Seal assy
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: HM400 komatsu dump truck parts Seal Assy
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Bearing GNL3800 Seals solution for rotary drills
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Hitachi FD ZX 450 Excavator Final Drive Floating Seals
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.
And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000 pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Seal group R4485 6560-81-8101 kubota tractor spare part
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: ZX50 Floating seals for hydraulic motor
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: TOR GZ5823 NBR Silicone O-ring TORRIC SEALS for CAT 740 Dumper
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
