Huangshi Rviton Machinery Co.,Ltd

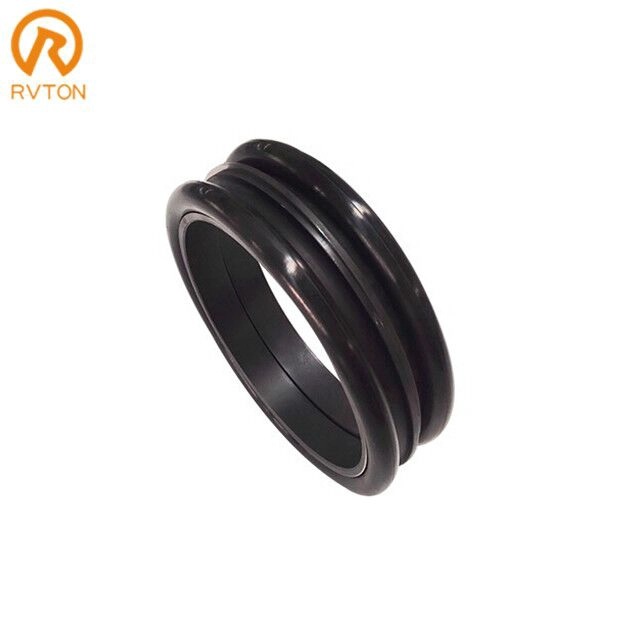

| 1 set | It consists of two metal sealing rings and two rubber seals |

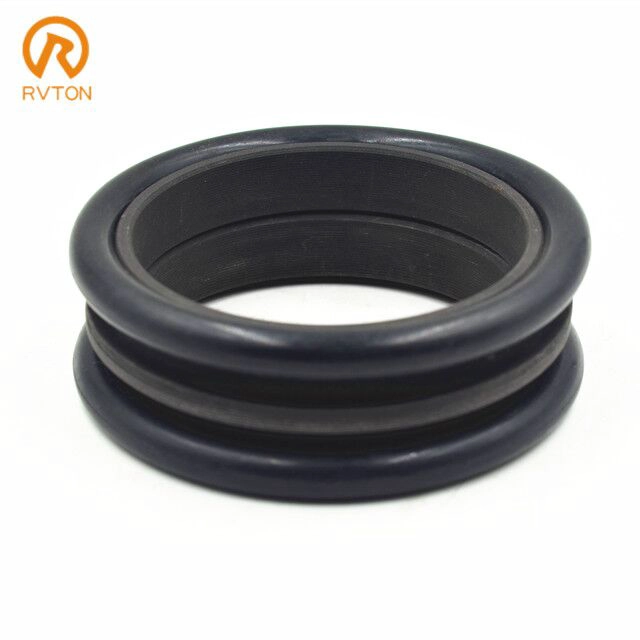

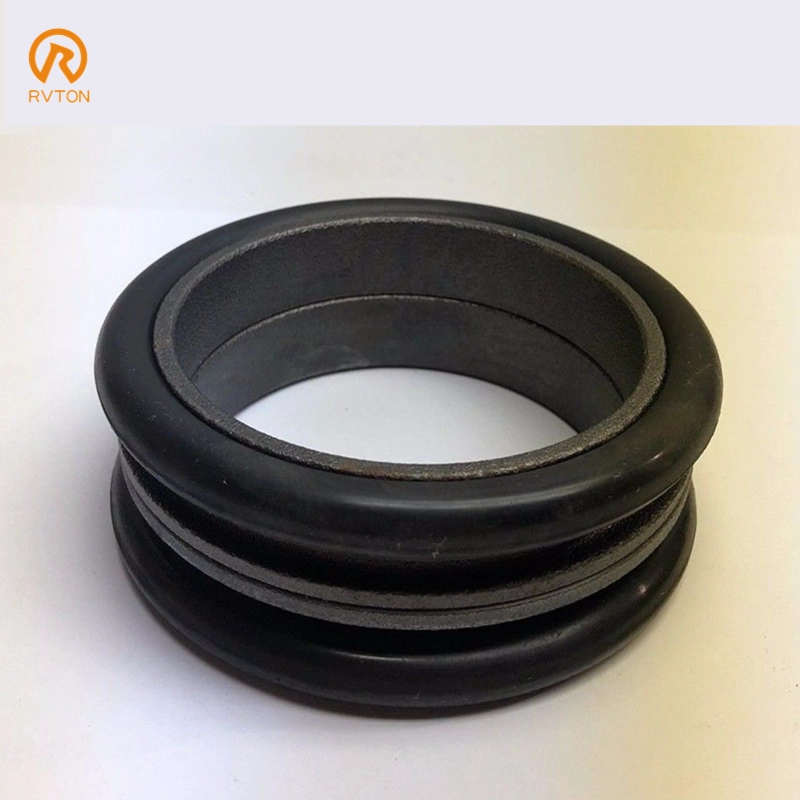

| Size | 38x51x20.4 |
| MOQ | 2 set |
| OEM for |

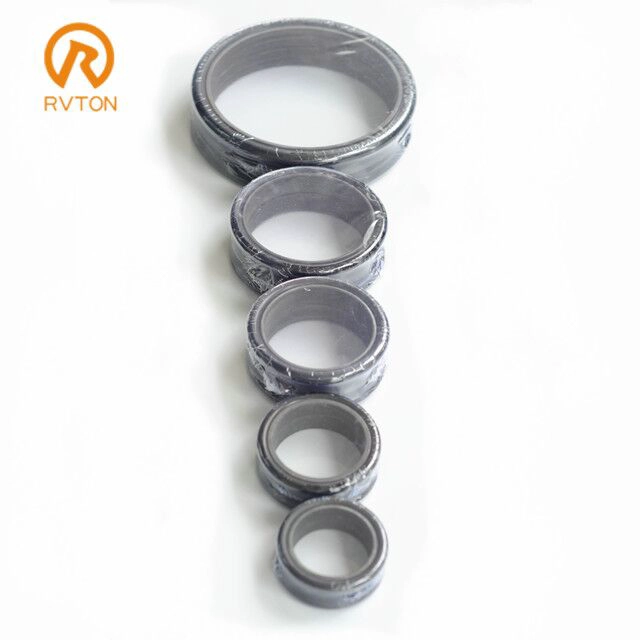

996C D6 |
| material | GCr15 steel and NBR60 |
| lifetime | 5000 hours |
| FOB | Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen |

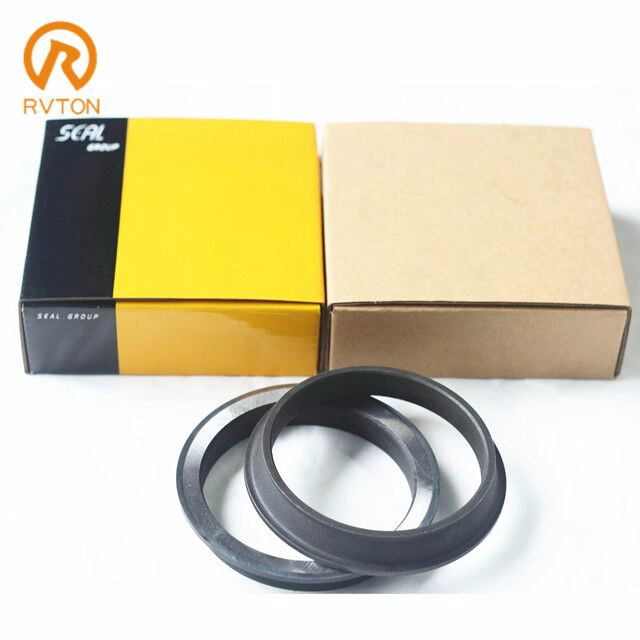

| package |
Shrink films + Inner box + standard export carton + wood pallet + wood box |
| Guarantee | 18 months |
Komatsu, Caterpillar, Hitachi, Kubota, Kobelco, Danapac, Goetze, Trelleborg...
| model# | Bottom roller | Carrier Roller | Front idler | Final Drive |
| PC60 | 110-30-00085 | 140-30-00040 | 141-30-00610 | |
| PC200 | 20Y-30-00040 | 20Y-30-00090 | 10Y-30-00100 | 150-27-00026 |
| E200B | 1M8746 | 8E5609 | 5P0204 | |
| E320 | 9W7220 | 8E5609 | 9W7225 | |
| D60 | 141-30-00616 | 141-30-00616 | 141-30-00610 | 141-27-00015 |
| D85ESS-1 | 154-30-00832 | 154-30-00832 | 154-30-00832 | 192-27-00022 |
| D3 | 9E6690 | 9E7216 | 9E6691 |
| METAL | Steel Gcr15/ 100Cr6 | Cast 15Cr3Mo |
| Surface smoothness/roughness: | ≤Ra0.2μm | 6.3-12.5μm |
| Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa |
| Forging line speed | 2m/s | 3m/s |
| Temperature range | —100~200°C | -40~160°C |
| Hardness (HRC) | 58-62 | 60-68 |
| Lifetime (Hours) | 3000 | 5000 |
| Material | NBR60 | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
| Specific Gravity(g/cm3） | 1.25 | 1.2 | 1.8 |
-Why Rvton deliver so fast?
-As we stock lots of raw materials,packing boxes and completed products.
-You're the factory?
Yes, we are a 13 years factory in Hubei Province, China
- How do you control the quality?
Each seal is 100% inspected in every process before exported
- How long to make the shipment?
In three days with stocks, 15-30 days according to the order qty.
- Can i buy one to test?
Yes, we offer a trial order and sample order for your Quality Evaluation.
Welcome to meet us at Shanghai Bauma Exhibition, booth Nr W4.152
For more information, please contact me! Good offer will be sent to you.
Fay Xu
Sales Representative
E: floatingseal04@rvton.com
T: 8615327878823
Skype: fay.xu3
Wechat: Rvtonseal04
Whatsapp: 86 15327878823
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Process:Cast iron
Warranty: 18 months
Rubber: Silicone
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 8000 hours.
4,The hardness is HRC65-68,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 0.15-0.3 Mpa
Temperature range: -40 ~ 160 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC58-62
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC58-62
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC60-65
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
Process: Forge
Hardness: HRC60-65
Warranty: 18 months
Color: Black
Metal: Steel GCR15
Rubber: Nitrile/ Silicone/ Viton
2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.
3,The lifetime is more than 4000 hours.
4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um
5,Specifications
Pressure: 1.0-1.7bar/cm2 (max.)
Temperature range: -100 ~ 200 °C
Circumferential speed: 2-3m/ sec (max).
6,The size of the floating seals are various,the inner diameter is from 30-1000mm
1.New Aftermarket parts
2.Material:Steel 100CR6 + NBR60
3.Metal Hardness:58-62 HRC
4.Rubber Hardness:60-65°
5.Lifetime:3000-5000 hours
6.Warranty:18 months
7.Stock offered
8.Packing:Shrink films + Inner box + standard export carton + wood pallet + wood box
