Track Roller floating seal assembly ,track frame floating seal assembly ,front idler floating seal assembly

  • 1.Lifetime:5000Hours/8000hours
  • 2.Hardness:58-62HRC/62-68HRC
  • 3. sealing material: Gcr15 100cr6//E52100/534A99/SUJ2.
  • 4. internal diameter: 38 mm-1000 mm.
  • 5. ngawatdu nitrile rubber o-ring: NBR/rubber/silicone/hydrogenation Ding.
  • 6. of sealing: forging and casting.
  • 7.O ring color: black/blue/red/custom.
  • 8.Warranty: 6 months after delivery.
  • 9. rubber ring, hardness: 60-65. Deg.
  • Product Details
Track Roller floating seal assembly ,track frame floating seal assembly ,front idler floating seal assembly




Product description
  •      Rvton seal is called a floating seal. Groups of instruments, mechanical face seal root rich Duo CD lifespan.
  •      Outside diameter of 35 mm floating seal comes from-1, 000. Mm
  •      Hardness HRC58-62 is precision work within 0.015 um.
  •      Flatness 0.1 0.2-um um maximum lifespan is more than 4, 000 hours.

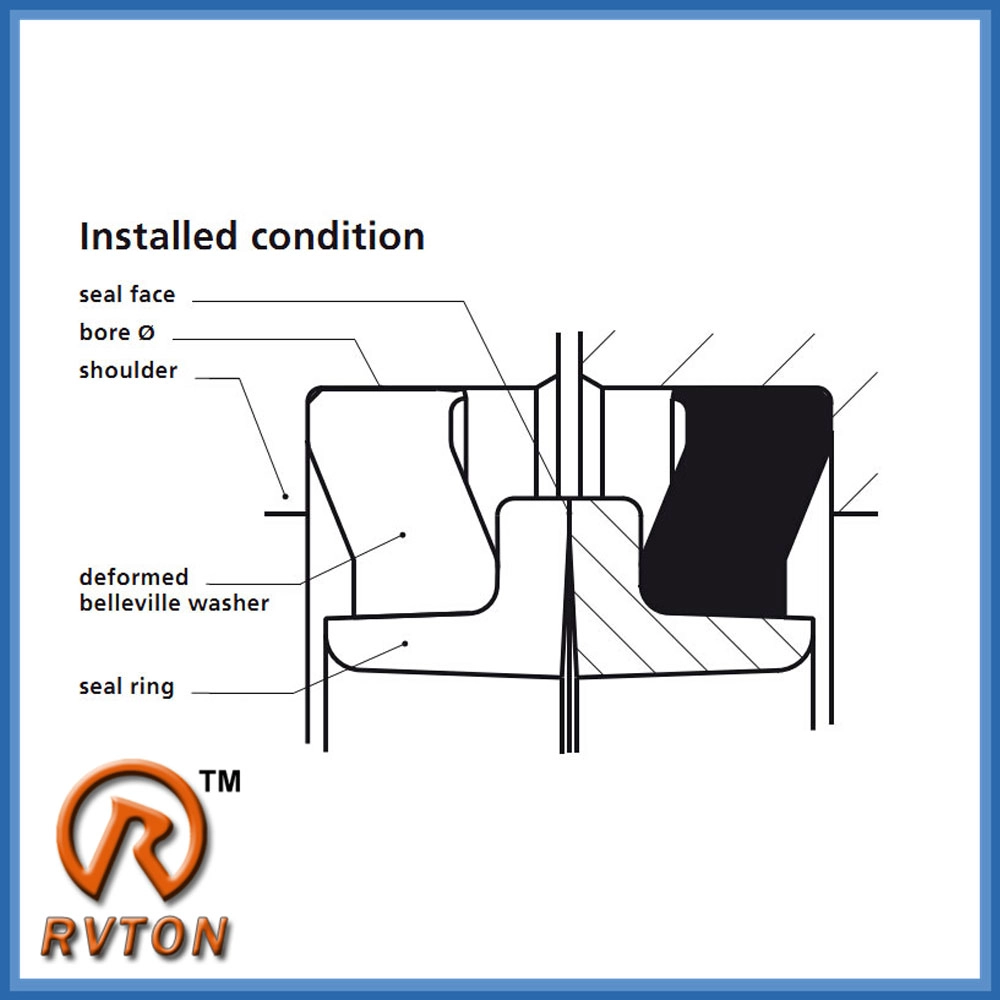

    Rvton the root basin sets are composed of metal and rubber ring o ring.



    QQ20150128191839

  •  -Metal ring



    Surface finish / Roughness. ≤ Ra0.2μm
    It faces. Finish. ≤ Ra0.015μm
    The pressure. ≤ 0.3 mpa
    Fakes/Handsome  The speed of the cable. 2m/s and  3m / s
    Hardness. 58 - 62 HRC
    Temperature.

     -100 ~ 200 ° C



     The rubber o-ring



    Shore hardness 60° ~ 65°
    Minimal. The strength  11MPa
    Minimal. The stretch  300%.
    Flexibility. The changes.  ± 5 °
    Permanent deformation ≤ 12%.

OEM Service
OEM steel may be free publications.



Version

OEM code

Komatsu

195-30-302 154-30-831, 141-30-616, 150-27-17., 207-27-0001, 130-27-00140, 130-27-0001, 14 X-27-00101, 150-27-0002 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021 175-27-121 140-30-00040, 00010-130-27, c 741857 91, 170-27-00010,428-33-00022 ...

Kobelco

R45P0018D, R45P0018D6, R45P0018D18, YN15V00037S029, LQ15V00031R200, R45P00018D9, R45P0018D25 R45P0018D12, R45P0018D27, R45P0018D13 SK200-8R45P0018D14, R45P0018D15 R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023 R45P0018D22, YN15V00037S029, R45P0018D30

Caterpillar

1. m. 8746 9W7225, 9W7220, 8E5609, 5610, 8E 9W 7232, 2858, 2 m, 1 m. 8747, 9W 6647, 9W 6648 1 M 8746, 3395 2P, 1 P 7249, P 5 7147 3P 5P, 9120, 0433, 9W, 9W 6666, K 5 1078 6645, 5314, 9G 5 m 1176, 9W. 6674, 9-314-5317, 9W7201 G, 4130, 317-6441, 172-161, 365-4922, 3144128, 2059025, 1326141 cat 320 ...

Hitachi

4283635, 4176379, 4177260, 4082631, 4642180, 4110363, ES-1104110362, 4153732, 4508193, ES-209, 4114753, ES-250, 4514259, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, E215 ES 64,4138544,4082698, EX400 ...

20140409150127

Packaging & shipping

Packing: neutral packing yellow white box and welcome your logo on packaging.


Application:
-Farm machinery, earthmoving, construction, coal mining.

Bulldozer-excavator Tractor crane Forklift, heavy duty truck lap

-Hydraulic motor shaft gear motor Undercarraige wheel Center. The travel tunnel

-For Komatsu Shantui Caterpillar OEM, Sany, Kubota, JCB Kobelco SK Volvo, Hitachi.
   Kanban New Holland Deere John min Fiat Allis mechanical Bob cat. Doosan IH case ... etc.


Show the item.

Welcome Rvton customers between 2014 and 2015, it is Bauma Bices a valuable experience for us.




Welcome to Bauma Shanghai China Rvton N2.469 booth 2016 make dating with Macy freely.


Company information

Huangshi machinery Rvitong Comapany Ltd.

1. the factory was established in the year 2004.

2. The second production line:

    A. one is a piece of forgeable 100Cr6 hardened HRC58-62, worktime is a 5000HRS.

    (B) the second is the 15Cr1Mo/15Cr3Mo steel hardness is HRC62-68, worktime is 8000HRS.

3. internal diameter 35-1000 mm

4. type: standard type, type L and type steel sheet, XY type.


Frequently asked questions

1. manufacturer for floating seal

     Rvton a manufacturer for floating seal only. We also design. The floating sea of drawing symbols, laloi, collect and produce seals, we. Accept customer's drawing and design examples.


2. a domestic company. The shipping method.

    This can be useful, we are in the middle of China's it. We take the same time to Wuhan Hotel ShanghaiNingbo Shenzhen or พอร์ตเซี We can send to large parts of the sea port. UPS Fedex DHL Express shipping free EMS TNT at door. The service.



3. usually it takes a long time to complete the purchase order.

    3-4 weeks for around 1000 series, and we provide regular. The Stock sample order or order a trial, which can supply immediately. Send.





4. tell us more about your process.

    The primary process is shown in the chart, the manufactuer of the following. Feel free to ask for more information.

For further questions please send it now?


Nina HuangMarketing overseas.

-E-mail   floatingseal02@rvton.com

Skype - ninahuang1

Wechat - rt15387235310

TM - cn1500613724

QQ -   2881724353

WhatsApp - + 86 15387235310

Direct line-0086 015717237241

Web site.-  www.sealgroupsupplier.com



Huangshi machinery Co., ltd Rvton

1004-block 5 International Trade. Center,

HuangshiHubeiChinese

Tel - 0086 015717237241 015717233790

Fax-0086 0714 6277689

We focus on a floating double CD 13 years produce cones.
