XKAH-00372 XKAH-00031 Floating Seal Stock

Process: Forge

Warranty: 18 months

Rubber: Nitrile/ Silicone/ Viton

2,Character: high hardness, wear-resisting, anti-dirty ability, corrosion resistant.

3,The lifetime is more than 4000 hours.

4,The hardness is HRC58-62,the working face precision within 0.015um, flatness up to 0.1um-0.2 um

5,Specifications

Pressure: 1.0-1.7bar/cm2 (max.)

Temperature range: -100 ~ 200 °C

Circumferential speed: 2-3m/ sec (max).

6,The size of the floating seals are various,the inner diameter is from 30-1000mm

Display Parameters Contact Now

Product Details

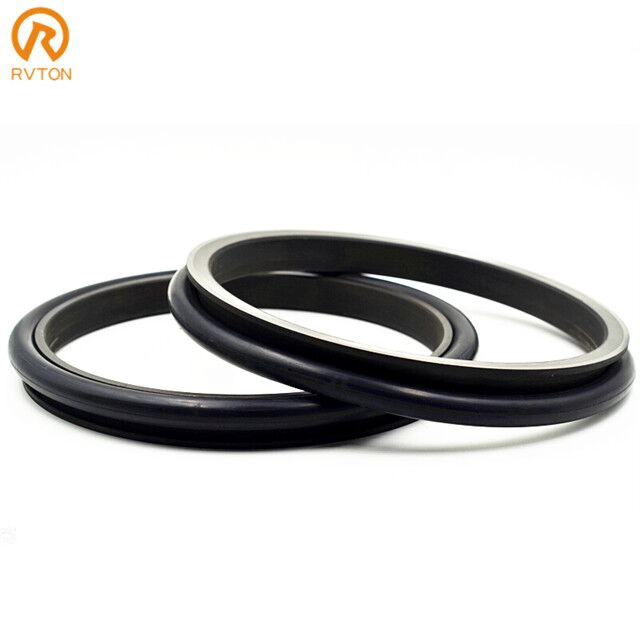

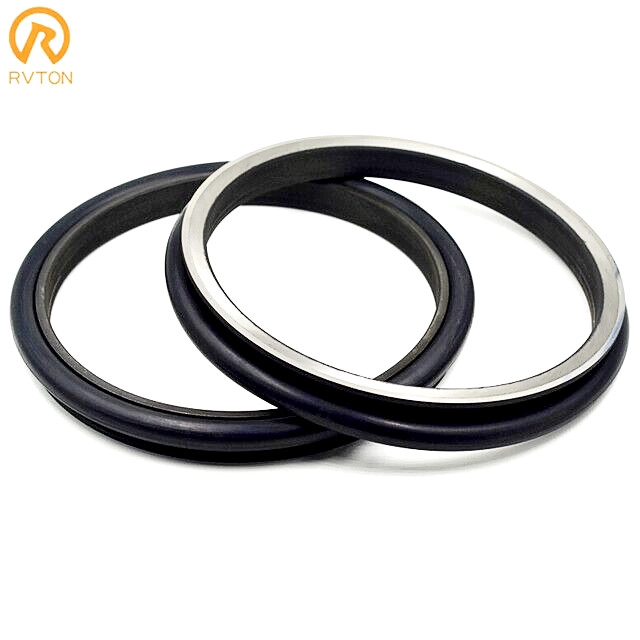

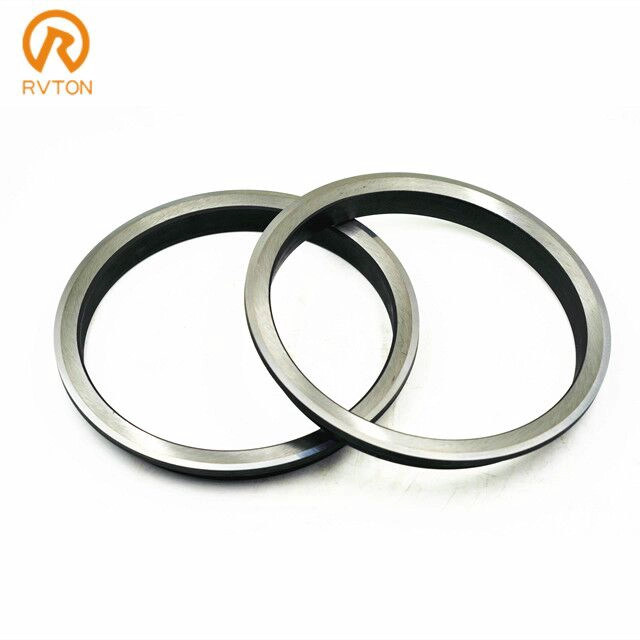

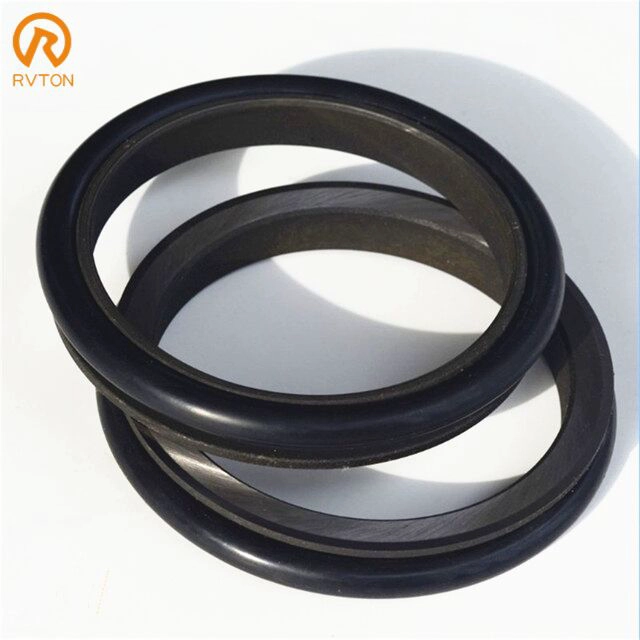

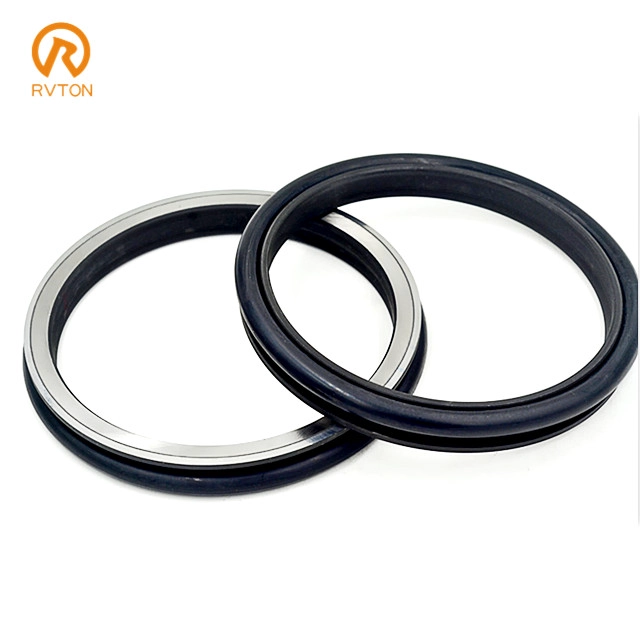

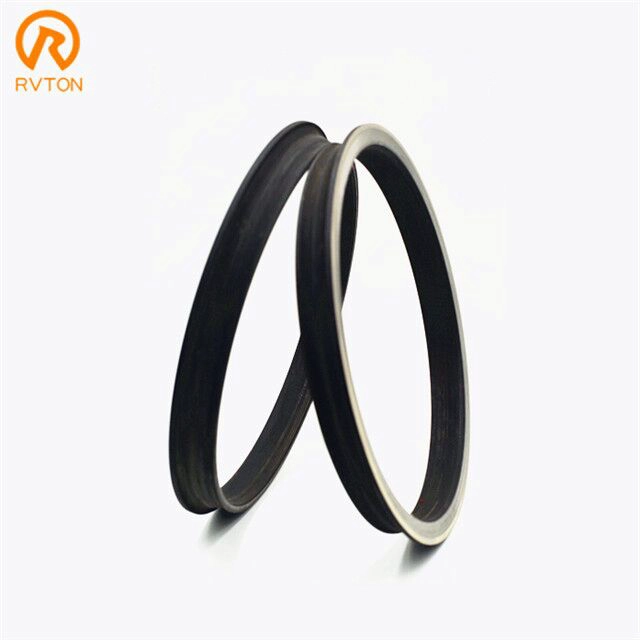

XKAH-00372 XKAH-00031 Floating Seal Stock

1 Set	Consist of two metal seal rings and two rubber seals
Weight	2.90 kgs
OEM/Aftermarket	aftermarket

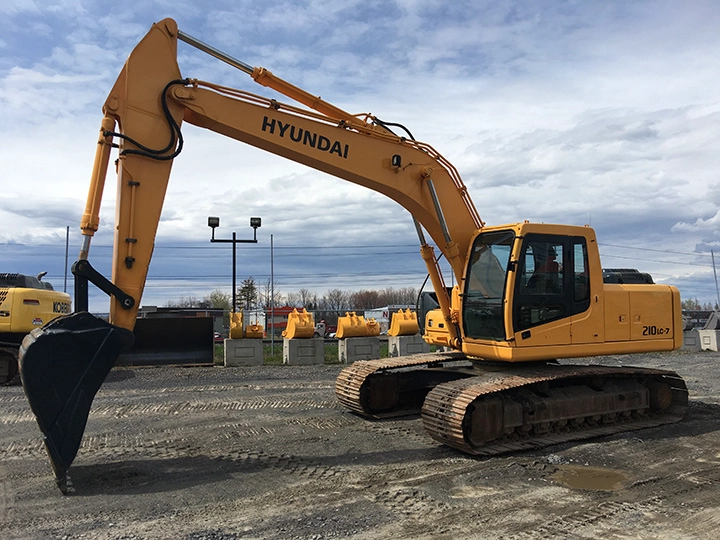

OEM converts	R210LC-7
Material	Forged Bearing Steel& Nitrile rubber
Brand	Rvton
FOB	Wuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
Packing	Outside: Standard export carton. Inside: Nuetral box. Free wooden pallets, wooden case
Warranty	18 months

There are 2 materials:

Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo

METAL	Steel Gcr15/ 100Cr6	Cast 15Cr3Mo
Surface smoothness/roughness:	≤Ra0.2μm	6.3-12.5μm
Work face smoothness	≤Ra0.15μm	≤Ra0.1μm
Pressure loading	≤0.15MPa	≤0.3 MPa
Forging line speed	2m/s	3m/s
Temperature range	—100~200°C	-40~160°C
Hardness (HRC)	58-62	60-68
Lifetime (Hours)	3000	5000

NBR60, silicone and FKM rubber rings are offered

MATERIAL	NBR60	SILICONE	FKM
Hardness	60-65	60-65	72-78
Minimum tensile strength	11mpa	10.6mpa	11mpa
Minimum elongation at break	300%	400%	260%
Permanent deformation	12%	8%	25%
Temperature range	-40℃ - +120℃	-49℃ - +230℃	-30℃ - +250℃

As the increased requirement, we have prepared a lot of goods in stock to meet our customers and our partners' urgent need.

Model#	Bottom roller	Carrier roller	Front idler	Sprocket
PC60	110-30-00085	140-30-00040	141-30-00610
PC200	20Y-30-00040	20Y-30-00090	10Y-30-00100	150-27-00026
E200B	1M8746	8E5609	5P0204
E320	9W7220	8E5609	9W7225
D60	141-30-00616	141-30-00616	141-30-00610	141-27-00015
D85ESS-1	154-30-00832	154-30-00832	154-30-00832	192-27-00022
D3	9E6690	9E7216	9E6691

Rvton Seals are also made upon your designs and drawings.

Packaging & Shipping

- Outside: Standard export carton.

- Inside: Inner box. Each set will be placed in the pp bag tidily.

Your special requirement are welcomed.

- Wood pallet free of charge

- Shipping via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...We have many shipping forwarders that have copperated for many years, reliable service and better shipping cost will be offered.
