Construction merchinery seal 76.97 H-24 floating seal

Home > Category > Seal group for Hitachi Aftermarket  > Construction merchinery seal 76.97 H-24 floating seal

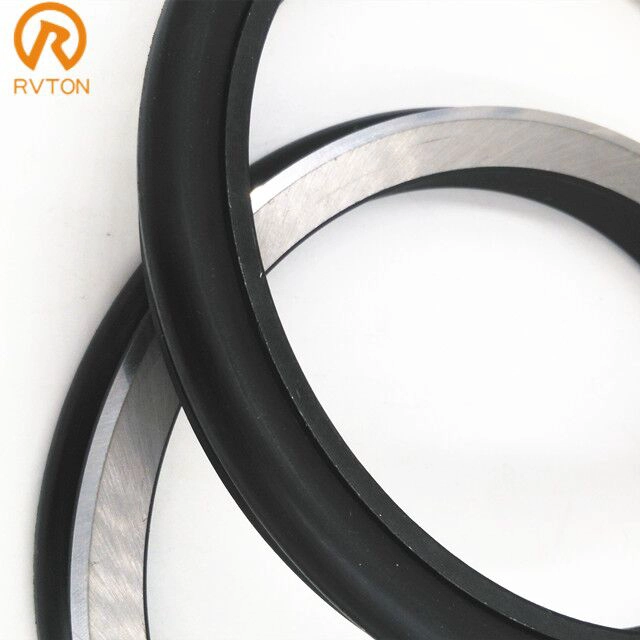

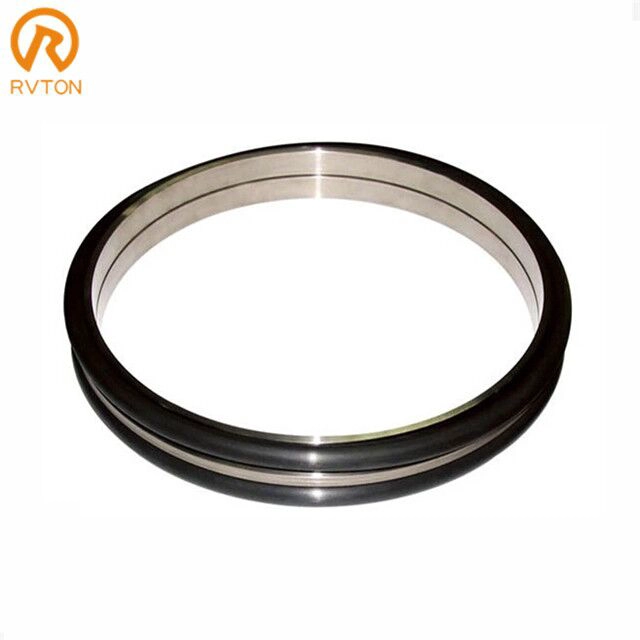

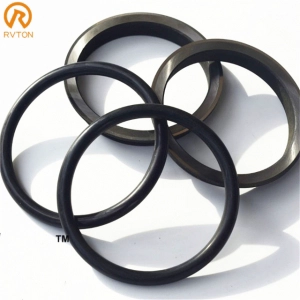

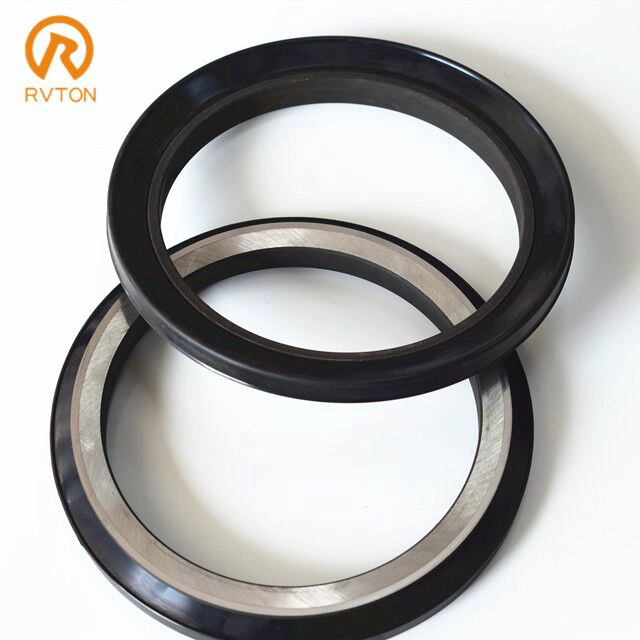

Construction merchinery seal 76.97 H-24 floating seal

  • 1.One set Consist of two metal seal rings and two rubber seals
  • 2.Material:Steel Gcr15/15cr3Mo + NBR60
  • 3.OEM/Aftermarket: aftermarket
  • 4.Material Forged Bearing Steel& Nitrile rubber
  • 5.Packing Outside: Standard export carton.Inside: Nuetral box.Free wooden pallets, wooden case
  • 6.Warranty 18 months
  • 7.Certification:ISO9001:2000
  • 8.Stock offered
  • Product Details

Construction merchinery seal 76.97 H-24 floating seal

1 set =2 metal seal rings and 2 rubber seals .

Specifications of metal seals
Material  Forge Gcr15   Cast 15cr3Mo
Surface smoothness  ≤0.2um   6.3-12.5um
Workface smoothness  ≤0.15um   ≤0.1um
Pressure loading    ≤0.15MPa  ≤0.3MPa
Forging line speed   2m/s    3m/s
Temperature range    -100-200℃  -40-160℃
Hardness(HRC)
  58-62   62-68
Lifetime(H)   3000-5000 5000-8000


Specification of rubber rings
Material  NBR  SILICONE  FKM
Hardness  60°-65°  60°-65°  72°-78°
Minimum tensile strength 11MPa  10.6MPa  11MPa
Minimum elongation at break 300%   400%  260%
Temperature range  -40℃-120  -49℃-230  -30℃-250
Permanrnt deformation  ≤12%  ≤8%  ≤25%







At present,we have standard type,L type,XY type,Steel sheet type 4 types of floating seals and rubber rings of different materials and colorsof course,you are welcome to customize.

Type of floating seal


Rubber rings


In order to meet the needs of our customers, we have prepared stocks of common parts.

Part#

 110-30-00085  110-30-00045  141-30-00610  140-30-00040  140-30-00141
 170-30-00110  170-30-00210  175-30-00070  175-30-00700   130-27-00020
 9G5311  9W6666  1M8747  9W6647  5M1176
 6T8433  9G5315  9W6671  9W6680  8E5609
 2627244   3176441   1796864  1456035  3144130
 20Y-30-00100   20Y-30-00040   22U-30-00060  21N-30-00040  14X-27-00100

Application

--Farm, construction, earthmoving, coal mining machineryFarm, construction, earthmoving, coal mining machinery

--Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe

--Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling



Packaging  Shipping

--Outside:Standerd export carton.

--Inside:Inner box.Each set will be placed in the pp bag tidily

--Wood pallet free of charge

--Cusmized packing with your logo is welcome.


Shipping

Via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...We have many shipping forwarders that have copperated for many years, reliable service and better shipping cost will be offered.


Exhibition

Factory


FAQ

Q:Are you manufacturer?
A:Yes,we are

Q:Are you supply OEM service?
A:Yes,and MOQ is 1pcs

Q:How do you control the quality?
A:100% inspect the size in the each procedure before a seal is exported.

Q:How long is the delivery time?
A:For stand size is just 1 day,for non-standard one normally 1 month

Q:Gurantee using life time?
A:5000 hours
