Floating oil seal installation methods

Floating oil seal installation methods

Alice 2020-08-05 15:45:27

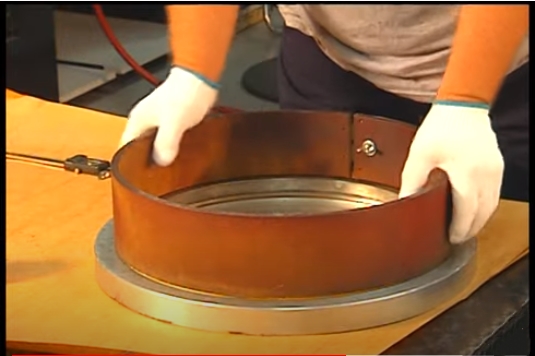

1 Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring: toward the seat hole, the rubber ring is evenly pressed into the hole.

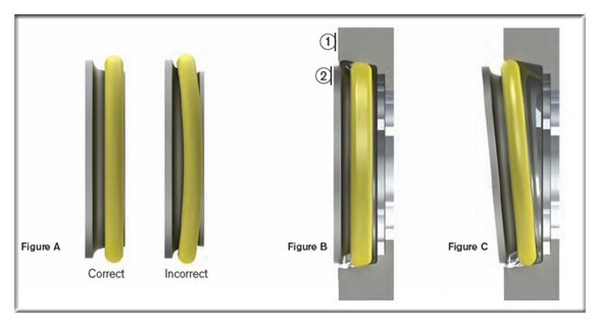

2 Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting position
