Model Introduction of Goetze Floating Oil Seal

2022-11-18 16:11:20

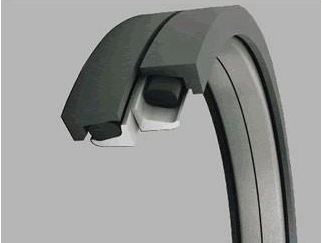

The 76.90H and 76.97H series are the floating seals of Goetze O-rings, and they are also the most common models. This design has better shock resistance and requires less precision in groove processing. The elasticity of the O-rings allows the floating oil seal to appear during operation. A small amount of axial displacement. The floating oil seal designed with O-ring needs to be installed with the help of special tools.

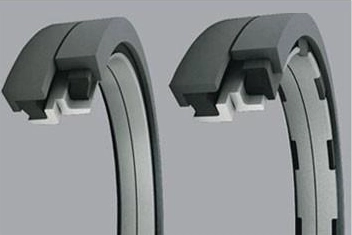

The 76.95 and 76.95H series are floating seals of the Goetze rectangular ring, among which 76.95H has a card slot, and the unique anti-slip design can prevent the slipping between the rubber ring and the metal ring when the floating oil seal is running. The installation of the rectangular ring is relatively simple and does not require any tools, but the precision of the groove processing is relatively high.
